PCE Instruments PCE-320-ICA User manual

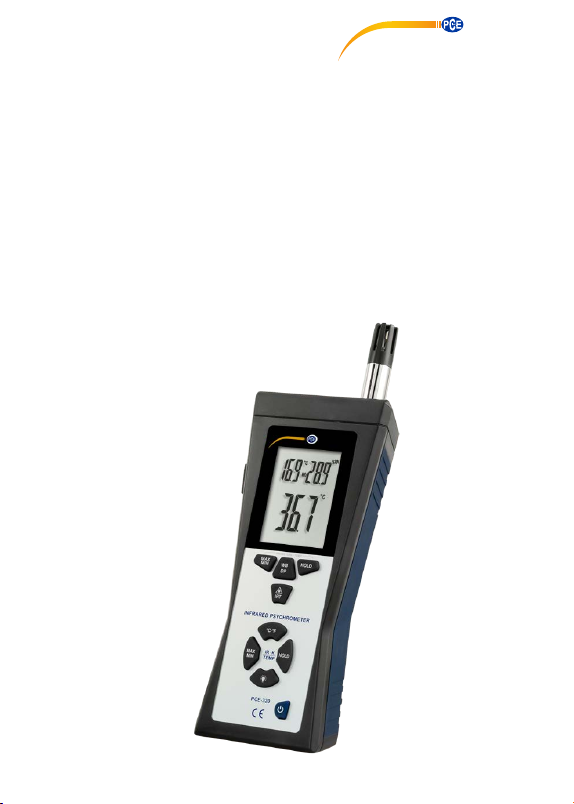

Temperature Meter

PCE-320

INSTRUCTION MANUAL

PCE Americas Inc.

711 Commerce Way

Suite 8

Jupiter

FL-33458

USA

From outside US: +1

Tel: (561) 320-9162

Fax: (561) 320-9176

[email protected]

www.pce-instruments.com/english

www.pce-instruments.com

PCE Instruments UK Ltd.

Unit 11

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: (0) 2380 98703 0

Fax: (0) 2380 98703 9

[email protected]

INTRODUCTION

Thank you for purchasing the PCE-320

Climate Meter. This device offers non-

contact (infrared) temperature

measurements capability. The built-in laser

pointer increases target accuracy while the

backlight LCD and handy push-buttons

combine for convenient, ergonomic

operation. Type K thermocouple functionality

and Humidity & Temperature Sensor of

highest reliability and excellent long-term

stability are also built-in.

Proper use and care of this meter will

provide years of reliable service.

1.Features:

1. 3 in professional measuring instrument:

Type k, IR and Psychrometer.

2. Triple digital LCD display.

3. Built-in microprocessor circuit assures

excellent performance and accuracy.

4. Fast response , all data calculated four

times in one second.

5. Standard type k(NiCr-NiAI) Thermocouple

input jack suitable for all kinds of type k

probe.

6. Infrared to measure surface temp.

7. Red laser indicator included.

8. LCD With Backlight

9. Automaticrange selection

1O.USB

11.

Low battery indication.

12.

Auto Power o.

13.

Handheld size,easy to carry.

The software incl. further instructions can be downloaded here:

https://www.pce-instruments.com/english/download-win_4.htm

WIDE RANGE APPLICATION:

Food preparation, Safety and Fire inspectors,

Plastic molding, Asphalt, Marine and Screen

printing, measure ink and Dryer temperature,

HVAC/R, Diesel and Fleet maintenance.

�

SAFETV

•

Use extreme caution when the laser

beam is turned on.

•

Do not let the beam enter your eye,

another person's eye or the eye of an

animal.

•

Be careful not to let the beam on

a reflective surface strike your eye.

•

Do not allow the laser light beam impinge

on any gas which can explode

CAUTIDN











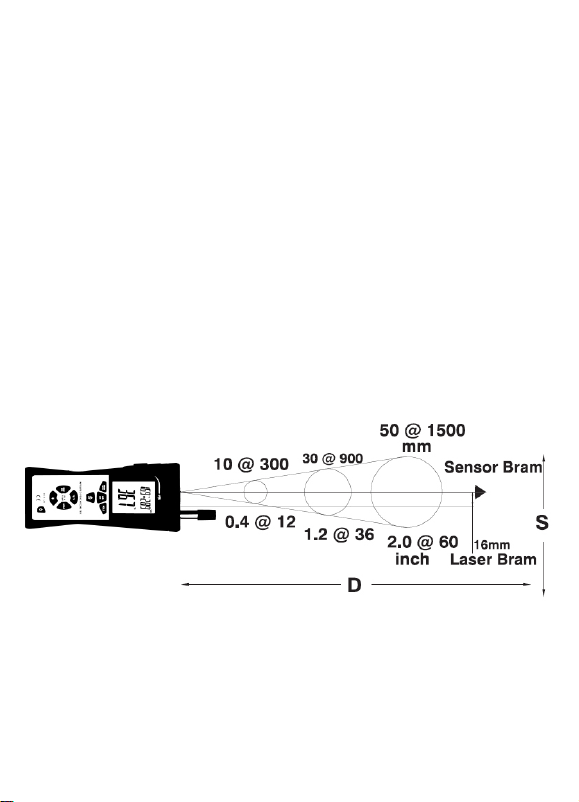

Distance & Spot Size

















MODEL:

-320

Distance(D) to Spot Size(S)

2. Specifications:

   

   

 

    

   

  

 

 

  

 

   

  

  



  



 

 

 



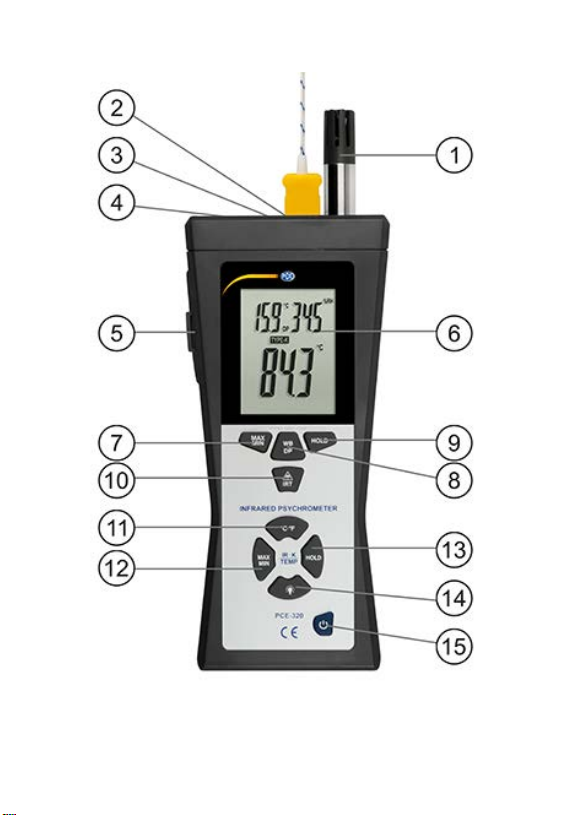

3. Front Description:

Humidity & Temperature Sensor

Thermocouple input jack

Laser pointer beam

Laser sensor

USB Interface

LCD Display

Humidity & Temperature Sensor Max/Min

Button

TEMP./Wet Bulb/Dew Point Button

TEMP./Wet Bulb/Dew Point/%RH hold

Button

1 O. IR Measurement Trigger

11.

ºF/ºC Button

12.

IR OR Type K Max/Min

Button

13.

IR OR Type K Hold Button

14.

Backlight Button

15.

Power Button

lndicator:

















 nnnn=�





 

® 

 

 

 







1)�







Press the

Max/Min

button to begin capturing

the Minimum and Maximum values, The 'REC'

icon will appear on the upper left corner of the

display.



Press the

Max/Min

to view maximum and

minimum recorded readings.



Press and Hold the

Max/Min

button until the

display returns to standard operation to exit the

Max/Min

function and the

"REC"

icon on the

upper left comer will disappear.

2)©

   



This manual suits for next models
