INSTRUMENT DESCRIPTION.

2.1 DESCRIPTION

Model OM BCD is a -digit panel monitor of serial or parallel BCD/BIN signal and montor of active transformer tapping leads,

allowing for projection of transitional status and servomotor running.

The instrument is based on a single-chip microprocessor, which guarantees accuracy, stability and easy control.

PROGRAMMABLE PROJECTION

Setting: in „CM“ you can set the type of BCD input or montor of active transformer tapping leads

Projection: -…

Control

The instrument is set and controlled by five control keys located on the front panel. All programmable settings of the instrument

are realised in two adjusting modes:

Configuration menu (hereinafter referred to as „CM“) is protected by an optional numeric code

and containis complete instrument setting

User menu may contain arbitrary programming setting defined in CM with another selective restriction change

All programmable parameters are stored in the EEPROM memory (they hold even after the instrument is switched off).

Excitation

is suitable for supplying power to sensors and transmitters. It has a galvanic separation.

Comparators

are assigned to monitor one, two, three or four limit values with relay output. The limits have adjustable hysteresis

within the full range of the display as well as selectable delay of the switch-on in the range of ..., s. Reaching the preset

limits is signalled by LED and simultaneously by the switch-on of the relevant relay.

Data outputs are for their rate and accuracy suitable for transmission of measured data for further projection or directly into

the control systems. We offer isolated RS andRS with the ASCII protocol or MessBus.

Analog outputs will find their place in applications where further evaluating or processing of measured data in external devices

is required. We offer universal analog output with the option of selection of the output type - voltage/current. The analog output

value corresponds with the displayed data and its type and range are selectable in the programming mode.

Extension

INSTRUCTIONS FOR USE OM 621BCD | 5

148.9~C

-263mm

453mV

6| INSTRUCTIONS FOR USE OM 621BCD

148.9~C

-263mm

453mV

. INSTRUMENT CONECTION

The instrument supply leads should not be in proximity of the incoming low-potential signals.

Contactors, motors with larger input power should not be in proximity of the instrument.

The leads into the instrument input (measured quantity) should be in sufficient distance from all power leads andappliances.

Provided this cannot be secured it is necessary to use shielded leads with connection to ground (bracket E).

The instruments are tested in compliance with standards for use in industrial area, yet we recommend to abide by the above

mentioned principles.

Relay parameters specified in the technical data

apply for resistance load. Upon connection of the

induction load we recommend to fit the leads to relay

 A with a fuse for maximum load protection.

Grounding on terminal „E“ must be connected

at all times

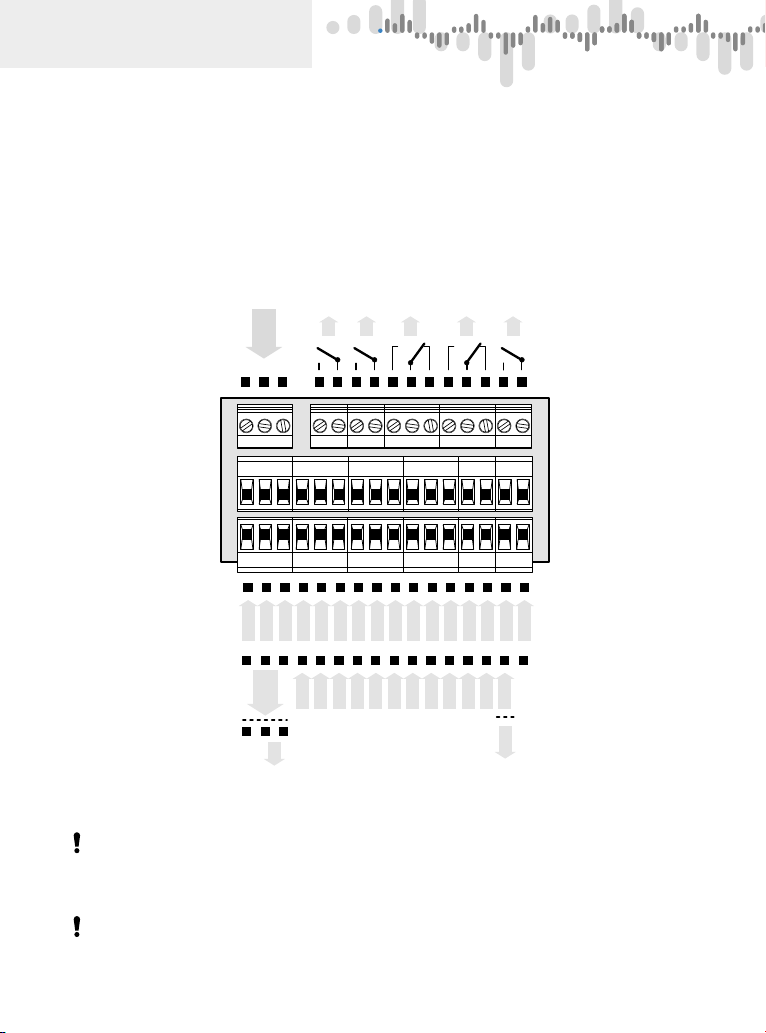

POWER

INP 0

INP 1

INP 2

INP 3

INP 4

INP 5

INP 6

INP 7

Sgn

Adr 0

Adr 1

Adr 2

GND

TxD/B

GND

RxD/A

GND

INP 8

INP 9

INP 10

INP 11

INP 12

INP 13

INP 14

INP 15

INP 16

INP 17

INP 18

INP 19

INP 20

INP 21

INP 22

INP 23

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

1 2 3 4 5 6 7 8 9 13 14 1510 11 12 16

Excit.

CA B OD E F G H I J K L M N

INSTRUCTIONS FOR USE OM 621BCD | 7

148.9~C

-263mm

453mV

8| INSTRUCTIONS FOR USE OM 621BCD

148.9~C

-263mm

453mV

. INSTRUMENT SETTING

The instrument is set and controlled by  control keys located on the front panel. By means of these control keys it is possible

to browse through theoperting program, to select and set the required values.

CONFIGURATION MODE USER MODE

• designated for professional service and maintenance • designated for instrument service

• complete instrument setting • may contain setting the limits, analog and

• access is password protected data output and brightness, with restriction

• authorization for "User mode" per the setting in"Configuration mode"

Symbols used in the instructions

DEF

Indication of manufacture pre-setting

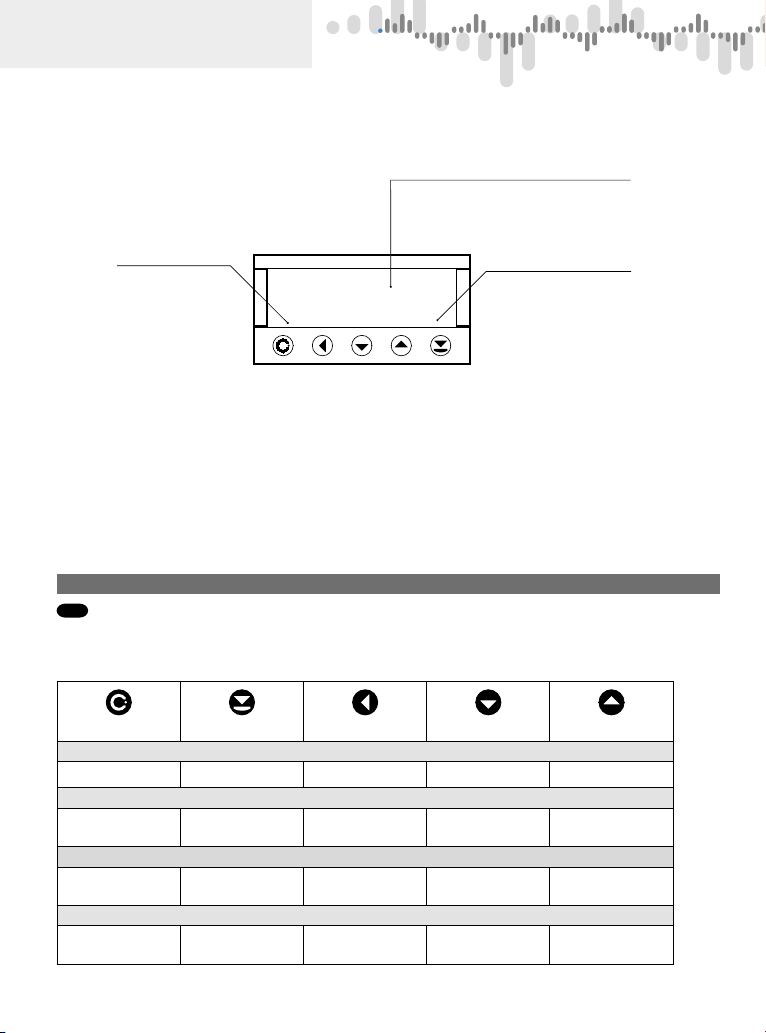

CONTROL KEYS FUNCTIONS

MENU ENTER LEFT DOWN UP

Measuring mode

menu access optional function optional function optional function optional function

Moving around in the menu

exit the menu

without saving

move to next level back to previous

level move to next item

Setting/selecting - items

cancel setting

without saving confirm selected

item move down move up

Setting - numbers

cancel setting

without saving cancel selected

number move to higher

decade change of current

figure - down - change of current

figure - up -

1 2 T3 4 M

4285.42

Ralay status (red LED)

ON the digit is lit

OFF the digit is not lit

OFF the digit is ﬂashing

limits with restriction

(hysteresis, delay

Function (green LED)

M Min/max. value

T Tare

Measured value (red/green LED)

the last two places may display

measuring units

INSTRUCTIONS FOR USE OM 621BCD | 9

148.9~C

-263mm

453mV INSTRUMENT SETTING .

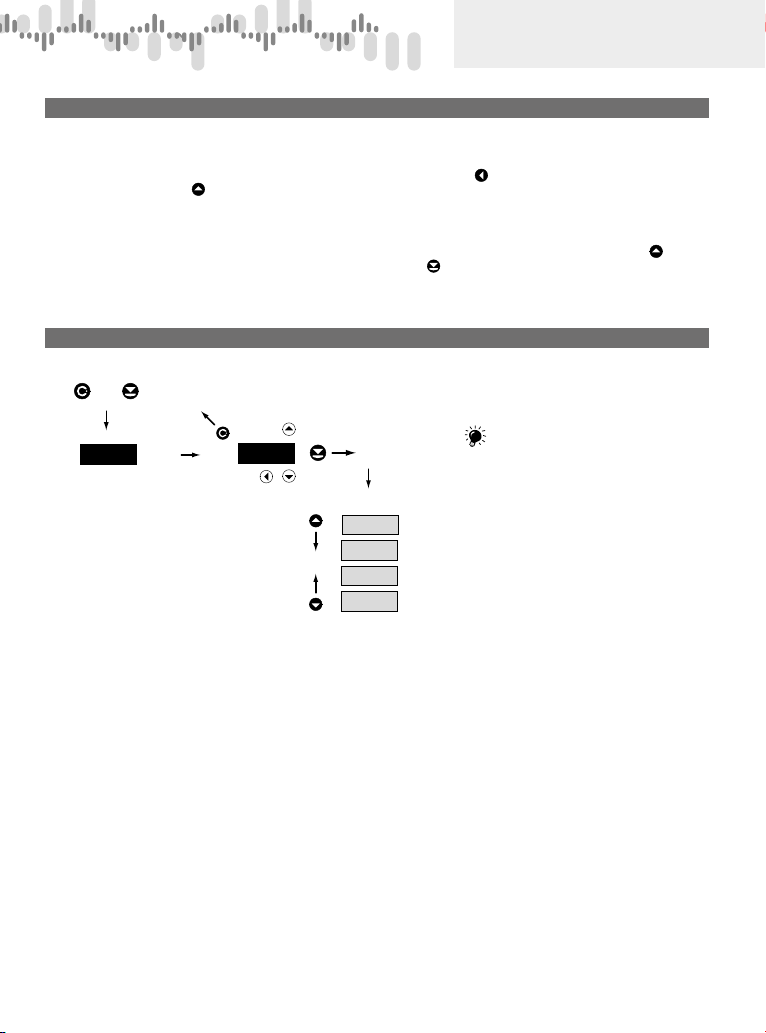

Setting the decimal point and the minus sign

DECIMAL POINT

Its selection is performed for each quantity independently in the „Channels“ menu. Upon modification of the number to be

adjusted transition behind the highest decade is performed by the control key , when the decimal point starts flashing.

Positioning is performed by .

MINUS SIGN

Its selection is performed independently for every item. The sign is set on the highest decade by the control key andit is

placed between the digits „“ and„“. Confirmation is made by pressing .

Access into the configuration mode

PASSW .

CHANEL.

SERVIC.

OUTPUT.

0000

shift left

w/o saving 0,1,2…

9,8,7…

The code is always preset from

manufacture to . In case of loss

of access password it is possible to use

universal access code ""

INPUTS

10 | INSTRUCTIONS FOR USE OM 621BCD

148.9~C

-263mm

453mV

. GUIDE THROUGH MINIMUM INSTRUMENT SETTING

uAccess into the „Configuration menu“

0000

PASSW .

shift left

w/o saving 0,1,2…

9,8,7…

+PASSW . Entering the introductory access

password

0000 Standard manufacture setting of

the access password

Setting display projection

MODE Setting the input parameters

BCD 24 Parallel BCD -  bit

BIN 20 Binar -  bit

BCD6-4 Serial BCD -  data/ Strobe

BCD3-8 Serial BCD -  data/ Strobe

BCD212 Serial BCD -  data/ Strobe

B C D1 3 4 Serial BCD -  data/ Strobe/

 segments

TR A N SF. Transformer tapping leads

INPUTS

S E R VI C .

OUTPUT.

CHANEL.

CLEAR

CONFIG

MODE

FILTER

DEC. PT.

ADDR.

BCD 24

BIN 20

BCD212

BCD3-8

BCD6-4

TR A N SF.

B C D1 3 4

HI.CHAR

M.M. INP.

. INSTRUMENT SETTING

Table of contents

Other Orbit Merret Measuring Instrument manuals

Orbit Merret

Orbit Merret OM 402UNI User manual

Orbit Merret

Orbit Merret OMM 37 User manual

Orbit Merret

Orbit Merret OMD 202UNI-B User manual

Orbit Merret

Orbit Merret OM 402UNI User manual

Orbit Merret

Orbit Merret OMM 650UC User manual

Orbit Merret

Orbit Merret OMM 323UQC User manual

Orbit Merret

Orbit Merret OM 652UC/20mm User manual

Orbit Merret

Orbit Merret OM 36DC User manual

Orbit Merret

Orbit Merret OM 652UC User manual

Orbit Merret

Orbit Merret OMM 37 User manual

Orbit Merret

Orbit Merret OM 601UQC User manual

Orbit Merret

Orbit Merret OMB 451UNI User manual

Orbit Merret

Orbit Merret OM 351 User manual

Orbit Merret

Orbit Merret OM 502 User manual

Orbit Merret

Orbit Merret OM 402PWR User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
