Omega iBTX User manual
TITLE
Main Menu
Title
(1 Day/Div)
1 Day
1 Month
1 Week
1 Month
1 Year
1 Minute
1 Hour
Wed Jun 01 12:00:00 PDT 2005
0
5/Div
50
Temp.
0015.7
300
90/Div
0%
100%
hPa
1200
RH Pres.
0040.9 1020.80005.7 CTemp_RH_hPa
Tue Jun 28 12:00:00 PDT 2005
Dew.
http://192.168.1.200
Barometric Pressure,
Temperature + Humidity
and
User’s Guide
omega.com
e-mail: [email protected]
For Latest Product Manuals
omegamanual.info
®
®
Shop on line at
It is the policy of OMEGA to comply with all worldwide safety and EMC/EMI regulations that apply.
OMEGA is constantly pursuing certification of its products to the European New Approach Directives. OMEGA will add the CE mark
to every appropriate device upon certification.
The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any
errors it contains, and reserves the right to alter specifications without notice.
WARNING: These products are not designed for use in, and should not be used for, patient-connected applications.
This device is marked with the international caution symbol. It is important to read the Setup Guide before installing or
commissioning this device as the guide contains important information relating to safety and EMC.
!!!
Part 1: Introduction
1.1 Safety and EMC Considerations........................................................................2
1.2 Before You Begin ................................................................................................2
1.3 Description ..........................................................................................................2
Part 2: Hardware
2.1 Mounting .............................................................................................................4
2.1.1 Mounting the Wall Mount iServer .......................................................4
2.1.2 Mounting the DIN Rail iServer ............................................................5
2.1.3 Removal from DIN Rail ........................................................................5
2.2 DIP Switches........................................................................................................6
2.2.1 DIP Switch Usage ................................................................................6
2.3 Parts of iServer Unit ...........................................................................................7
2.4 Network Communication Interfaces .................................................................8
2.4.1 10Base-T RJ-45 Pinout.........................................................................8
2.4.2 10Base-T Crossover Wiring.................................................................8
2.5 Industrial Probe ....................................................................................8
Part 3: Network Configuration
3.1 Network Protocols .............................................................................................9
3.2 Ethernet (MAC) Address ....................................................................................9
3.3 DHCP .............................................................................................................10
3.4 DNS .............................................................................................................10
3.5 Default IP Address.............................................................................................11
3.6 Port Number.......................................................................................................11
Part 4: Operations
4.0 Testing the Connection.....................................................................................12
4.1 iConnect Software.............................................................................................13
4.2 Setting a new IP Address over the Network ..................................................15
4.3 Setup and Operation using a Web Browser ..................................................16
4.3.1 Read Sensor .......................................................................................17
4.3.1.1 Java Runtime Environment 1.4 Setup Instructions.........................17
4.3.1.2 Java Runtime Environment 1.5 (5.0) Setup Instructions ................18
4.3.1.3 Browser Proxy Selection ...................................................................18
4.3.2 Chart ....................................................................................................19
4.3.3 Configuration ......................................................................................20
4.3.4 Sensor Parameter ...............................................................................22
4.3.5 Access Control ..................................................................................23
4.4 Telnet Setup ......................................................................................................25
4.5 HTTPget Program..............................................................................................25
4.5.1 HTTPget using Port 1000 ..................................................................26
4.5.2 HTTPget and ARP to setup Device IP Address ...............................27
4.6 ARP Protocol .....................................................................................................27
4.7 Remote Access (Tunneling) .............................................................................29
4.7.1 Local iServer .......................................................................................30
4.7.2 Remote iServer ..................................................................................31
4.8 iLog Software ....................................................................................................32
4.9 Mail Notifier Software .......................................................................................34
4.9.1 Installation...........................................................................................34
4.9.2 Program Options Setup and Configuration ....................................35
4.9.2.1 Sending Email Messages to a Cell Phone........................................36
4.9.3 Device Setting Setup and Configuration ..........................................36
Part 5: Specifications .................................................................................................................. 37
Part 6: actory Preset Values ......................................................................................................40
Appendix A Glossary.............................................................................................................41
i
Appendix B IP Address ........................................................................................................42
Appendix C IP Netmask.........................................................................................................43
Appendix D ASCII Chart .......................................................................................................44
ASCII Chart Control Codes .............................................................................45
Appendix E iLog Error Messages.........................................................................................46
Appendix Sensor System ..................................................................................................47
Part 7: Approvals Information
7.1 Electromagnetic Compatibility (EMC) ............................................................49
7.2 CC ..............................................................................................................49
!"

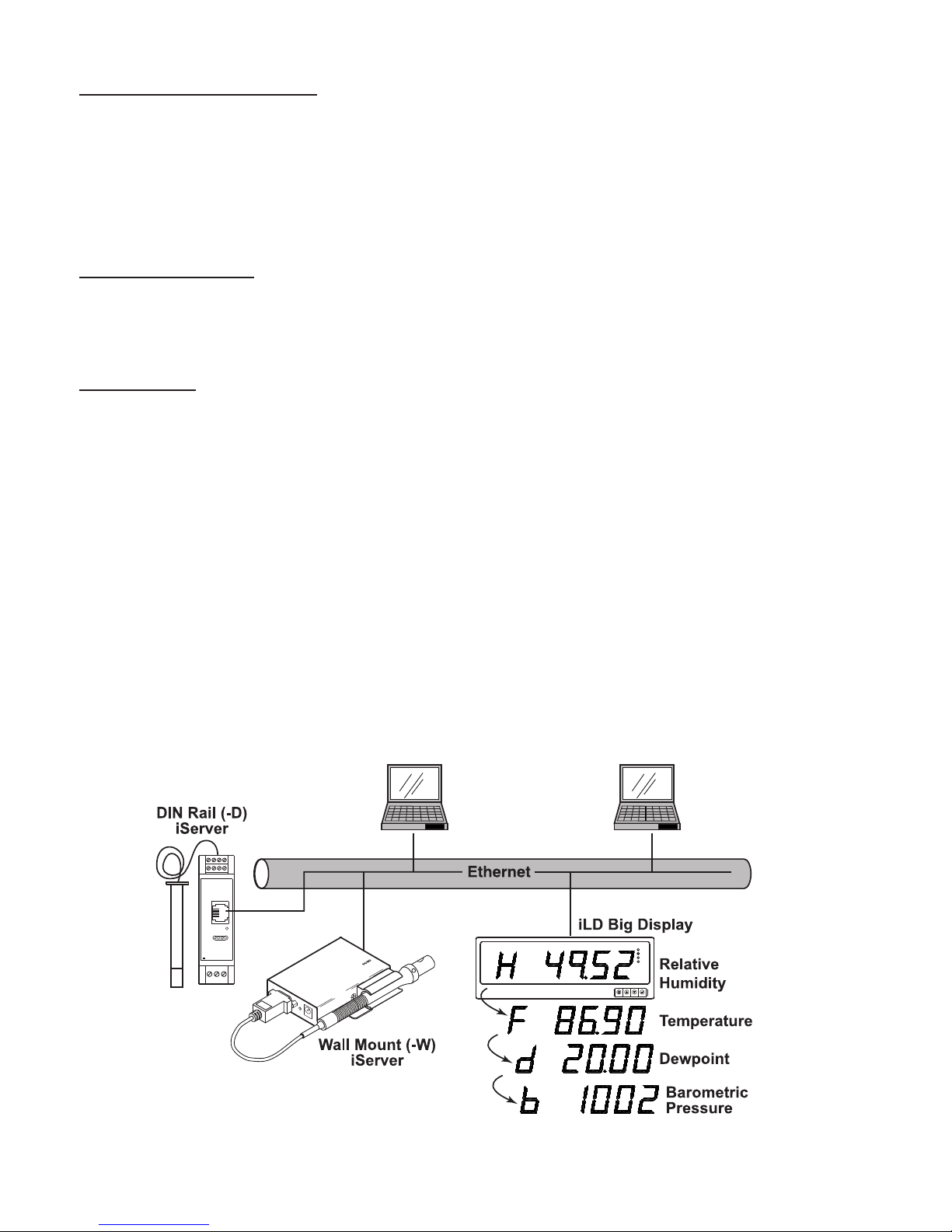

igure 1.1 iServer with Probe on the Ethernet Network ....................................................3
igure 2.2 Mounting - Wall Mount iServer ..........................................................................4
igure 2.2 Mounting - DIN Rail iServer ...............................................................................5
igure 2.3 Removal - DIN Rail iServer ...............................................................................5
igure 2.4a DIP Switch - Wall Mount iServer ........................................................................6
igure 2.4b DIP Switch - DIN Rail iServer ............................................................................6
igure 2.5 Parts of iServer Unit............................................................................................7
igure 2.6 RJ45 Pinout ........................................................................................................8
igure 2.7 10Base-T Crossover Cable Wiring ...................................................................8
igure 2.8 Industrial Probe Wiring Hookup ........................................................................8
igure 3.1 Labeling ..............................................................................................................9
igure 3.2 DIP Switch on Bottom Side of iServer ............................................................10
igure 3.3 Telnet Login into the iServer ............................................................................11
igure 4.1 Pinging the iServer from MS-DOS Prompt ...................................................12
igure 4.2 Assigning an IP Address using iConnect ......................................................13
igure 4.3 Accessing the iServer for Configuration .......................................................13
igure 4.4 Access Control ................................................................................................15
igure 4.5 iServer Home Page Menu ...............................................................................16
igure 4.6 Login and Administrator Password ................................................................16
igure 4.7 Read Sensor ....................................................................................................17
igure 4.8 Chart ..............................................................................................................19
igure 4.9 Configuration ...................................................................................................20
igure 4.10 Sensor Parameter ............................................................................................22
igure 4.11 Remote End Char ..............................................................................................23
igure 4.12 Access Control .................................................................................................24
igure 4.13 ARP Commands and Responses ...................................................................28
igure 4.14 PC-to-Device Communication..........................................................................29
igure 4.15 Device-to-Device Communication ...................................................................29
igure 4.16 Local iServer (Serial to Ethernet) Configuration Page .................................30
igure 4.17 Remote iServer Configuration Page ...............................................................31
igure 4.18 iLog Software Logging Data ............................................................................32
igure 4.19 iServer Mail Notifier Main Window ..................................................................33
igure 4.20 iServer Mail Notifier Profile Setup ...................................................................34
igure 4.21 iServer Mail Notifier Device Setting ................................................................35
igure .1 RH Accuracy Chart ...........................................................................................47
igure .2 Temperature Accuracy Chart ..........................................................................47
igure .3 Normal Range ...................................................................................................47
!!
Table 2.1 Parts of iServer Unit ....................................................................................7
ii
! $ (3*"!
Information that is especially important to note is identified by the following labels:
• NOTE
• WARNING or CAUTION
• IMPORTANT
• TIP
NOTE: Provides you with information that is important to successfully
setup and use the iServer.
CAUTION or WARNING: Tells you about the risk of electrical shock.
CAUTION, WARNING or IMPORTANT: Tells you of circumstances or
practices that can affect the instrument’s functionality and must refer
to accompanying documents.
TIP: Provides you helpful hints.
!"
• Virtual Chart Recorder
• Web Server
• Accurate Readings
• Password Protection
• Email Alarms
• Data Logging
1
!
!"!
1.1 Safety and EMC Considerations
Refer to the CE Approval Section
EMC Considerations
•Whenever EMC is an issue, always use shielded cables.
•Never run signal and power wires in the same conduit.
•Use twisted-pair wires for signal connections.
•Install Ferrite Bead(s) on signal wires close to the instrument if EMC problems persist.
ailure to follow all instructions and warnings may result in injury!
1.2 Before You Begin
Inspecting Your Shipment: Remove the packing slip and verify that you have received
everything listed. Inspect the container and equipment for signs of damage as soon as
you receive the shipment. Note any evidence of rough handling in transit. Immediately
report any damage to the shipping agent. The carrier will not honor damage claims
unless all shipping material is saved for inspection. After examining and removing the
contents, save the packing material and carton in the event reshipment is necessary.
Customer Service: If you need assistance, please contact the Customer Service
Department nearest you.
Manuals, Software: The latest Operation Manual as well as free iServer configuration
software (iConnect), datalogging software (iLog) and Mail Notifier are available at the
website listed on the cover page of this manual or on the CD-ROM enclosed with
your shipment.
1.3 Description
View Barometric Pressure, Temperature + Humidity with a Web Browser.
The iServer transmitter let’s you monitor and record Barometric Pressure, Temperature,
Relative Humidity and Dew Point over an Ethernet network or the Internet with no special
software except a Web Browser.
The iBTHX is for barometric pressure, temperature, relative humidity and dew
point. The iBTX is for barometric pressure and temperature. The difference
between the iBTHX and the iBTX is only the probe/sensor.
The iServer serves Active Web Pages to display real time readings, display charts of
barometric pressure, temperature and humidity, or log data in standard data formats for
use in a spreadsheet or data acquisition program such as Excel or Visual Basic.
The virtual chart viewed on the web page is a JAVA™ Applet that records a chart over
the LAN or Internet in real time. With the iServer, there is no need to invest time and
money learning a proprietary software program to log or chart the data.
Adjustable Charts: Chart scales are fully adjustable on the fly. For example, the chart
can display one minute, one hour, one day, one week, one month or one year.
Temperature and humidity can be charted across the full span (-40 to 85°C, and 0 to
100% RH) or within any narrow range (such as 20 to 30°C). Barometric Pressure can be
displayed in mbar (hectopascals hPa), millimeters of Mercury (mmHg), or inches of
Mercury (inHg).
Display and Chart Measurements: The iServer transmitters come complete with a barometric
pressure, temperature and humidity probe for measurement of a single location.
2
Award-winning Technology: The iServer is simple to install and use. It features award-
winning technology that requires no special software except a Web Browser.
The iServer connects to an Ethernet Network with a standard RJ45 connector and sends
data in standard TCP/IP packets. It is easily configured with a simple menu using a Web
Browser and can be password protected. From within an Ethernet LAN or over the
Internet, the user simply types its IP address or an easy to remember name such as
"Room 5" or "ServRoom" in any Web Browser, and the iServer serves a Web Page with
the current readings.
Typical Applications: The iServer is great for monitoring temperature + humidity in
applications such as: clean rooms, computer rooms, HVAC systems, pharmaceutical
and food processing and storage, hospitals, laboratories, semiconductor fabs, electronic
assembly, warehousing, museums, manufacturing, greenhouses, farm animal shelters,
and many more.
Email Alarms: All iServer models that are on a LAN that is connected to the Internet can
trigger an alarm that can be sent by email to a single user or to a group distribution list,
including text messages to cell phones and PDA’s.
This device can be purchased as a stand alone DIN Rail mounted unit
(iBTX-D or iBTHX-D), as a bench/wall mount unit (iBTX-W or iBTHX-W), or as a
bench/wall mount unit with an LCD display, lash Memory Card and Back-up
Battery (iBTX-SD).
The following example illustrates how you can hookup an iServer to your network:
A standard web browser can be used to monitor and chart barometric pressure,
temperature, humidity, and dew point. The browser can also be used to configure the
device’s IP address, passwords for access and overall configuration parameters.
An iLD Big Display can display temperature and barometric pressure received from an
iServer over the Ethernet or the Internet. The following example illustrates how you can
hookup an iServer and iLD to your network:
igure 1.1 iServer with Probe on the Ethernet Network
ETHERNET
DC POWER IN
RESET
COL
ON
TX
RX
COMPUTER
(iLOG application
software)
COMPUTER
(Standard
Web Browser)
3
!$
2.1 Mounting
2.1.1 Mounting the Wall Mount iServer
Position unit where required. Mark and drill the two #6 screw holes.
After bracket is mounted on the wall, align back of unit over the three bracket clips, once
engaged, slide downward, the unit will snap in place.
igure 2.1 Mounting - Wall Mount iServer
It is recommended that you ground your unit. With one end of a wire connected
to earth ground, the other side can be wrapped around the ground screw,
located on the bottom of the case.
If unit is to be mounted on a flat surface, you may take the bottom rubber feet off
the unit.
66.0 [2.60]
33.0 [1.30]
93.1 [3.67]
38.1 [1.50]
27.3 [1.07]
Bracket Clips (3)
Drill 3.6 [0.14] (2 plcs)
Use #6 Screws (Provided)
to Mount the Bracket
Ethernet
Ground Screw
on Rear of Case
Dimensions in mm [in]
4
2.1.2 Mounting the DIN Rail iServer
To install unit onto DIN Rail:
a) Tilt unit, position mounting slot onto DIN Rail, as shown.
b) Push unit towards DIN Rail and it will snap into place.
igure 2.2 Mounting - DIN Rail iServer
2.1.3 Removal from a DIN Rail
a) Insert flat screw-driver into tab and push downwards.
b) Unit will detach from DIN Rail.
igure 2.3 Removal - DIN Rail iServer
5
2.2 DIP Switches
2.2.1 DIP Switch Usage
The iServer is shipped with all DIP switches in "O " position.
1) N/C - not used
2) To change to default factory settings
3) To enable/disable DHCP
4) N/C - not used
To set the iServer to factory default settings, slide DIP switch #2 to ON position.
Power the iServer on and wait about 10 seconds until the iServer fully boots up.
Set the DIP switch #2 back to OFF position (it does not matter if the iServer is
powered ON or OFF, just make sure that the DIP switch is set to OFF, otherwise,
every time the unit is power-cycled the factory settings will take over.
To enable the DHCP, besides using DIP switch #3, set the iServer’s IP address
to 0.0.0.0. An iServer with IP address of 0.0.0.0 will request an IP address,
gateway address, and subnet mask from a DHCP server over the Ethernet.
igure 2.4a DIP Switch igure 2.4b DIP Switch
Wall Mount iServer DIN Rail iServer
1
4
3
2
OFF
ON
1
4
3
2OFF
ON
SW1
SW1
OFF
ON
4
3
2
1
SW1
OFF
ON
4
3
2
1
SW1
6
This manual suits for next models
1
Table of contents
Other Omega Measuring Instrument manuals
Omega
Omega HHTQ35 User manual
Omega
Omega FTB700 User manual
Omega
Omega HHWT-11 User manual
Omega
Omega OMEGAETTE HHT-1500 User manual
Omega
Omega HHM-MA640 User manual
Omega
Omega TCL-3M165E2 Series User manual
Omega
Omega CL540A User manual
Omega
Omega FL-7600 Series Manual
Omega
Omega i-SERIES User manual
Omega
Omega DPF20 Series User manual
Omega
Omega PLATINUM Series User manual
Omega
Omega SP-014 User manual
Omega
Omega HHM598 User manual
Omega
Omega DP18-P8 User manual
Omega
Omega FL500 Series User manual
Omega
Omega HHF142 User manual
Omega
Omega DP41-W User manual
Omega
Omega DP18-RT1 User manual
Omega
Omega FLOWMETER FL-1500A User manual
Omega
Omega RHXL5SD User manual
