Olympus CIX100 User manual
Installation Manual
CIX Height Measurement
Solution
OLYMPUS Cleanliness Inspector System
Optical Microscope and Accessories
English
®
Any copyrights relating to this manual shall belong to
Olympus Soft Imaging Solutions GmbH.
We at Olympus Soft Imaging Solutions GmbH have tried to make the information contained in this manual as
accurate and reliable as possible. Nevertheless, Olympus Soft Imaging Solutions GmbH disclaims any warranty
of any kind, whether expressed or implied, as to any matter whatsoever relating to this manual, including
without limitation the merchantability or fitness for any particular purpose. Olympus Soft Imaging Solutions
GmbH will from time to time revise the software described in this manual, and reserves the right to make such
changes without obligation to notify the purchaser. In no event shall Olympus Soft Imaging Solutions GmbH be
liable for any indirect, special, incidental, or consequential damages arising out of purchase or use of this
manual or the information contained herein.
No part of this document may be reproduced or transmitted in any form or by any means, electronic or
mechanical for any purpose, without the prior written permission of Olympus Soft Imaging Solutions GmbH.
All brands are Trademark or registered Trademark of their respective owners.
© Olympus Soft Imaging Solutions GmbH
All rights reserved
Printed in Germany
510_UMA_Solution_ParticleHeight_CIX100_en_00_15092016
Olympus Soft Imaging Solutions GmbH, Johann-Krane-Weg 39, D-48149 Münster,
Tel. (+49)251/79800-0, Fax (+49)251/79800-6060
Solution CIX Height Measurement
Contents
Installation Manual
1 CIX Height Measurement Solution ........................4
1.1 Safety instructions .......................................................................4
1.2 Installing the objective .................................................................4
1.3 Installing the Solution...................................................................8
1.4 Configuring the objective ...........................................................12
1.5 Calibrating the objective ............................................................13
Solution CIX Height Measurement
Installation Manual 4
1 CIX Height Measurement Solution
This manual describes the installation of the objective as well as the
installation and configuration of the software for the CIX Height
Measurement Solution. Read this manual carefully before installing and
configuring the system.
1.1 Safety instructions
1.2 Installing the objective
1. Use the joystick to move the stage all the way forwards to the
mounting position.
2. Remove the multi-sample holder.
3. Lower the stage to its lowest position by rotating the coarse focus
adjustment knob (1).
Caution Pinching hazard
When the stage moves, gaps appear. This creates a pinching hazard.
Make sure that you are not within the stage’s range of movement
when it is moving.
Try never to put your hands or fingers into any gaps.
Solution CIX Height Measurement
Installation Manual
5

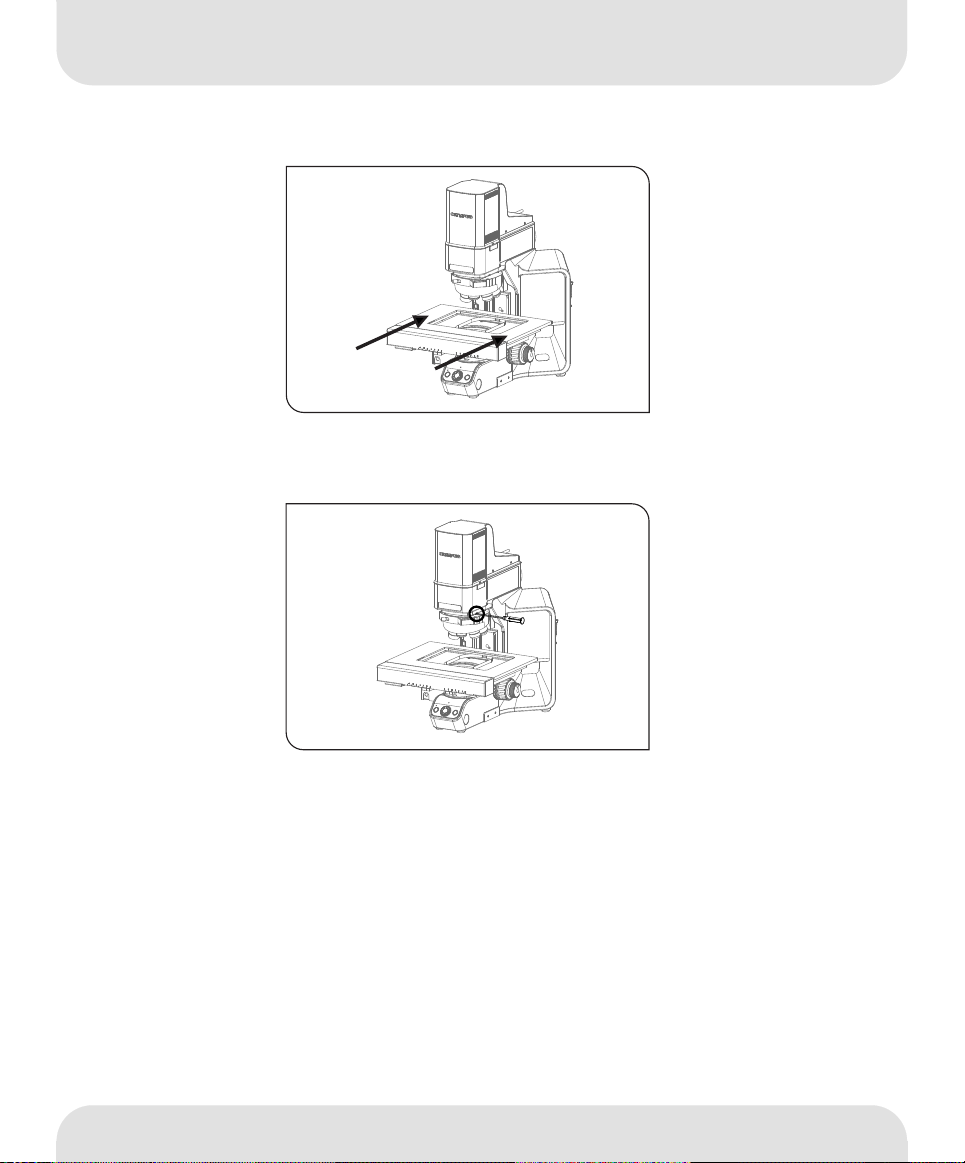

4. Use the joystick to move the stage all the way back towards the
frame.
5. Loosen the screw that holds the nosepiece using the hexagonal
screwdriver. To do that, use the screw that is located at the
microscope frame.
Solution CIX Height Measurement
Installation Manual 6
6. Carefully pull the nosepiece forwards along the runner.
7. CIX90: The nosepiece is connected with a loose cable. Gently
remove the plug.
8. Remove the cover on position 4 of the nosepiece.
9. Remove the objective from its packaging.
10. Screw the objective in to position 4.
11. CIX90: The following steps should be performed by two people, if
possible.
Connect the port of the nosepiece with the plug of the cable
under the microscope frame.
Place the nosepiece back in the runner on the microscope. While
you do this, keep the cable out of the way by pulling it carefully
back towards the back of the microscope frame.
Push the nosepiece slowly all the way to the back.
Solution CIX Height Measurement
Installation Manual
7

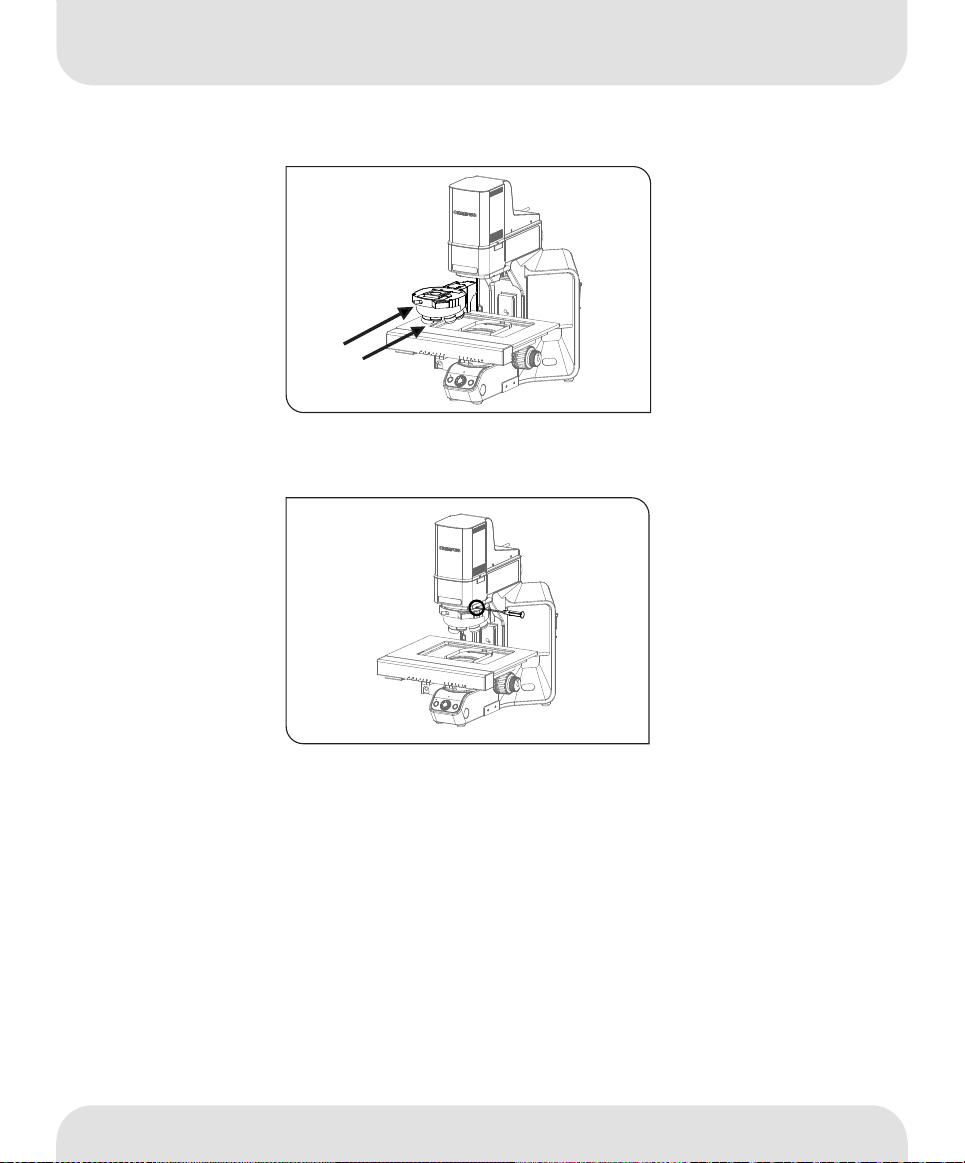

12. CIX100: Place the nosepiece in the runner on the microscope and
push it slowly all the way to the back.
13. When the nosepiece is all the way back on the runner, tighten the
screw with the hexagonal screwdriver.
Solution CIX Height Measurement
Installation Manual 8
1.3 Installing the Solution
A license key is required for the installation of the software. You can find
the license key on the license certificate in the accompanying envelope.
Insert the DL-DVD into your DL-DVD drive. The start dialog box of the
installation program should be automatically displayed on your screen.
Note: It is possible that the autorun function of your operating system is
deactivated. In this case, double click the “setup.exe” file located in the
root directory of your DL-DVD drive.
The installation program's first dialog box asks you to enter the license
key for the solution. Please enter all 15 characters into the required fields.
Solution CIX Height Measurement
Installation Manual
9
Activation
The license has to be activated within 30 days.
Activation requires a working Internet connection. The activation takes
place in the background.
Click the [Contact Server] button to complete the activation of the
OLYMPUS Cleanliness Inspector Software.
Note: If you are not connected to the Internet, but are able to exchange
files with another computer that does have an Internet connection, please
follow the steps in the next dialog box.
Solution CIX Height Measurement
Installation Manual 10
The following website is used for the activation.
