OfficeSource PL155 User manual

OFFICE FURNITURE

MODEL NO. PL155

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

Keep all hardware parts out of reach of children.

Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from

Remove all wrapping materials, including staples & packing straps before you start to assemble.

Do not tighten any screws or bolts until the unit is completely assembled.

Check that you have all parts and hardware.

IMPORTANT !!

being scratched.

Please follow these instructions for easy assembly.

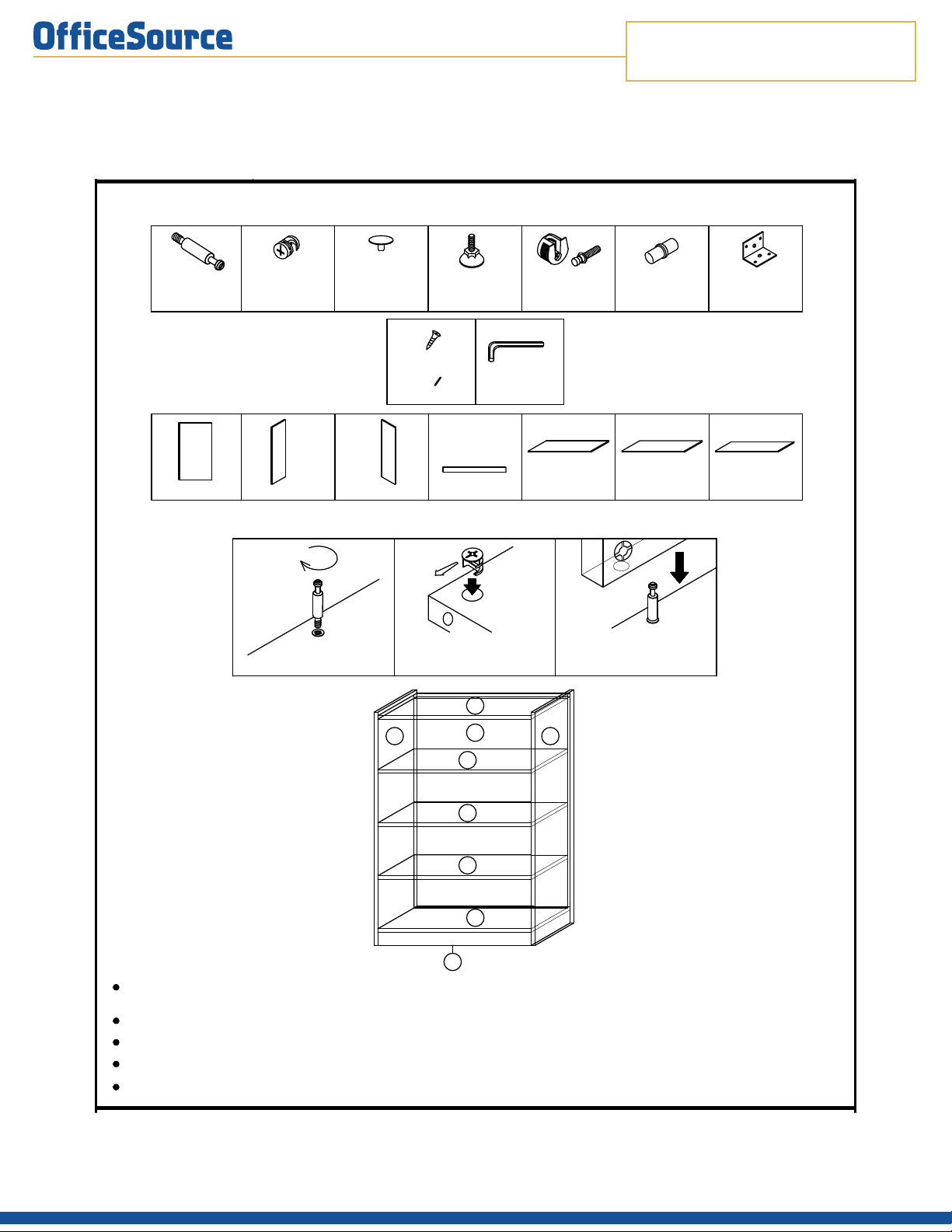

Adjustable

Glide

4 Pcs

Right Gable

KLIX CAM INSTRUCTIONS

Left Gable

Back Panel

A B C

Cam Lock

10 Pcs

Klix

Cam

10 Pcs

Housing

Cap

10 Pcs

6 Hole

L-Bracket

1 Pc

Shelf Support

8 Pcs

Center Shelf

4 Sets

Bottom Panel

Top Panel

Kick Plate

D E F

Adj. Shelf

5 SHELF BOOKCASE

5 6 7

PL 155GG-A1

M4 x 65

Allen-Key

1 Pc

Screw

#6 x 58"

6 Pcs

Insert the cam with the arrow

pointing towards the hole in

the edge.

Line up Cam Lock,

turn clockwise.

1 2

Insert the Cam Lock into

Klix Cam. Turn Klix Cam to

lock.

PAGE 1 OF 2

OFFICE FURNITURE

MODEL NO. PL155

OFFICESOURCE.COM

Last Updated: 6/2022

ASSEMBLY INSTRUCTIONS

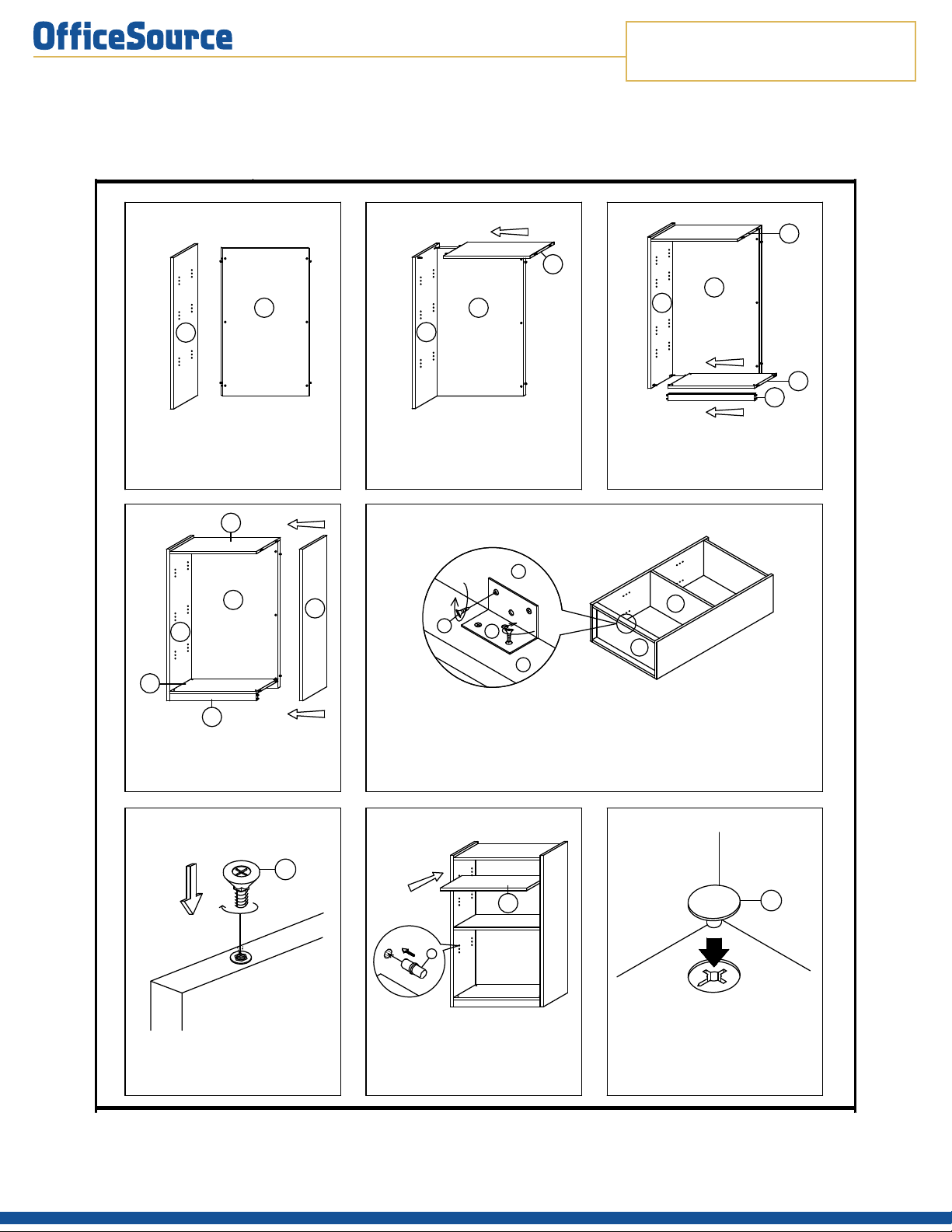

Lie Bookcase on its Back.

Attach L-Bracket(7) to

Bottom Panel(F) and Kick

Plate(D) as shown. Tighten

Screws(8) securely.

Insert Shelf Support Pins(6)

into the pre drilled holes and

place Adjustable Shelves(G)

at convenient distances.

Screw Adjustable Glide(4)

into bottom of Left Gable(B)

and Right Gable(C).

Attach Right Gable(C) to

Back Panel(A), Top Panel(E),

Bottom Panel(F) and Kick

Plate(D).

Attach Housing Cap(3) to all

Klix Cams(2) by pushing neck

thought center of cam.

Place Adj. Shelf(G) in center

of bookcase. Fastens with

Center Shelf Locking Pins (5).

Attach Top Panel(E) to Left

Gable(B) and Back Panel(A).

Attach Back Panel(A) to Left

Gable(B).

1 2

Attach Kick Plate(D) and

Bottom Panel(F) to Left

Gable(B).

5 SHELF BOOKCASE

PL 155GG-A1

5 SHELF BOOKCASE

PL 155GG-A1

PAGE 2 OF 2
