OfficeSource RCN4731 User manual

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

RCN4731

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

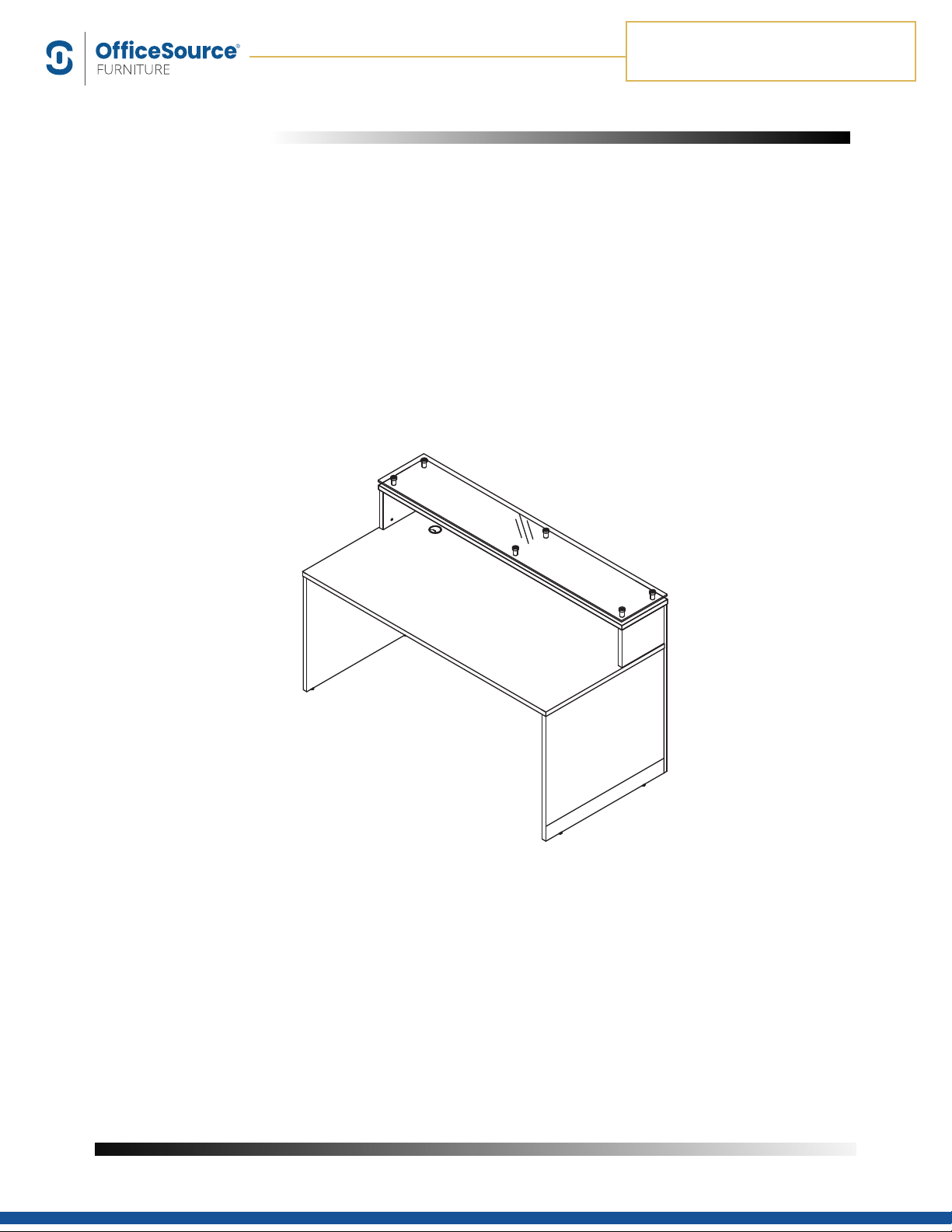

IMPORTANT: THERE ARE THREE OPTIONS FOR THIS STRAIGHT DESK AS SHOWN BELOW.

PLEASE DECIDE WHICH ONE YOU NEED BEFORE BEGINNING ASSEMBLY.

ASSEMBLY INSTRUCTIONS

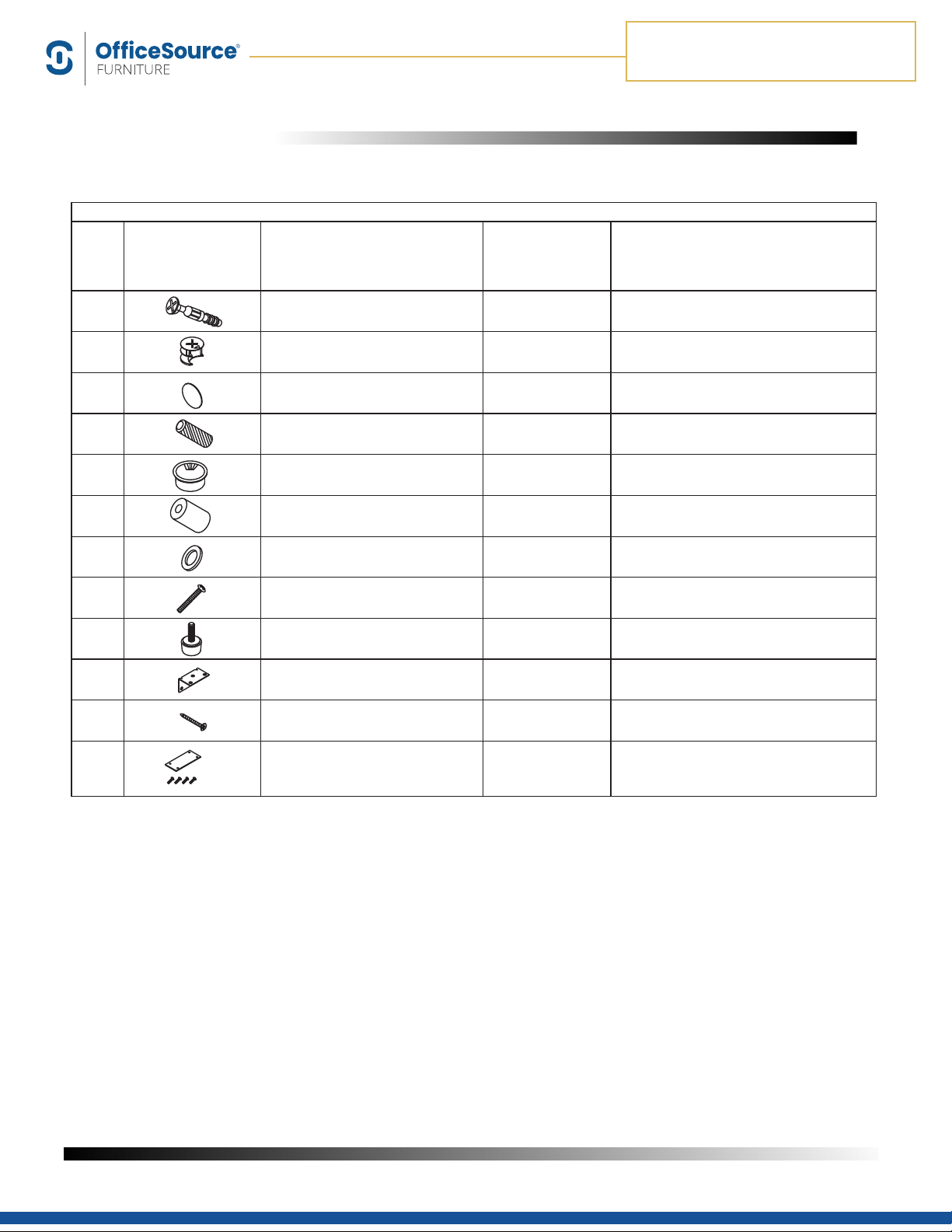

Assembly HARDWARE

S/N PICTURE NAME TOTAL QTY REMARK

LL1

Cam Screw

Klix Cam

Cam Cover Sticker

Dowel

Grommet

Screw #10*40

Cushion

Leveler

Screw

Ø4*16 Screw

L-bracket

Connector bracket

Ø6X12 Screw

24+1(SPARE)

25+1(SPARE)

20+1(SPARE)

4PCS

6PCS

4PCS

6PCS

5PCS

30PCS

4SET

Use to cover any klix cam or

desk top hole.

RCN4731

2x metal silver and 2x black plastic

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

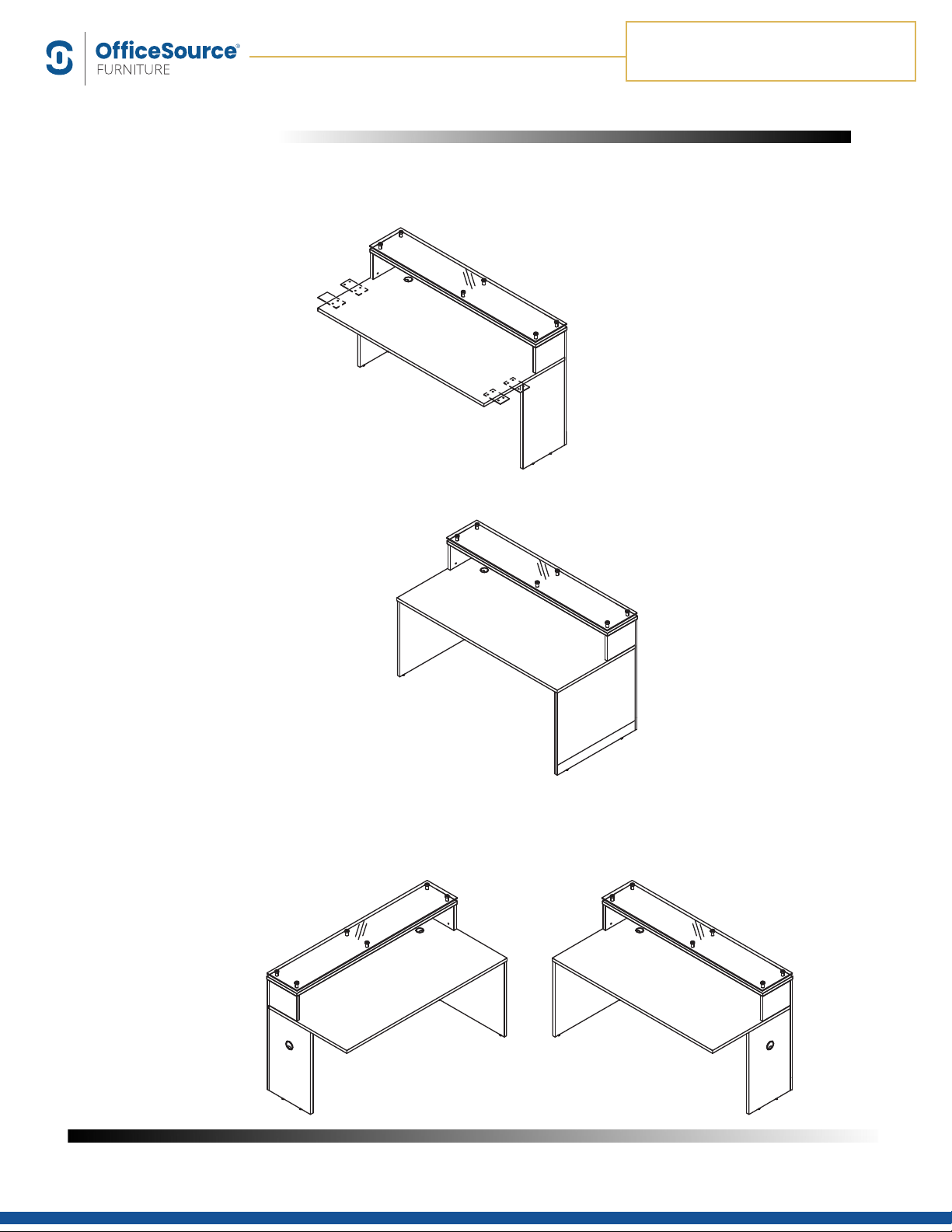

WHEN ATTACHING BETWEEN TWO DESKS. SEE STEPS 1 THROUGH 15.

OPTION 1

OPTION 2 WHEN CREATING A STAND ALONE DESK WITH SHORT DESK SIDE PANELS:

SEE STEPS 16 THROUGH 30.

RCN4731

ASSEMBLY INSTRUCTIONS

OPTION 3 WHEN ATTACHING TO OTHER DESKS, SEE STEPS 31 THROUGH 45.

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

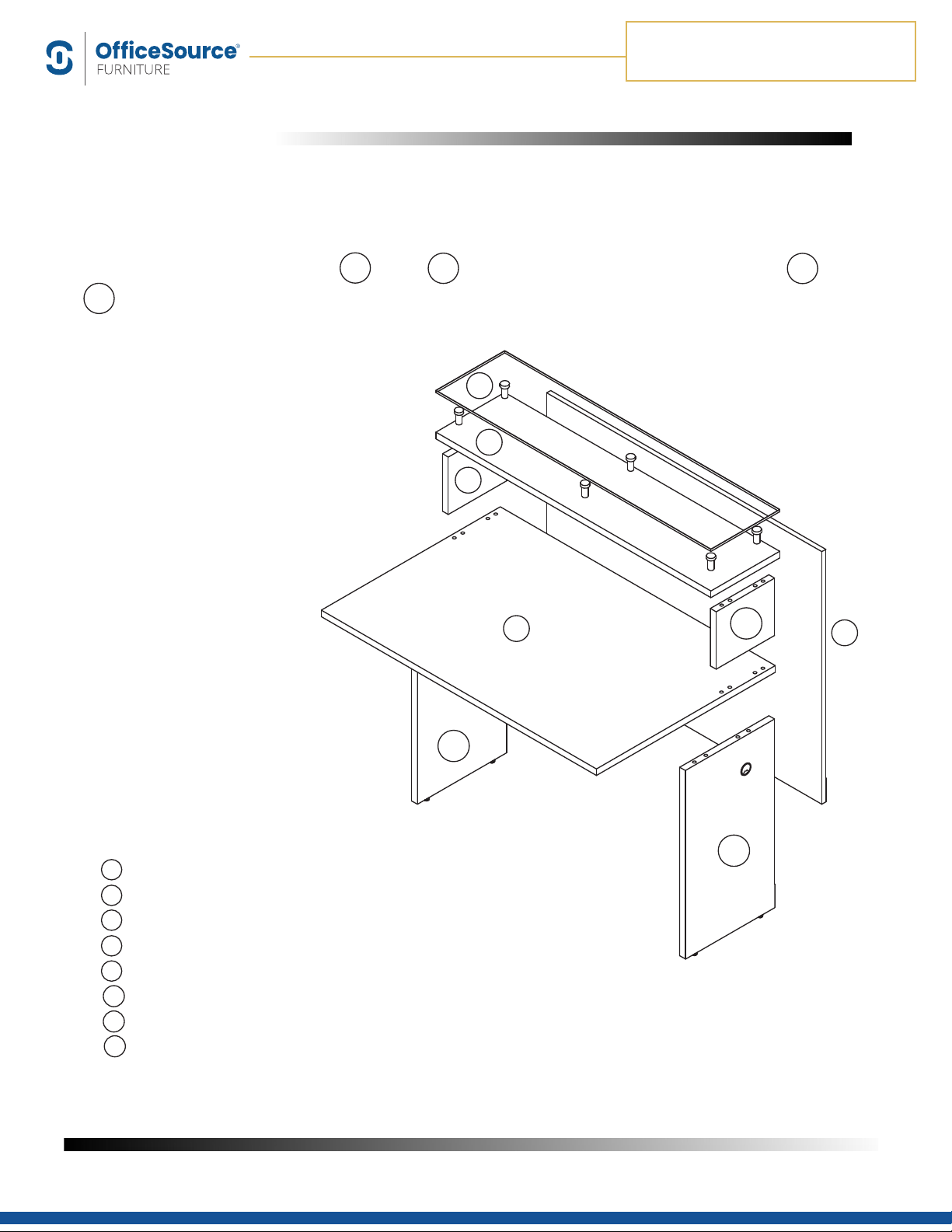

PART LIST

1 DESK TOP

2 FRONT PANEL

7 COUNTER TOP

8 GLASS TRANSACTION TOP

9 SHORT DESK SIDE PANEL

SHORT DESK SIDE PANEL

SHORT SIDE PANEL

Option 1:

Steps 1 through 15 to create a desk to go between two desks.

Use short side panels 11 and 12 and short desk side panels 9 and

10 .

110

RCN4731

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

HOLE

INSERTING INTO THE PANELS

POINTING UPWARDS BEFORE

MAKE SURE THE ARROW IS

LOCKING

TURN FOR

1/4 RIGHT

FUNCTION OF KLIX CAM

IMPORTANT:

I12

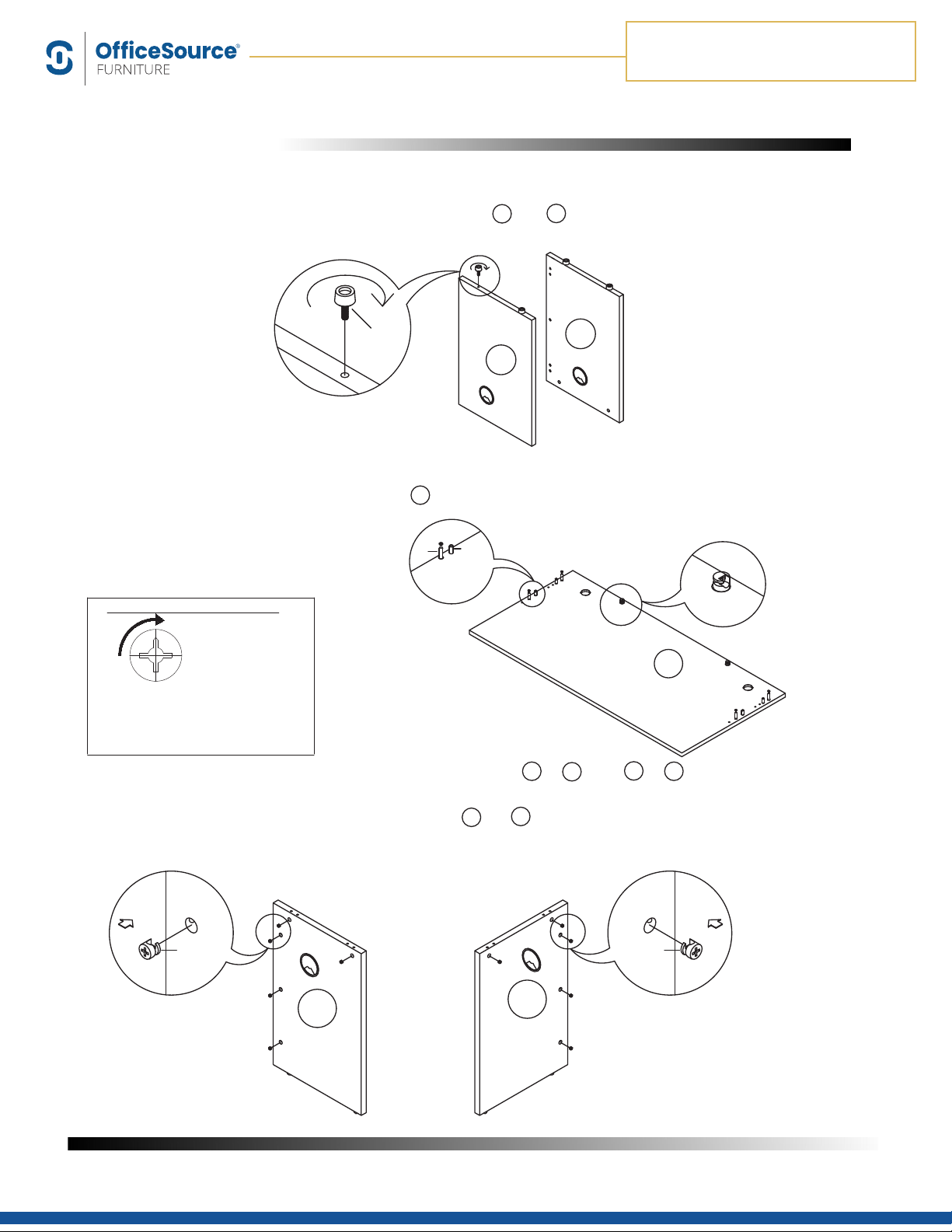

1. INSTALL "I" LEVELERS ON THE BOTTOM OF 11 & 12 .

I(4X)

INSTALL "A" CAM SCREWS, "B" KLIX CAMS AND "D"

DOWELS ON UNDERSIDE OF TOP 1 .

A(4X)

B(2X)

D(4X) D

INSERT "B" KLIX CAMS TO SIDE PANELS 11 & 12 .

B(10X)

Note: As the desktop needs to able to attach to both panels 3 & 4 and 11 & 12 , there will be some empty

holes.

RCN4731

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

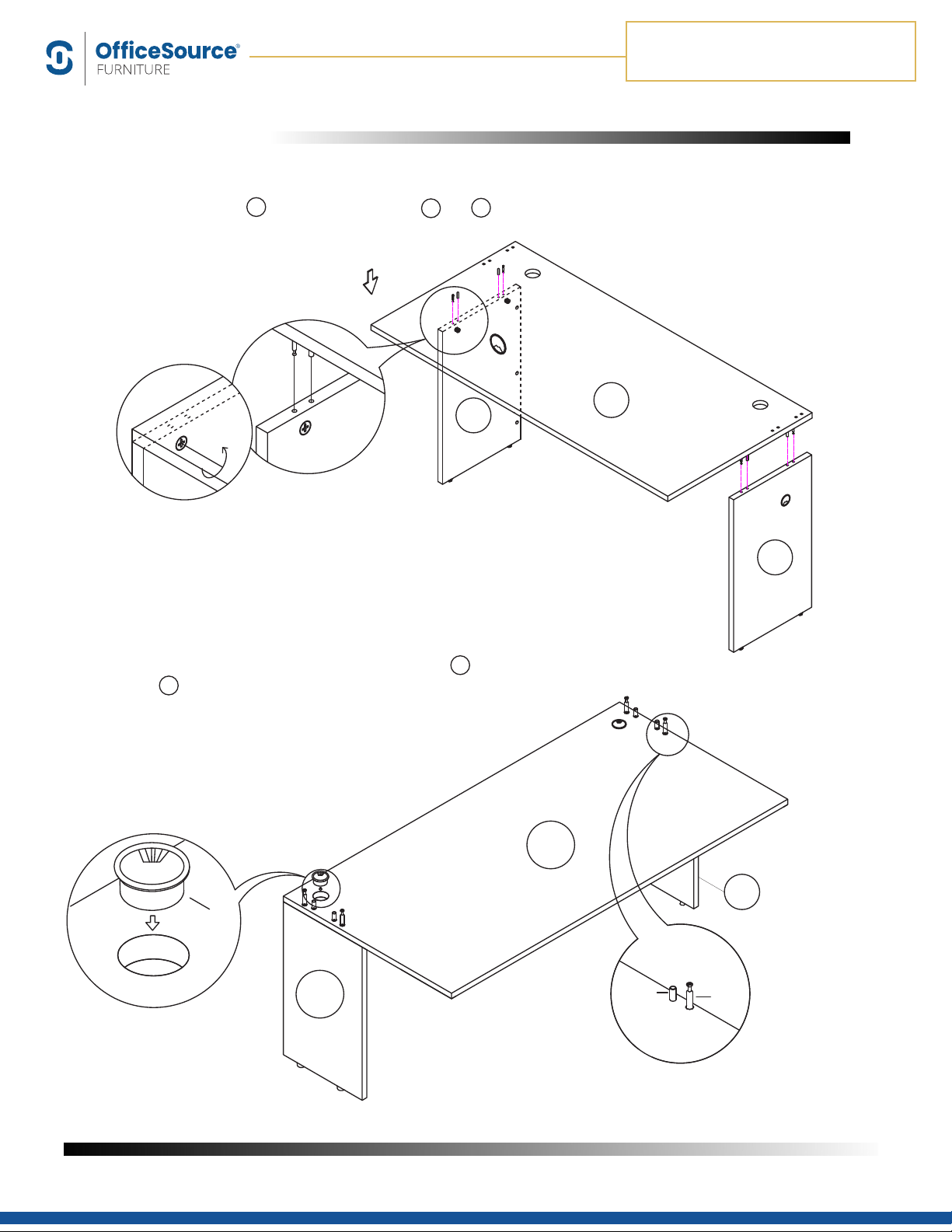

5. INSERT "E" GROMMETS ON DESK TOP 1 . INSTALL "A" CAM SCREWS AND "D" DOWELS ON

TOP 1 .

E(2X)

A(4X)

D(4X)

CONNECT TOP 1 TO SIDE PANELS 11 & 12 USING ALREADY INSTALLED "B" KLIX CAMS ,

"A" CAM SCREWS AND "D" DOWELS. TIGHTEN.

Tighten

RCN4731

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

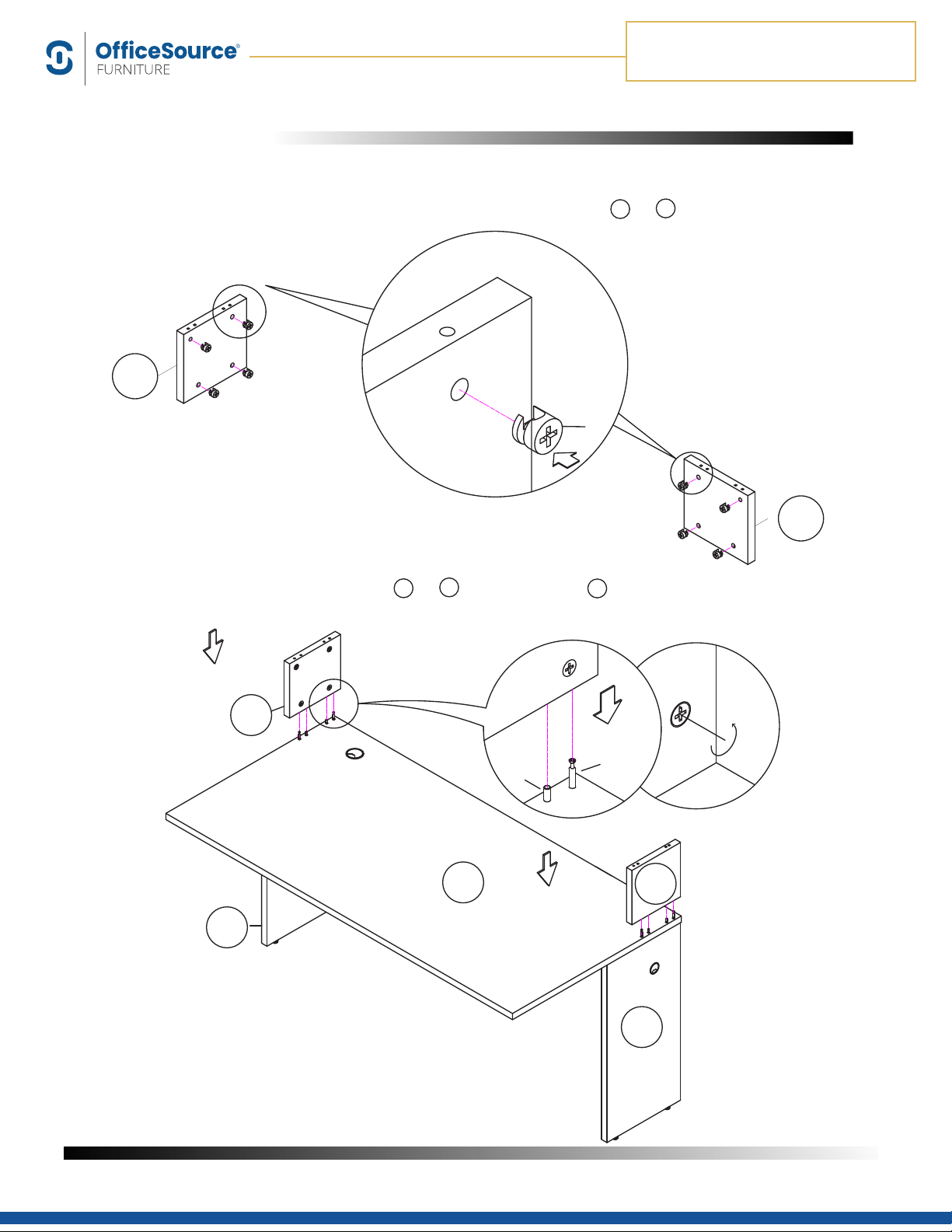

6. INSERT "B" KLIX CAMS TO SHORT DESKTOP SIDE PANELS 9 & 10 .

B(8X)

7. CONNECT SHORT SIDE PANELS 9 & 10 TO DESK TOP 1 USING ALREADY INSTALLED

"B" KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS. TIGHTEN.

RCN4731

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

Tighten

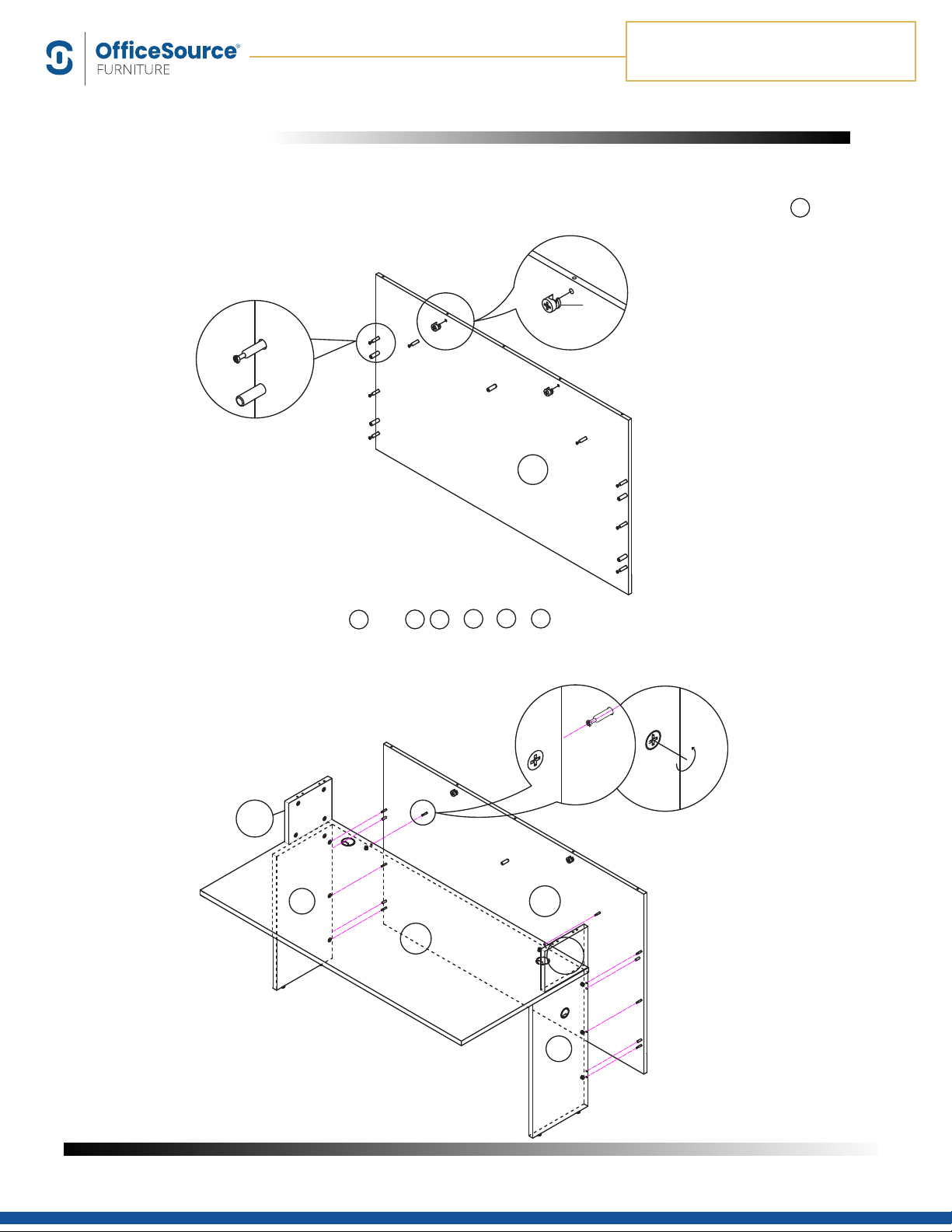

INSTALL "A" CAM SCREWS, "D" DOWELS AND "B" KLIX CAMS TO FRONT PANEL 2 .

A(8X)

B(2X)

D(5X)

CONNECT FRONT PANEL 2 TO 1 9 10 11 12 USING ALREADY INSTALLED "B"

KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.

RCN4731

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

10.

11.

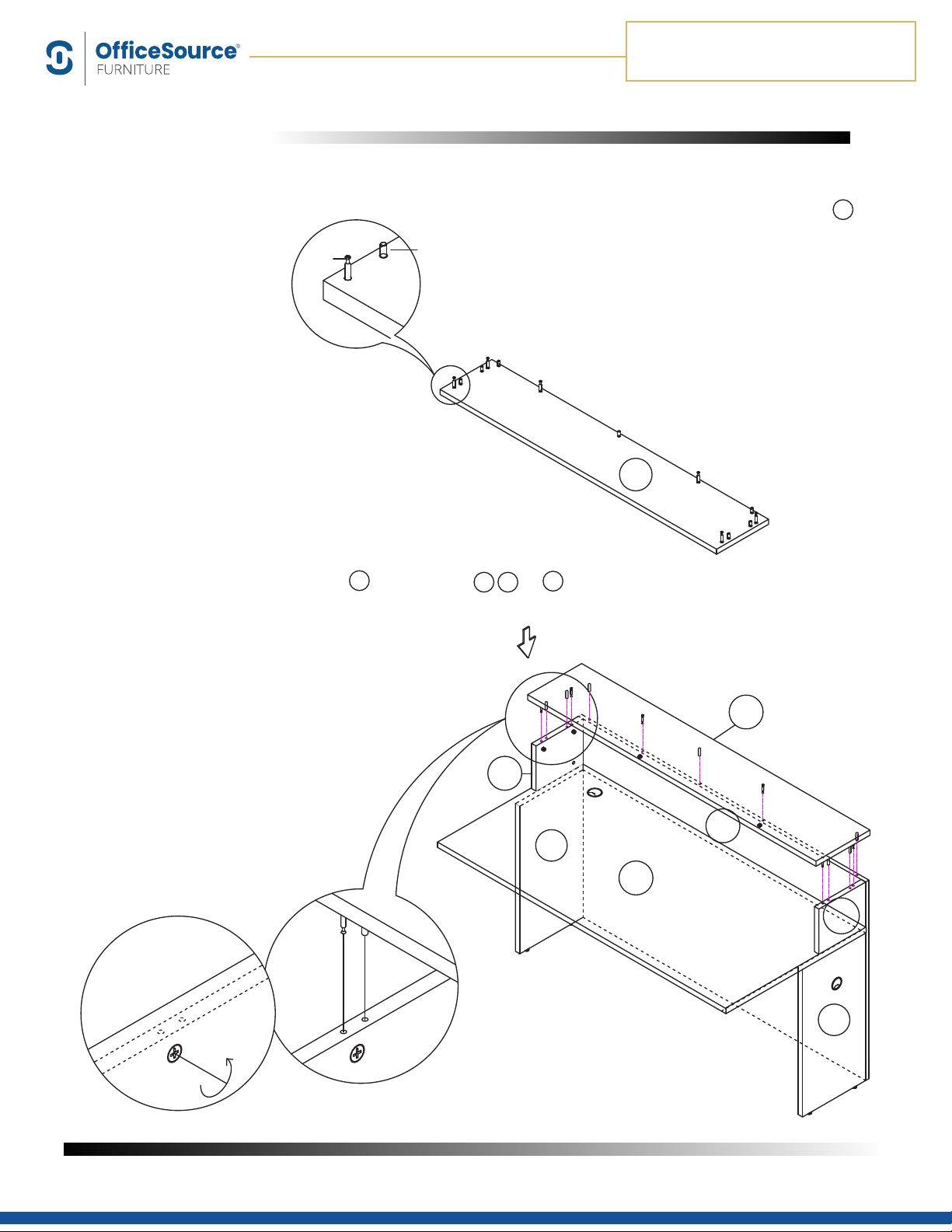

INSTALL "A" CAM SCREWS AND "D" DOWELS TO THE UNDER SIDE OF COUNTER TOP 7 .

A(6X)

D(7X)

CONNECT COUNTER TOP 7 TO PANELS 2 9 & 10 USING ALREADY INSTALLED "B"

KLIX CAMS , "A" CAM SCREWS AND "D" DOWELS . TIGHTEN.

RCN4731

Tighten

ASSEMBLY INSTRUCTIONS

MODEL NO. RCN4731

OFFICESOURCE.COM

Last Updated: 11/2022

ASSEMBLY INSTRUCTIONS

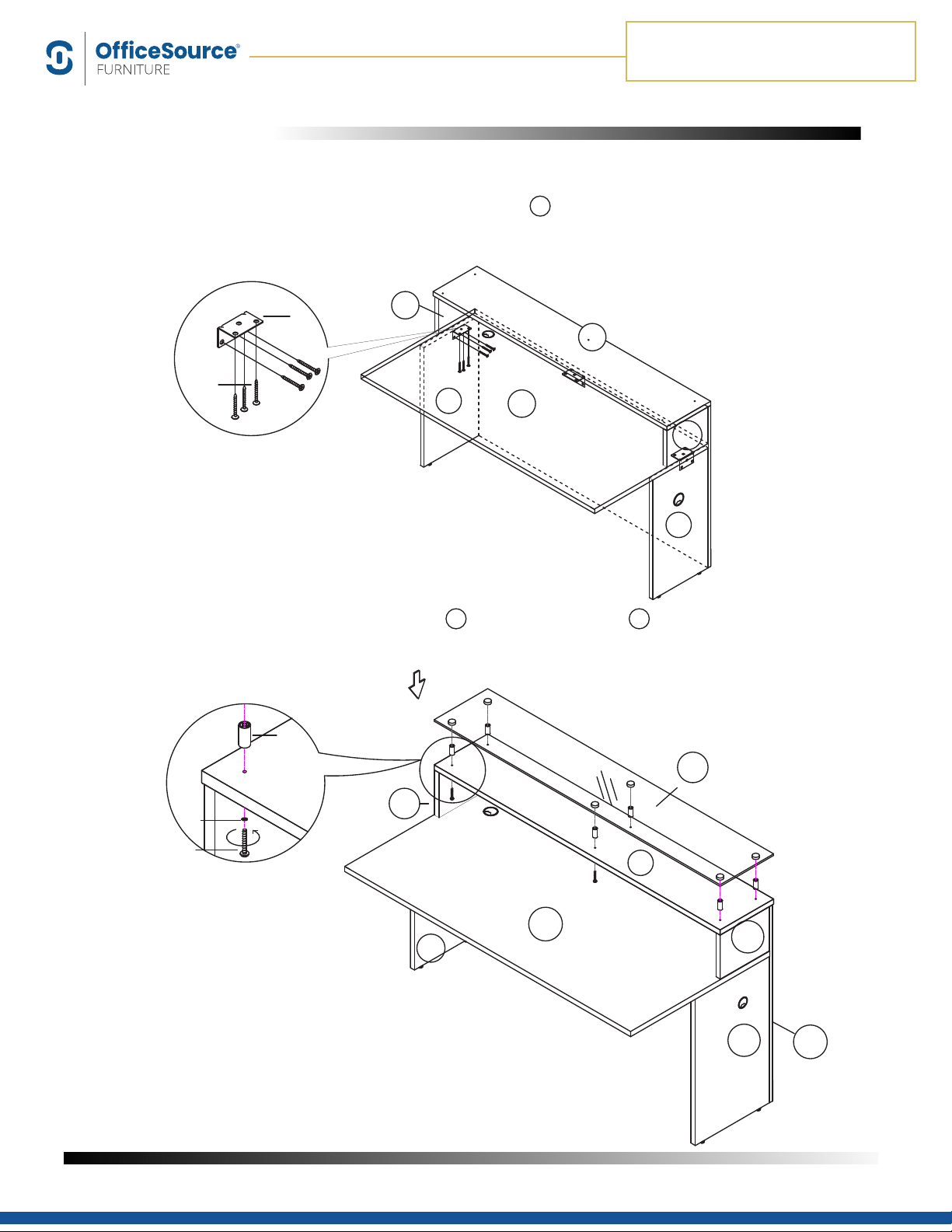

13.

Tighten

CONNECT GLASS TRANSACTION TOP 8 TO COUNTER TOP 7 USING "F" SCREWS,

"G" CUSHIONS AND "H" SCREWS .

F(6X)

G(6X)

H(6X)

12. INSTALL "J" L BRACKET UNDER THE DESK TOP 1 USING "K" SCREWS.

J(3X)

K(18X)

RCN4731

ASSEMBLY INSTRUCTIONS
