OfficeSource Crescent 49421 User manual

49421+49355

Crescent Collection

49421+49356

Crescent Collection

49421+49357

Merax Collection

275 lbs

Assembly Instructions

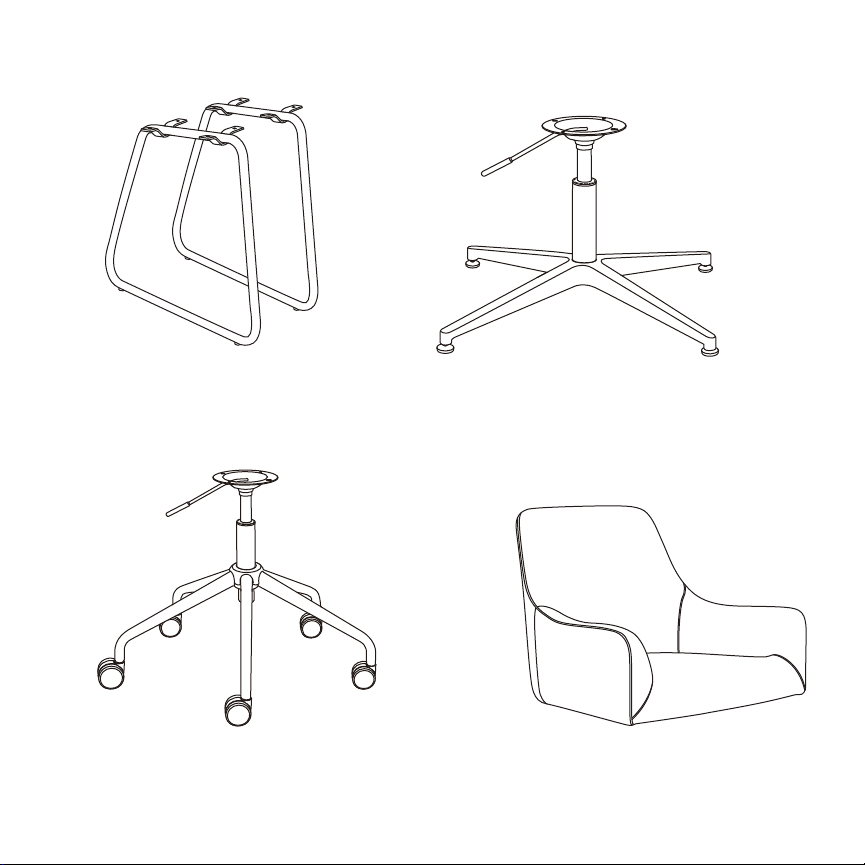

49355 Metal Legs

49421 Seat & Back Cushion

49357 (Casters + 5 Star Base + Gas Lift + Seat Plate)

49356 (Footers + 4 Star Base + Gas Lift + Seat Plate)

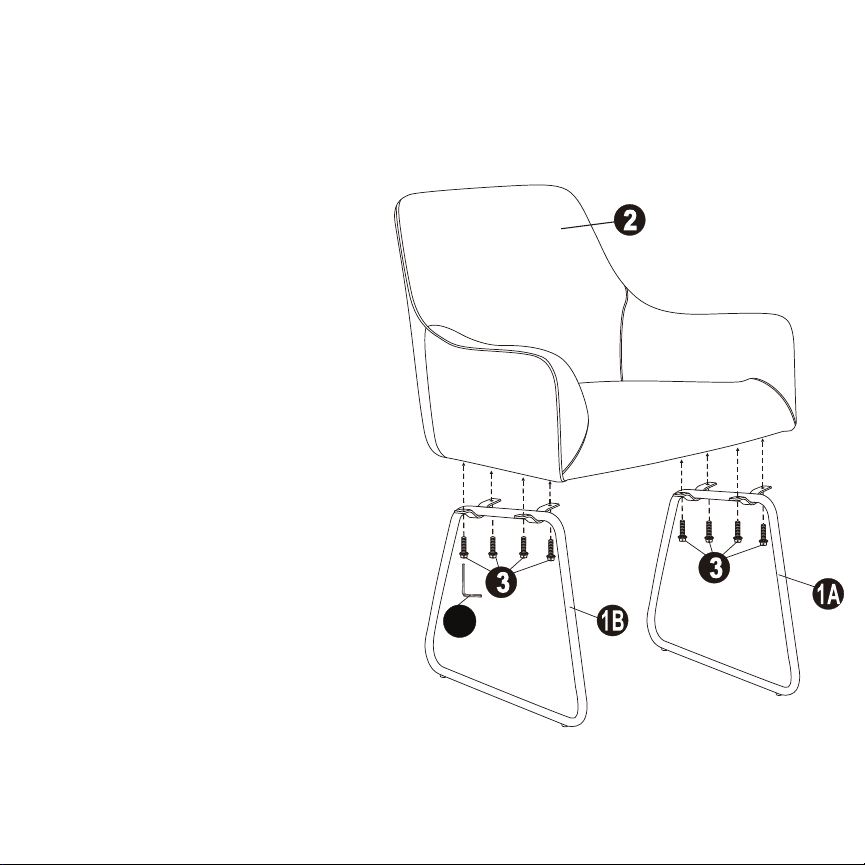

Option 1: 49421 + 49355

1. Attach Metal Legs (1A & 1B) to the bottom

of the Seat Cushion (2) by using 1-1/2”

Screws (3) and tighten the screws.

2. Periodically (every 90 days) tighten all

screws in the chair.

ATTENTION: Make certain all screws

are fully tightened before using chair.

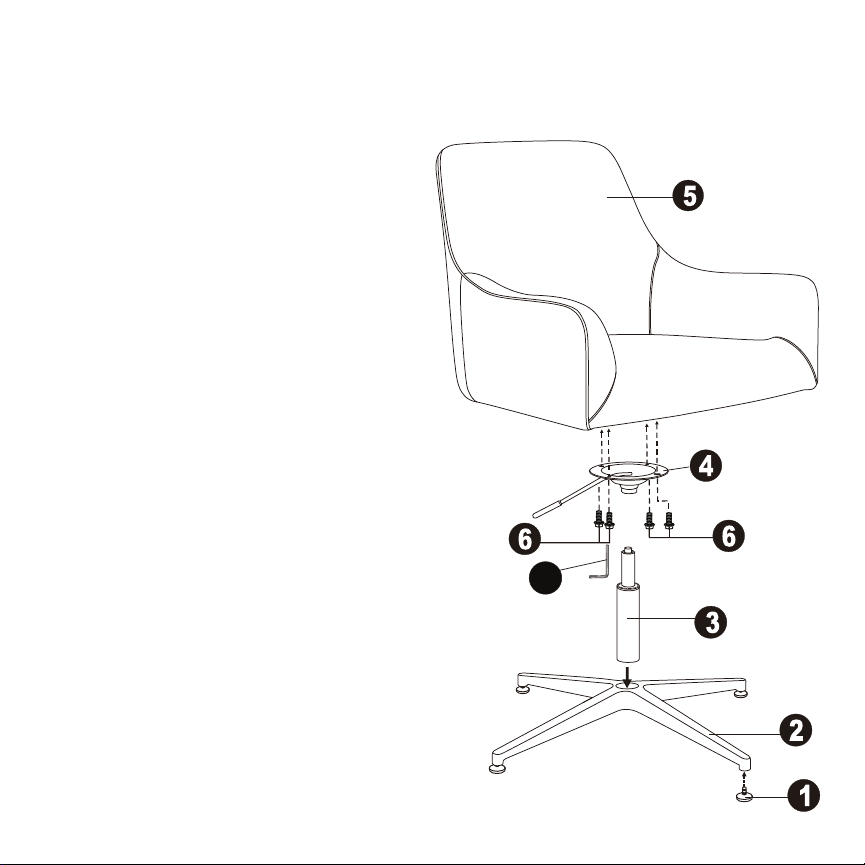

Option 2: 49421 + 49356

1. To begin assembly, place the Base (2) upside

down and insert Footers (1) into bottom of Base (2).

2. Turn Base (2) right side up on the ﬂoor and insert

Gas Lift (3) into center hole on Base (2).

3. Attach Seat Plate (4) onto the bottom of Seat

Cushion (5) (with front of seat plate facing front of

seat cushion) by using 1” Screws (6) for the holes of

Seat Plate (4) and tighten screws.

4. Place the Assembled Chair (5) on top of Gas Lift

(3) and press down until fully engaged.

5. Periodically (every 90 days) tighten all screws in

the chair.

ATTENTION: Make certain all screws are fully

tightened before using chair.

Function for 49421 + 49356

Operating Instructions

Function Instruction - 1

To Adjust Seat Height:

While seated, lean forward and reach under the right

side of the chair to ﬁnd the handle. Lift the handle and

raise your body up slightly to allow the chair to rise to

the desired height. Once desired height is reached,

release handle to lock chair at desired height. To lower

the seat, lift the handle while seated. The chair will

descend until the handle is released or the chair reaches

the bottom position.

Function Instruction - 2

360˚ Swivel:

360˚ seat swivel.

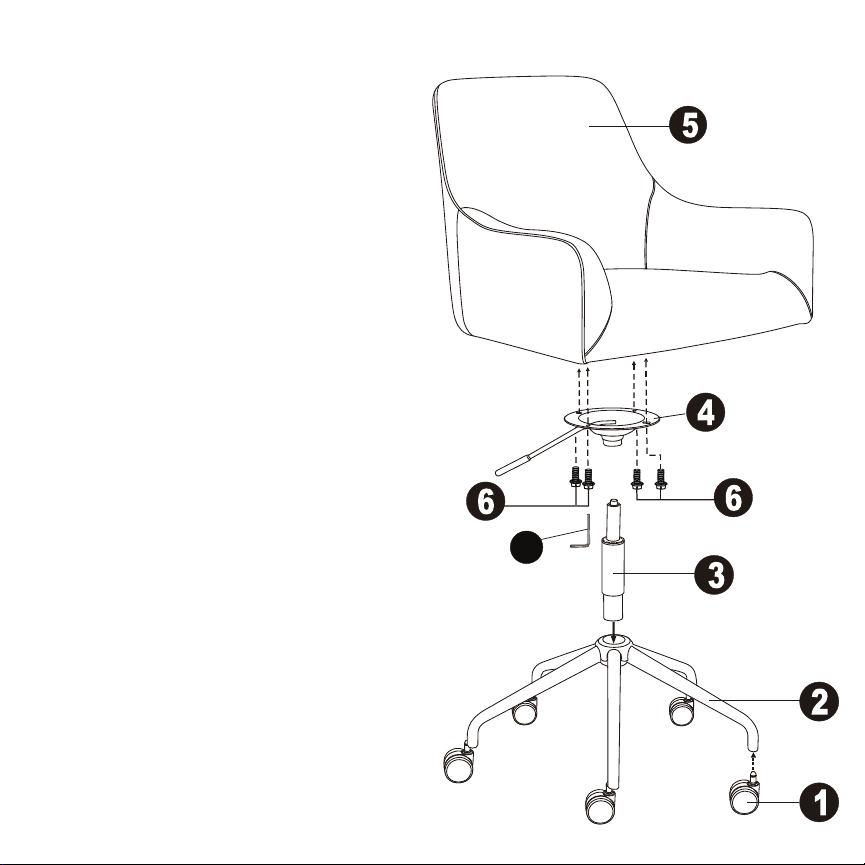

Option 3: 49421 + 49357

1. To begin assembly, place 5 Star Base (2) upside

down and insert Casters (1) into bottom of Base

(2).

2. Turn Base (2) right side up on the ﬂoor and

insert Gas Lift (3) into center hole on Base (2).

3. Attach Seat Plate (4) onto the bottom of Seat

Cushion (5) (with front of seat plate facing front of

seat cushion) by using 1” Screws (6) for the holes

of Seat Plate (4) and tighten screws.

4. Place the Assembled Chair (5) on top of Gas Lift

(3) and press down until fully engaged.

5. Periodically (every 90 days) tighten all screws in

the chair.

ATTENTION: Make certain all screws are

fully tightened before using chair.

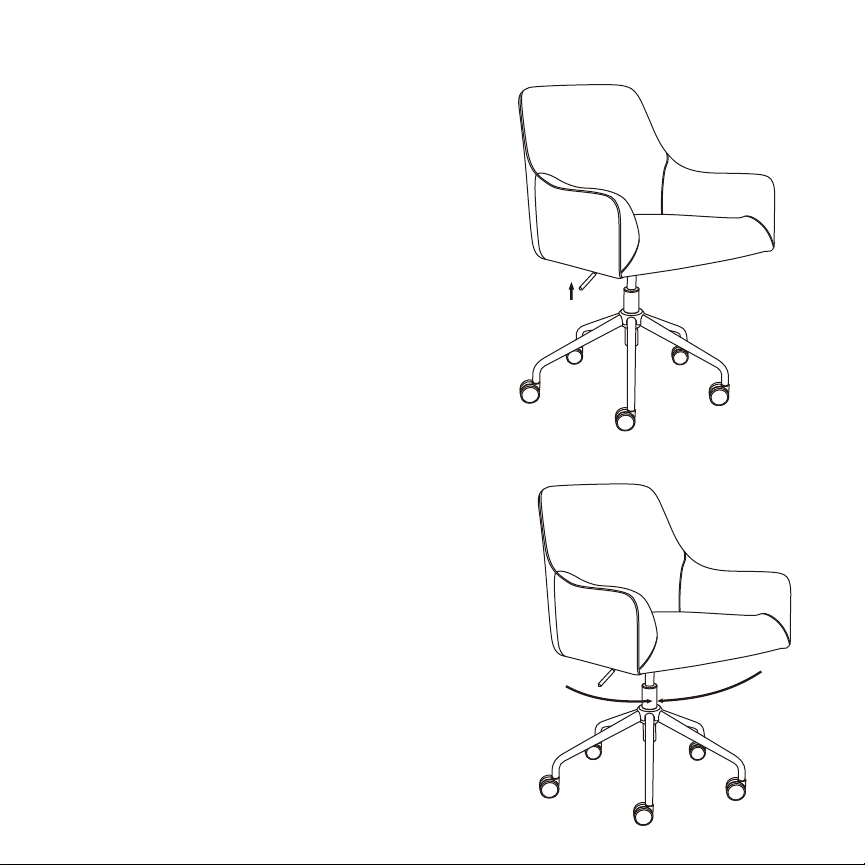

Function for 49421 + 49357

Operating Instructions

Function Instruction - 1

To Adjust Seat Height:

While seated, lean forward and reach under the

right side of the chair to ﬁnd the handle. Lift the

handle and raise your body up slightly to allow the

chair to rise to the desired height. Once desired

height is reached, release handle to lock chair at

desired height. To lower the seat, lift the handle

while seated. The chair will descend until the

handle is released or the chair reaches the bottom

position.

Function Instruction - 2

360˚ Swivel:

360˚ seat swivel.
