Nordson Seal Sentry 10 Series Reference guide
Seal SentryrSeries 10
Bead Detection System
Customer Product Manual
P/N 321 289D02
This equipment is regulated by the European
Union under WEEE Directive 2002/96/EC).
See www.nordson.com for information about
how to properly dispose of this equipment.
NORDSON CORPORATION •DULUTH, GEORGIA •USA
www.nordson.com
E2010 Nordson Corporation
All rights reserved
321 289D02
Issued 2/10
65-SVC10-MA-01
Nordson Corporation welcomes requests for information, comments and inquiries about its products. General
information about Nordson can be found on the Internet using the following address: http://www.nordson.com.
Address all correspondence to:
Nordson Corporation
Attn: Customer Service
11475 Lakefield Drive
Duluth, GA 30097
Notice
This is a Nordson Corporation publication which is protected by copyright. Original copyright February 2001.
No part of this document may be photocopied, reproduced, or translated to another language without the prior written
consent of Nordson Corporation. The information contained in this publication is subject to change without notice.
Trademarks
AccuJet, AeroCharge, Apogee, AquaGuard, Asymtek, Automove, Baitgun, Blue Box, CanWorks, Century, CF, Clean Coat, CleanSleeve, CleanSpray, ColorMax,
Control Coat, Coolwave, Cross-Cut, Cyclo-Kinetic, Dispensejet, DispenseMate, DuraBlue, Durafiber, Dura-Screen, Durasystem, Easy Coat, Easymove Plus, Ecodry,
Econo-Coat, e.dot, EFD, ETI, e.Stylized, Excel 2000, Fillmaster, FlexiCoat, Flexi-Spray, Flex-O-Coat, Flow Sentry, Fluidmove, FoamMelt, FoamMix, Heli-flow, Helix,
Horizon, Hot Shot, iControl, iFlow, Isocoil, Isocore, Iso-Flo, iTRAX, Kinetix, Little Squirt, Magnastatic, March, MEG, Meltex, Microcoat, Micromark, MicroSet, Millennium,
Mini Squirt, Mountaingate, MultiScan, Nordson, OptiMix, Package of Values, Pattern View, PermaFlo, Plasmod, Porous Coat, PowderGrid, Powderware, Printplus,
Prism, ProBlue, Pro-Flo, ProLink, Pro-Meter, Pro-Stream, RBX, Rhino, Saturn, Scoreguard, Seal Sentry, Select Charge, Select Coat, Select Cure, Slautterback,
Smart-Coat, Solder Plus, Spectrum, Speed-Coat, SureBead, Sure Clean, Sure Coat, Sure-Max, Tracking Plus, Trends, Tribomatic, Ultrasaver, UpTime, Veritec,
VersaBlue, Versa-Coat, Versa-Screen, Versa-Spray, Walcom, Watermark, and
When you expect more. are registered trademarks of Nordson Corporation.
Accubar, Advanced Plasma Systems, AeroDeck, AeroWash, AquaCure, ATS, Auto-Flo, AutoScan, Blue Series, Check Mate, Classicblue, Controlled Fiberization,
Control Weave, CPX, DispensLink, Dry Cure, DuraBraid, DuraCoat, DuraDrum, DuraPail, Easy Clean, EasyOn, Eclipse, E-Nordson, Equi=Bead, ESP, Fill Sentry,
G−Net, G−Site, HDLV, iON, Iso-Flex, iTrend, Lacquer Cure, Lean Cell, Logicomm, Maverick, Maxima, MicroFin, MicroMax, MiniBlue, Minimeter, Multifil, Myritex,
OptiStroke, PatternPro, PCI, Powder Pilot, Powercure, Primarc, Process Sentry, Prodigy, Pulse Spray, Quad Cure, Ready Coat, Royal Blue, Select Series, Sensomatic,
Shaftshield, SheetAire, Smart, SolidBlue, Spectral, Spectronic, SpeedKing, Spray Works, Summit, Sure Brand, SureSeal, Sure Wrap, Swirl Coat, Tempus, ThruWave,
Trade Plus, Trak, TrueBlue, Ultra, Ultrasmart, Universal, Vantage, Vista, Web Cure, and 2 Rings (Design) are trademarks of Nordson Corporation.
Designations and trademarks stated in this document may be brands that, when used by third parties for their own purposes,
could lead to violation of the owners’ rights.
65-SVC10-MA-01
Issued 2/10 1
Seal SentryrSeries 10 Bead Detection System
Safety
WARNING: Allow only qualified personnel to
perform the procedures described in this
manual.
WARNING: The system must be properly
grounded and fused according to its rated
consumption. Refer to the ID plate on the
bottom of the control unit.
WARNING: Turn off the system power switch
and disconnect the power cord from the power
source before disassembling the unit for service.
System Overview
Application Requirements
Bead Sensor
SMinimum mounting distance from bead:
10 mm (0.4 in.)
SMaximum mounting distance from bead:
50 mm (2 in.)
SIdeal target area width for field of view:
12 mm or less (0.47 in.)
SMaximum target area width for field of view:
18 mm (0.65 in.)
5739253A
10−50 mm (0.4−2 in.)
5739254A
v12 mm >18 mm
65-SVC10-MA-01 Issued 2/10
2
System Overview (contd.)
Photo Trigger
STrigger must be set to activate during bead
detection process.
STrigger must be set to activate on the next product
AFTER the last bead passes under the bead
sensor.
SInstallation must not provide more than one trigger
signal per product.
General Information
SBead detection mode only −sensor must look at
exposed glue bead.
SMaintain constant line speed, or minimize speed
changes.
5739255A
65-SVC10-MA-01
Issued 2/10 3
System Components
1
2
3
4
5
Inspect the Components
1. Control unit
2. Bead sensor
3. Bead sensor cable
4. Photo trigger (extension cable not
shown)
5. Ship-with kit
65-SVC10-MA-01 Issued 2/10
4
Specifications
Input: 85−260 VAC, 3A, 1 phase, 50/60 Hz
Relay contact output rating maximum: 4A, 230 VAC
Minimum bead size: 1.5 mm @ 20 m/min (0.06 in. @ 66 ft/min)
Maximum line speed: 300 m/min with a 60 mm bead (1,000 ft/min, 2.4 in. bead)
Bead sensor: Infrared
Fault output: Normally open or Normally closed relay contact
Field of view: 12 to 18 mm (0.47 to 0.65 in.)
10 to 50 mm (0.8 to 2 in.) from substrate
NOTE: Minimum bead size and maximum line speeds are dependent on the quantity of heat present and will vary
based on the application temperature of the adhesive. Published specifications are with an application temperature
of 175 °C (350 °F) and a minimum bead width of 3 mm (0.12 in.).
Dimensions
Control: 205 x 205 x 85 mm (8 x 8 x 3.4 in.)
Sensor: 25 x 27 x 65 mm (1 x 1.06 x 2.6 in.)
Sensor mounting/spacing: 40 mm (1.57 in.)
Ratings and Certification
SControl enclosure: IP52
SSensor enclosure: IP65
SCertification: CE
5739279A
205 mm
(8 in.)
205 mm
(8 in.)
165 mm
(6.5 in.)
165 mm
(6.5 in.)
40 mm;
M6
Bead Sensor
Control Unit
18 mm; (0.71 in.)
(1.6 in.)
Size specification of equipment
65-SVC10-MA-01
Issued 2/10 5

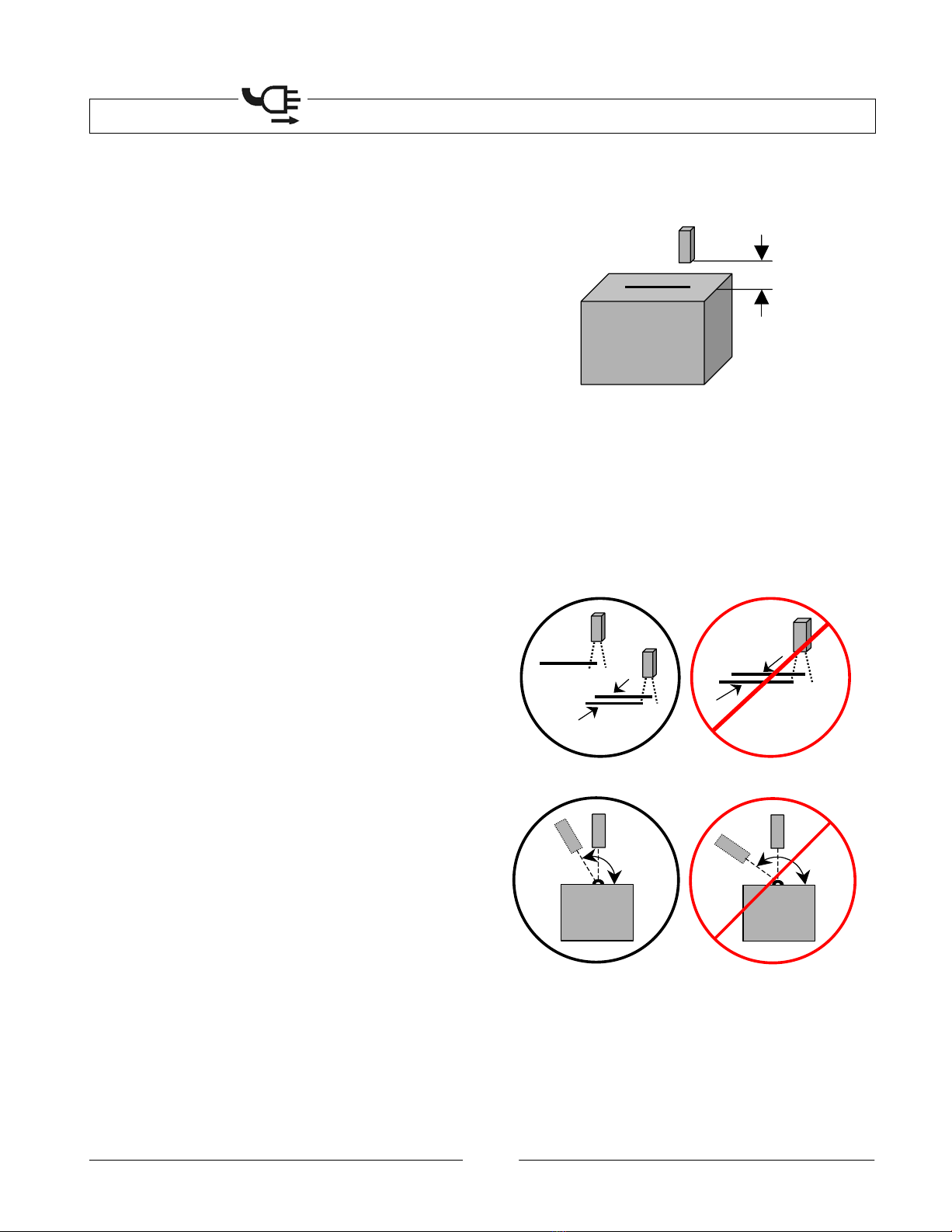

Installation
1. Inventory and inspect the system components.
2. Mount the control unit next to or on the packaging
machine.
3. Mount the bead sensors.
SNo closer than 10 mm (0.4 in.) to the substrate
SNo farther than 50 mm (2 in.) from the
substrate
SSet the target area to be viewed between
12 to 18 mm (0.5 to 0.65 in.).
SPosition the angle of the bead sensor at no
more than 30 degrees from perpendicular.
5739253A
10−50 mm (0.4-2 in.)
v12 mm >18 mm
5739257A
90−120_>120_
65-SVC10-MA-01 Issued 2/10
6
Installation (contd.)
4. Mount the trigger. The trigger must:
Sdetect the product before the first bead sensor
detects the first bead
Snot detect the next product before the last
bead sensor finishes detecting the last bead,
and
Snot trigger more than once on the same
product
5. Connect the bead sensor(s) and photo trigger(s) to
the control unit.
SS = Bead Sensor
SP = Photo Trigger
5739260A
5739255A
5739280A
Bead Sensors
Photo Triggers
65-SVC10-MA-01
Issued 2/10 7
6. Open the control unit cabinet and connect the
input power.
S85-260 VAC, 3A, 1∅
SPE = Ground
SN = Neutral
SL = Line
7. Connect the warning or other device to the control
unit relay output.
S4 amps maximum
S230 VAC maximum
Input
85−260 VAC
ON
1234
ON
1234
Relay Output
4 amps
230 VAC
65-SVC10-MA-01 Issued 2/10
8
Programming
Initial Settings
1. Configure the fault output relay for the type of
contact action required.
SPosition 1 (Down) = Normally Open
SPosition 2 (Up) = Normally Closed
2. Select the number of photo triggers installed with
DIP-Switch Position 4.
SON = 1 photo trigger
SOFF = 2 photo triggers
SBead sensors 1-4 on trigger 1
SBead sensors 1 and 2 on trigger 1
SBead sensors 3 and 4 on trigger 2
5739237A
1
2
X
5739238A
5739231A
