National Instruments NI 5782R User manual

NI 5782R User Manual and

Specifications

The NI 5782 is an analog dual-input, dual-ouput, intermediate-frequency (IF) transceiver

adapter module designed to work with your NI FlexRIO™FPGA module. The NI 5782 features

two analog input (AI) channels with 14-bit sample rates of up to 250 MS/s. The NI 5782 also

has two analog output (AO) channels with 16-bit sample rates of up to 500 MS/s when using

both AO channels, or up to 1 GS/s when using only one AO channel.

This document contains signal information and specifications for the NI 5782R, which is

composed of an NI FlexRIO FPGA module and the NI 5782 adapter module. This document

also contains tutorial sections that demonstrate how to acquire data using a LabVIEW FPGA

example VI and how to create and run your own LabVIEW project with the NI 5782R.

Note NI 5782R refers to the combination of your NI 5782 adapter module and your

NI FlexRIO FPGA module. NI 5782 refers to your NI 5782 adapter module only.

Caution The protection provided by the NI 5782R can be impaired if it is used in

a manner not described in this document.

Contents

Electromagnetic Compatibility Guidelines .............................................................................. 2

How to Use Your NI FlexRIO Documentation Set .................................................................. 3

Front Panel and Connector Pinouts .......................................................................................... 4

Block Diagram.......................................................................................................................... 7

NI 5782 Component-Level Intellectual Property (CLIP)......................................................... 8

Connecting Cables.................................................................................................................... 10

Clocking.................................................................................................................................... 10

Using Your NI 5782R with a LabVIEW FPGA Example VI .................................................. 11

Creating a LabVIEW Project and Running a VI on an FPGA Target...................................... 13

Appendix A: Specifications......................................................................................................16

Appendix B: Installing EMI Controls ...................................................................................... 34

Where to Go for Support .......................................................................................................... 36

2|ni.com |NI 5782R User Manual and Specifications

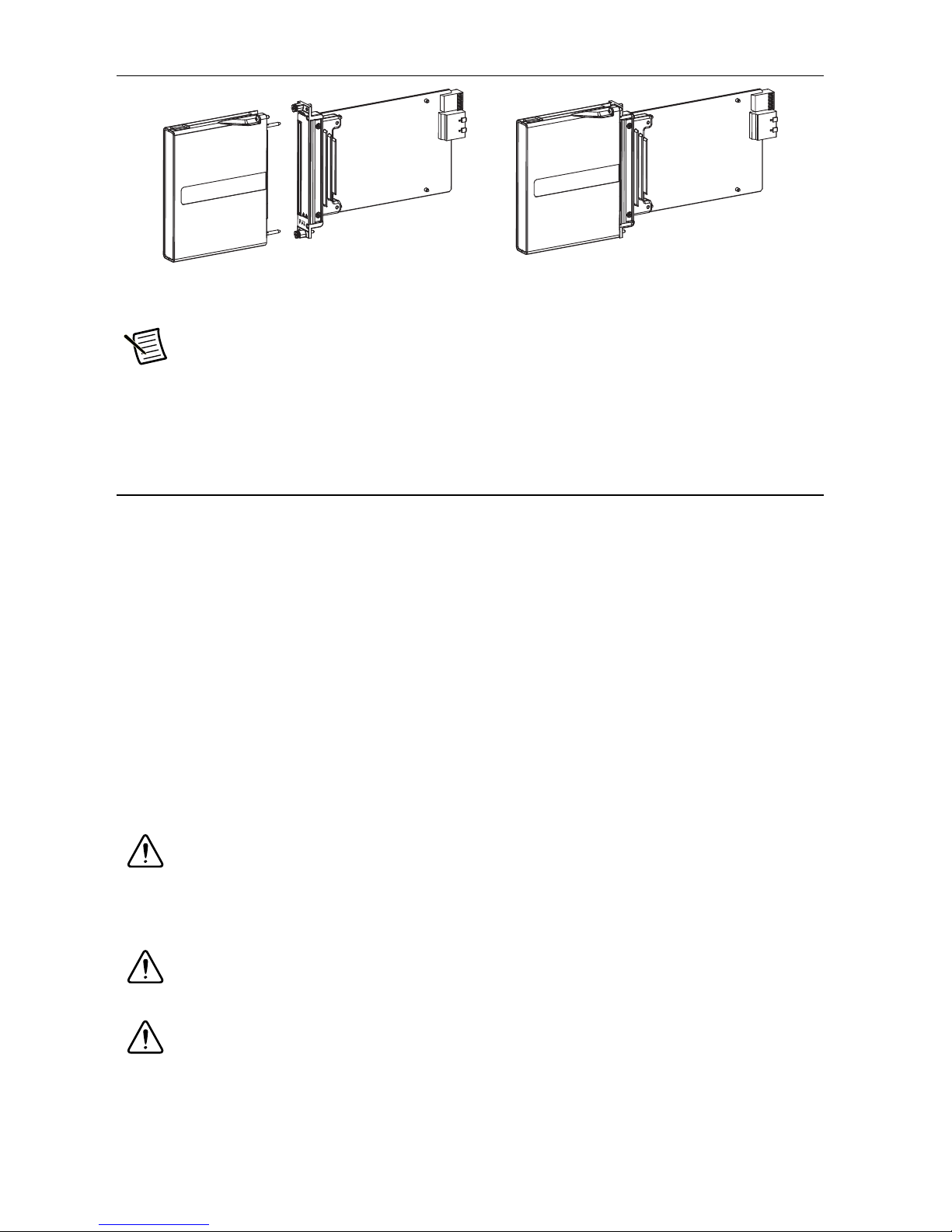

Figure 1. NI FlexRIO Device

Note Before configuring your NI 5782R, you must install the appropriate software

and hardware. Refer to the NI FlexRIO FPGA Module Installation Guide and

Specifications for installation instructions. Figure 1 shows an example of a properly

connected NI FlexRIO device.

Electromagnetic Compatibility Guidelines

This product was tested and complies with the regulatory requirements and limits for

electromagnetic compatibility (EMC) as stated in the product specifications. These requirements

and limits are designed to provide reasonable protection against harmful interference when the

product is operated in its intended operational electromagnetic environment.

This product is intended for use in industrial locations. There is no guarantee that harmful

interference will not occur in a particular installation, when the product is connected to a test

object, or if the product is used in residential areas. To minimize the potential for the product to

cause interference to radio and television reception or to experience unacceptable performance

degradation, install and use this product in strict accordance with instructions in the product

documentation.

Furthermore, any changes or modifications to the product not expressly approved by National

Instruments could void your authority to operate it under your local regulatory rules.

Caution To ensure the specified EMC performance, you must install PXI EMC

Filler Panels (National Instruments part number 778700-01) in adjacent chassis slots.

For more information about installing PXI EMC filler panels in your system, refer to

the Appendix B: Installing EMI Controls section of this document.

Caution To ensure the specified EMC performance, operate this product only with

shielded cables and accessories.

Caution This product is sensitive to electrostatic discharge (ESD). To ensure the

specified EMC performance, follow the programming instructions listed at the end of

the Using Your NI 5782R with a LabVIEW FPGA Example VI and Creating a

LabVIEW Project and Running a VI on an FPGA Target sections of this document.

NI FlexRIO

Adapter Module + = NI FlexRIO Device

NI FlexRIO

FPGA Module

NI 5782R User Manual and Specifications |© National Instruments |3

Caution To ensure the specified EMC performance, the length of all I/O cables

must be no longer than 30 m (100 ft).

How to Use Your NI FlexRIO Documentation Set

Refer to Figure 2 and Table 1 for information about how to use your NI FlexRIO documentation

set.

Figure 2. How to Use Your NI FlexRIO Documentation Set

LabVIEW FPGA

Module Help

NI FlexRIO

Help

LabVIEW

Examples

INSTALL Hardware

and Software

CONNECT Signals

and Learn About

Your Adapter

Module

LEARN About

LabVIEW FPGA

Module

PROGRAM Your

NI FlexRIO System

in LabVIEW FPGA

Module

NI FlexRIO FPGA Module

Installation Guide and Specifications

NI FlexRIO Adapter Module

User Guide and Specifications

Are

YouNew to

LabVIEW FPGA

Module?

YesNo

4|ni.com |NI 5782R User Manual and Specifications

Front Panel and Connector Pinouts

Table 2 shows the front panel connector and signal descriptions for the NI 5782. Refer to

Appendix A: Specifications for additional signal information.

Caution To avoid permanent damage to the NI 5782, disconnect all signals

connected to the NI 5782 before powering down the module, and connect signals

only after the adapter module has been powered on by the NI FlexRIO FPGA module.

Caution Connections that exceed any of the maximum ratings of any connector on

the NI 5782R can damage the device and the chassis. NI is not liable for any damage

resulting from such signal connections. For the maximum input and output ratings for

each signal, refer to Appendix A: Specifications.

Table 1. NI FlexRIO Documentation Locations and Descriptions

Document Location Description

NI FlexRIO FPGA

Module Installation

Guide and

Specifications

Available in your FPGA

module hardware kit, from the

Start Menu, and at ni.com/

manuals.

Contains installation instructions for your

NI FlexRIO system and specifications for

your FPGA module.

NI 5782R User

Manual and

Specifications

(this document)

Available from the Start Menu

and at ni.com/manuals.

Contains signal information, examples,

CLIP details, and specifications for your

adapter module.

LabVIEW FPGA

Module Help

Embedded in LabVIEW Help

and at ni.com/manuals.

Contains information about the basic

functionality of the LabVIEW FPGA

module.

NI FlexRIO Help Available from the Start menu

and at ni.com/manuals.

Contains FPGA module, adapter module,

and CLIP configuration information.

LabVIEW Examples Available in NI Example

Finder.

Contains examples of how to run FPGA VIs

and Host VIs on your device.

IPNet ni.com/ipnet Contains LabVIEW FPGA functions and

intellectual property to share.

NI FlexRIO

product page

ni.com/flexrio Contains product information and data

sheets for NI FlexRIO devices.

NI 5782R User Manual and Specifications |© National Instruments |5

Table 2. NI 5782 Front Panel Connectors

Device Front

Panel Connector Signal Description

AUX I/O Refer to Table 3 for the signal list and

descriptions.

CLK IN 50 Ωsingle-ended (SE) external Reference or

Sample Clock input.

TRIG Trigger input channel.

AI 0 50 ΩSE analog input (AI) channel 0.

AI 1 50 ΩSE AI channel 1.

AO 0 50 ΩSE analog output (AO) channel 0.

AO 1 50 ΩSE AO channel 1.

14-Bit AI

16-Bit AO

Analog I/O

NI 5782

CLK IN

AUX

I/O

TRIG

AI 0

AI 1

AO 0

AO 1

6|ni.com |NI 5782R User Manual and Specifications

AUX I/O Connector

Caution The AUX I/O connector accepts a standard, third-party HDMI cable, but

the AUX I/O port is not an HDMI interface. Do not connect the AUX I/O port on the

NI 5782 into the HDMI port of another device. NI is not liable for any damage

resulting from such signal connections.

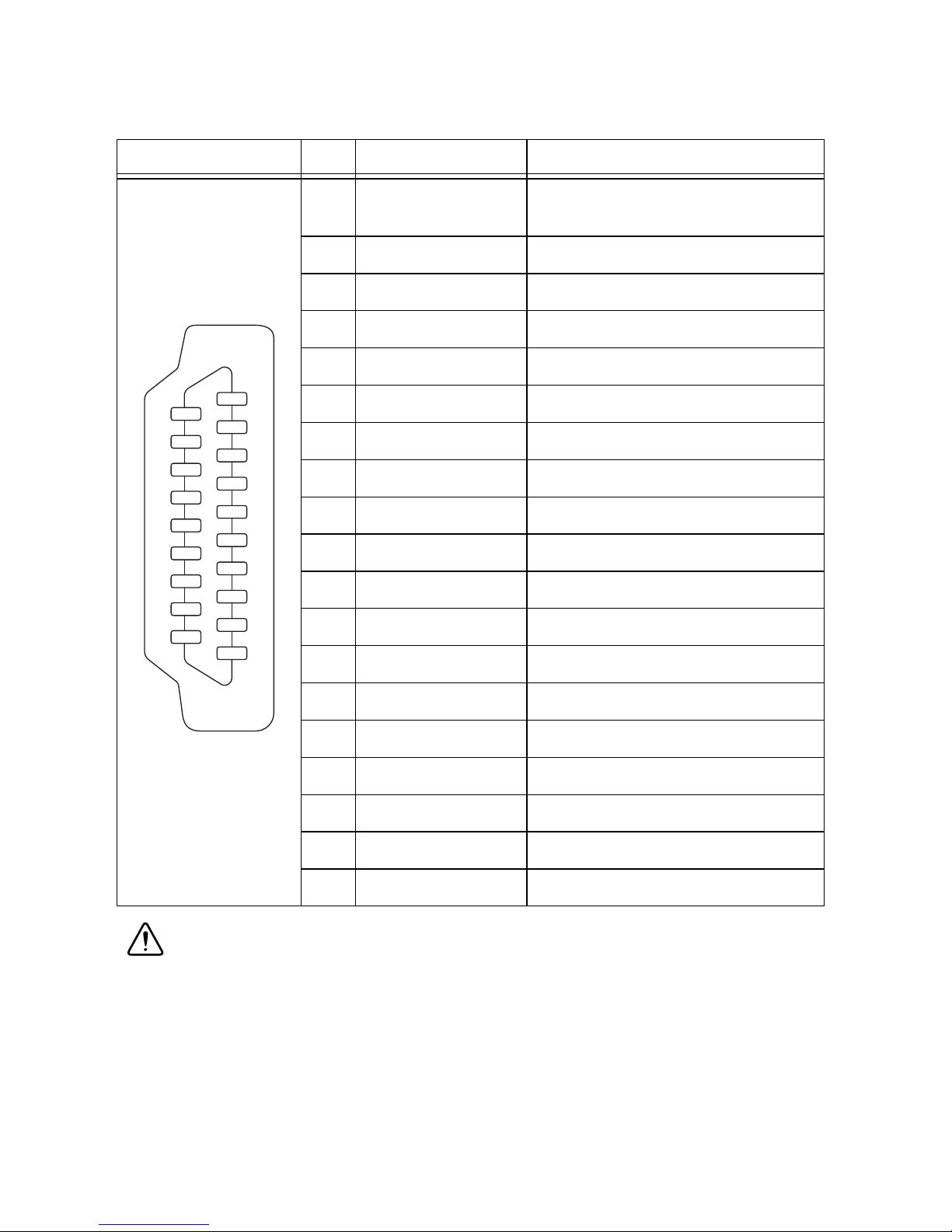

Table 3. NI 5782 AUX I/O Connector Pin Assignments

AUX I/O Connector Pin Signal Signal Description

1 DIO Port 0 (Bit 0) Bidirectional single-ended (SE)

digital I/O (DIO) data channel.

2 GND Ground reference for signals.

3 DIO Port 0 (Bit 1) Bidirectional SE DIO data channel.

4 DIO Port 0 (Bit 2) Bidirectional SE DIO data channel.

5 GND Ground reference for signals.

6 DIO Port 0 (Bit 3) Bidirectional SE DIO data channel.

7 DIO Port 1 (Bit 0) Bidirectional SE DIO data channel.

8 GND Ground reference for signals.

9 DIO Port 1 (Bit 1) Bidirectional SE DIO data channel.

10 DIO Port 1 (Bit 2) Bidirectional SE DIO data channel.

11 GND Ground reference for signals.

12 DIO Port 1 (Bit 3) Bidirectional SE DIO data channel.

13 PFI 0 Bidirectional SE DIO data channel.

14 NC No connect.

15 PFI 1 Bidirectional SE DIO data channel.

16 PFI 2 Bidirectional SE DIO data channel.

17 GND Ground reference for signals.

18 +5V +5 V power (10 mA maximum).

19 PFI 3 Bidirectional SE DIO data channel.

NI 5782R User Manual and Specifications |© National Instruments |7

Block Diagram

Figure 3 shows the NI 5782 block diagram and signal flow to and from the NI 5782

component-level intellectual property (CLIP) by way of the adapter module and the

corresponding NI 5782 Multiple Sample CLIP in LabVIEW FPGA.

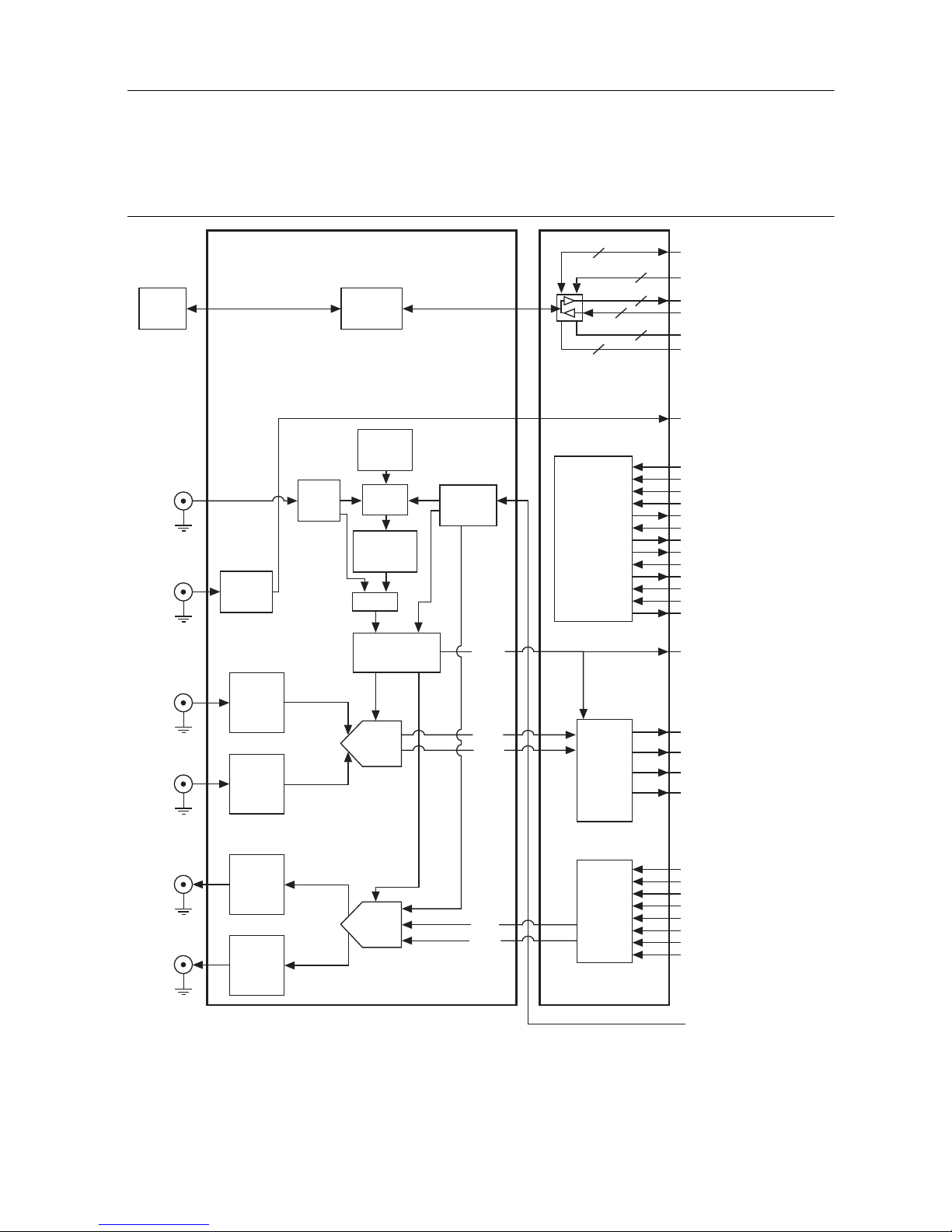

Figure 3. NI 5782 Connector Signals and NI 5782 CLIP Signal Block Diagram

PFI <0..3> Rd Data

LabVIEW FPGA CLIPNI 5782 Adapter Module

PFI <0..3> Wr Data

DIO Port <0..1> Write Enable

PFI <0..3> Write Enable

Trigger Input

SPI Read

SPI Write

SPI Address

SPI Write Data

SPI Read Data

SPI Device Select

Initialization Done

Reinitialize

Configuration Error

Sample Clock Select

Sample Clock Commit

SPI Idle

DataClock

AI 0 DataN

AI 1 DataN

AO 0 DataN

AO 0 DataN–2

AI 0 DataN–1

AI 1 DataN–1

AO 0 DataN–1

AO 0 DataN–3

AO 1 DataN

AO 1 DataN–1

AO 1 DataN–2

AO 1 DataN–3

Data

Clock

Data

Sample

Clock

Buffer

Internal

Reference

Clock

Synthesizer

SwitchSwitch

CLK IN

AUX I/O

TRIG

AI 0

AI 1

AO 0

AO 1

Switch

Clock

DAC

Interface

ADC

Interface

IOModSyncClock

ADC

DAC

Analog

Front End

Bus

Translator

Bus

Transceiver

DIO Port 0 Rd Data<0..3>,

DIO Port 1 Rd Data<0..3>

DIO Port 0 Wr Data<0..3>,

DIO Port 1 Wr Data<0..3>

Analog

Front End

Analog

Front End

Analog

Front End

AD9512

Synthesizer Locked

Analog front

end (FE)

Switches

ADCs

AD9512

SPI Engine

Interfacing

with:

DACs

8|ni.com |NI 5782R User Manual and Specifications

NI 5782 Component-Level Intellectual Property

(CLIP)

The LabVIEW FPGA Module includes component-level intellectual property (CLIP) for HDL

IP integration. NI FlexRIO devices support two types of CLIP: user-defined and socketed.

•User-defined CLIP allows you to insert HDL IP into an FPGA target, enabling VHDL code

to communicate directly with an FPGA VI.

•Socketed CLIP provides the same IP integration functionality of the user-defined CLIP, but

also allows the CLIP to communicate directly with circuitry external to the FPGA. Adapter

module socketed CLIP allows your IP to communicate directly with both the FPGA VI and

the external adapter module connector interface.

The following figure shows the relationship between an FPGA VI and CLIP.

Figure 4. CLIP and FPGA VI Relationship

Adapter Module

CLIP Socket

LabVIEW

FPGA VI

User-Defined

CLIP

NI FlexRIO FPGA Module

FPGA

External

I/O Connector

Adapter

Module

Socketed

CLIP

User-Defined

CLIP Fixed I/O

DRAM 0

CLIP Socket

Socketed

CLIP

DRAM 1

CLIP Socket

Socketed

CLIP

Fixed I/O

DRAM0 DRAM1

NI 5782R User Manual and Specifications |© National Instruments |9

The NI 5782 ships with socketed CLIP items that add module I/O to the LabVIEW project. The

NI 5782 ships with the following CLIP items:

1. NI 5782 Multiple Sample CLIP—The analog input channels generate two samples per

clock cycle at a clock rate that is half the sample rate. The analog output channels generate

four samples per clock cycle at a clock rate that is one quarter of the sample rate. The AI

default sample rate is 250 MHz, and the AO default sample rate is 500 MHz. The default

clock rate for this CLIP is 125 MHz. You can set a lower sample rate by using an external

Sample Clock.

This CLIP presents the data to the diagram in a decelerated format. The ADC data lands at

half the rate as the ADC clock. The DAC data must be presented in four time samples per

clock on each channel.

This CLIP provides access to two AI channels, two AO channels, eight bidirectional DIO

channels, four bidirectional PFI channels, and an input clock selector that can be configured

to use one of the following settings:

– Internal Sample Clock

– Internal Sample Clock locked to an external Reference Clock through the CLK IN

connector

– External Sample Clock through the CLK IN connector

– Internal Sample Clock locked to an external Reference Clock through

IoModSyncClock

– External Sample Clock through IoModSyncClock

This CLIP also contains an engine to program the CLK chip, ADCs, and DACs, either

through predetermined settings for an easier instrument setup, or through a raw SPI address

and data signals for a more advanced setup. The NI 5782 Multiple Sample CLIP is the

default CLIP.

2. NI 5782 Single Sample CLIP—The analog input channels generate one sample per clock

cycle and the analog output channels generate two samples per clock cycle. The default

clock rate for the Multiple Sample CLIP is 250 MHz. The Sample Clock rates of

AI (250 MHz) and AO (500 MHz) are the same as Multiple Sample CLIP. You can set

lower sample rates with the external Sample Clock.

This CLIP presents the data to the diagram at a clock rate such that the ADC data lands at

the same rate as the ADC clock. However, the DAC data must be presented in two time

samples per clock on each channel.

This CLIP provides access to two AI channels, two AO channels, eight bidirectional DIO

channels, four bidirectional PFI channels, and an input clock selector that can be configured

to use one of the following settings:

– Internal Sample Clock

– Internal Sample Clock locked to an external Reference Clock through the CLK IN

connector

– External Sample Clock through the CLK IN connector

10 |ni.com |NI 5782R User Manual and Specifications

– Internal Sample Clock locked to an external Reference Clock through

IoModSyncClock

– External Sample Clock through IoModSyncClock

This CLIP also contains an engine to program the CLK chip, ADCs, and DACs, either

through predetermined settings for an easier instrument setup, or through a raw SPI address

and data signals for a more advanced setup.

Refer to the NI FlexRIO Help for more information about NI FlexRIO CLIP items, how to

configure the NI 5782 with a socketed CLIP, and for a list of available socketed CLIP signals.

Connecting Cables

•Useany50ΩSMA cable to connect signals to the connectors on the front panel of your

NI 5782.

• Use the SHH19-H19-AUX cable (NI part number: 152629-01 or 152629-02) to connect to

the DIO and PFI signals on the AUX I/O connector.

For more information about connecting I/O signals on your device, refer to the Appendix A:

Specifications section of this document.

Clocking

The NI 5782 clocks control the sample rate and other timing functions on the device. Table 4

contains information about the possible NI 5782 clock resources.

Table 4. NI 5782 Clock Sources

Clock Frequency Source Options

Internal Clock

PLL Off

500 MHz The internal voltage-controlled oscillator (VCO) acts

as a free-running clock.

Internal Clock

PLL On

(IoModSyncClock)

500 MHz The internal VCO locks to PXI_CLK10 through

IoModSyncClock, which is available only through

the backplane of NI PXIe-796xRdevices.

Internal Clock

PLL On

(CLK IN)

500 MHz The internal VCO locks to an external Reference

Clock (10 MHz). Connect the external Reference

Clock through the CLK IN front panel connector.

External Clock

(CLK IN)

250 MHz to

1 GHz

Connect an external Sample Clock through the

CLK IN front panel connector.

This manual suits for next models

Table of contents

Other National Instruments Adapter manuals

National Instruments

National Instruments NI-5752B User manual

National Instruments

National Instruments 5762R User manual

National Instruments

National Instruments NI 9147 User manual

National Instruments

National Instruments TC-2190 User manual

National Instruments

National Instruments NI 6535 User manual

National Instruments

National Instruments NI 9949 RJ-50 User manual

National Instruments

National Instruments NI 653x User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments PCI/PXI ETHERNET ADAPTERS User manual

National Instruments

National Instruments 68VHDCI-50F SSR 8 User manual

National Instruments

National Instruments SC-2042-RTD User manual

National Instruments

National Instruments PCI/PXI GIGABIT ETHERNET ADAPTERS User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments USB-6001 User manual

National Instruments

National Instruments DAQ SC-205X Series User manual

National Instruments

National Instruments NI 1483 User manual

National Instruments

National Instruments BNC-2110 User manual

National Instruments

National Instruments REM-11180 User manual

National Instruments

National Instruments 68M-50F STEP User manual

National Instruments

National Instruments TC-2095 User manual

National Instruments

National Instruments 5741 User manual

National Instruments

National Instruments NI 5762 User manual

National Instruments

National Instruments BNC-2110 User manual

National Instruments

National Instruments NI 6584R User manual

Popular Adapter manuals by other brands

PCB Piezotronics

PCB Piezotronics 090B274 Installation and operating manual

Auvidea

Auvidea J20 Technical reference manual

Gossen MetraWatt

Gossen MetraWatt AT3-III E operating instructions

Akribis

Akribis ITF-21-BISS-MIT user manual

Tenda

Tenda W54U user guide

ROHO

ROHO AGILITY Operation manual

PROLiNK

PROLiNK WN2001 Quick installation guide

Hawking

Hawking HUF2 Specifications

Airlink101

Airlink101 AWLC4030 user manual

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter user manual

Philips

Philips SWA4554S/10 user manual

JVC

JVC TS-C9D2B Assembly and installation instructions

NETGEAR

NETGEAR A6100 quick start

D-Link

D-Link DWA-121 Quick install guide

Philips

Philips SWA2037 Specifications

Basalte

Basalte 0610-20 installation manual

Yealink

Yealink EHS40 user guide

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A installation guide
