National Instruments NI 653x User manual

USER GUIDE

NI 653xCable Adapter

The NI 653xcable adapter interfaces with National Instruments high-speed

digital I/O (DIO) devices. The cable adapter provides an easy way to

connect the Very High Density Connector Interface (VHDCI) connectors,

labeled as Digital Data & Control, on the newer NI 6535/6536/6537

devices to the 68-pin DAQ connectors found on older NI 6533/6534

accessories and fixturing. The 653xcable adapter is also compatible with

the NI 654xand NI 655xdigital pattern generator/analyzer devices.

For best signal integrity, NI recommends using the NI 6535/6536/6537

devices with newer accessories such as the NI CB-2162 and NI SMB-2163.

This guide explains how to set up and use the NI 653xcable adapter.

Contents

What You Need to Get Started ............................................................... 2

Related Documentation........................................................................... 2

Parts Locator Diagram ............................................................................ 3

Installing Cables...................................................................................... 4

Removing the NI 653xCable Adapter from its Enclosure ..................... 5

Connecting Signals ................................................................................. 6

Custom Wiring Example ................................................................. 11

Specifications .......................................................................................... 13

Digital I/O ........................................................................................ 13

Traces............................................................................................... 13

Power ............................................................................................... 13

Physical............................................................................................ 13

Where to Go for Support......................................................................... 14

NI 653x Cable Adapter User Guide 2 ni.com

What You Need to Get Started

To set up and use the NI 653xcable adapter, you need the following items:

❑NI SHC68-C68-D2 or NI C68-C68-D4 cable assembly

(for NI 6535/6536/6537/654x/655xdevices)

❑Compatible NI high-speed digital I/O device

(NI 6535/6536/6537/654x/655x)

❑(Optional) 22- to 26-gauge wire

❑(Optional) The documentation included with the NI high-speed DIO

device and the driver software included with your device

❑(Optional) NI 6533 or NI 6534 supported terminal block

Related Documentation

National Instruments high-speed DIO devices ship with several documents

designed to familiarize you with different aspects of the device. The titles

and location of the documents vary based on the driver that supports the

NI device, but you should have the following types of documentation:

• Getting Started Guide—This printed document should be the first

thing you read. Its purpose is to guide you through setting up the

high-speed DIO device and configuring it to generate or acquire your

first samples.

• Help—This online document provides more in-depth information

about the hardware capabilities of the high-speed DIO device, theory

of operation discussion, and information on programming flow and

software reference.

• Specifications—This printed document provides specifications for the

NI hardware.

Visit ni.com/manuals for the most current documentation.

You also may have documentation for any application development

environment (ADE) you are using.

©National Instruments Corporation 3 NI 653x Cable Adapter User Guide

Parts Locator Diagram

Refer to Figure 1 to locate connectors and components on the NI 653x

cable adapter.

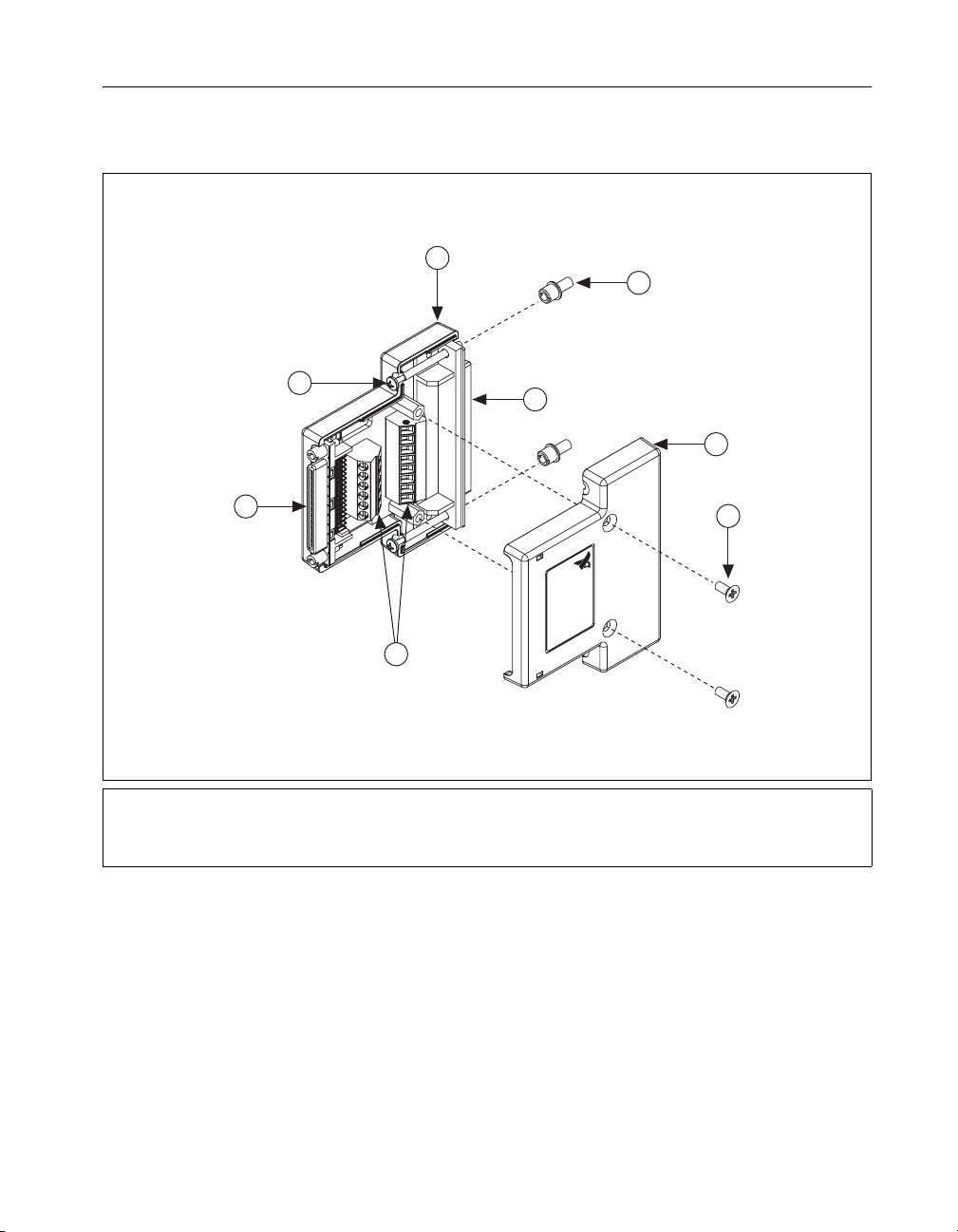

Figure 1. NI 653xCable Adapter Parts Locator Diagram

1 Enclosure Base

2 Jacksockets (M2.5 Screw, #2-56 Socket)

3 68-Pin DAQ Connector

4 Enclosure Top Cover

5 M2.5 x 6 mm Philips Flathead Countersunk Screws

6 Terminal Connectors

7 VHDCI Connector

8 #2-56 Custom Screw

NATIONAL

INSTRUMENTS

653X CABLE ADAPTER

Remove screws on this side of

enclosure to access terminals.

NI 653x Cable Adapter User Guide 4 ni.com

Installing Cables

An SHC68-C68-D2 or C68-C68-D4 cable connects the NI 653xcable

adapter to the NI high-speed DIO device. Figure 2 shows how to install the

cable.

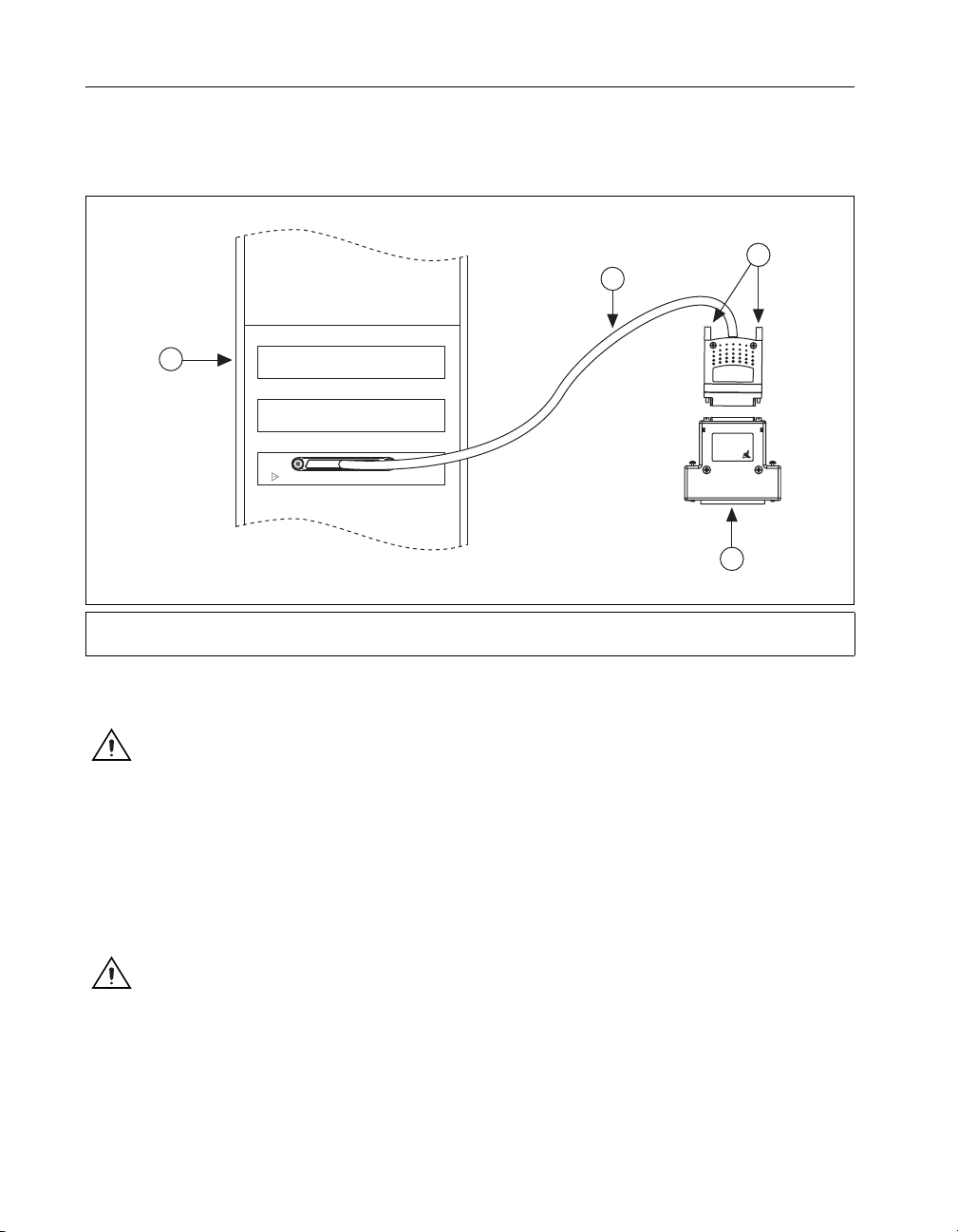

Figure 2. Connecting a SHC68-C68-D2 or C68-C68-D4 Cable

to the NI 653xCable Adapter

Caution Before connecting the cable, disconnect power from the NI device and any other

connected hardware to prevent damage to the hardware and personal injury. NI is not liable

for damage resulting from improper connections.

Refer to Figure 2 as you complete the following steps to install the cable

adapter:

1. Insert the cable into the cable adapter.

2. Tighten the cable jackscrews.

Caution Before attaching any cables or accessories, install the NI high-speed DIO device.

Refer to the Getting Started Guide that shipped with your device for instructions on

installing the device.

1 PC Chassis with NI High-Speed DIO Device

2 Cable Assembly

3 Cable Jackscrews

4 NI 653xCable Adapter

DIGITAL DATA & CONTROL

NI PCIe-

653x

NATIONAL

INSTRUMENTS

653X CABLE ADAPTER

Remove screws on this side of

enclosure to access terminals.

©National Instruments Corporation 5 NI 653x Cable Adapter User Guide

Removing the NI 653xCable Adapter from its Enclosure

You will need to remove the NI 653xcable adapter from its enclosure to

connect signals. To remove the cable adapter from its enclosure, complete

the following steps:

1. Remove the screws from the cable adapter enclosure top cover,

as shown in Figure 3.

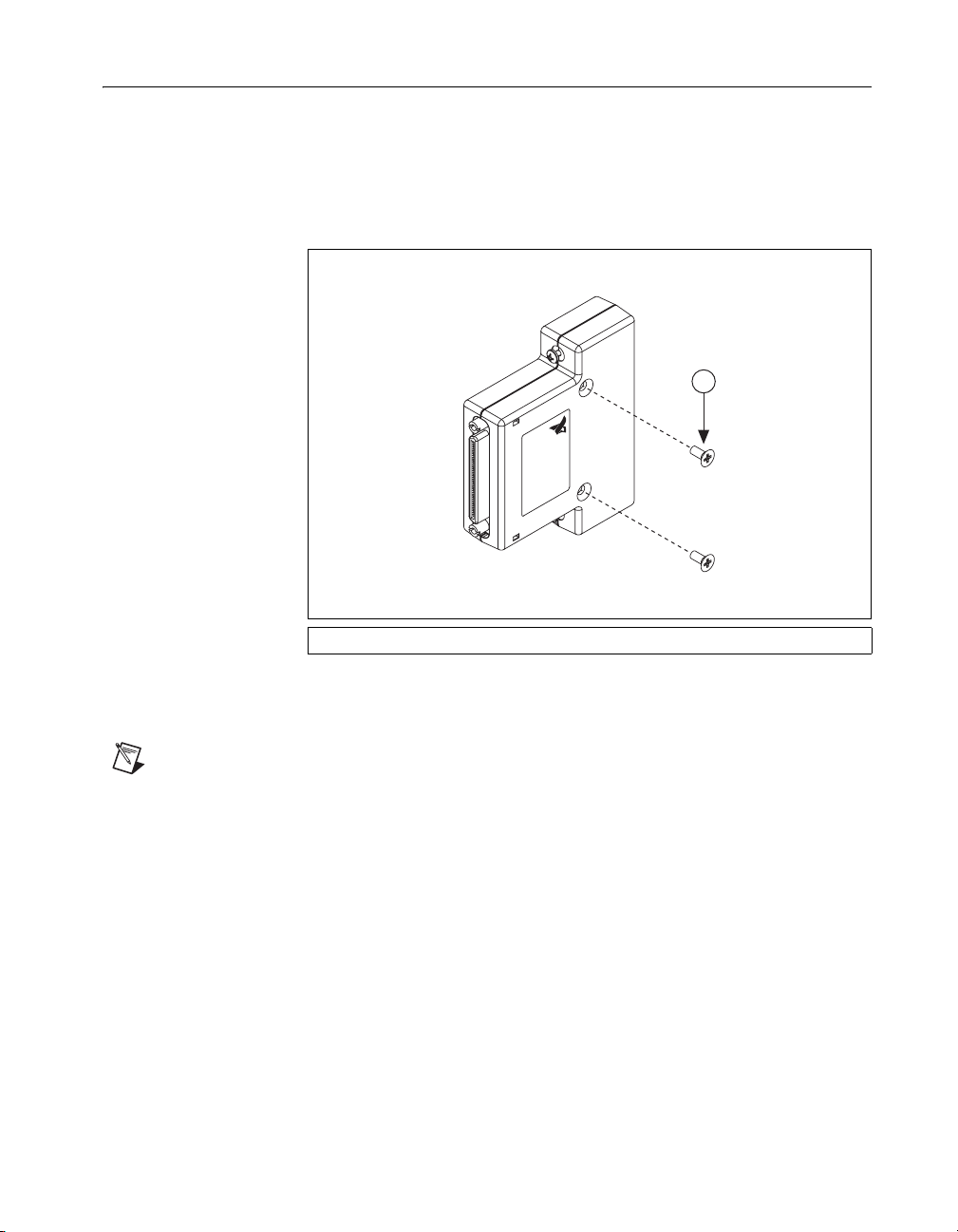

Figure 3. Remove Screws from the Enclosure

2. Remove the enclosure top cover.

Note Be sure to remove the screws from side with the NI logo label, as shown in Figure 3.

1 M2.5 x 6 mm Philips Flathead Countersunk Screws

NATIONAL

INSTRUMENTS

653X CABLE ADAPTER

Remove screws on this side of

enclosure to access terminals.

NI 653x Cable Adapter User Guide 6 ni.com

Connecting Signals

The NI 653x cable adapter provides connectivity to up to 32 of the

single-ended DIO channels of an NI high-speed DIO device. Each DIO,

PFI, and clock channel of the NI high-speed DIO device connects to a

corresponding pin on the NI 653xcable adapter. The 32 DIO channels are

directly connected between the two bulk connectors. PFI <0..5> from the

NI 6535/6536/6537 VHDCI connector are connected to a 6-position screw

terminal. PFI <0..7> from the NI 6533/6534 68-pin DAQ connector are

connected to an 8-position screw terminal.

PFI channels must be manually connected through screw terminals for

flexibility and to ensure correct signal routing. You can make connections

between the PFI channels using 22- to 26-gauge wire.

The NI 6533/6534 devices have specific applications for PFI channels and

thus require custom wiring to be compatible. An example of how to make

these connections is provided in the Custom Wiring Example section.

Figure 4 shows the screw terminal locations on the NI 653xcable adapter.

Figure 4. NI 653xSignal Connections

6535/6/7 PFI

6533/4

PFI

J1 J4

GND +5V

©National Instruments Corporation 7 NI 653x Cable Adapter User Guide

Note Refer to the help file for your device for information about the number of available

DIO channels on your device. DIO <20..31> or PFI_0 may not be applicable to your

device.

Figures 5 and 6 show pinouts for the VHDCI connector and 68-pin DAQ

connector, respectively.

Figure 5. VHDCI Connector Pinout (NI SHC68-C68-D2 or NI C68-C68-D4 Cable)

DIO 31

GND

DIO 29

GND

DIO 27

GND

DIO 25

RESERVED

DIO 23

GND

DIO 21

GND

DIO 19

GND

DIO 17

GND

DIO 15

GND

DIO 13

GND

DIO 11

GND

DIO 9

GND

DIO 7

PFI 1

DIO 5

GND

DIO 3

PFI 3

DIO 1

GND

DDC CLK OUT/PFI_4

GND

DIO 30

GND

DIO 28

GND

DIO 26

GND

DIO 24

GND

DIO 22

GND

DIO 20

GND

DIO18

GND

DIO 16

GND

DIO 14

RESERVED/PFI_0

DIO 12

GND

DIO 10

GND

DIO 8

GND

DIO 6

RESERVED

DIO 4

GND

DIO 2

PFI 2

DIO 0

GND

STROBE/PFI_5

GND

NI 653x Cable Adapter User Guide 8 ni.com

Figure 6. 68-pin DAQ Connector (NI 6533/6534 Fixture or Accessory)

+5 V

PFI 2

PFI 6

PFI 0

PFI 4

PFI 5

PFI 1

PFI 7

PFI 3

P0.0

GND

P0.3

P0.4

GND

P0.7

P1.0

P1.1

GND

R GND

GND

P1.6

P1.7

P2.0

GND

P2.3

P2.4

GND

P2.7

P3.0

GND

P3.3

P3.4

GND

P3.7

R GND

GND

D PULL

GND

C PULL

GND

R GND

P0.1

P0.2

GND

P0.5

P0.6

GND

P1.2

P1.3

P1.4

P1.5

GND

R GND

P2.1

P2.2

GND

P2.5

P2.6

GND

P3.1

P3.2

GND

P3.5

P3.6

GND

©National Instruments Corporation 9 NI 653x Cable Adapter User Guide

Table 1 describes the VHDCI signals shown in Figure 5. Table 2 describes

the DAQ connector signals shown in Figure 6.

Note Refer to your device documentation for supported channels.

Note The NI 6535/6536/6537/654x/655xdoes not provide +5 V. If your fixtures require

this, access to the +5 V signal on the DAQ connector is provided through the unpopulated

W1 through-hole solder pad.

Table 1. VHDCI Connector Pinout Descriptions (NI 6535/6536/6537/654x/655x)

Pin Signal Description Connection

DIO <0..31> Bidirectional digital data channels 0 through 31. P0 <0..7>, P1 <0..7>,

P2 <0..7>, or P3 <0..7>

on a 68-pin DAQ

connector

PFI <0..5> Programmable functional interface (PFI) channels 0

through 5.

6-position screw

terminal (J4)

GND Ground reference for signals. —

RESERVED These channels are reserved for system use.

Do not connect signals to these channels.

—

Table 2. DAQmx Connector Pinout Descriptions (NI 6533/6534)

Pin Signal Description Connection

P0 <0..7> Bidirectional digital data port 0 channels 0 through 7. VHDCI DIO <0..7>

P1 <0..7> Bidirectional digital data port 1 channels 0 through 7. VHDCI DIO <8..15>

P2 <0..7> Bidirectional digital data port 2 channels 0 through 7. VHDCI DIO <16..23>

P3 <0..7> Bidirectional digital data port 3 channels 0 through 7. VHDCI DIO <24..31>

PFI <0..7> Programmable functional interface (PFI) channels 0

through 7.

8-position screw

terminal (J3)

+ 5 V DC power Unpopulated W1

C PULL,

DPULL

Power on state control NC

NI 653x Cable Adapter User Guide 10 ni.com

Caution Connections that exceed any of the maximum ratings for the NI 653xcable

adapter or the NI high-speed DIO device can damage the device and the computer.

Maximum input ratings are provided in the Specifications section and in the specifications

document that shipped with the NI high-speed DIO device. NI is not liable for any damage

resulting from such signal connections.

Table 3 shows the relationship between PFI channels and the termination

sockets.

Note Refer to the help file for your device for information about the number of available

DIO channels on your device. DIO <20..31> or PFI_0 may not be applicable to your

device.

Table 3. PFI Screw Terminals

Connector Channel Socket

VHDCI

(NI 6535/6536/6537/654x/655x)

PFI <0..5> J4

68-Pin DAQ Connector

(NI 6533/6534)

PFI <0..7> J3

Other manuals for NI 653x

Table of contents

Other National Instruments Adapter manuals

National Instruments

National Instruments BNC-2115 User manual

National Instruments

National Instruments BNC-2144 User manual

National Instruments

National Instruments VXI-1000 User manual

National Instruments

National Instruments 653 Series User manual

National Instruments

National Instruments USB-6001 User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments SC-2042-RTD User manual

National Instruments

National Instruments BNC-2142 User manual

National Instruments

National Instruments 6584R User manual

National Instruments

National Instruments PCI/PXI GIGABIT ETHERNET ADAPTERS User manual

National Instruments

National Instruments 5783 User manual

National Instruments

National Instruments BNC-2110 User manual

National Instruments

National Instruments NI 1483 User manual

National Instruments

National Instruments NI 5782R User manual

National Instruments

National Instruments SC-2072 User manual

National Instruments

National Instruments DAQ SC-205X Series User manual

National Instruments

National Instruments NI 5751 User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments SCXI-1362 User manual

National Instruments

National Instruments SCXI 1346 User manual

National Instruments

National Instruments SC-205X Series User manual

National Instruments

National Instruments TC-2095 User manual

National Instruments

National Instruments PCI/PXI ETHERNET ADAPTERS User manual

National Instruments

National Instruments NI 9147 User manual

Popular Adapter manuals by other brands

PCB Piezotronics

PCB Piezotronics 090B274 Installation and operating manual

Auvidea

Auvidea J20 Technical reference manual

Gossen MetraWatt

Gossen MetraWatt AT3-III E operating instructions

Akribis

Akribis ITF-21-BISS-MIT user manual

Tenda

Tenda W54U user guide

ROHO

ROHO AGILITY Operation manual

PROLiNK

PROLiNK WN2001 Quick installation guide

Hawking

Hawking HUF2 Specifications

Airlink101

Airlink101 AWLC4030 user manual

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter user manual

Philips

Philips SWA4554S/10 user manual

JVC

JVC TS-C9D2B Assembly and installation instructions

NETGEAR

NETGEAR A6100 quick start

D-Link

D-Link DWA-121 Quick install guide

Philips

Philips SWA2037 Specifications

Basalte

Basalte 0610-20 installation manual

Yealink

Yealink EHS40 user guide

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A installation guide
