INSTALLATION GUIDE

PCI/PXI ETHERNET ADAPTERS

National Instruments offers several Ethernet adapters based on the Intel

82559-compatible Ethernet controller.

This document explains how to install and troubleshoot the Ethernet drivers

for your PCI/PXI board. Some boards also contain additional functionality,

for example, GPIB. Refer to the documentation that came with your kit to

install the software for the other functionality.

Installing Your PCI Board

Note If you are replacing an existing Ethernet adapter with the PCI Ethernet adapter in

Windows 95, refer to Removing an Existing Adapter in Windows 95.

Complete the following instructions to install the Ethernet adapter.

1. Shut down Windows if it is running by clicking Start»Shut Down.

2. Turn off the computer and unplug the power cord.

3. Remove the cover to give yourself access to the expansion slots.

4. Choose an empty PCI slot and remove the slot cover by unscrewing the

screw that secures it.

5. Insert the adapter into the PCI slot and push until it is firmly seated.

Reinstallthescrewyouremovedinstep4.

6. Replace the cover and plug in the power cord.

Installing Your PXI Board

Note If you are replacing an existing Ethernet adapter with the PXI Ethernet adapter in

Windows 95, refer to Removing an Existing Adapter in Windows 95.

Complete the following instructions to install the Ethernet adapter.

1. Shut down Windows if it is running by clicking Start»Shut Down.

™

PCI/PXI Ethernet Adapter Installation Guide 2 www.ni.com

2. Turn off your PXI or CompactPCI chassis. Keep the chassis plugged

in so that it remains grounded as you install the adapter.

3. Remove the filler panel from a PXI peripheral bus master slot. The

adapter requires a bus master slot to take advantage of the onboard

DMA and Ethernet controllers. All PXI chassis and most CompactPCI

chassis contain only bus master slots. Refer to your chassis

documentation to verify you are using a bus master slot.

4. Touch a metal part on your chassis to discharge any static electricity

that might be on your clothes or body.

5. Insert the adapter into the selected bus master slot. Use the

injector/ejector handle to fully inject the device into place.

6. Screw the front panel of the adapter to the front panel mounting rail

of the PXI or CompactPCI chassis.

Connect the Network Cable

1. Connect a Twisted Pair Ethernet (TPE) network cable to the adapter as

showninFigure1.

Figure 1. Connecting the Network Cable

• For 100Base-TX, the network cable must be Category 5,

twisted-pair wiring. If you plan to run the adapter at 100 Mb/s,

it must be connected to a 100Base-TX hub or switch—not a

100Base-T4 hub.

• For 10Base-T, use Category 3, 4, or 5 twisted-pair wiring.

2. To configure Ethernet for your adapter, continue with the procedure

specific to your operating system outlined later in this guide.

©National Instruments Corporation 3 PCI/PXI Ethernet Adapter Installation Guide

Install the Drivers

Follow the installation instructions for your operating system. The adapter

works with the following operating systems:

•Windows 95

•Windows 98

•Windows Me

•Windows 2000

•Windows NT Version 4.0

•Windows NT Version 3.51

Windows 95

1. After you install the Ethernet adapter, power on the computer and start

Windows 95. The Update Device Driver Wizard appears.

Note If this dialog box did not appear, you may have to manually install the Ethernet

driver. See the MS.TXT readme file in the \MS directory of the PCI/PXI Ethernet Adapters

CD for more information.

2. Insert the PCI/PXI Ethernet Adapters CD and click Next.

3. Make sure the Wizard finds Intel 8255x-based PCI Ethernet

Adapter (10/100). Click Finish.

4. Specify the path to your CD-ROM as the source path and click OK.

PCI/PXI Ethernet Adapter Installation Guide 4 www.ni.com

5. Follow the prompts for any Windows 95 installation disk and restart

when prompted.

6. After restarting Windows 95, connect to your network by

double-clicking the Network Neighborhood icon on the desktop.

Windows 98

After you install the Ethernet adapter, power on the computer and start

Windows 98. If you have a newer version of Windows 98, it automatically

installs a driver for the adapter from its own library of drivers. If this is the

case, you might be prompted only to insert the Windows 98 CD and to

restart the computer.

However, older versions of Windows 98 might not include the driver for the

adapter. If this is the case, the Add New Hardware Wizard dialog box

appears.

1. Follow the prompts in the Wizard. Select Search for the best driver

for your device and click Next.

2. When prompted for the driver location, select CD-ROM drive, insert

the PCI/PXI Ethernet Adapters CD, and click Next.

3. After the Wizard finds Intel 8255x-based PCI Ethernet Adapter,

click Next.

4. Click Finish.

5. Restart the computer when prompted.

©National Instruments Corporation 5 PCI/PXI Ethernet Adapter Installation Guide

Windows Me

After you install the Ethernet adapter, power on the computer and start

Windows Me. Windows Me automatically installs a driver for the adapter

from its own library of drivers.

Updating the Windows Me Driver

To update the driver for the adapter, follow these instructions:

1. Double-click the System icon from the Control Panel.

2. Select the Device Manager tab and double-click Network Adapters.

3. Double-click Intel 8255x-based PCI Ethernet Adapters (10/100).

4. Select the Driver tab and click Update Driver.

5. Select Specify the location of the driver and click Next.

6. Select Search for a better driver than the one your device is using

now and check Removable Media.ClickNext.

7. Select Install one of the other drivers.

8. Select Intel 8255x-based PCI Ethernet Adapter (10/100) on your

CD-ROM and click OK.

9. Click Next at the next two prompts and then click Finish.

10. Restart your computer when prompted.

Windows 2000

After you install the Ethernet adapter, power on the computer and start

Windows 2000. Windows 2000 automatically installs a driver for the

adapter from its own library of drivers.

Updating the Windows 2000 Driver

To update the driver for the adapter, follow these instructions:

1. Insert the PCI/PXI Ethernet Adapters CD.

2. Double-click the System icon from the Control Panel.

3. Select the Hardware tab, and click the Device Manager button.

4. Select Network Adapters and right-click on the Intel 8255x-based

PCI Ethernet Adapter listing to display its menu. Then click the

Properties menu option.

5. Click the Driver tab and click Update Driver.TheUpdate Device

Driver Wizard appears. Click Next.

6. At the prompt What do you want the wizard to do? select the Search

for a suitable driver for my device radiobutton,andclickNext.

PCI/PXI Ethernet Adapter Installation Guide 6 www.ni.com

7. Select CD-ROM drives and click Next.

8. Select the driver on the PCI/PXI Ethernet Adapters CD and click Next.

9. Restart your computer when prompted.

Windows NT Version 4.0

1. After you install the Ethernet adapter, power on the computer and start

Windows NT.

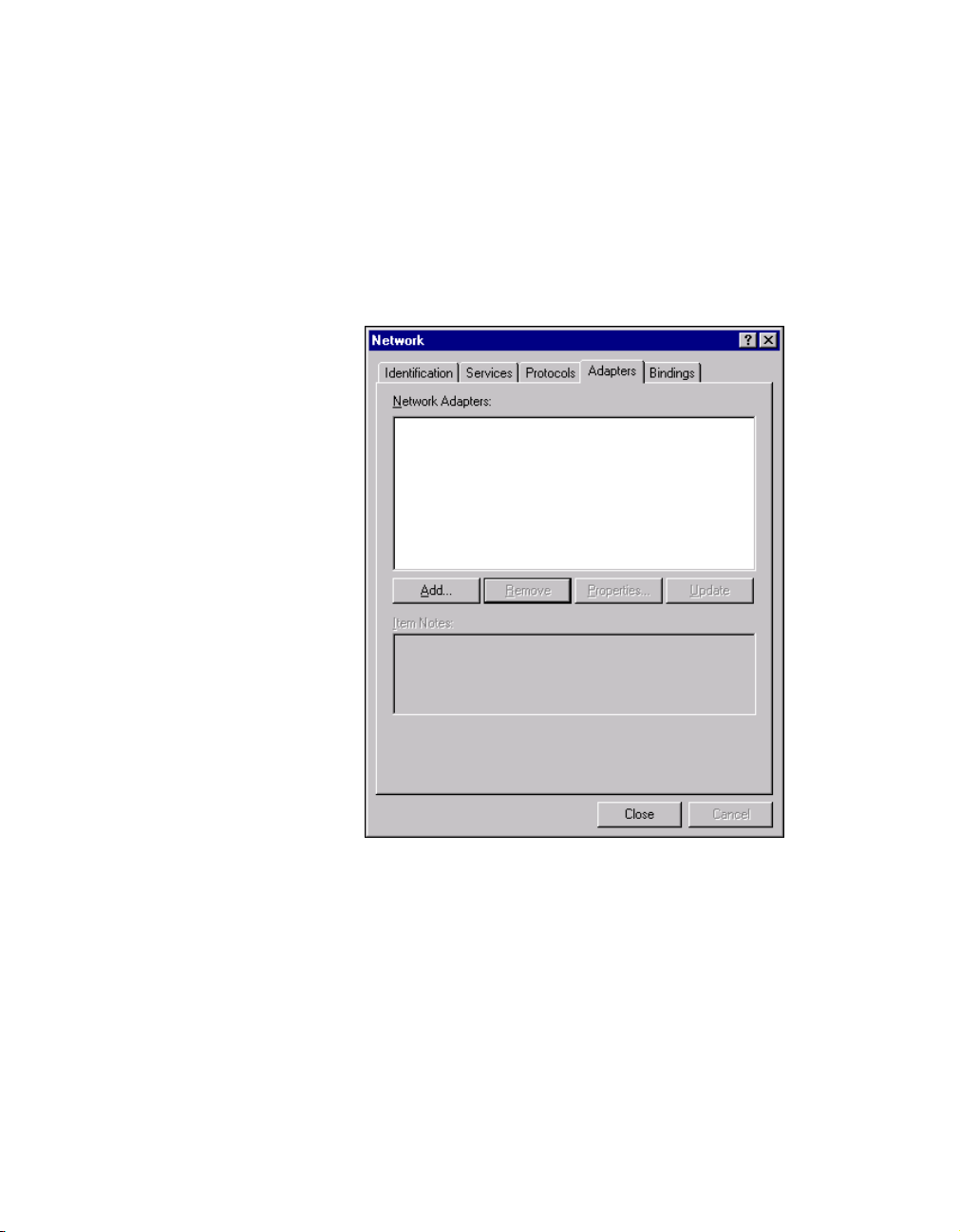

2. Double-click the Network icon in the Control Panel.

3. Click the Adapters tab.

4. Click Add. You will see a list of adapters.

5. Do not select an adapter from this list. Instead, insert the PCI/PXI

Ethernet Adapters CD into the appropriate drive and click Have disk.

©National Instruments Corporation 7 PCI/PXI Ethernet Adapter Installation Guide

6. Specify the appropriate drive in the dialog box and click OK. Follow

the prompts to complete the installation.

7. Click Close to finish.

8. Restart Windows NT.

Windows NT Version 3.51

1. After you install the Ethernet adapter, power on the computer and start

Windows NT.

2. Double-click the Network icon in the Control Panel.

3. Click Add Adapter.

4. When the list of adapters appears, scroll to the end of the list and select

<Other> Requires disk from manufacturer andthenclick

Continue.

5. Insert the PCI/PXI Ethernet Adapters CD in the appropriate drive,

specify that drive, and click OK.

6. Select the Intel PRO Adapter and click OK.

7. The TCP/IP Configuration dialog box appears. Enter the appropriate

information and click OK.

8. When prompted, restart Windows NT.

PCI/PXI Ethernet Adapter Installation Guide 8 www.ni.com

Troubleshooting

Windows NT Troubleshooting

If Windows NT reports an error or you cannot connect to the network, try

the following suggestions first. If you are still having trouble, refer to the

additional topics in this section.

•Make sure you are using the drivers provided on the PCI/PXI Ethernet

Adapters CD.

•Make sure the drivers are loaded and the protocols are bound. Check

the settings in the Network/Bindings dialog box in the Control Panel.

•Check the Windows NT Event Viewer for error messages.

•Test the adapter with the PROSet advanced configuration utility that

was installed on your system when you installed the drivers. To start

PROSet, double-click the PROSet icon in the Windows Control Panel.

To run diagnostics, select the adapter and click the Diagnostics tab,

then click Run Tests.

Testing the Adapter

Test the adapter by running diagnostics. To test the Ethernet functionality,

run PROSet by double-clicking the PROSet icon in the Control Panel.

Select the adapter and click the Diagnostics tab, then click Run Tests.

If your board has GPIB functionality, run the NI-488.2 Getting Started

Wizard to verify your hardware and software installation.

WOL558.VXD Missing or Not Found (Windows 98 Only)

This error can occur in Windows 98 if a .inf filealreadyinstalledonthe

system interferes with the driver installation. Perform the following steps

to manually install the Ethernet adapter.

1. Open Windows Explorer.

2. Select Views»Folder Options.

3. Select the View tab.

4. Select Show all files and click OK.

5. Delete net557.inf and net557.pnf in the Windows/inf folder.

6. Double-click the System icon from the Control Panel.

7. Select the Device Manager tab and double-click Network Adapters.

8. Select the Intel 8255x-based PCI Ethernet Adapters (10/100) and

click Remove.

©National Instruments Corporation 9 PCI/PXI Ethernet Adapter Installation Guide

9. Restart your computer.

10. Follow the instructions given previously in the Windows 98 section to

install the Windows 98 drivers.

Adapter Cannot Connect to the Network

1. Make sure the cable is installed properly.

The network cable must be installed properly at both the adapter and

the hub. The maximum distance for the cable is 100 m. If the cable is

connected properly and within the allowed distance, try another cable.

2. Check the LEDs on the adapter.

The adapter has two LEDs located on the RJ-45 connector.

The following table lists the function of each LED.

3. Make sure you are using the correct drivers.

Verify that you are using the drivers that came with the adapter.

The computer hangs when the drivers are loaded

Change the PCI BIOS interrupt settings. See PCI/PXI Installation Tips for

more information.

Diagnostics pass, but the connection fails or

errors occur

At 100 Mb/s, make sure you are using a Category 5 cable and you are

connected to a 100Base-TX hub or switch—not 100Base-T4.

LED Color Function Indication Meaning

Yellow Action/Link On The adapter is receiving power. The cable

connection is good.

Off The adapter is not sending or receiving

network data. The adapter is not receiving

power. The cable connection is bad or you

have a driver problem.

Flashing The adapter is sending and receiving

network data.

Green Speed On Operating at 100 Mb/s

Off Operating at 10 Mb/s

PCI/PXI Ethernet Adapter Installation Guide 10 www.ni.com

The Link LED does not light

•Make sure the network drivers are loaded.

•Check the cable connection.

The ACT LED does not light

•Make sure the correct network drivers are loaded.

•Thenetworkmaybeidle.

The Adapter has stopped working

•Run the diagnostics.

•Try reseating the adapter in the PCI/PXI slot or try a different slot.

•The network drivers may be corrupt or missing. Try removing and

reinstalling the drivers.

Link LED is not lit when the computer is shut down

and power is connected

•Make sure the network cable is attached.

PCI/PXI Installation Tips

PCI/PXI computers are designed to automatically configure add-in boards

each time the computer starts. The PCI/PXI computer sets the I/O address

and IRQ level for the peripheral boards when the computer starts. The

network drivers cannot change these values. If you experience problems

when the computer starts, you may have to follow additional steps.

On some computers, manual configuration is possible through the

computer’s BIOS setup utility. Refer to the documentation that came with

your computer. You may need to verify or change some BIOS settings.

The following common solutions may correct your problem:

•Make sure you have installed the adapter in a bus master-enabled slot.

On some computers, not all slots are bus master enabled by default.

Check your BIOS settings. Enable PCI/PXI bus mastering, if your

BIOS has such an option.

•Reserve interrupts (IRQ) and/or memory addresses for ISA adapters.

This prevents PCI/PXI boards from using the same settings ISA boards

are using. Try changing some of the interrupts that are reserved for

ISA, but not being used, to reserved for PCI/PXI.

This manual suits for next models

Table of contents

Other National Instruments Adapter manuals

National Instruments

National Instruments 6584R User manual

National Instruments

National Instruments NI 9949 RJ-50 User manual

National Instruments

National Instruments NI-5752B User manual

National Instruments

National Instruments NI 9147 User manual

National Instruments

National Instruments 68M-50F STEP User manual

National Instruments

National Instruments SCXI 1346 User manual

National Instruments

National Instruments BNC-2142 User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments REM-11180 User manual

National Instruments

National Instruments BNC-2144 User manual

National Instruments

National Instruments DAQ SC-205X Series User manual

National Instruments

National Instruments 5741 User manual

National Instruments

National Instruments SC-205 Series User manual

National Instruments

National Instruments NI-6589 User manual

National Instruments

National Instruments SCXI-1362 User manual

National Instruments

National Instruments NI 653x User manual

National Instruments

National Instruments USB-6001 User manual

National Instruments

National Instruments TC-2095 User manual

National Instruments

National Instruments NI 6584R User manual

National Instruments

National Instruments VXI-1000 User manual

National Instruments

National Instruments SC-205X Series User manual

National Instruments

National Instruments BNC-2110 User manual

National Instruments

National Instruments 68VHDCI-50F SSR 8 User manual

National Instruments

National Instruments NI 9149 User manual

Popular Adapter manuals by other brands

PCB Piezotronics

PCB Piezotronics 090B274 Installation and operating manual

Auvidea

Auvidea J20 Technical reference manual

Gossen MetraWatt

Gossen MetraWatt AT3-III E operating instructions

Akribis

Akribis ITF-21-BISS-MIT user manual

Tenda

Tenda W54U user guide

ROHO

ROHO AGILITY Operation manual

PROLiNK

PROLiNK WN2001 Quick installation guide

Hawking

Hawking HUF2 Specifications

Airlink101

Airlink101 AWLC4030 user manual

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter user manual

Philips

Philips SWA4554S/10 user manual

JVC

JVC TS-C9D2B Assembly and installation instructions

NETGEAR

NETGEAR A6100 quick start

D-Link

D-Link DWA-121 Quick install guide

Philips

Philips SWA2037 Specifications

Basalte

Basalte 0610-20 installation manual

Yealink

Yealink EHS40 user guide

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A installation guide
