CHAPTER 1 INTRODUCTION
1-1
TheMS-6188FlexATXWH11mainboardisahigh-performance
computer mainboard based on Intel®810 chipset. The MS-6188 is designed
for the Intel®CeleronTM/ Coppermine (PPGA) processor for inexpensive
business/personal desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics
chipset for the Intel®CeleronTM processor. The graphics accelerator archi-
tecture consists of dedicated multi-media engines executing in parallel to
deliver high performance 3D, 2D, and motion compensation video capabili-
ties. An integrated centralized memory arbiter allocates memory bandwidth
to multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
The Intel 810 chipset contains three core components: the Graph-
ics and Memory Controller Hub (GMCH), the I/O Controller Hub (ICH) and
theFirmwareHub(FWH). TheGMCHintegratesa 66/100MHz,P6family
system bus controller, integrates 2D/3D graphics accelerator, 100MHz
SDRAM controller and high-speed hub interface for communication with the
ICH. The ICH integrates an Ultra ATA66(ICH) controller, USB host control-
ler,LPCinterfacecontroller,FWHintefaceconroller,PCIinterfacecontroller,
AC’97 digital controller and a hub interface for communication with the
GMCH.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSupport Socket370 for Intel®CeleronTM/Coppermine processor.
lSupport300MHz,333MHz,366MHz,400MHz,433MHz,466MHzorhigher
Chipset
lIntel®810(GMCH) chipset. (421BGA)
- Integrated Graphics Controller
- Intel DDM+ Architecture
- SDRAM memory Independent of System Bus
lIntel®ICHchipset. (241 BGA)
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA66
- Low pin count interface for SIO
FrontSide Bus (FSB)
l66/100MHz clocks are supported.
l133Hzclocks are supported for 810E.
MainMemory
lSupport two 168-pin DIMM sockets.
lSupporta maximum memory size of 256MB(64Mbit technology) or
512MB(128Mbittechnology) SDRAM.
Slots
lTwo 32-bit Master PCI Bus slots.
lSupport 3.3v/5v PCI bus Interface.
On-BoardIDE
lAn IDE controller on the ICH chipset provides IDE HDD/CD-ROM with
PIO, Bus Master and Ultra DMA/66 operation modes.
lCan connect up to four IDE devices.
CHAPTER 1 INTRODUCTION
1-3
On-BoardPeripherals
lOn-BoardPeripherals include:
- 1 floppy port supports 2 FDD with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial port (1 rear port + 1 header)
- 1 parallel port supports SPP/EPP/ECP mode
- 4 USB ports(2 USB rear ports + 2 USB front headers)
- 1 IrDA connector for SIR.
-1 VGA port
- 1 PanelLink Connector (optional)
Video
lGMCH chip integrated
l2D/3DGraphics
Audio
lICH chip integrated
lAC’972.1 Compliant
Network
lIntel 82559 10/100M Ethernet (optional. default setting)
- WFW baseline & NET PC specs compliant
- Advanced Power Management (ACPI support)
- ARP& Flexibleframefiltering
- Software drivers are backwards compatible
- IP checksumming in hardware
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications.
CHAPTER 1 INTRODUCTION
1-4
Note: To be able to identify the chipset used onboard: During POST
(Power on Self Test), you can determine the chipset, which will
appear briefly at the bottom left of the POST screen.
Dimension
lFlexATX Form Factor: 7.5” x9”inches
Mounting
l6 mounting holes.
Warning: According to Intel 810 chipset specification: 810E chipset sup-
ports66/100/133MHzFSB processor and 810/810DC100 chipset
supports 66/ 100 FSB processor. Please do not use 133MHz FSB
processor on motherboards which use 810/810DC100 chipset.
CHAPTER 1 INTRODUCTION
1-5
1.2 Mainboard Layout
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
GMCH
chipset
(810)
Socket 370
DIMM 2
Top: mouse
Bottom:
keyboard
Top: LAN
DIMM 1
IDE2
Bottom: USB
Port 2/Port1
IDE1 FDD
ICH
JMDM1
J10
JIR1
JGS1
JBIOS
CD_IN
AUX_IN
COM B
JUSBV1
J1
Top: LPT
Bottom:
PanelLink
VGAPort
Top:COMA
Bottom:
Line-Out
Line-In
Mic
MODEM_IN
CPUFAN
SDRAM SDRAM
JFP2
JBAT
JWOL1
JKBV1
J9
CODEC
FWH
Intel
82559
Chipset
BATT
Sil154
MS-6188FlexATX WH11 Mainboard
JUSB1
JP2
JP100
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
Themainboard operates with Intel®Coppermine(FC-PGA)orCeleronTM
processor. The mainboard uses a CPU socket called Socket 370 for easy
CPU installation. The CPU should always have a Heat Sink and a cooling
fan attached to prevent overheating.

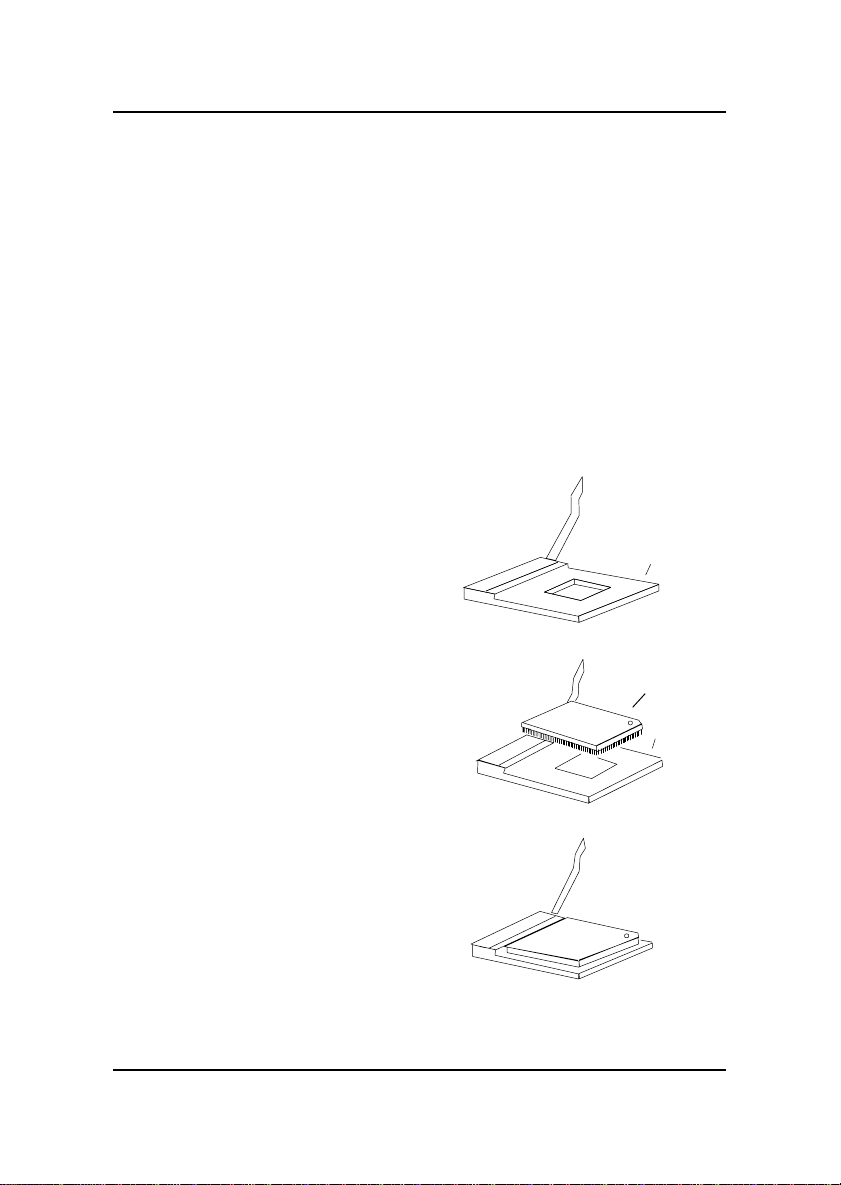

3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
Pin1
2.1-1 CPU Installation Procedures
CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Busratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-3 Fan Power Connector: CPUFAN
This connector support system cooling fan with + 12V. It supports three pin
head connector. When connecting the wire to the connector, always take
note that the red wire is the positive and should be connected to the +12V,
the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
CPUFAN
CPUFAN: Processor Fan
+12V
SENSOR
GND
CHAPTER 2 HARDWARE INSTALLATION
2-4
2.2 Clear CMOS Jumper: JBAT
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of JBAT to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT
13
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboardsupportsa maximum memory size of 256MB(64-bit technol-
ogy) or 512MB(128-bit technology for SDRAM: It provides two 168-pin
unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 128 Mbytes DIMM memory module.
DIMM1(Bank0+ Bank1)
DIMM2(Bank2+Bank3)
