MSI MS-6183 User manual
CHAPTER 1 INTRODUCTION
1-1
The MS-6183 Micro ATX WH9 mainboard is a high-performance
computer mainboard based on Intel®810 chipset. The MS-6183 is designed
for the Intel®Pentium II/III or CeleronTM processor for inexpensive
business/personal desktop markets.
The Intel®810 chipset is the first generation Integrated Graphics
chipset for the Intel®CeleronTM processor. The graphics accelerator archi-
tecture consists of dedicated multi-media engines executing in parallel to
deliver high performance 3D, 2D, and motion compensation video capabili-
ties. An integrated centralized memory arbiter allocates memory bandwidth
to multiple system agents to optimize system memory utilization. A new
chipset component interconnect, the hub interface, is designed into the Intel
810 chipset to provide an efficient communication channel between the
memory controller hub and I/O hub controller.
The Intel 810 chipset contains three core components: the Graph-
icsandMemoryControllerHub(GMCH),theI/OControllerHub(ICHO/ICH)
andtheFirmwareHub (FWH). The GMCH integrates a 66/100MHz, P6
family system bus controller, integrates 2D/3D graphics accelerator, 100MHz
SDRAM controller and high-speed hub interface for communication with the
ICHO/ICH. TheICHO/ICH integrates an Ultra ATA/33(ICHO)orUltra ATA/
66(ICH)controller, USB host controller,LPCinterfacecontroller, FWH
inteface conroller, PCI interface controller, AC’97 digital controller and a hub
interfaceforcommunicationwith the GMCH.
Chapter 1
INTRODUCTION
CHAPTER 1 INTRODUCTION
1-2
1.1 Mainboard Features
CPU
lSlot 1 for Intel®Pentium®II/III or CeleronTM processor.
lSupports233MHz,266MHz,300MHz,333MHz,350MHz,400MHz,
450MHz,500MHz and faster processor.
Chipset
lIntel®810(GMCH)chipset. (421 BGA)
- Integrated Graphics Controller
- Intel DDM Architecture
- SDRAM memory Independent of System Bus
lIntel®ICHchipset.(241 BGA)
- AC’97 Controller Integrated
- 2 full IDE channels, up to ATA66
- Low pin count interface for SIO
FrontSideBus(FSB)
l66/100MHz clocks are supported.
MainMemory
lSupport two 168-pin DIMM sockets.
lSupportamaximummemorysizeof256MB(64Mbittechnology) or
512MB(128Mbittechnology)SDRAM
Slots
lOne AMR(Audio Modem Riser) and one PTI(PanelLink TV-Out Interface)
lThree 32-bit Master PCI Bus slots.
lSupport 3.3v/5v PCI bus Interface.
CHAPTER 1 INTRODUCTION
1-3
On-BoardIDE
lAnIDE controller on the ICH/ICH0 chipset provides IDE HDD/CD-ROM
with PIO, Bus Master, Ultra DMA/33 and Ultra DMA/66 (ICH only)
operation modes.
lCan connect up to four IDE devices.
On-BoardPeripherals
lOn-BoardPeripherals include:
-1 floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M and
2.88Mbytes.
-2serialport(COMA+COMB)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports and 2 USB connectors
- 1 IrDA connector for SIR.
-1VGA port
Video
lGMCH chip integrated
l2D/3DGraphics
lOnboard 4MB Display Cache (optional)
Audio
lICH chip integrated
lCreative®ES1373(optional)
-Running on PCI BUS.
- Support Direct Sound and Direct Sound 3D
-AC97’ Compliant
BIOS
lThe mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral devices and expansion cards of the board automatically.
lThe mainboard provides a Desktop Management Interface(DMI) function
which records your mainboard specifications
CHAPTER 1 INTRODUCTION
1-4
Dimension
lMicro ATX Form Factor
Mounting
l6 mounting holes.
SystemHardwareMonitor
lCPU Fan Revolution Detect
lCPU Fan Control (the fan will automatically stop when the system enters
suspend mode)
lSystem Voltage Detect
lCPU Overheat Warning.
lDisplay Actual Current Voltage
OtherFeatures
lKeyboard Password Wake-Up (reserved)
lLANWake-Up
lInternal/ExternalModemWake-Up
CHAPTER 1 INTRODUCTION
1-5

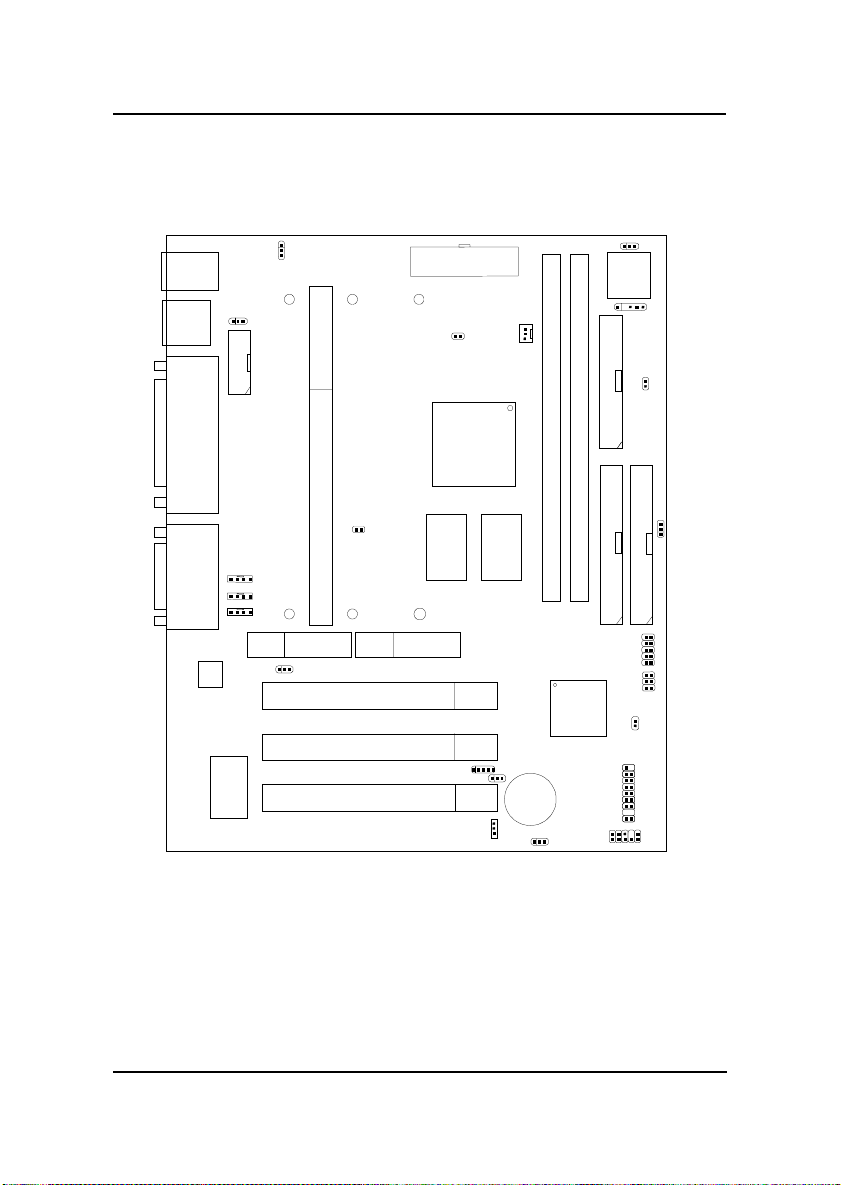

1.2 Mainboard Layout
PCI SLOT 3
PCI SLOT 2
PCI SLOT 1
ATX
Power Supply
Intel
810
Chipset
(GMCH)
SLOT 1
DIMM 2
Top: mouse
Bottom:
keyboard
Top:Port 1
USB
DIMM 1
IDE2
Bottom:
Port2
IDE1
FDD
ICH
JMDM1
Creative
ES1373
JFP1
JGS1
J26
JWOL1
MDM_IN
AUX_IN
COM B
CPUFAN
BATT
+
Top: LPT
Bottom:
COMA
VGAPort
Top: Midi/
GamePort
Bottom:
Line-Out
Line-In
Mic CD_IN
SDRAM SDRAM
JP4
J17
USB2
AMR PTI
J10
JKBV1
Codec
J28
IR
MS-6183MicroATX WH9Mainboard
J29
J24
Intel
N82802AB
J27
JP5
JP6
JBAT1
CHAPTER 2 HARDWARE INSTALLATION
2-1
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU

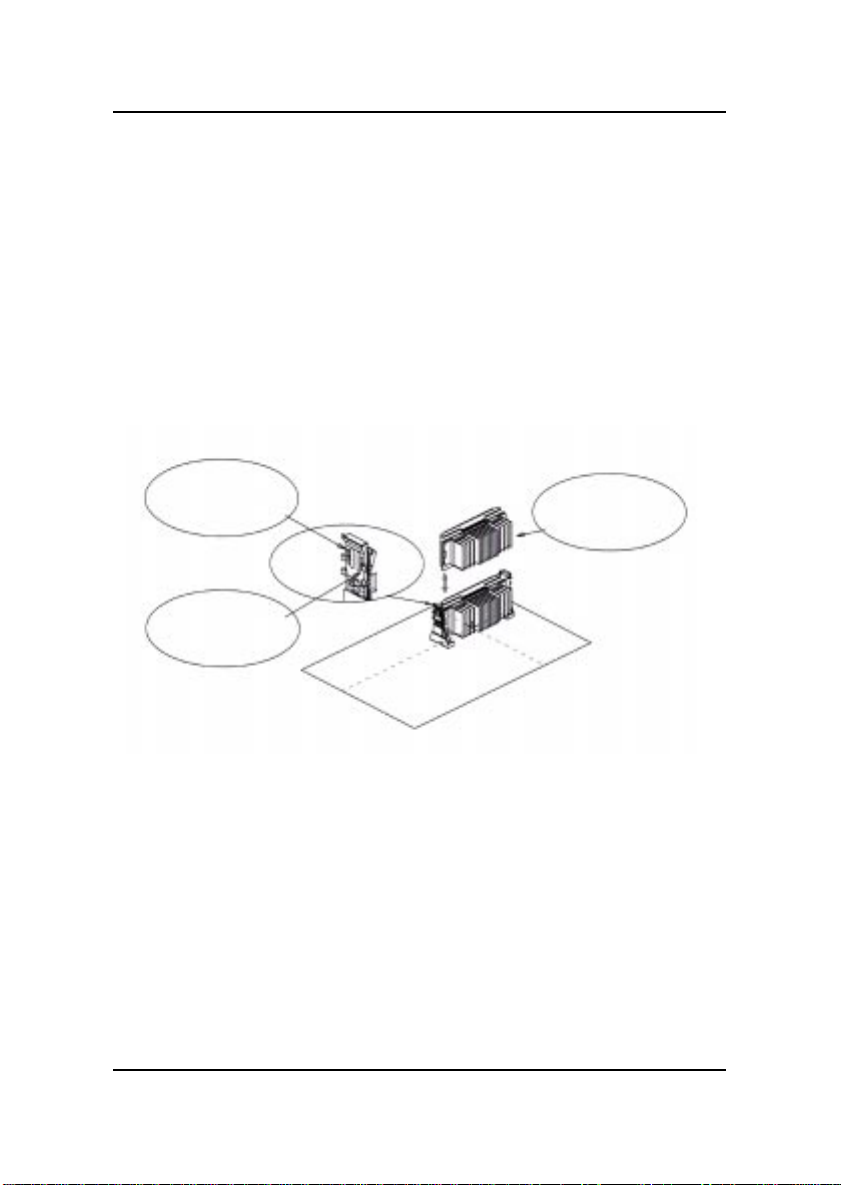

Step 1: Install the Retention Mechanism.
Attach the Retention Mechanism to the Mainboard. Push the Plastic
lock to secure the Retention Mechanism into the mainboard.
Secure the processor by
pulling up the Retention
Mechanism Processor
Lock
Insert the processor
like inserting a PCI or
an ISA card
To release the
processor, push the
Retention Mechanism
Processor lock down
Step 2: Install the Processor.
Insert the Processor like inserting a PCI or an ISA card.
Step 3: Lock the Processor.
Lock the processor by pulling up the Retention Mechanism
processor lock shown above.
Note: The Retention Mechanism processor lock can only lock S.E.C.C. 2
and S.E.P.P. processor.
2.1-1 Processor Installation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-2
The mainboard CPU Bus Frequency can be set through BIOS setup
If CPUClock = 66MHz
Core/Bus ratio = 3.5
then CPU core speed = Host Clock x Core/Busratio
= 66MHzx3.5
= 233MHz
2.1-2 CPU Core Speed Derivation Procedure
CHAPTER 2 HARDWARE INSTALLATION
2-3
2.1-3 Fan Power Connector: CPUFAN
This connector support system cooling fan with + 12V. It supports three pin
head connector. When connecting the wire to the connector, always take
note that the red wire is the positive and should be connected to the +12V,
the black wire is Ground and should be connected to GND. If your
mainboard has System Hardware Monitor chipset on-board, you must use a
specially designed fan with speed sensor to take advantage of this function.
For fans with fan speed sensor, every rotation of the fan will send out 2
pulses. System Hardware Monitor will count and report the fan rotation
speed.
Note: 1. Always consult vendor for proper CPU cooling fan.
2. CPU FAN supports the FAN control. You can install PC Alert
utility. This will automatically control the CPU FAN Speed according
to the actual CPU temperature.
+12V
SENSOR
GND
CPUFAN
CPUFAN: Processor Fan
CHAPTER 2 HARDWARE INSTALLATION
2-4

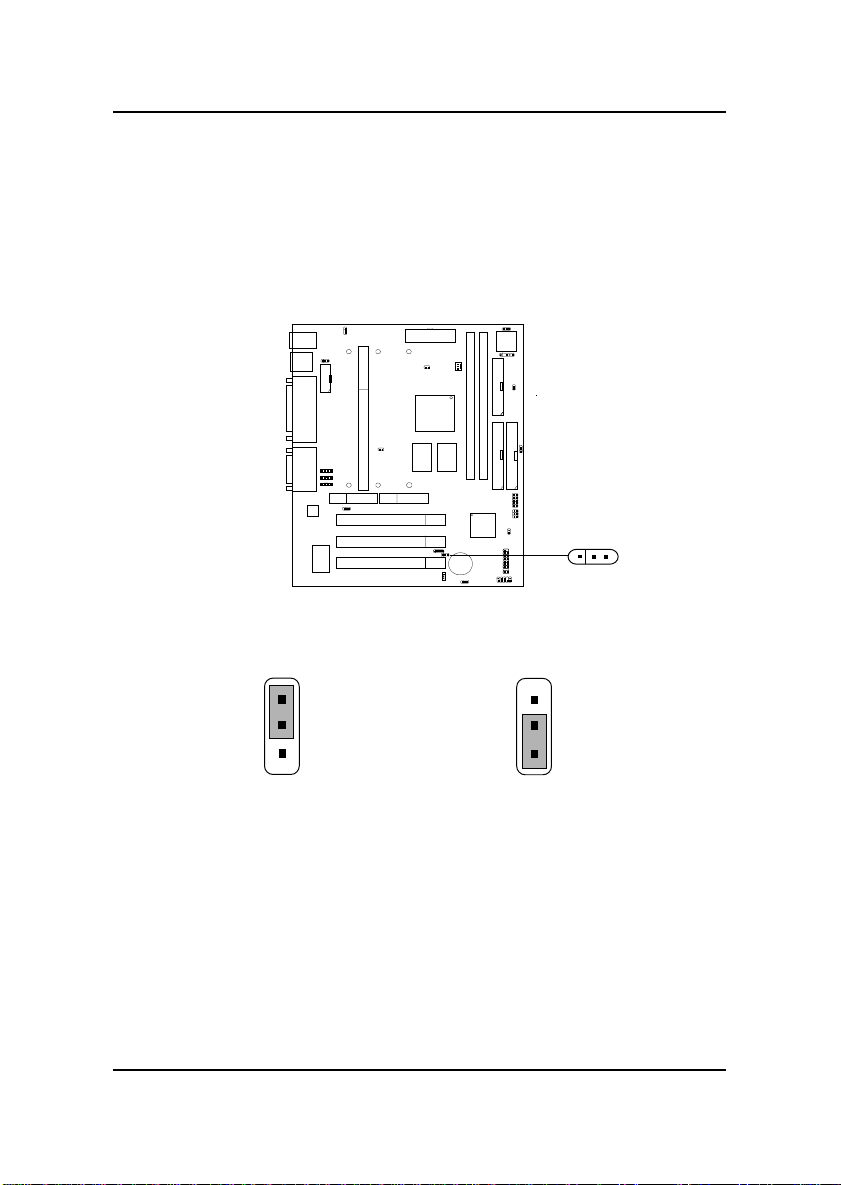

2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. Short 1-2 pins of J26 to store the CMOS data.
Keep Data Clear Data
11
3
3
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. Avoid clearing the CMOS while
the system is on, it will damage the mainboard. Always unplug
the power cord from the wall socket.
22
JBAT1
13
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.3 Memory Installation
2.3-1 Memory Bank Configuration
Themainboardsupportsa maximum memory size of 256MB(64-bit technol-
ogy) or 512MB(128-bit technology for SDRAM: It provides two 168-pin
unbuffered DIMMs (Double In-Line Memory Module) sockets. It supports
8 MB to 128 Mbytes DIMM memory module.
DIMM1(Bank0+Bank1)
DIMM2(Bank2+Bank3)
