MSI MS-5192 User manual
CHAPTER 1 INTRODUCTION
1-1
Chapter 1
INTRODUCTION
The MS-5192 mainboard is a high-performance all-in-one mainboard based
on Cyrix®GXM/GX-LV processor. It combines Audio/Video chip integrated
withRealtek®8139B 10/100MEthernet.
CHAPTER 1 INTRODUCTION
1.1 Mainboard Features
CPU
lCyrix®MediaGXm/GXLV200/233Mhzprocessor
Chipset
lCyrixCX5530chipset.
lNSPC97317SuperI/O
MainMemory
lSupport one memory banks using 168-pin unbuffered DIMM.
lSupporta maximum memory sizeof64MB.
lSupport 3.3v SDRAM DIMM.
FlashMemory
l8MBFlashDisk
On-BoardIDE
lConnect one IDE devices.
Video
lChipset Integrated
-Resolutionupto1280x1024SVGA,16to256colors;16 millions
palette.
-Support all VESA monitors
-Flicker-free Refresh rate up to 75Hz
- Graphics Utilizes system RAM
Audio
lChipset Integrated
- Full 16-bit stereo FM synthesizer
- 8-bit mini Microphone port
1-2
CHAPTER 1 INTRODUCTION
1-3
Network
lRealtek8139B 10/100M Ethernet
- WFW baseline & NET PC specs compliant
- ACPI
- Magic packet filtering to wake-up on LAN
- ARP& Flexible frame filtering
- Software drivers are backwards compatible
ParallelPort
lOne Parallel port bi-directional centronics compatible DB-25.
TwoSerialPort ConnectorsType
lSerialPortA: DB-9male connector with RS-232C.
lSerialPort B: DB-9 male connector with RS-232C.
lBaud Rates: up to 115.2K bps
DisplayPort
lAnalog VGA type video output (DB-15)
USBPorts
lTwo USB ports
AudioPorts
lAudio Out
lMicrophone In
KeyboardandMousePorts
lInterface: Enhanced PS/2 Keyboard and Mouse Interface
Dimension
l20cmx21cmx4layersPCB
MountingHole
l5 Mounting Hole
CHAPTER 1 INTRODUCTION
1.2 Mainboard Layout
1-4
MS-5192 Mainboard
Socket 7
DIMM
T:mouse LAN
T: LPT VGAPort L-OUT
BATT
+
BIOS
Cyrix®
CX5530
Chipset
RTL8139B
B:COM A/COM B
SuperI/O
97317
B:
Keyboard
MIC-IN
SW1
IDE1
JFP1
USBPorts
PowerSupply
JBAT1
JFAN1
JP2
J9
M-System
Disk On Chip
JCKM1
15
CHAPTER 2 HARDWARE INSTALLATION
2-1
CPU
CPU
Chapter 2
HARDWARE INSTALLATION
2.1 Central Processing Unit: CPU
The mainboard operates with Cyrix®GXM/GX-LV processor. The
mainboard uses a CPU socket called Socket 7 for easy CPU installation. The
CPU should always have a Heat Sink and a cooling fan attached to prevent
overheating.
3. Press the lever down to
complete the installation.
2. Locate Pin 1 in the socket
and look for the white dot or
cut edge in the CPU. Match
Pin 1 with the white dot/cut
edge. Then, insert the CPU.
It should insert easily.
OpenLever
Pin1
Sliding
Plate
White dot/
Cut edge
Close
Lever
1. Pull the lever sideways away
from the socket. Then, raise
the lever up to a 90-degree
angle.
2.1-1 CPU Installation Procedure
Pin1
CHAPTER 2 HARDWARE INSTALLATION
2-2
1-2 3-4 Clock
open open 33MHz
short open 35MHz
2.1-2 CPU Core Speed Derivation Procedure
1-2 3-4 5-6 Core/Bus Ratio
short short short 4x
short open open 5x
open short open 6x
open open short 7x
open open open 8x
short open short 9x
short short open 10x
1. The Jumper Switch JCKM1 (1-2, 3-4, and 5-6) is used to set the Core/Bus
(Fraction) ratio of the CPU. The actual core speed of the CPU is the Host
Clock Frequency multiplied by the Core/Bus ratio. For example:
If CPUClock = 33.3MHz
Core/Bus ratio = 6
then CPU core speed = Host Clock x Core/Busratio
= 33.3MHz x 6
= 200MHz
JCKM1 CPU
2. The jumper switch JP2 (1-2, 3-4)is used to adjust the CPU clock frequency.
JP2 CPU
CHAPTER 2 HARDWARE INSTALLATION
2-3

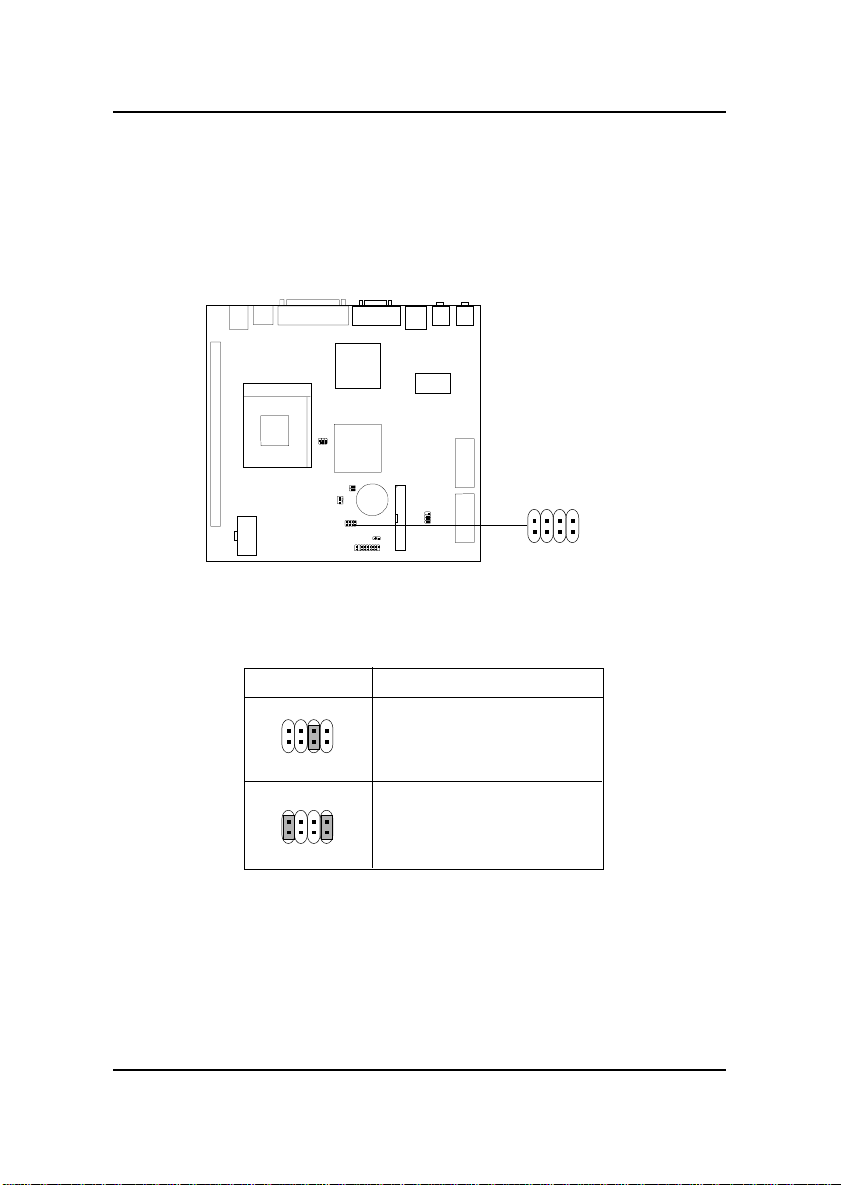

2.1-3 CPU Voltage Setting: SW1
To adjust the voltage setting of the CPU, you must know the specifications
of your CPU (always ask the vendor for CPU spec.).
SW1
71
8 2
SW1 Voltage Setting (Vcore)
2.2V
2.9V
71
8 2
71
8 2
CHAPTER 2 HARDWARE INSTALLATION
2-4
2.1-4 Fan Power Connector: JFAN1
This connector support system cooling fan with +12V. It supports three pin
head connector. When connecting the wire to the connector, always take
note that the red wire is the positive and should be connected to the +12V,
the black wire is Ground and should be connected to GND. If your
mainboard had a System Hardware Monitor chipset on-board, you must use
a specially designed fan with speed sensor to take advantage of the CPU fan
control.
Note: For fans with speed sensor, every rotation of the fan will send out 2
pulses. System Hardware monitor will count and report the fan
rotation speed.
SENSOR
+12V
GND
JFAN1
CHAPTER 2 HARDWARE INSTALLATION
2-5
2.2 Clear CMOS Jumper: JBAT1
A battery must be used to retain the mainboard configuration in CMOS
RAM. If you use the on-board battery, you must short 1-2 pins of JBAT1
to keep the CMOS data.
Keep Data
Clear Data
3
1
JBAT1
Note: You can clear CMOS by shorting 2-3 pin, while the system is off.
Then, return to 1-2 pin position. To be able to clear the CMOS, you
need to unplug the power plug of the system, because there’s a 3V
standby power for the chipset which is provided by the power
supply. Otherwise, the CMOS will not be cleared.
Function
3
1
JBAT1
31
CHAPTER 2 HARDWARE INSTALLATION
2-6
2.3 Memory Installation
2.3-1 Memory Bank Configuration
The mainboard supports a maximum of 64MB of memory : It provides one
168-pin DIMMs (Double In-Line Memory Module) sockets. It supports 8
MB to 64 Mbytes DIMM memory module. The memory module can only
support SDRAM(Synchronous DRAM) MODE DRAM.
DIMM1(Bank1)
There are two kinds of DIMM specification supported
by this mainboard: PC100 and PC66. If you use
66MHz CPU Bus Frequency, these two DIMM Specs. is
supported. If you use 100 MHz CPU Bus Frequency,
only PC100 DIMM Specs. is supported.
!
WARNING!
