MiTAC PD11KS User manual

MITAC 3.5”SBC M/B PD11KS

Product Guide

Desktop Board Features

This chapter briefly describes the

features

3.5” SBC M/B PD11KS.

Table 1summarizes the major features

of the M/B

Feature

Summary

MECHANICAL

FORM FACTOR

3.5" SBC Embedded: 4” x 5.8” (102mm x 147mm)

SYSTEM

PROCESSOR

Intel®Kaby Lake-U i3-7100U (Dual Core, 3MB Cache, 2.40 GHz)

Option:

KBL celeron 3965U / i5-7300U / i7-7600U

SKL celeron 3955U / i3-6100U / i5-6300U / i7-6600U

CHIPSET

Intel®SoC integrated

MEMORY

DDR4 2133/2400, 260-pin SO-DIMM x 2, Max. 32 GB (Non-ECC)

GRAPHICS

Intel®HD Graphics

ETHERNET

Intel®I219LM Giga LAN + I211AT Giga LAN

AUDIO

Realtek ALC283

I/O CHIPSET

Nuvoton NCT6104D

TPM

Nuvoton NPCT650ABCYX TPM2.0

EXPANSION SLOT

Storage: PCI Express Full-Length Mini Card slot (USB / PCIe /

SATA)

Wireless: M.2 2230 E key (PCIe / USB)

BIOS

AMI BIOS

H/W MONITOR

Temperature Monitor, Voltage Monitor, Fan Monitor

WATCHDOG TIMER

1~255 Steps by Software Program

SMART FAN CONTROL

CPU Fan / System Fan

GRAPHICS

HDMI

Up to 4096 x 2160 @24 Hz

DISPLAYPORT

Up to 4096 x 2304 @60 Hz

LVDS

Up to 1920 x 1200 @60 Hz

eDP(Option)

Up to 4096 x 2304 @60 Hz

REAR I/O

USB

USB 3.0 x 4

DISPLAY I/O

HDMI x 1, DP x 1

AUDIO I/O

Audio combo jack (Mic-in and Line-out) x 1

LAN I/O

RJ-45 x 2

INTERNAL CONNECTORS

STORAGE

SATAIII x 1

USB

USB2.0 x 2

DISPLAY I/O

LVDS x 1,

Backlight Connector x 1

AUDIO I/O

Audio Header Supporting System Stereo Speaker or Buzzer x 1

Audio Header without Amplifier x 1 (for Extra Amplifier Board for

System Speaker)

SERIAL PORT

RS-232 x 4 (One Supports RS-232/422/485)

GPIO

MiAPI Header (Programmable. Support GPIO x 10) x 1

FAN

4PIN PWM Fan Header x 1

POWER

8~24V ATX Power Connector x 1, AT/ATX Mode Select Jumper x 1

OTHERS

MiAPI: Programmable header (support GPIO x10, SMBUSx1,

UARTx1, Watchdogx1) with API library supported for Windows OS

Chassis Front Panel Header (2x5PIN) x 1

CMOS Jumper x 1

POWER REQUIREMENT

POWER INPUT

Power header 4PIN

DC-in 8~24V

ENVIRONMENTAL

OPERATING

TEMPERATURE

0 ~ 60°C (32 ~ 140°F)

STORAGE TEMPERATURE

-20 ~ 80°C (-4 ~176°F)

OPERATING HUMIDITY

10% ~ 95% R/H, non-condensing

CERTIFICATION

CE & FCC

OS SUPPORT

KBL: Windows 10 64bit, Linux (support by request)

SKL: Windows 7 32/64bit, Windows 8.1 64bit, Windows 10 64bit,

Linux (support by request)

ABLE

1. MITAC D

ESKTOP

OARD

PD11KS F

EATURES

3.5” SBC

M/B

Components

Figure 1

shows the approximate location of the

major components

the top

side of

MITAC

3.5” SBC

M/B PD11KS.

FIGURE 1. MITAC 3.5”SBC M/B COMPONENTS

TABLE 2. MITAC 3.5”SBC M/B COMPONENT LIST (SHOWN IN FIGURE 1)

Processor

The board supports 6th generation Intel Core processors. Other processors may be

supported in the future. This board supports processors with a maximum wattage of

65 W Thermal Design Power (TDP).

NOTE

This board has specific requirements for providing power to the processor. Additional

power required will depend on configurations chosen by the integrator.

System

Memory

NOTE

To be fully compliant with all applicable DDR SDRAM memory specifications, the board

should be populated with DIMMs that support the Serial Presence Detect (SPD) data

structure. This allows the BIOS to read the SPD data and program the chipset to

accurately configure memory settings for optimum performance. If non-SPD memory

is installed, the BIOS will attempt to correctly configure the memory settings, but

performance and reliability may be impacted or the DIMMs may not function under the

determined frequency.

The Desktop Board has two 260-pin DDR4 SO-DIMM sockets with gold-plated contacts.

(Dual RJ45 Connector)

Diagram

LED

Color

State

Condition

Figure 1 LAN Connector (2D)▲

Link

N/A

Off

LAN link is not

established

Green

LAN link is

established

Blinking

LAN activity

occurring

Speed

N/A

Off

10 Mb/s data rate

Green

100 Mb/s data rate

Yellow

1000 Mb/s data rate

Table 3: RJ45 LED behavior ▲

(LVDS/eDP Connector)

Figure 2: LVDS/ eDP Connector (2D)▲

Table 4: LVDS/ eDP Connector pin definition ▼

LVDS Define

eDP Define

LVDS0_LINK3_CON_DP

LVDS0_LINK3_CON_DN

GND

LVDS0_LINK2_CON_DP

eDP_TX3_DN

LVDS0_LINK2_CON_DN

eDP_TX3_DP

LVDS0_LINK1_CON_DP

GND

LVDS0_LINK1_CON_DN

eDP_TX2_DN

LVDS0_LINK0_CON_DP

eDP_TX2_DP

LVDS0_LINK0_CON_DN

GND

LVDS1_LINK3_CON_DP

eDP_TX1_DN

LVDS1_LINK3_CON_DN

eDP_TX1_DP

LVDS1_LINK2_CON_DP

GND

LVDS1_LINK2_CON_DN

eDP_TX0_DN

LVDS1_LINK1_CON_DP

eDP_TX0_DP

LVDS1_LINK1_CON_DN

GND

LVDS1_LINK0_CON_DP

eDP_AUX_DN

LVDS1_LINK0_CON_DN

eDP_AUX_DP

GND

Panel VDD

GND

LVDS0_CLK_CON_DP

GND

LVDS0_CLK_CON_DN

Hot Plug Detect

GND

DDC_SCL

GND

Backlight Enable

Backlight Control

LVDS1_CLK_CON_DP

LVDS1_CLK_CON_DN

Backlight VCC

DDC_SDA

(External Speaker Socket)

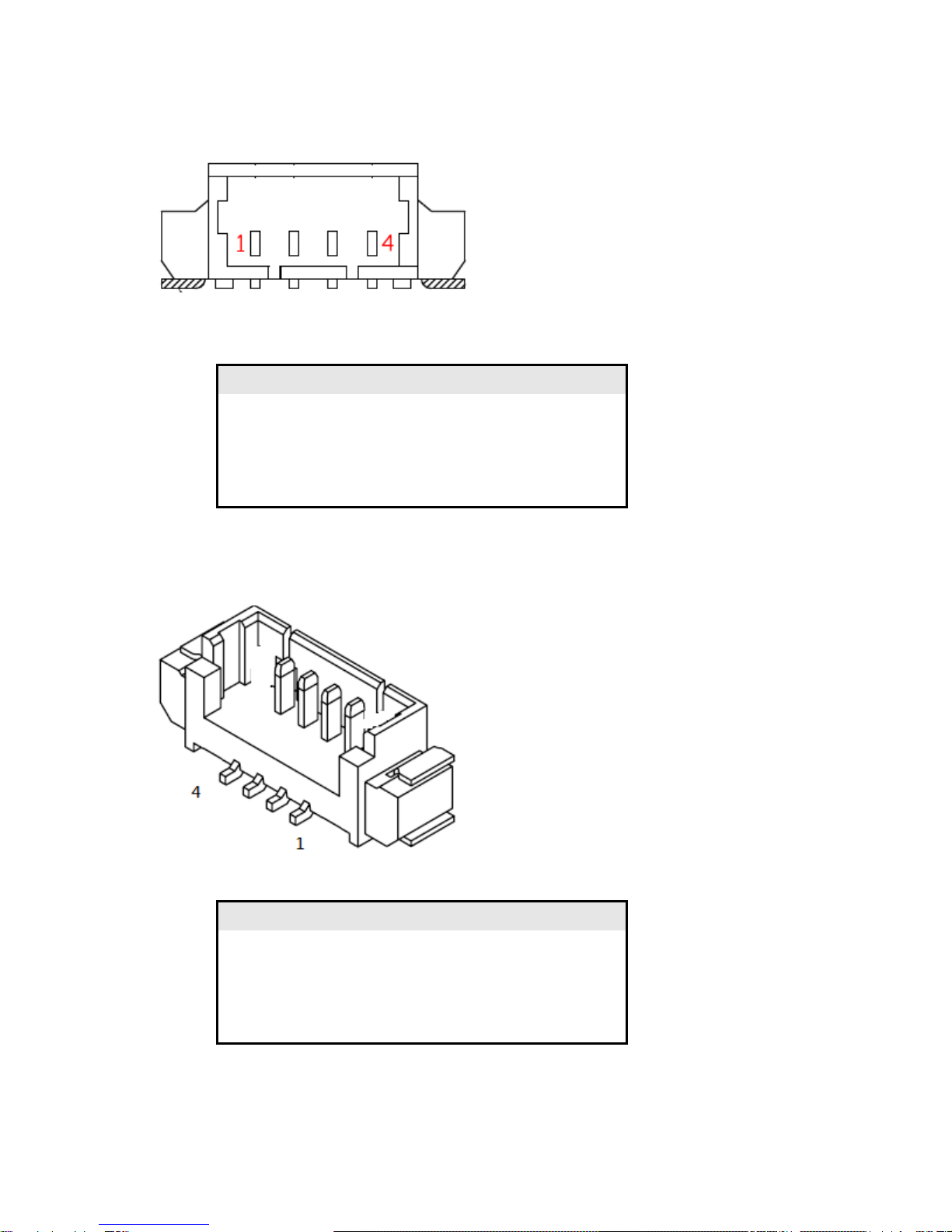

Figure 3: External Speaker Socket (2D) ▼

Table 5: External Speaker Socket pin definition ▼

Signal Name

Description

VDD

+12V

LINE OUT L

[Out] Lift channel

LINE OUT R

[Out] Right channel

GND

Ground

(Internal Speaker Socket)

Figure 4: Internal Speaker Socket (2D)▲

Table 6: Internal Speaker Socket pin definition ▼

Signal Name

Description

LINE OUT L-

[Out] Lift channel-

LINE OUT L+

[Out] Lift channel+

LINE OUT R-

[Out] Right channel-

LINE OUT R+

[Out] Right channel +

(SATA Power Socket)

Figure 5: SATA Power Socket (2D) ▼

Table 7: SATA Power Socket pin definition ▼

Signal Name

Description

VCC3

[Out] +3V

GND

[Out] Ground

VCC

[Out] +5V

12V

[Out] +12V
