Megger DCM1500 User manual

DCM1500 clampmeter

User Guide

Manuel de l’utilisateur

Guía del usuario

Bedienungsanleitung

Gebruikershandleiding

1500 A

GSafety Information

To ensure safe operation and service of the meter,

follow these instructions. Failure to observe warnings can

result in severe injury or death.

QAvoid working alone so assistance can be rendered.

QTo enhance safety, test leads should be disconnected from

instrument when not in use

QDo not use test leads or the clamp meter if they

look damaged

QDo not use the clamp meter if the tester is not operating

properly or if it is wet.

QUse the clamp meter only as speciﬁed in the instruction

card or the protection provided by the clamp meter may be

impaired.

QSpecial precautions are necessary when operating in

situations where exposed live parts at dangerous voltages may

be encountered. Personal protective equipment (not supplied

with the instrument) should be used.

QThe test leads should be disconnected from the instrument

when making a current measurement.

QUse caution with voltages above 30 V AC RMS, or 60 V DC.

These voltages pose a shock hazard.

Symbols as marked on the meter and

instruction card

FRisk of electric shock

GSee instruction card

dDC measurement

tEquipment protected by double or reinforced insulation

Battery

gEarth

aAC measurement

cConforms to EU directives

GCaution: If the meter is used in the vicinity of equipment which

generates electromagnetic interference, the display may become unstable

or the measurements may be subject to large errors.

Off/On Auto Power Off

Auto Power Off disable: Press buttons (except Hold button) then

switch the rotary knob to power on the meter.

AC V / DC V Resistance

Continuity

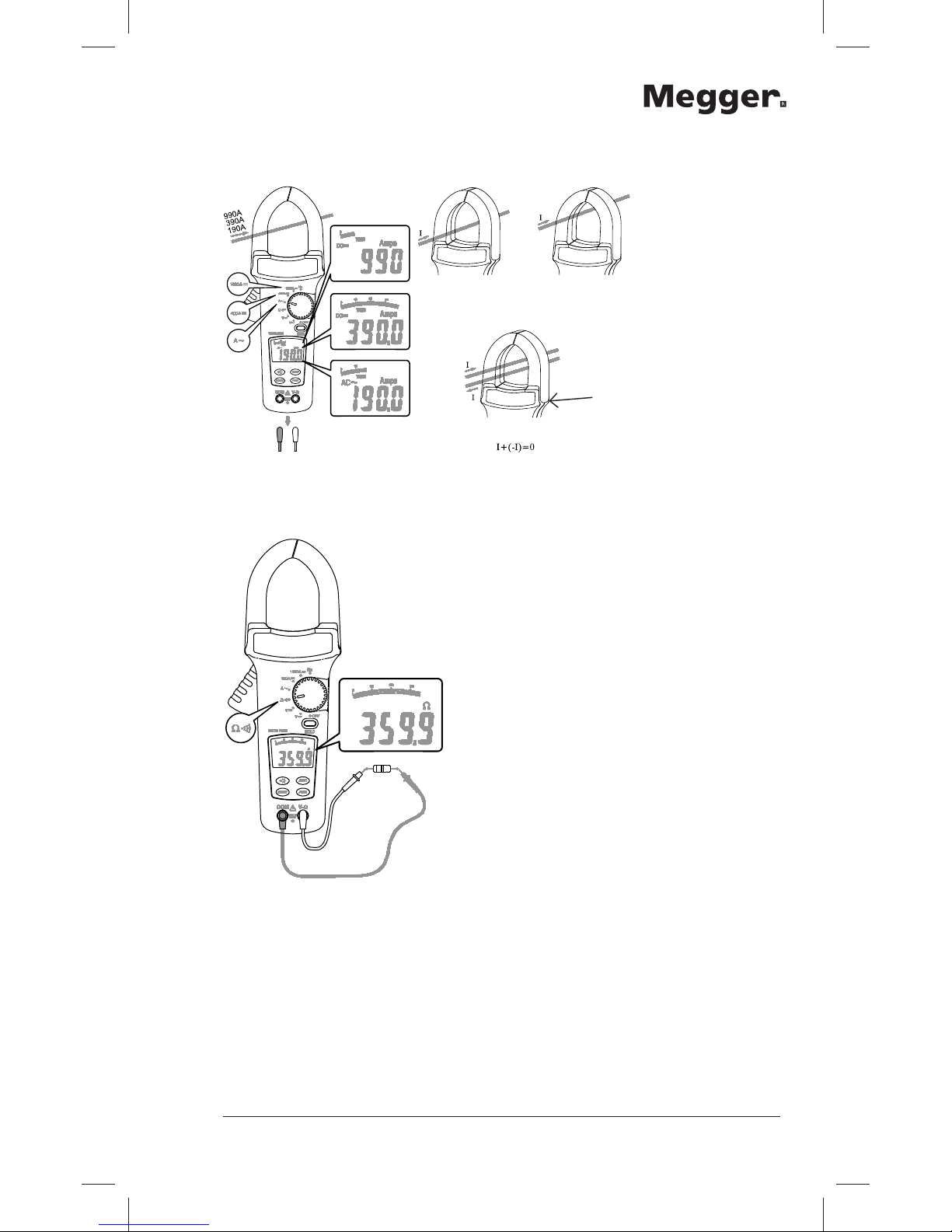

AC A / DC A

GCAT IV 600 V - With respect to earth for the jaw

GDo not hold the meter in front of the tactile barrier.

ϑ



Tactile barrier for

hand guard

Zero

Using the Relative mode (REL), a stable value can be stored, the instrument

zeroed at that point, and then any variation from that value is displayed as

a direct measurement relative to the stable value.

2. Make a measurement and then press the ZERO button.

REL: Meter stores the measured value after pressing the

ZERO button.

3. REL (ﬂashing): The meter saves the offset value. Present

value is displayed.

1. Normal: Press and hold ZERO for > 2 seconds to return

to normal operation and cancel the offset value.

Data Hold

Min / Max Hold

2. MAX: Meter is saving

the maximum and

minimum value.

Maximum value is

displayed.

3. MIN: Meter is saving

the maximum and

minimum value.

Minimum value is

displayed.

4. MAX MIN (ﬂashing):

Meter is saving the

maximum and

minimum value. Present

value is displayed.

1. Normal: Press and hold

MIN MAX to return to

normal operation.

Battery Replacement

Replace battery: is displayed.

Peak Hold

2. PMax: Meter is saving

the peak maximum and

minimum value. Peak

maximum value id

displayed.

3. PMin: Meter is saving

the peak maximum and

minimum value. Peak

minimum value is

displayed.

4. CAL: Press and hold

PEAK button >

3seconds to calibrate

the instrument for

accurate measurement.

1. Normal: Press and

hold PEAK button to

return to normal

operation.

Back Light

Back light Automatic off after 60 seconds.

Speciﬁcations

General Speciﬁcations

LCD display digits: 3 ¾ digit large scale LCD readout.

Display count: 4000 counts.

Measuring rate: 1.5 times / sec.

Overrange display: “OL” is displayed for “Ω” functions, shows

the real value for “A” and “V” function.

Automatic power off time:

Approximately 30 minutes after power on.

Low battery indicator:

is displayed. Replace the battery

when the indicator appears in

the display.

Power requirement: 9 V PP3 / 6LR61 battery.

Rechargeable batteries are not recommended

for use with this instrument.

Battery life: 100 hours.

Environmental Conditions

Indoor Use.

Calibration: One year calibration period is recommended

Operating temperature :

0°C ~ 30°C (≤ 80 % RH)

30°C ~ 40°C (≤ 75 % RH)

40°C ~ 50°C (≤45 % RH)

Storage temperature:

-20 to +60°C, 0 to 80% RH

(batteries not ﬁtted).

Measurement Category:

(acc. to CAT IV 600 V)

Application around and removal from UNINSULATED HAZARDOUS LIVE

conductors permitted. Personal protection must always be observed.

Operating altitude: 2000m (6562 ft)

Conductor Size: 51mm diameter.

Pollution degree: 2

EMC: EN 61326-1

Shock vibration: Sinusoidal vibration per MIL-T- 28800E

(5 ~ 55 Hz, 3g maximum).

1-3 Electrical Speciﬁcations

Accuracy is ±(% reading + number of digits) at 23°C ± 5°C, less than 80%

R.H.

Temperature coefﬁcient:

0.2 × (Speciﬁed accuracy) /°C, <18°C, >28°C

Operating temperature:

0°C ~ 30°C (≤ 80% RH)

30°C ~ 40°C (≤ 75% RH)

40°C ~ 50°C (≤ 45% RH)

AC Volts: Auto-ranging

Range Resolution Accuracy Over voltage

protection

400.0 V 100 mV ±(1.0% reading + 5 digits)

50Hz ~ 500Hz * 750 V rms

750 V 1 V

* add 2 digits to accuracy when reading less 15% of full scale.

Input Impedance: ≥1MΩ// less than 100pF.

AC Conversion Type:

AC Conversions are ac-coupled, true rms responding, calibrated to the rms

value of a sine wave input. Accuracies are given for sine wave at full scale

and non-sine wave below half scale. For non-sine wave add the following

Crest Factor corrections:

For Crest Factor of 1.4 to 2.0, add 1.0% to accuracy.

For Crest Factor of 2.0 to 2.5, add 2.5% to accuracy.

For Crest Factor of 2.5 to 3.0, add 4.0% to accuracy.

Max.CF 2 @ 600V

1.5 @ 750V

DC Volts: Auto-ranging

Range Resolution Accuracy Over voltage

protection

400.0 V 100 mV ± (0.7% reading + 2 digits) 1000 V rms

1000 V 1 V

Input Impedance: ≥1MΩ
