Magene P325 CS User manual
Dual-protocol Crank
Power Meter
Quick Start Guide
NOTE
If your bicycle brake caliper is installed under bottom
bracket, it is necessary to confirm the compatibility
between the product and the bicycle frame before
installation, so as to avoid unnecessary loss. Please
contact the dealer or customer service department for
the operation method of compatibility test to confirm
that the product is compatible with your frame.
P1-8
P9-15
P16-23
P24-31
P32-39
P40-47
P48-55
P56-61
P62-67
P68-74
.................................
.................................
.................................
.................................
.................................
.................................
.................................
.................................
.................................
.................................

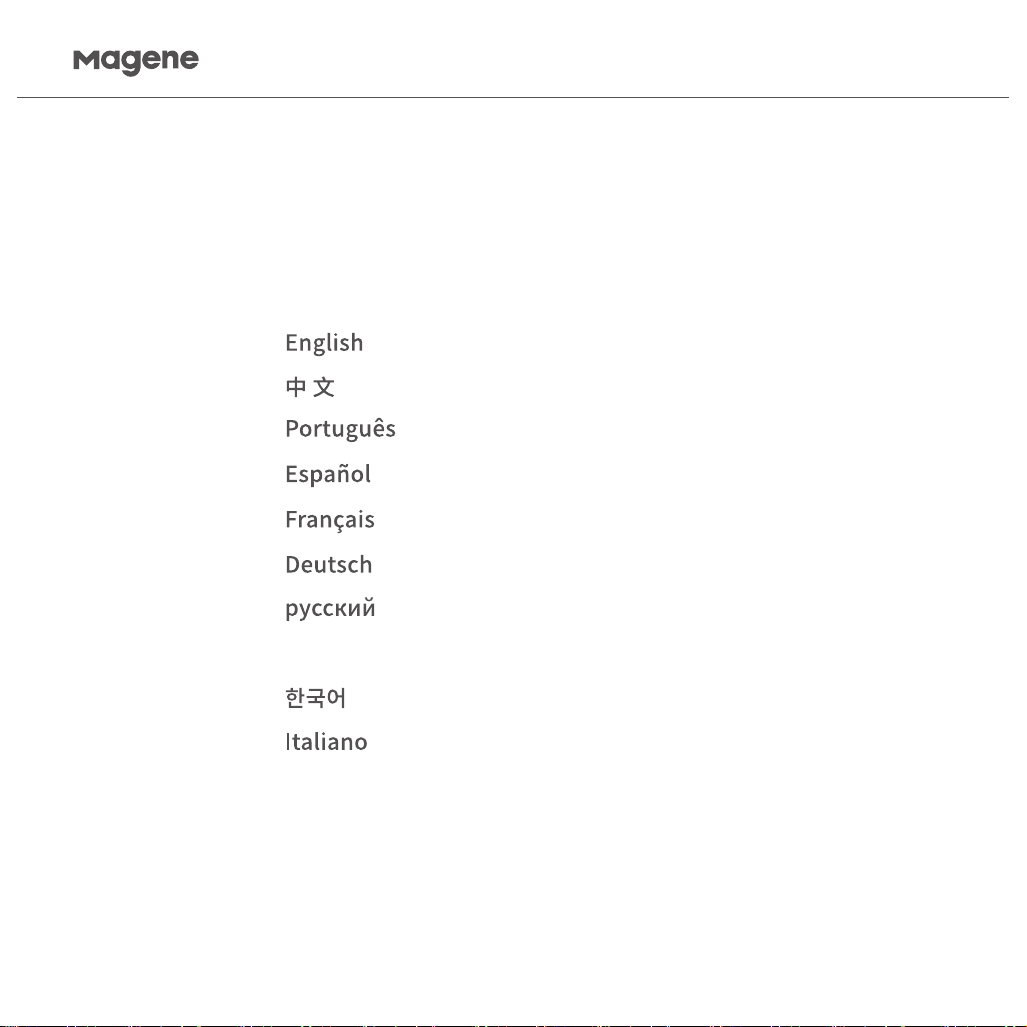

INDEX
日
本語
Quick Start Guide
Unpacking the Box
Thank you for purchasing Magene Dual-Sided Crank Power Meter.
(Hereinafter referred to as Magene Power Meter).
For information regarding crank installation and adjustment not covered in this-
guide, please refer to your bicycle dealer's instruction manual.
Take Magene Power Meter and its parts out of the box and keep the original package
for future storing and transporting.
E-mail: support@magenefitness.com
Phone: (+86)400-662-8297
Website: www.magenefitness.com
If you have any questions about the power meter module,
please contact us.
Left power crank
Charging line
Right power crank
1
Connect and Activate the Power Meter
Connect the Power Meter Device
Note:
The box should contain:
The power meter is not activated and cannot be used normally; the
new product must be activated for the first time.
Android users to enter the google Store(iPhone users from the
Appstore) to search for the "Magene Utility" app and download it.
Follow the prompts to activate your power meter.
Note:
If the activation fails, please click back to enter the device
search list and reconnect to activate.
Magene Power Meter can be connected to power device after activation.
Typically, most bike computers can search for and add power meter equipment in the settings
through the settings>sensors>new>sensor>power meter.
Note:When searching for the Magene Power Meter, step on the pedal connected to the power
meter crank so that the power meter can detect the torque therefore waking up the power
meter from Sleep mode, start the Bluetooth or ANT + signal broadcast and wait for a device to
connect.
Note:If there are multiple power meters in the current environment, you need to identify
your power meter by ANT+ ID.
Magene Power Meter is a Bluetooth and ANT+ dual-protocol power meter that is compatible
with ANT+ and Bluetooth devices that support the standardized power meter protocol. Using this
protocol the power meter's measured data can be viewed and recorded.
Quick start Guide Accessory Bag
Charging line
Right power crank
2
Left power crank
Scan to download
Magene Utility
Calibrating The Power Meter
Charging
Peripheral Pairing and Functions
Zero offset calibration will calibrate the power meter to 0 power when at rest. When
calibrating, please turn the left crank in the vertical ground down state and use ANT+
Device or MACENE UTILITY for calibration.
Magene Power Meter wirelessly transmits ride information to a bike computer or receiver
that support ANT+ or Bluetooth.
Magene Power Meter logs the following information as you ride.
This product transmits the following information wirelessly to cycle computers or receiv-
ers that support ANT+ or Bluetooth LE connections.
Note:The 4,5,6 wireless receiver can only be used in part of the Apps of Magene.
If you are purchasing LITE version, 4 / 5 / 6 features need to be purchased through
Magene Utility.
When you find that the power meter is unable to search for a connection, the power meter
may have run out of power. Please charge it as soon as possible.
Power
Torque Effectiveness
Cadence
Pedal Balance
Remaining Battery
Pedal Smoothness
3
Product Specifications
Charging procedure:
Left Crank Power
Power Accuracy
Weight
Power Supply rechargeable battery
200h
ANT+Bluetooth BLE 4.2
IPX7 splash resistance
Working Life
Water Proofing
Wireless Interface
power range
cadence range
external cadence
sensor magnets
operating temperature
reuqires zero-point
calibration yes
none
20-240rpm
-10-50C
Right Crank Power
1. Insert one end of the USB interface of the charging cable into the computer or charger,
and a section of the magnetic suction head is slightly close to the power meter body to make it
absorb naturally.
2.Confirm that the red light of the power meter is always on, and the power meter is in
normal charging state. When the battery is fully charged, the light will turn green.
NOTE:Do not short circuit the magnetic suction end, and do not adsorb on the metal when
it is electrified . Only the USB adapter with an output voltage of 5V can be used for
charging.
4
Q&A
Please refer to the following if you have any questions in the process of using
Magene Power Meter.
If none of the above is applicable or the problem is not solved,please consult
online customer service or dealers
Check to see if activation has been performed.
Check whether the bike computer or software has been connected.
If the connection cannot be made, please charge your power meter.
Do zero offset calibration by your bike computer or Magene Utility.
Please place the bicycle on the flat ground, make sure the left crank is
straight down and try again.
Undisplayed power.
The power has obvious deviation.
Zero point calibration failure.
Torque Effectiveness/Pedal Balance/Pedal Smoothness of right crank power
meter is 0 .
Use the Magene Utility to check if the right side is connected. After static
setting the crank 1 min, don't touch it Rotate the crank to see if the
connection state is restored, if not, check the battery power.
If the problem occurs after the upgrade fails, check that the ID of the
right crank(see the ant+ID number on the
sticker on the crank) appears in the device list, if so, click the connection,
upgrade the device and re-check the
connection status.
5
Upgrading the Power Meter's Firmware
Warnings and Daily Check
1.Warnings:
Do not spray the power meter module with high pressure water when
cleaning the bicycle.
Android users to enter the google Store (iPhone users from the Appstore) to search
for the "Magene Utility app and download it.
Use Magene Utility to connect the power meter to obtain the latest firmware.
Please tighten the crank and pedal bolts exactly according to the instruc-
tions. Otherwise, it may cause damage to the crank or pedal.
Do not put the battery into fire or heat, otherwise it may cause a fire or
explode.
The power meter module is a splash-proof design.Do not soak the power
meter module in water.
Do not subject the crank and power meter module to severe impact, as
this may cause the power meter module to detach or malfunction.
In temperatures below-(minus) 10℃, the battery life will decay rapidly.
Use neutral detergent when washing cranks. Use of alkaline or acidic
detergents or thinners may shorten the life of the sensor case.
6
2.Daily Check Items Before Riding:
The power meter module users the 2.4G wireless communication band.The 2.4G
signal environment surrounding the objector the surrounding area may cause
interference to communications.
If the signal connection is found to be unstable, try again in an open area. Strong
electromagnetic waves generated by surrounding.
Do not try to remove the waterproof glue around the power meter module! This
will compromise the waterproof performance of the power meter module.
Please check the items listed below before riding. In case of any abnormal-
ity, it is recommended to seek professional technicians for maintenance
and debugging.
Are there any cracks in the crank arms?
Are the fastening sections fixed securely?
Are the bearing sections fixed securely?
Are there any abnormal noises?
Is there sufficient charge remaining in the battery?
Natural wear and aging and normal use caused by performance deterioration is
not covered by the warranty.
7
