Lutron Electronics CM-9942G User manual

Green power, hybrid power

SMART

CLAMP METER

Model : CM-9942G

Your purchase of this

SMART CLAMP METER

marks a step forward for

you into the field of

precision measurement.

Although this CLAMP

METER is a complex and

delicate instrument, its

durable structure will allow

many years of use if

p r o p e r o p e r a t i n g

techniques are developed.

Please read the following

instructions carefully and

always keep this manual

within easy reach.

OPERATION MANUAL

Caution Symbol

Caution :

* Risk of electric shock !

Caution :

* Do not apply the overload

voltage, current to the input

terminal !

* Remove test leads before open

the battery cover !

* Cleaning - Only use the dry

cloth to clean the plastic case !

Environment Conditions

*Installation Categories III 600V.

*Pollution Degree 2.

*Altitude up to 2000 meters.

*Indoor use.

*Relative humidity 80% max.

Equipment protected throughout

by double insulation or reinforced

insulation.

TABLE OF CONTENTS

1. FEATURES..........................................................................

2. SPECIFICATIONS................................................................

2-1 General Specifications............................................

2-2 Electrical specifications.............................................

3. FRONT PANEL DESCRIPTION..................................................................

3-1 Current Sense Jaws........................................... 6

3-2 Trigger .............................................................. 6

3-3 Display................................................................

3-4 Power On/Off button.......................................... 6

3-5 Hold button....................................................... 6

3-6 Hz button........................................................... 6

3-7 Function slide switch .......................................... 6

3-8 V/Ω terminal ......................................................

3-9 COM terminal .................................................. 6

3-10 Handle of power generator................................ 6

3-11 Power type switch ( G/B switch )...................... 6

3-12 Battery compartment/cover................................ 6

4. POWER TYPE SELECTION........................................ 7

4-1 Power supply from the generator ( Green

power supply ) ....................................................

4-2 Power supply from the battery................................

MEASURING PROCEDURE.......................................................................

5-1 precautions & preparations for measurement...... 8

5-2 Power management.............................................

5-3 Symbols & units of display.....................................

5-4 AC Current Measurement ......................................

5-5 Voltage ( ACV/DCV ) measurement.........................

5-6 Resistance measurement......................................

5-7 Continuity, Diode measurement..............................

5-8 Capacitance Measurement........................................

5-9 Frequency measurement....................................................

5-10 Auto power off.....................................................................

MAINTENANCE.......................................................................

OPTIONAL ACCESSORIES & ADAPTERS ..................................................

8. PATENT.....................................................................

9. THE ADDRESS OF AFTER SERVICE CENTER.....................

1. SPECIFICATIONS

* Green power, battery is no need, power supply from

the handy generator, operate the generator 30 to 60

seconds will offer 15 to 20 minutes energy typically.

* Hybrid power, meter's power also can supply by the

battery,

* Green power internal charge system use the Super

charge capacitor, fast charge time and high reliability.

* Meet CAT III-600 V.

* 6000 counts A/D, high resolution.

* ACV, ACA, DCV, ohms, continuity, Hz, Capacitance,

Diode, Data hold.

* Smart function, Auto range.

* Smart operation, Build in 4 intelligent function :

" A ", " Ω ", " V ".

* " A " function can measure ACA with auto range.

* " V " function can select ACV, DCV automatically with

auto range.

* " Ω " function can select the Resistance , Diode,

Continuity beeper, Capacitance automatically with auto

range.

* Data hold function for ACA measurement.

* Auto shut off is available to save battery life.

* 10 M ohm impedance for voltage circuit.

* Built-in overload protection for most ranges.

* LSI circuit provides high reliability and durability.

* Patent.

* Uses durable, long-lasting components, enclosed in

strong, light weight ABS-plastic housing.

* Full line optional adapters : Clamp adapter,

Tachometer adapter, Pressure adapter, Humidity

Adapter, Sound level adapter, Anemometer adapter,

Light adapter, EMF adapter.

2. SPECIFICATIONS

2-1 General Specifications

Green power * Green power, battery is no need,

and power supply from the handy

Hybrid power generator, operate 30 to 60

seconds the generator will offer 15

to 20 minutes energy typically.

Green power internal charge system

use the Super charge capacitor, fast

charge time and high reliability.

* Hybrid power, meter also can supply

by the battery power.

Display 40 mm x 30.3 mm large LCD display.

Measurement ACV, ACA, DCV, DCA, ohms,

continuity beeper, Hz, Capacitance,

Diode, Data hold.

A/D counts no. 6000 counts.

Range selection Smart function, auto range.

Smart function " A " function can measure ACA with

auto range.

" V " function can select ACV, DCV

automatically with auto range.

" Ω " function can select the Resistance,

Diode, Continuity beeper, Capacitance

automatically with auto range.

Data hold To freeze the display reading on the

LCD display.

* Available for ACA measurement only.

Power On/Off Manual power off.

management Auto power off :

If meter is not operated within 10

minutes will auto power switch off.

Polarity Automatic Switching, " - " indicates

negative polarity.

Max. jaw open 42 mm ( 1.65 inch ) Dia.

size

Zero adjustment

Automatic.

Sampling time Approx. 0.5 to 1 second.

Operating 0 to 50 (32 to 122 ).℃ ℉

temperature

Operating Less than 80% RH.

humidity

Power Green power :

Supply Power from the handy generator,

battery is no need.

Battery power :

DC3V battery ( CR-2032 ) x 2 PCs.

Power DC 3.9 mA.

consumption

Weight 310 g/068 LB.

Dimension 228 x 85.7 x 45.6 mm

( 9.0 x 3.4 x 1.8 inch )

Accessories

Red and Black Test Leads.............

1 Set

Included

Instruction Manual.................................................

1 PC

Optional Carrying case : CA-05A.

accessories Full line adapters :

ACA/DCA current adapter,

Tachometer adapter,

Humidity adapter, Pressure adapter,

Light adapter, EMF adapter,

Sound level adapter,

High voltage probe.

2-2 Electrical specifications (23± 5 )℃

DC/AC Voltage

* auto range

Range 6 V /60 V/600 V

Resolution 0.001 V /0.01 V/0.1 V

Accuracy DCV : ± ( 1 % + 2d )

ACV : ± ( 1.2 % + 5d )

Input impedance 10 M ohm.

Over load AC/DC 600 V.

protection

Remark

* The input impedance is 10 Mega ohm.

* ACV specification be tested on sine

wave 50/60 Hz.

* For smart function ,the ACV start

measurement voltage is larger than

400 mV ± 100 mV.

AC Current

* auto range

Range 600 A/1000 A

Resolution 0.1 A/1 A

Accuracy 600 A range ± ( 1.5% + 2d )

1000 A range ± ( 2% + 8d )

Over load AC 1000A.

protection

Remark

* ACA specification be tested on sine

wave 50/60 Hz.

* Measurement range :

measurement is

0.1A to 1000 A

OHMS

* auto range

Range 600/6 K/60 K/600 K/6 M ohm

Resolution 0.1/1/10/100/1 K ohm

Accuracy ± ( 1% + 3d )

Over load ± 400 DCV, 350 ACV

protection

Capacitance

* auto range

Range 6 nF/60 nF/600 nF/6 uF/60 uF

Resolution 0.001 nF/0.01 nF/0.1 nF/0.001 uF/

0.01 uF

Accuracy ± ( 3% + 5d )

Remark

Discharge capacitor before testing.

Frequency

Range 40 Hz to 1 KHz.

Resolution 1 Hz.

Accuracy ± ( 0.3% + 2d )

Input impedance 10 M ohm.

Over load AC/DC 600 V.

protection

Diode

Short/non conductance, good/defect test.

Continuity

If measuring resistance is less than 10 ohm, the beeper

will sound .

3. FRONT PANEL DESCRIPTION

Fig. 1

3-1 Current Sense Jaws

3-2 Trigger

3-3 Display

3-4 Power On/Off button.

3-5 Hold button

3-6 Hz button

3-7 Function slide switch

3-8 V/Ω terminal

3-9 COM terminal

3-10 Handle of power generator

3-11 Power type switch ( G/B switch )

3-12 Battery compartment/cover

4. POWER TYPE SELECTION

4-1 Power supply from the generator

( Green power supply )

Select the " Power type switch " ( 3-11, Fig. 1 ) to

the " G position " ( Green power position ).

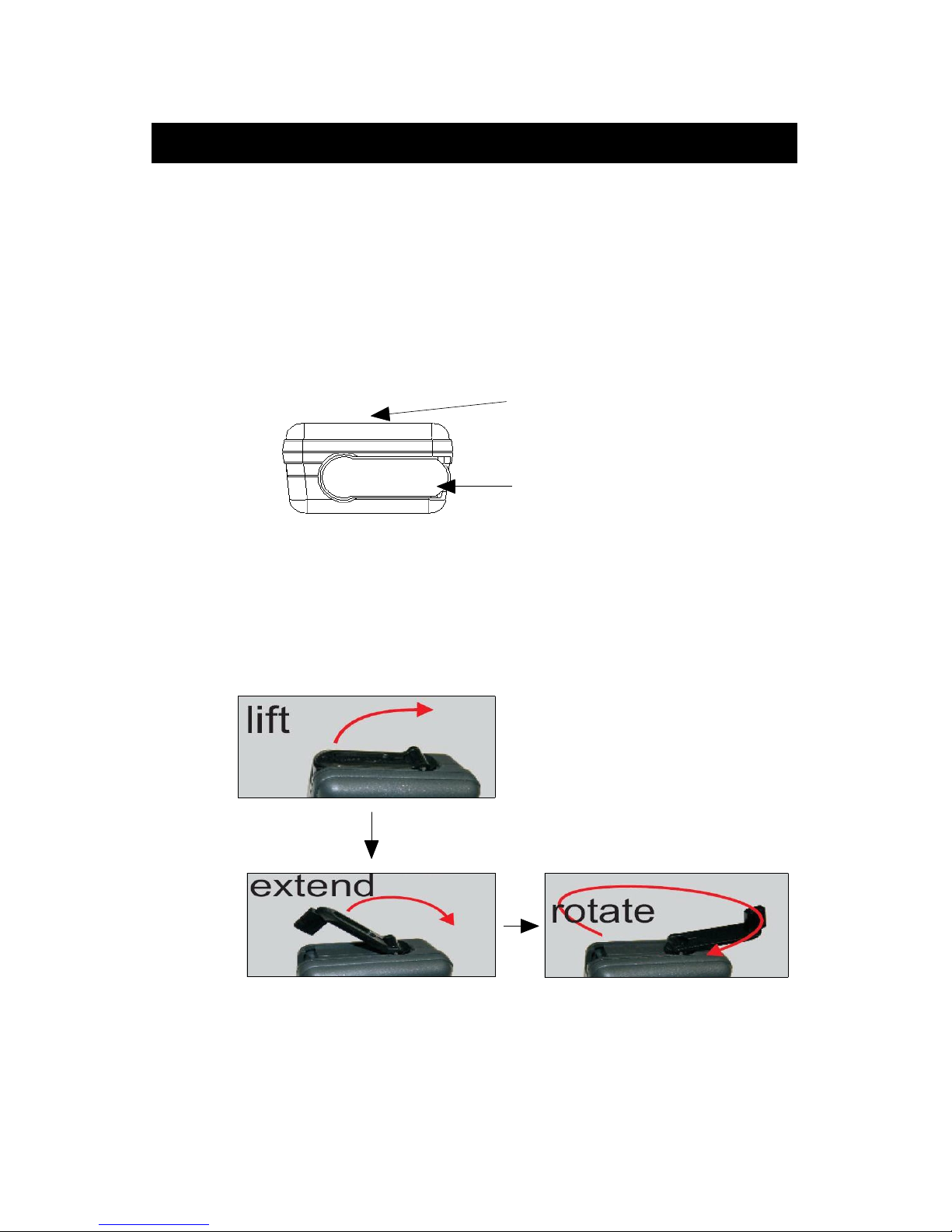

There is a " Power generator's handle " ( 3-10, Fig. 1 )

on the bottom of the housing case.

LCD display

Power generator's handle

2)Lift and extend the " Power generator's handle "

and rotate the handle in clockwise direction will

generate the power energy into the meter, refer

to Fig. a, b, c.

Fig. a

Fig. c

Fig. b

c. Wind-up the generator 30 to 60 seconds will offer 15

to 20 minutes energy typically. If wind-up the generator

more time, the meter will be saved more energy and

let the meter be operated for a long period.

Table of contents

Other Lutron Electronics Measuring Instrument manuals

Lutron Electronics

Lutron Electronics MG-3OO2 User manual

Lutron Electronics

Lutron Electronics ESF-106 User manual

Lutron Electronics

Lutron Electronics AM-4206M User manual

Lutron Electronics

Lutron Electronics FG-6020SD User manual

Lutron Electronics

Lutron Electronics SL-4023SD User manual

Lutron Electronics

Lutron Electronics LCR-9083 User manual

Lutron Electronics

Lutron Electronics SP-8001 User manual

Lutron Electronics

Lutron Electronics PM-9112SD User manual

Lutron Electronics

Lutron Electronics HT-315 User manual

Lutron Electronics

Lutron Electronics CO2-9904SD User manual

Lutron Electronics

Lutron Electronics AM-4233SD User manual

Lutron Electronics

Lutron Electronics MS-7011 User manual

Lutron Electronics

Lutron Electronics HR-3023SD User manual

Lutron Electronics

Lutron Electronics LCR-9063 User manual

Lutron Electronics

Lutron Electronics PCE-228 User manual

Lutron Electronics

Lutron Electronics WA-2015 User manual

Lutron Electronics

Lutron Electronics AQ-9901SD Installation manual

Lutron Electronics

Lutron Electronics MHT-381SD User manual

Lutron Electronics

Lutron Electronics DO-5512SD User manual

Lutron Electronics

Lutron Electronics LM-8000A User manual

Lutron Electronics

Lutron Electronics SOIL PH METER User manual

Lutron Electronics

Lutron Electronics SL-4011 Installation manual

Lutron Electronics

Lutron Electronics DM-9027T User manual

Lutron Electronics

Lutron Electronics PWA-301 User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
