LUCCI Air 209036 User manual

Installation Instructions

1 | P a g e v 1 . 0 (04 / 2 0 22)

REEF EXHAUST FAN WITH LED LIGHT

SKU# 209036, 209037

Rated Voltage 220-240V~ 50Hz

Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all

instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.

Warranty

•This exhaust fan is covered by a 3 year warranty. The warranty is from date of purchase, not the date of installation.

•Please retain proof of purchase for any warranty enquires.

•Warranty will be void if there is any damage due to improper usage or modification to the fan.

•Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.

Installation Requirements

•A licensed electrician is required to install this unit to the mains supply.

•Before installation, check the installation location in the ceiling has access to a socket outlet which is connected to

a wall switch. If it does not, please contact a licensed electrician to arrange installation of the socket outlet and wall

switch before continuing.

•All wiring and installation of the exhaust fan must adhere to the local council regulation and latest local and national

wiring rules, eg. AS/NZS 3000 electrical installations. If unsure, contact a licensed electrician.

•This is a Class I product and must be earthed.

•This product is suitable for indoor use only.

•This product must be installed at least 2.1 m above the floor level.

•Before cutting a hole in the ceiling, check that there are no ceiling joists, etc. or electrical wiring above the desired

mounting location.

•The mounting point must be support at least 2 times of the weight of the product.

•Ensure all the clearance values to the structural building element are maintained according to the clearance diagram

in Figure 7.

•Do not install the exhaust fan in canopies over stoves etc., as excessive heat will damage the product.

•This product is designed for installation in the flat ceiling only. Do not mount it on a sloping ceiling or a vertical wall.

•Any duct (not included) attached to the product must be installed horizontally in the ceiling and with the same height

or lower than the exhaust fan.

•Ensure the duct (not included) is not bent otherwise the performance will be reduced.

•Where applicable, precautions must be taken to avoid the back-flow of gases into the room from the open flue of

gas or other fuel-burning appliances.

•Do not allow any thermal insulation to cover any part of the rear of the appliance.

•Ensure the thermal insulation does not obstruct the airflow.

•There must be an adequate source of external air to ensure the rated performance.

Performance Notes

1. For exhaust fan optimum performance, volume of air being extracted should be equal to amount of air entering

the room. Air is drawn mostly from under a door, or an open window. If the bathroom or room is air tight (door and

windows shut), the exhaust will not perform well.

2. LED lighting of the appliance is designed to provide directional lighting only. While it may be sufficient for most

common tasks, others such as shaving or applying make-up may require additional lighting.

Installation Instructions

2 | P a g e v 1 . 0 (04 / 2 0 22)

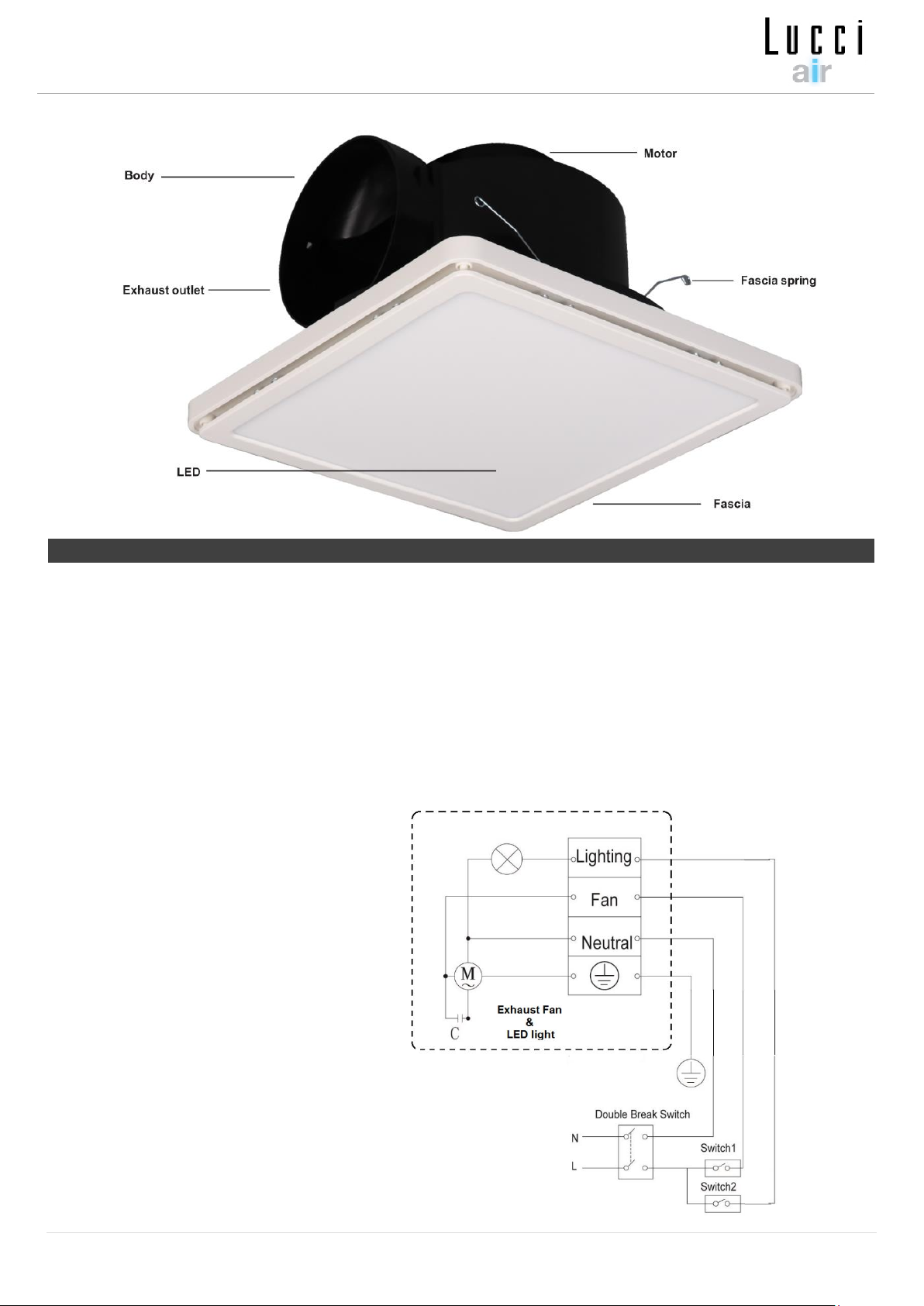

PARTS

Installation Directions

1. Remove all packaging material from the product and be careful not to throw away accessories that may be hidden

within the packaging material.

NOTE: Take care not to pull any electrical wires during unpacking as this may damage the connection.

2. Check whether the product has been damaged during transport. Do not operate/install any product which appears

damaged in any way. Return the complete product to the place of purchase for inspection, repair or replacement.

3. Cut an installation hole into the ceiling according to cut-out size specified in the specification section. (Fig.1)

4. Remove the fascia from the exhaust fan body by unclipping the springs. twist to disconnect the LED power cable.

5. Attach the duct (Not included) to the exhaust outlet if needed.

6. Make the wire connection from exhaust terminal fan to wall switch in accordance to wiring diagram. Replace

terminal box cover after wiring is complete.

Installation Instructions

3 | P a g e v 1 . 0 (04 / 2 0 22)

7. Push the three mounting clips to the center of the exhaust fan body and carefully insert the fan body into the cut-

out hole in ceiling.

8. Push the three mounting clips out of the exhaust fan body to hold the exhaust fan body onto the ceiling. Use a

screwdriver to tighten the three screws on the mounting clips to secure the exhaust fan onto the ceiling. Check

and ensure the mounting clips are clamped onto the ceiling tightly. (Fig.2)

9. Reconnect the LED connector; (Fig 3) Select the desired colour temperature using the switch on the back of the

luminaire (Fig4 &Fig5)

10. Reinstall the fascia back onto the exhaust fan body. (Fig.6)

11. Switch on Exhaust fan and LED light to check and use.

Fig.7 Clearance diagram

Installation Instructions

4 | P a g e v 1 . 0 (04 / 2 0 22)

Safety Tips

•Always ensure the power is OFF and the exhaust fan has cooled down before performing any maintenance,

cleaning or making any adjustment to the exhaust fan.

•Ensure that the exhaust fan is switched off from the supply mains before removing the fascia.

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the appliance.

•WARNING: If unusual oscillating movement is observed, immediately stop using the product and contact the

manufacturer, its service agent or suitably qualified persons.

•Do not allow any foreign object to enter the grille opening as which may damage the product.

•The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.

•Ensure that the fan does not come in contact with corrosive chemicals solvents or abrasive cleaners etc.

•Clean the grille and blades regularly. To clean, wipe with a damp clean cloth. Do NOT soak or immerse the

product in water or other liquids.

Specifications

SKU #

209036

209037

Colour

White

Insulation class

Class I

IP rating

IP22

Rated voltage

220-240V~, 50Hz

Fan Rated wattage

35W

40W

Light Globe Wattage

12W

18W

Max. Airflow

325M3/H

580M3/H

Cut-out size

Φ240mm

Φ290mm

Overall dimensions

L:270mm W:270mm H:190mm

L:330mm W:330mm H:200mm

Size of faceplate

Square (270mm x 270mm)

Square (330mm x 330mm)

Exhaust outlet / Duct size

Φ 100mm

Φ 150mm

Blade diameter

Φ140mm

Φ165mm

Weight

2kg

2.3kg

Installation Instructions

5 | P a g e v 1 . 0 (04 / 2 0 22)

BATHROOM HEATER WARRANTY CARD

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement

or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have

the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Every Lucci Air Exhaust fan & Light (2 in 1) is thoroughly inspected and tested before being released for sale. In addition to any warranties or

conditions implied by applicable Statue or Regulation, Lucci Design warrants all of it’s bathroom heaters against defective workmanship and faulty

materials for thirty six (36) months from the original date of purchase. Lucci Design undertakes, at it’s option, to repair or replace, free of charge,

each product or part thereof subject to the below warranty conditions;

1) The fan or relevant part has not been modified, subjected to misuse, neglect, or been involved in an accident.

2) The repairs are not required as a result of normal wear and tear.

3) The product was installed by a licenced electrical contractor in accordance with this instruction manual.

4) No solid state speed control device has been used with the appliance.

5) A copy of the original receipt of purchase is presented.

6) Globes supplied are not covered by this warranty

Lucci Design cannot be held responsible for any repair other than those carried out by it or one of it’s Authorised Service Agents. Please

keep this warranty form in a safe place. This form must be produced in the event of service being required.

IN THE EVENT OF SERVICE BEING REQUIRED, PLEASE CALL

THE LUCCI FAN WARRANTY HOTLINE ON 1800 602 243 BETWEEN

9AM & 5PM (E.S.T) MONDAY TO FRIDAY ENSURING THAT YOU

HAVE THE FOLLOWING DETAILS ON HAND:

MODEL (SKU) NUMBER: __________________________________________________________

DATE OF PURCHASE: ____________________________________________________________

RETAILER: _____________________________________________________________________

RECEIPT NUMBER: ______________________________________________________________

INSTALLED BY: _________________________________________________________________

LICENCE # : ______________________________ PH: __________________________________

DESCRIPTION OF FAULT: _________________________________________________________

______________________________________________________
