LUCCI Air AIRLIE HUGGER Installation guide

V1.0 - EN (12/2018)

LUCCI

AIRLIE HUGGER

CEILING FAN

INSTALLATION

OPERATION

MAINTENANCE

WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATIONAND FAN OPERATION.

Airlie Hugger Fan Installation Instructions

2 | Page

THANK YOU FOR PURCHASING

Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read

and save all instructions before using the product.

SAFETY PRECAUTIONS

The information contained in the following pages has been prepared to ensure you of trouble-free

operation of your ceiling fan.

1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and maintenance shall not be undertaken by children without supervision.

2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a person responsible for their safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. An all-poledisconnectionswitch must be incorporated into the fixed wiring, in accordancewithlocalwiringrules.

IN AUSTRALIA

WARNING:

FOR SAFE USE OF THIS FAN AN ALL-

POLE DISCONNECTION

MUST BE INCORPORATED INTO THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

As outline in clause 7.12.2 of AS/NZS 60335-

1 for meeting the

minimum electrical safety of this standard.

Please note warranty will be void if installation is without a means for

an all-

pole disconnection incorporated in the fixed wiring in

accordance with the wiring rules.

Example: If a fan is connected to a circuit that can be isolated via an

Airlie Hugger Fan Installation Instructions

3 | Page

all-pole safety switch at the switchboard, then this is considered to be

an all-pole disconnection to the ceiling fan electrical circuit, meeting

the requirements of clause 7.12.2 of AS/NZS 60335.1.

A single-pole switch on the active of the receiver input of remote

control must also be included in the wiri

ng, and located the

same room as the ceiling fan.

5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available. If electrical

appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get

into the food chain, damaging your health and well-being.

6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.

7. The fan should be mounted so that the blades are at least 2.3 metres above the floor in Europe or 2.1 metres

above the floor in Australia.

8. This fan is designed for indoor use only. Mounting the fan in a location where it is subject to water or moisture

is dangerous and will void the warranty.

9. Only a licensed electrician should execute the installation.

10. WARNING: If unusual oscillating movement is observed, immediately stop using the ceiling fan and contact

the manufacturer, its service agent or suitably qualified persons.

11. The replacement of parts of the safety suspension system device shall be performed by the manufacturer, its

service agent or suitably qualified persons.

12. The fixing means for attachment to the ceiling such as hooks or other devices shall be fixed with a sufficient

strength to withstand 4 times the weight of the ceiling fan; that the mounting of the suspension system shall be

performed by the manufacturer, its service agent or suitably qualified persons.

Airlie Hugger Fan Installation Instructions

4 | Page

BEFORE INSTALLATION

Unpack the fan and carefully identify the parts. Please refer to Fig 1.

1. Blades x 3

2. Pre-assembled Fan motor, down rod, and canopy x 1

3. Glass shade x 1

4. Mounting Bracket x 1

5. Wooden screws for mounting bracket x 2

6. Balancing kits x 1 set

7. Blade screw x 10

．

Flat washer x 10

9. Screw for close to ceiling installation x 3

8. Remote control x 1 set

Fig. 1

Airlie Hugger Fan Installation Instructions

5 | Page

INSTALLING THE MOUNTING BRACKET

•The ceiling fan must be installed in a location so that the blades are a minimum 300mm spacing from

the tip of the blade to the nearest objects or walls.

•Secure the mounting bracket to the ceiling joist or structure that is capable of carrying a load of at

least 30kg, with the two long screws provided. Ensure at least 30mm of the screw is threaded into

the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures

other than wood, the appropriate screw type MUST be used.

Angled Ceiling Installation

This fan hanging system supports a maximum 15 degree angled ceiling installation.

Closed to Ceiling Installation

Loosen the set screws (A) to remove the ball joint, canopy and coupling cover; loosen the set screws (B), and

then remove the pin, bolt and down rod.

Attach the canopy (C) to the fan body (E), and secure it by 3 screws (D) supplied with the fan in the accessory

bag.

Fig. 2

Fig. 3

Fig. 4

Airlie Hugger Fan Installation Instructions

6 | Page

BLADE INSTALLATION

BLADE ATTACHMENT (Fig. 5)

1. Remove the two screws (1) from the covering plate (2) on the top of

the motor housing, and remove the plate.

2. Insert the blade (4) into the square slot of the motor.

3. Secure the blade on the bracket by using 3 motor screws (3),

ensuring that the 3 blades screws are tightened evenly.

4. Once completed, repeat the process on the remaining blades.

5. Replace the covering plate on top of the motor housing.

LIGHT KIT INSTALLATION (Fig. 6)

NOTE: FOR FAN MODELS WITHOUT LIGHT, DISREGARD THIS INSTALLATION PROCESS.

1. Install the bulbs (Max. 15W Energy saving bulbs, CFL spiral or LED bulb only, not included).

2. Lift and attach the glass to the base and secure it by using three spring clips.

HANGING THE FAN

Fan with down rod

Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is

positioned on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in

operation.

Fig. 5

Fig. 6

Fig. 7

Airlie Hugger Fan Installation Instructions

7 | Page

Close to ceiling

Lift up the fan assembly and ensure the round hole (B) of the canopy is

positioned into the hook (A) of the mounting bracket.

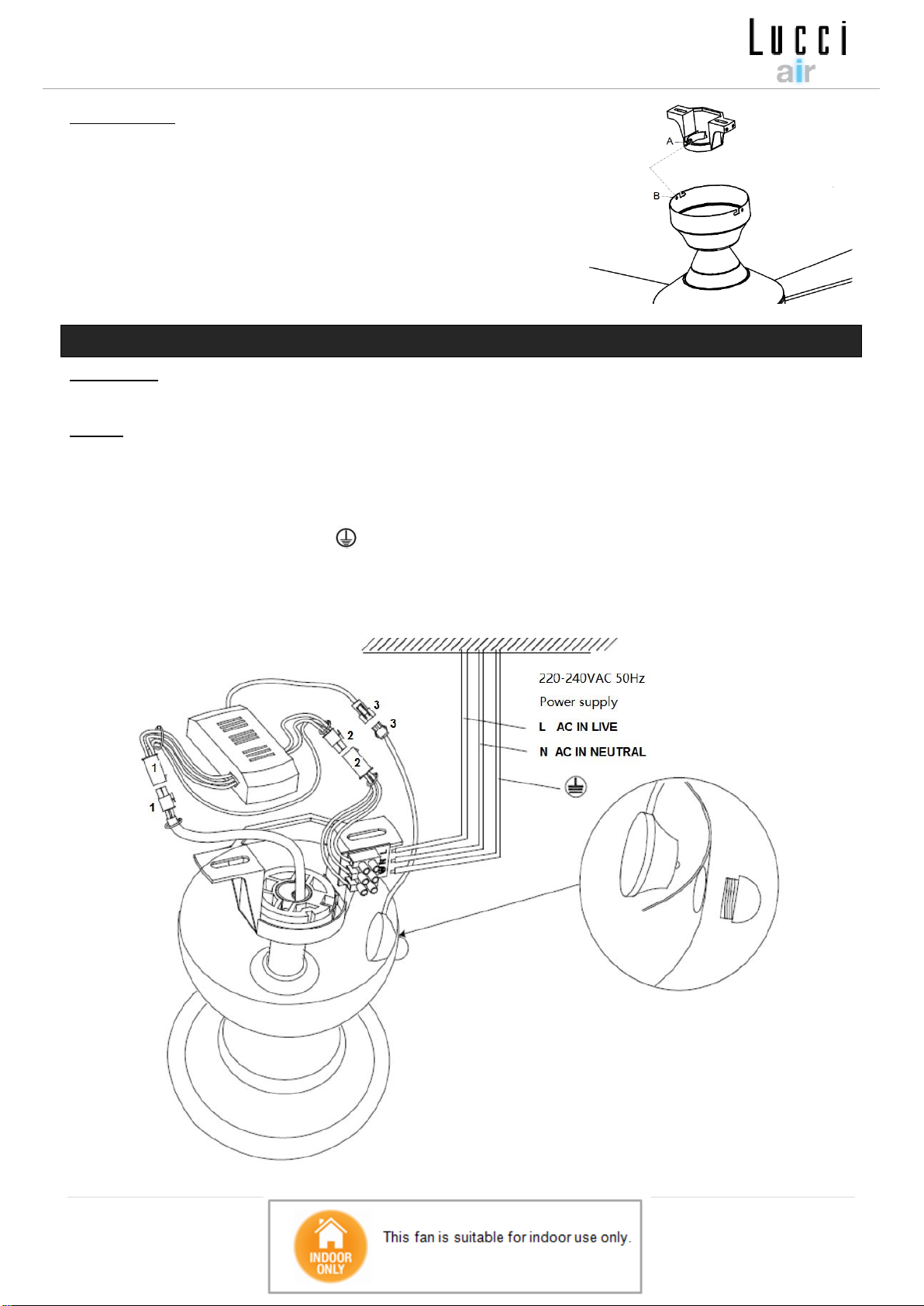

ELECTRICAL WIRING DIAGRAM

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BYA

LICENSED ELECTRICIAN.

NOTE: AN ADDITIONALALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED

WIRING.

•Connect “LIVE” supply wire to the “L” of terminal block on the mounting bracket.

•Connect “NEUTRAL” supply wire to the “N” of terminal block on the mounting bracket.

•Connect “EARTH” wire to the “ ” of terminal block on the mouthing bracket.

•Connect the output connector (1) from the receiver to the connector (1) from the fan body.

•Connect the connector (2) from the fan mounting bracket to the input connector (2) from the receiver.

•Connect the connector (3) from from the infrared detecter to the input connector (3) from receiver.

Fig. 8

Fig. 9

Airlie Hugger Fan Installation Instructions

8 | Page

FINISHING THE INSTALLATION

Cover the mounting bracket with the canopy. Ensure all electrical wiring is tucked inside the canopy and

that the wires are not damaged during this step. Secure the canopy to the hanger bracket using the

screws provided.

USING YOUR CEILING FAN

REMOTE CONTROL

Your ceiling fan is controlled by the remote control.

Before operating the remote, the following must be

considered.

-1 x CR2032 3V battery is required to

operate the remote control. Pull out the

battery tray (2) by pressing the click (1) of

the battery tray. Place the battery (3) on the

tray and insert the tray back to remote hand

set (4) indicated by “+” polarity symbol (5).

Ensure the polarity is correct as shown in

the battery compartment.

Fig. 10

Fig. 11

Airlie Hugger Fan Installation Instructions

9 | Page

OPERATING THE REMOTE:

Before you start using the remote, take the time to read through this section and get familiar with the

buttons and function of each button.

1. IR TRANSMITTER

2. HI button: Press the button to set fan running at High speed.

3. MED button: Press the button to set fan running at Medium speed.

4. LOW button: Press the button to set fan running at Low speed.

5. OFF button: Press the button to turn OFF the fan.

6 / 7 / 8. 1Hr / 3 Hr / 6Hr fan timer button: Press the button to activate the fan timer fuction, the fan will

turn off after running 1 hour / 3 hours / 6 hours.

9. LIGHT button: Press the button to turn ON/ OFF the light.

The remote has memory function. If the fan or light is turned off by the isolating switch, it will memorise

and recover the last status when turned on next.

Effective distance/location for IR remote control (Fig. 13)

Left from center-line: Approximately 45 degrees

Right from center-line: Approximately 45 degrees

Distance from remote control to receiver: 5 meters max.

Fig. 12 Fig. 13

Airlie Hugger Fan Installation Instructions

10 | Page

REVERSE FUNCTION

Your ceiling fan can operate either in fan mode or reverse fan mode.

SUMMER Mode: The reverse switch should be in the “down” (SUMMER) position to make the fan rotate

in the anticlockwise direction. The airflow will be directed downwards, for cooling in summer.

WINTER Mode: The reverse switch should be in the “up” (WINTER) position to make the fan rotate in

clockwise direction. The airflow will be directed upwards, for energy conservation in winter.

AFTER INSTALLATION

WOBBLE:

NOTE: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If

the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is

quite acceptable and DOES NOT suggest any problem.

TO REDUCE THE FAN WOBBLE: Please check that all screws which fix the mounting bracket and down rod are

secure.

BALANCING KIT: A balancing kit is provided to balance the ceiling fan on initial installation. Please refer to the

instruction on how to use the balancing kit. The balancing kit can be used to assist re-balancing should the ceiling

fan become un-balanced again. Store your balancing kit away after installation for future use if required.

NOISE:

When it is quiet (especially at night) you may hear occasional small noises. Slight power fluctuations and

frequency signals superimposed in the electricity for off-peak hot water control, may cause a change in fan motor

noise. This is normal. Please allow a 24-hour “settling-in” period, most noises associated with a new fan disappear

during this time.

The manufacturer’s warranty covers actual faults that may develop and NOT minor complaints such as hearing

Fig. 14
