LUCCI Air NORDIC Series User manual

V1.0- M u t i L E D ( 0 7 / 2 0 1 8 ）

LUCCI

NORDIC

DC CEILING FAN

INSTALLATION

OPERATION

MAINTENANCE

WARRANTY INFORMATION

CAUTION

READ INSTRUCTIONS CAREFULLY FOR SAFE

INSTALLATION AND FAN OPERATION.

Nordic Installation Instructions

1 | P a g e

CONTENTS

Installation Instruction Manual .......................................................................................... 2

Installationsanleitung ........................................................................................................12

Guide d’installation............................................................................................................22

Manual de instrucciones de instalación............................................................................32

Manuale delle istruzioni di installazione............................................................................41

Installatiehandleiding.........................................................................................................51

Εγχειρίδιο οδηγιών εγκατάστασης ....................................................................................61

Nordic Installation Instructions

2 | P a g e

CONGRATULATIONS ON YOUR PURCHASE

Congratulations on purchasing the latest in energy saving ceiling fans. This fan runs on DC (direct current) power which

gives it the benefit of being super energy efficient whilst still maintaining high volume air-movement and silent operation.

Energy Saving - The DC motor is the latest technology in fan design. Its highly efficient motor saves up to 65% more

energy than ceiling fans with traditional AC motors.

Silent operation –This DC fan motor is programmed with a stabilised current which efficiently reduces motor noise.

Low operating temperature –The DC power is managed effectively which brings downthe motor operating temperature

to less than 50℃. This results in a much cooler motor than a standard AC fan and increases the longevity of the motor.

6 speed remote control - Regular AC ceiling fans usually come with only 3 speeds, this DC fan comes complete with a

6 speed remote, which gives greater choice of comfort levels.

SAFETY PRECAUTIONS

1. In Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical,

sensory or mental capabilities or lack ofexperience and knowledge if theyhave been given supervisionor instruction

concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance

shall not be undertaken by children without supervision.

2. In Australia: The appliance is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction

concerning the use of the appliance by a person responsible for their safety.

3. Children should be supervised to ensure that they do not play with the appliance.

4. An all-pole disconnection switch must be incorporated into the fixed wiring, in accordance with local wiring rules.

IN AUSTRALIA

WARNING:

FOR SAFE USE OF THIS FAN AN ALL-POLE DISCONNECTION

MUST BE INCORPORATED INTO THE FIXED WIRING IN

ACCORDANCE WITH THE WIRING RULES.

As outline in clause 7.12.2 of AS/NZS 60335-1 for meeting the minimum

electrical safety of this standard.

Please note warranty will be void if installation is without a means for an

all-pole disconnection incorporated in the fixed wiring in accordance with

Nordic Installation Instructions

3 | P a g e

the wiring rules.

Example: If a fan is connected to a circuit that can be isolated via an all-

pole safety switch at the switchboard, then this is considered to be an

all-pole disconnection to the ceiling fan electrical circuit, meeting the

requirements of clause 7.12.2 of AS/NZS 60335.1.

A single-pole switch on the active of the receiver input of remote

control must also be included in the wiring, and located the same

room as the ceiling fan.

5. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact

your local government for information regarding the collection systems available. If electrical appliances are

disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain,

damaging your health and well-being.

6. The structure to which the fan is to be mounted must be capable of supporting a weight of 30kg.

7. The fan should be mounted so that the blades are at least 2.3m above the floor in Europe or 2.1m above the floor

in Australia.

8. This fan is suitable for indoor and alfresco areas where the fan is fully undercover with a minimum of 2 walls. This

fan is not waterproof. When installed in an alfresco area, the ceiling fan must be positioned in a location protected

from water, wind, dust and salt. Exposure to these elements will void the warranty. Mounting the fan in a situation

where it is subject to water or moisture is dangerous

9. Only a licensed electrician should execute the installation.

Nordic Installation Instructions

4 | P a g e

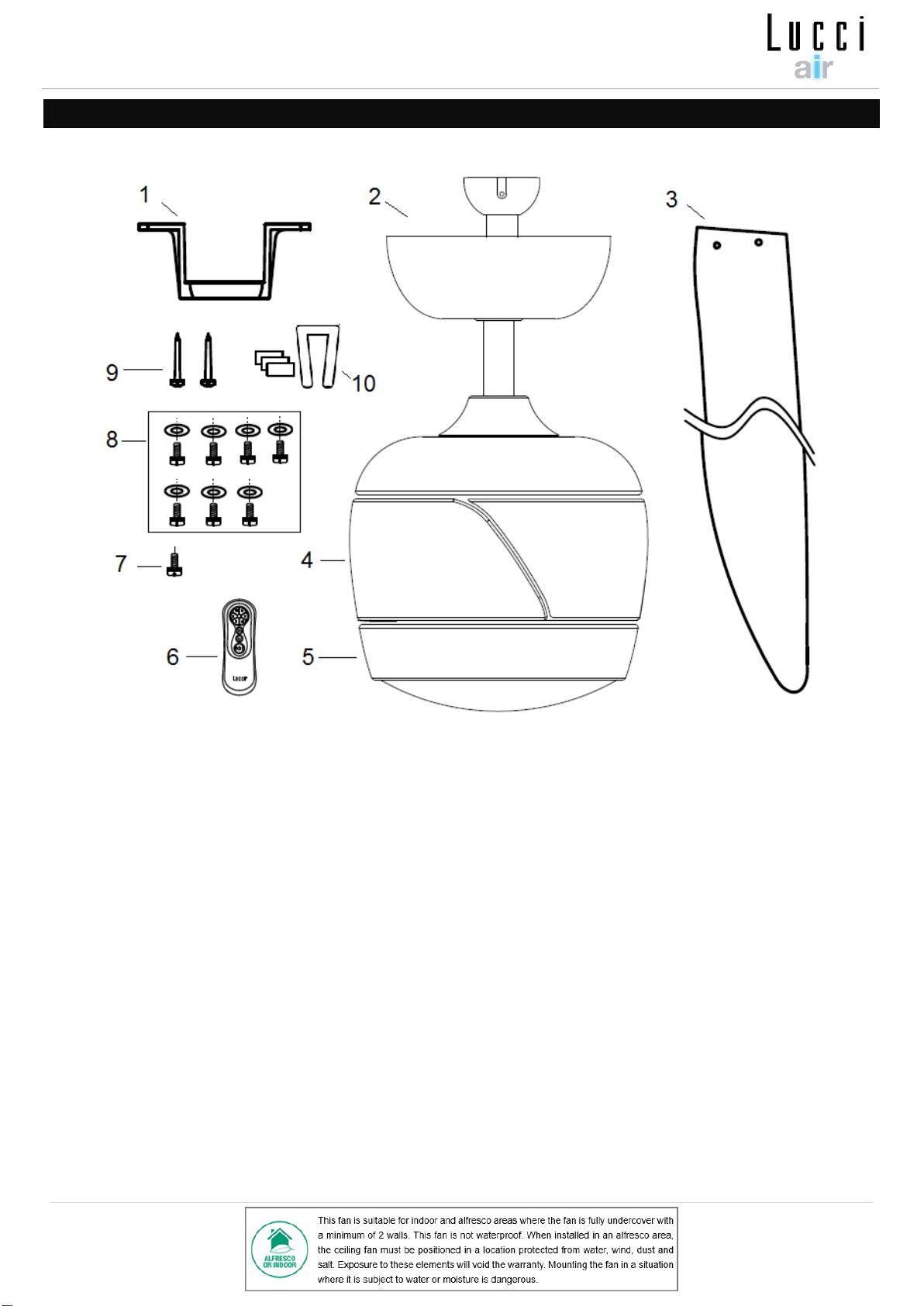

PARTS LIST

Unpack your fan and check the contents. You should have the following:

Mounting bracket x 1

Remote transmitter with holder x 1 set

Fan assembly with hanger cover, down rod,

canopy cover and canopy x 1

Motor screw x 7

Blade x 3

Blade screws with flat washer x 7

Blade holder x 3

Wooden screw x 2

Bottom cover x 1

LED light kit x 1

Balancing kits x 1 set

Fig. 1

Nordic Installation Instructions

5 | P a g e

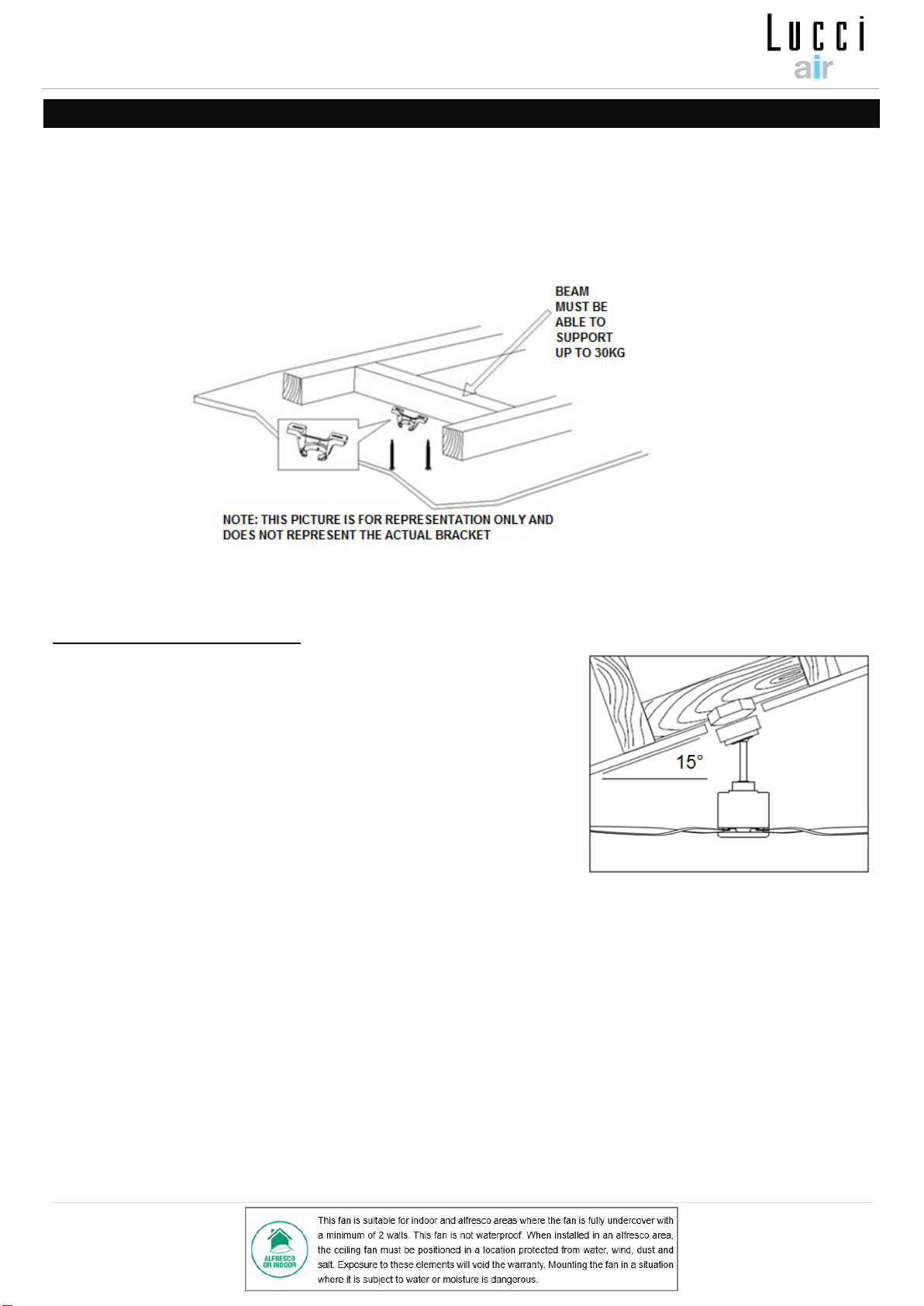

INSTALLING THE MOUNTING BRAKCET

The ceiling fan must be installed in a location so that the blades are 300mm spacing from the tip of the blade to the

nearest objects or walls.

Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two

long screws provided. Ensure at least 30mm of the screw is threaded into the support.

NOTE: The bracket screws provided are for use with wooden structures only. For structures other than wood,

the appropriate screw type MUST be used.

ANGLED CEILING INSTALLATION

This fan hanging system supports a maximum 15 degree angled ceiling

installation.

Fig. 2

Fig. 3

Nordic Installation Instructions

6 | P a g e

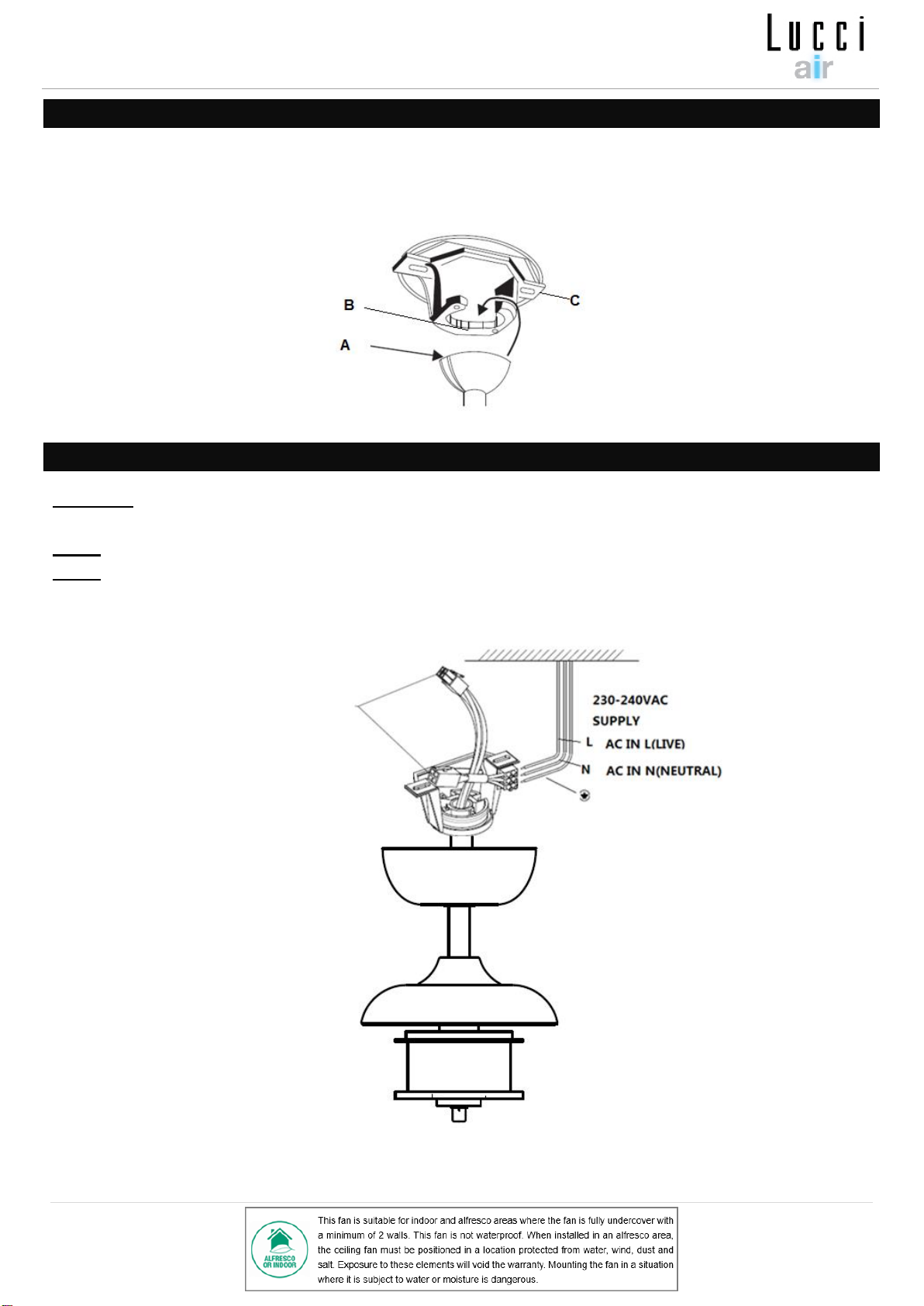

HANGING THE FAN

Lift the fan assembly onto the mounting bracket. Ensure the registration slot (A) of the hanger ball is positioned

on the stopper (B) of the mounting bracket (C) to prevent the fan from rotating when in operation. (Fig.4)

ELECTRICAL WIRING DIAGRAM

WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED

ELECTRICIAN.

NOTE: AN ADDITIONALALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING.

NOTE: IF THERE ARE TWO OR MORE DC CEILING FANS INSTALLED IN THE ONE LOCATION, AN SINGLE-POLE

SWITCH IS REQUIRED FOR EACH CEILING FAN. THIS IS REQUIRED WHEN PROGRAMMING THE REMOTE AND

RECEIVER TO PAIR TOGETHER.

Fig. 5

Fig. 4

Nordic Installation Instructions

7 | P a g e

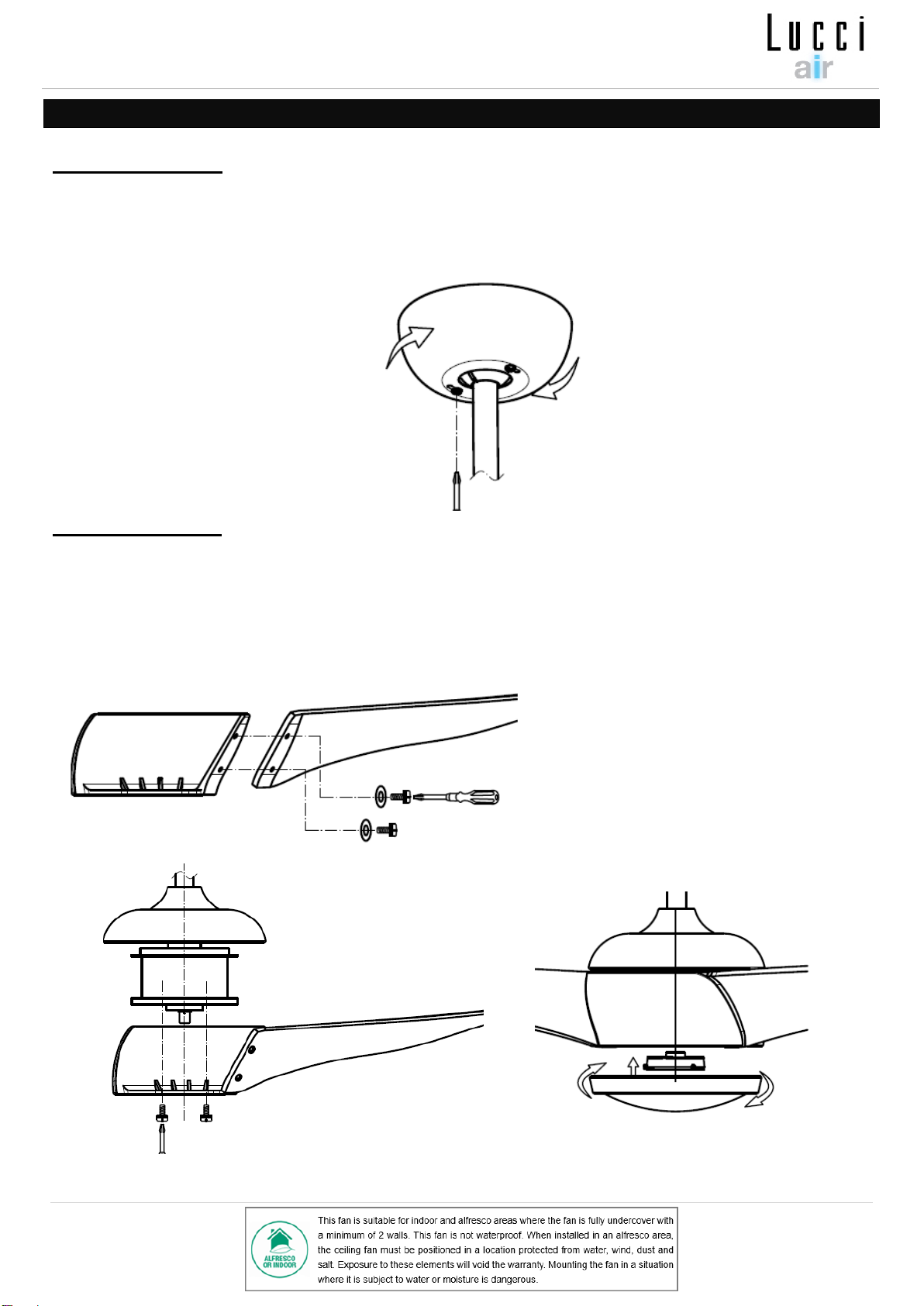

FINISHING THE INSTALLATION

INSTALL THE CANOPY

Loosen the 2 screws from the bottom of the mounting bracket.

Slide the canopy up to the mounting bracket and place the key hole on the canopy over the screw on the

mounting bracket. Turn the canopy until it locks in place at the narrow section of the key holes and secure it

by tightening the 2 set screws. Avoid damaging the electrical wiring prepared previously.

BLADE INSTALLATION

Loosen the 3 blade holders from motor.

Secure the blade to the blade holder by tightening the 2 blade screws with washer. Fig.7

Repeat to install the other blades to the blade holders.

Install the blade assemblies to the motor by tightening the 2 motor screws. Fig.8

Finally, install the bottom cover to the lamp bracket by rotating it clockwise. Fig.9

Fig. 6

Fig. 7

Fig. 9

Fig. 8

Nordic Installation Instructions

8 | P a g e

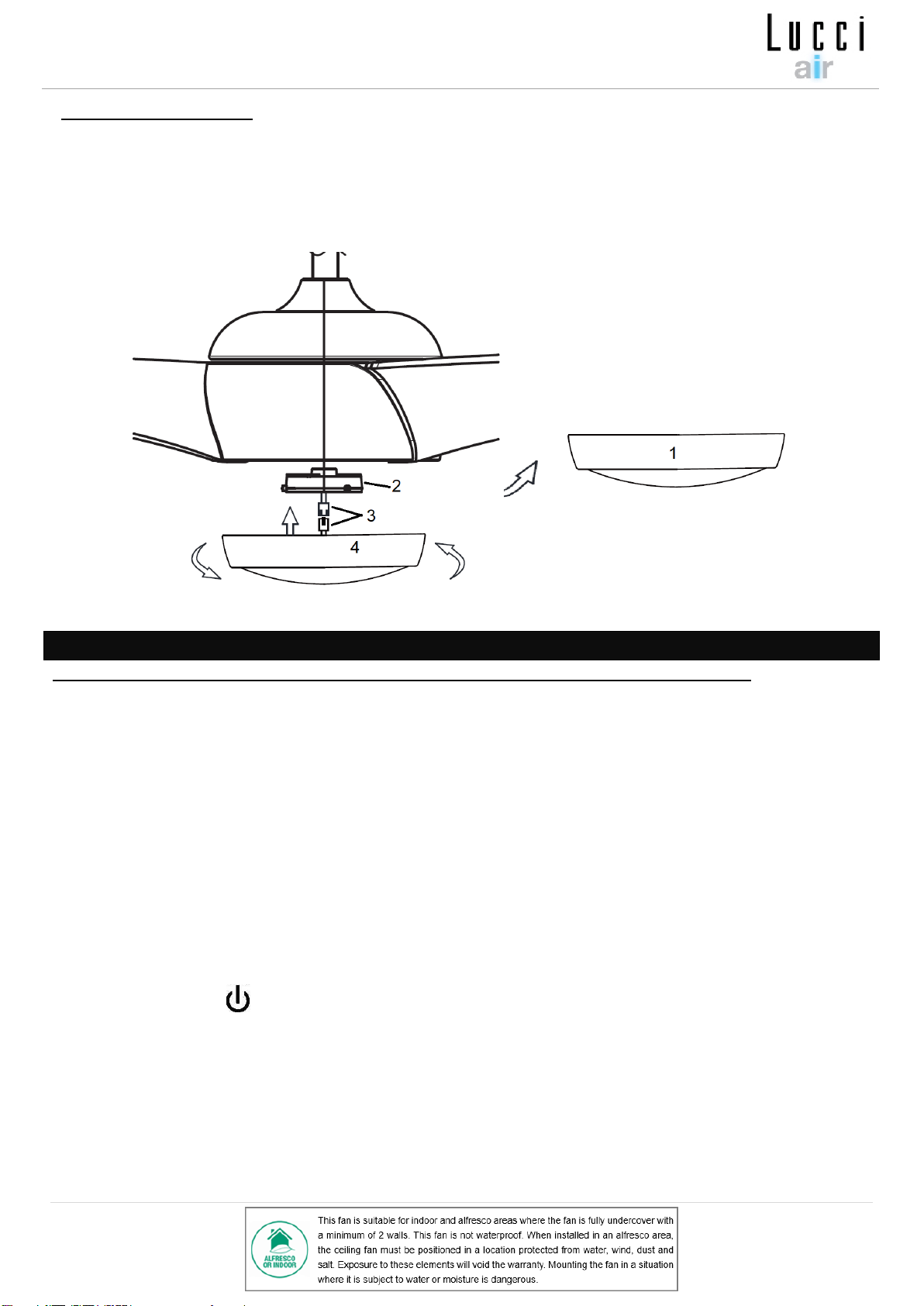

LIGHT KIT INSTALLATION

1. Remove the bottom cover (1) from the body of the fan by rotating it anti-clock wise.

2. Remove the heat shrink insulation tube from connector 3 at fan body end.

3. Plug the connectors (3) together.

4. Attach the LED luminaire (4) to the light kit bracket (2) and secure by rotating it clockwise.

USING YOUR CEILING FAN

Pairing Transmitter and Receiver –when 2 or more DC ceiling fans are installed in one location

When two or more fans are located near each other, you may want to have the receiver/transmitter for each fan set to a

different code, so that the operation of one fan does not affect the operation of the other fan/s.

NOTE: Ensure that you have installed a single pole disconnection switch in the fixed wiring for each fan.

NOTE: Ensure power to the receiver is ON prior to pairing the transmitter with the receiver.

Transmitter / Receiver pairing for Ceiling fan 1:

Turn OFF the mains supply to the receivers of both ceiling fans 1 and 2.

Install the 3V DC battery in the compartment. Please make sure the polarity of the battery is correct. Fig.10

Turn on the power to receiver 1. Keep the power OFF to receiver 2. (Each ceiling fan must have its own isolation

switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).

Press and hold the “” button of transmitter 1 for 3-5 seconds within 60 seconds of switching the power ON to

the receiver of ceiling fan 1.

The fan will move slightly and stop to indicate the paring process is activated.

If the fan has light kit attached, the light will flash on and off to indicate the paring process is activated.

Turn ON and change the speed of the ceiling fan 1 by the transmitter to check the operation and successful paring.

Fig. 10

Nordic Installation Instructions

9 | P a g e

Transmitter / Receiver paring for Ceiling fan 2:

Turn off the mains supply to the receivers of both ceiling fans 1 and 2.

Install the 3V DC battery in the compartment. Please make sure the polarity of the battery is correct. Fig.10

Turn on the power to receiver 2. Keep the power OFF to receiver 1. (Each ceiling fan must have its own isolation

switch, so that only the ceiling fan that needs to be paired with the transmitter will be ON).

Press and hold the “ ” button of transmitter 2 for 3-5 seconds within 60 seconds of switching the power ON to

the receiver of ceiling fan 2.

The fan will move slightly and stop to indicate the paring process is activated.

If the fan has light kit attached, the light will flash on and off to indicate the paring process is activated.

Turn ON and change the speed of ceiling fan 2 by the transmitter to check the operation and successful pairing.

Note: The pairing of the transmitter and receiver is required if only one ceiling fan is installed.

When more than two ceiling fans are installed near each other, please refer to the instruction

above.

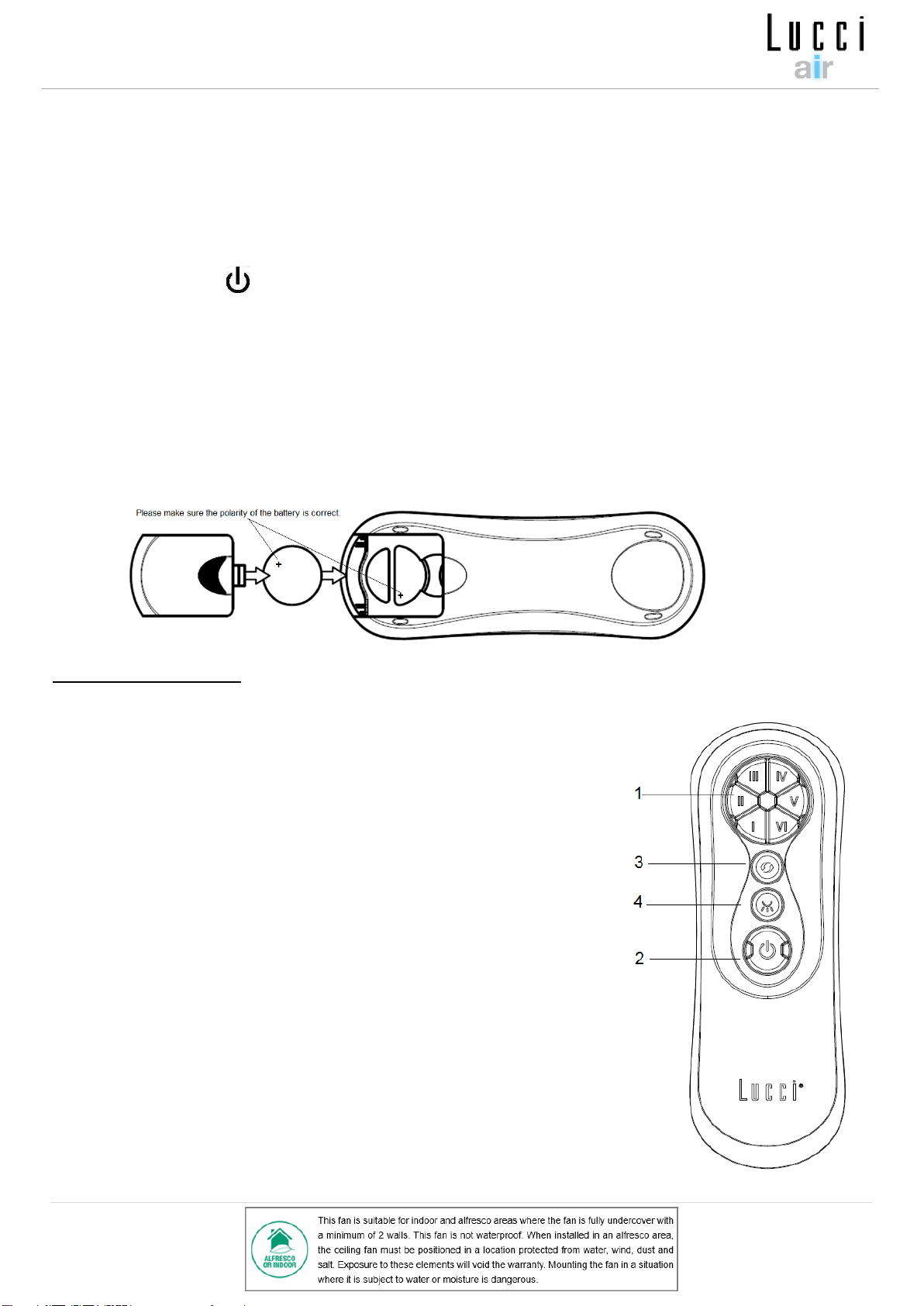

Remote Control Buttons

1 - FAN SPEED CONTROL BUTTON:

There are 6 available speeds. “I” button is for the lowest speed, and “VI” button is

for the fastest speed.

NOTE: when you turn on the fan for the first time or switch the main power to the

controller, you need to start the fan on hight “VI” speed first and then choose a

lower speed. A 5-10 seconds is required to allow the DC fan to respond to the

remote each speed or fan direction seletions.

2- FAN OFF BUTTON:

Press the button to turn the fan off.

3 - REVERSE FUNCTION BUTTON:

Press the button to activate the reverse running function. The fan must be

operating to activate the reverse function.

4 - LIGHT CONTROL BUTTON:

Press the button to turn the light ON/OFF.

Fig. 13

Fig. 11

Fig. 12
