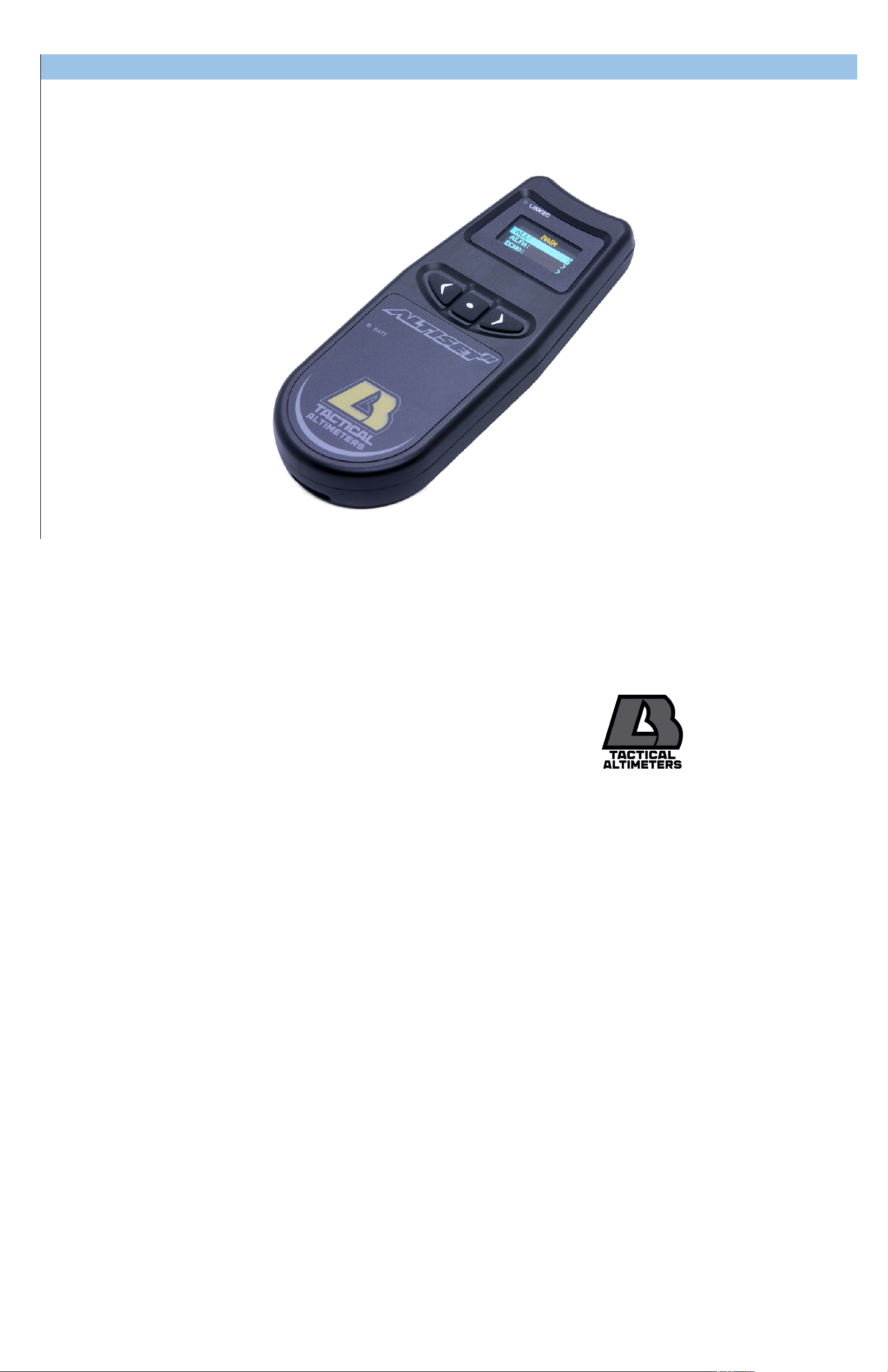

LB Altimeters ALTISET II User manual

ALTISET II

- Rev. 1.01 Page 1 of 16

ALTISET II MANUAL

LB Altimeters

ALTISET II is a trademark of LB Altimeters, Denmark

LB Altimeters operates a policy of continuous development

Therefore, we reserve the right to make changes and improvements to any of the

products described in this guide without prior notice

www.LBAltimeters.com

WARNING

The

ALTISET II,

and all compatible units, are intended to be a backup device and must not be relied upon as your primary means of maintaining altitude awareness.

Use the

ALTISET II

, and all compatible units, at your own risk

Altimeters may give erroneous readings if you are tumbling or the altimeter is in a burble (wake). Chest mount altimeters are more vulnerable to this problem

compared to hand/wrist mounted altimeters. If you are in doubt about how this limitation affects your skydiving, consult a licensed instructor

DO NOT use this equipment unless you are currently participating in, or have successfully passed, an approved skydiving course

Please read ALL instructions carefully prior to use

Any

ALTISET II

compatible unit must be switched

prior to entering the airplane

ALTISET II

- Rev. 1.01 Page 2 of 16

CONTENTS

CONTENTS .......................................................................................................................................................................................... 2!

INTRODUCTION.................................................................................................................................................................................... 3!

Features......................................................................................................................................................................................... 3!

Functions ....................................................................................................................................................................................... 3!

DESCRIPTION ...................................................................................................................................................................................... 3!

TURN UNIT ON / OFF ............................................................................................................................................................................. 3!

Turn unit ON.................................................................................................................................................................................... 3!

Turn unit OFF................................................................................................................................................................................... 3!

DISPLAY ............................................................................................................................................................................................ 4!

Startup .......................................................................................................................................................................................... 4!

Main window................................................................................................................................................................................... 4!

Value window .................................................................................................................................................................................. 4!

Battery Indicator ............................................................................................................................................................................. 4!

MENU OVERVIEW.................................................................................................................................................................................. 5!

ALL SETTINGS .................................................................................................................................................................................. 5!

ALFA SETTINGS ................................................................................................................................................................................ 5!

ECHO SETTINGS................................................................................................................................................................................ 5!

NAVIGATING MENUS / INPUT VALUES ....................................................................................................................................................... 5!

ALL SETTINGS...................................................................................................................................................................................... 6!

Basic Settings ................................................................................................................................................................................. 6!

ALFA SETTINGS.................................................................................................................................................................................... 7!

Date / Time..................................................................................................................................................................................... 7!

ALFA Setup ..................................................................................................................................................................................... 7!

Turn OFF ALFA ................................................................................................................................................................................. 8!

Return ALFA to Factory Default settings ................................................................................................................................................ 8!

Reset ALFA...................................................................................................................................................................................... 8!

ECHO SETTINGS ................................................................................................................................................................................... 9!

Memory Bank Selection ..................................................................................................................................................................... 9!

Warning Altitude Selection ................................................................................................................................................................ 9!

ECHO Setup....................................................................................................................................................................................10!

Test ECHO ......................................................................................................................................................................................10!

Turn OFF ECHO ................................................................................................................................................................................10!

Return ECHO to Factory Default settings...............................................................................................................................................10!

Reset ECHO ....................................................................................................................................................................................11!

FUNCTIONALITY ..................................................................................................................................................................................12!

IR Mode Activation – ALFA and ECHO ...................................................................................................................................................12!

IR Mode Activation – MIL AltiTrack......................................................................................................................................................12!

MAINTENANCE....................................................................................................................................................................................13!

Reset ALTISET II..............................................................................................................................................................................13!

Battery Change...............................................................................................................................................................................13!

Trouble Shooting ............................................................................................................................................................................13!

SPECIFICATIONS .................................................................................................................................................................................14!

WARRANTY ........................................................................................................................................................................................15!

WAIVER OF LIABILITY...........................................................................................................................................................................15!

QUICK START & ROAD MAP ....................................................................................................................................................................16!

ALTISET II

- Rev. 1.01 Page 3 of 16

INTRODUCTION

The

ALTISET II

remote control is an optional accessory developed by LB Altimeters, compatible with Military

AltiTrack, ALFA and ECHO altimeters. It can be used to change settings on a single or multiple compatible units,

accurately and efficiently by a single operator.

The

ALTISET II

remote control must be in line of sight within 30 cm/10 inch of the IrDA transceiver.

Features

-IrDA communication

-OLED menu screen

-Water proof and shock resistant aluminum casing with reinforced glass

-Intuitive menu system for ease of use

Functions

-User selection of Basic Settings for all compatible units:

omBar Offset

oBacklight Settings

-User selection of Settings for ALFA:

oFeet / meter and mph / kmh

oDate / Time

oJump Counter

oRESET / Turn OFF

-User selection of Settings for ECHO:

oFeet / meter

oPre-set Modes:

§Tandem

§Student

§Expert

oWarnings

oRESET / Turn OFF

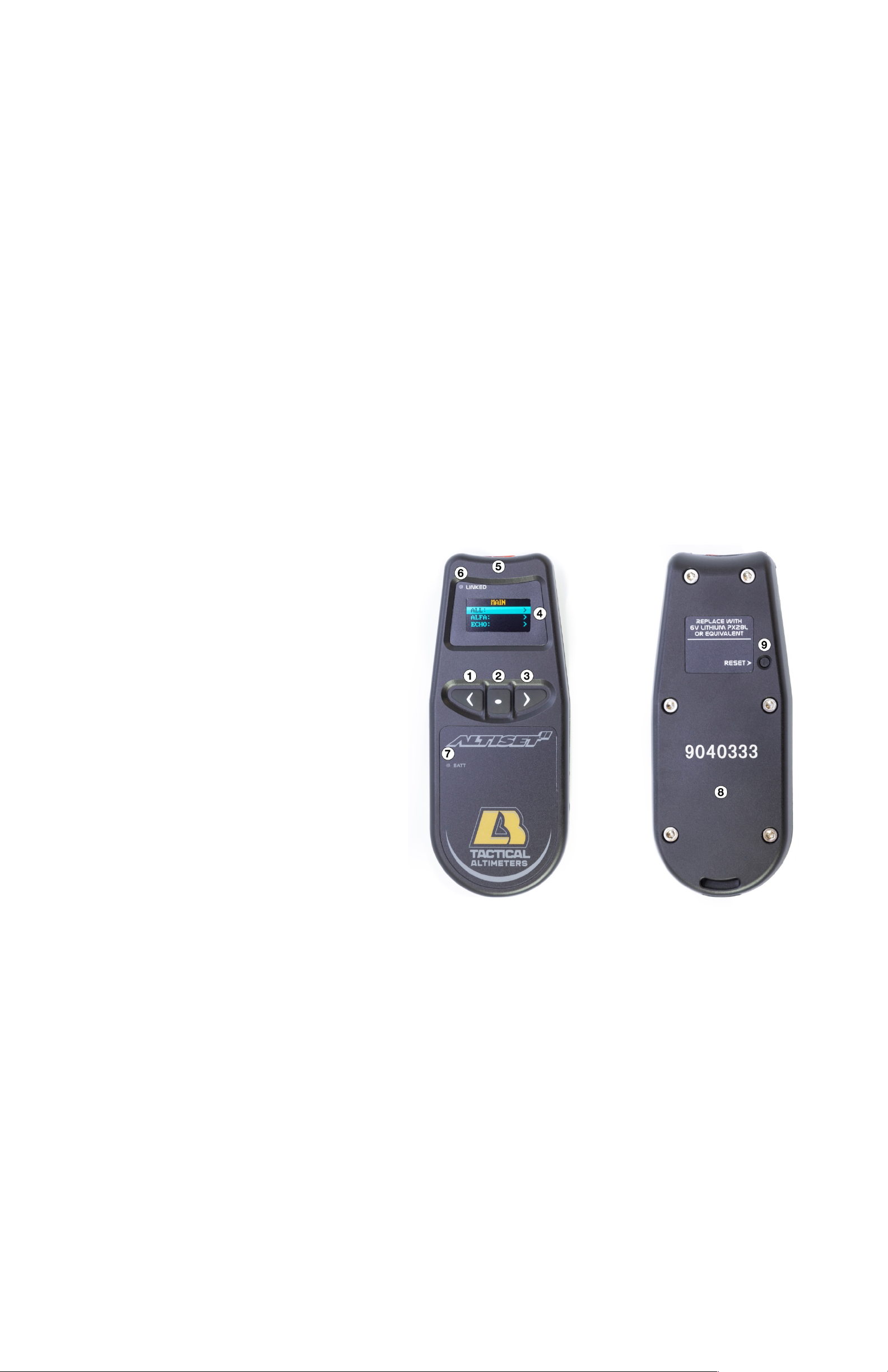

DESCRIPTION

1 Back / Value Down

2 Scroll Menu / Confirm Value

3 Forward / Value Up

4 OLED Display

5 IrDA port

6 IR indicator - LINKED

7 Battery indicator - BATT

8 Battery compartment

9 Reset button

TURN UNIT ON / OFF

Turn unit ON

With the unit OFF, press any button to turn unit ON and enter main window

Turn unit OFF

The

ALTISET II

automatically returns to the main window if no button has been pressed within 1 minute, and IR transmit is not active

The

ALTISET II

automatically switches OFF if no button has been pressed within 2 minutes, and IR transmit is not active

ALTISET II

- Rev. 1.01 Page 4 of 16

DISPLAY

Startup

When turning ON

ALTISET II

, the unit will display the main window

Main window

The main window is the default window after the unit is turned ON, and starting point for any actions

1 Headline / Current Window

2 Menu Item 1

3 Menu Item 2

4 Menu Item 2

5 Menu Forward / Value

Value window

The value window appears when selecting a numeric value for any Settings

1 Headline / Current Setting

2 Value of Setting

Battery Indicator

The battery indicator BATT will flash when the battery level is low.

The batteries must be replaced as soon as possible

ALTISET II

- Rev. 1.01 Page 5 of 16

MENU OVERVIEW

The

ALTISET II

menu system consists of 3 separate areas, which include the following (use road map for reference)

ALL SETTINGS

ALFA SETTINGS

ECHO SETTINGS

mBar Offset

Backlight ON/OFF

Backlight Intensity

Date / Time

Setup

Turn unit OFF

Factory Default

Reset Unit

Warnings

Setup

Test Sound

Turn unit OFF

Factory Default

Reset Unit

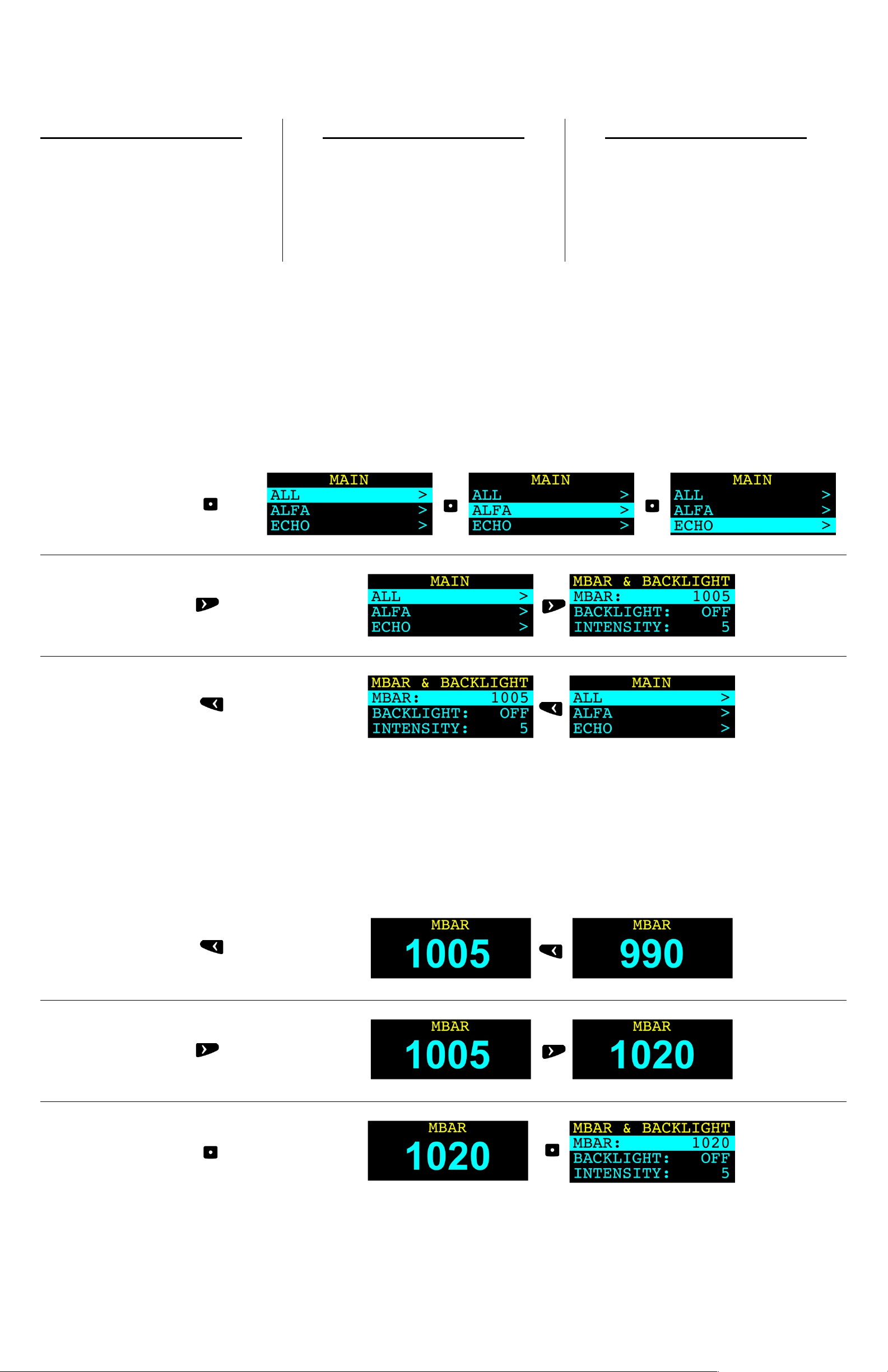

NAVIGATING MENUS / INPUT VALUES

Menus on the

ALTISET II

are navigated using the 3 buttons on the front of the

ALTISET II

Use center button

to scroll through menu

Use right button to

move forward to a menu

or select a value

Use left button to

return to a previous menu

Values on the

ALTISET II

are changed and confirmed using the 3 buttons on the front of the

ALTISET II

Press and hold left button

to decrease value

Press and hold right

button to increase value

Press center button

to confirm value

ALTISET II

- Rev. 1.01 Page 6 of 16

ALL SETTINGS

ALL

Settings are used to

setup the basic Settings for all compatible LB altimeters

Turn on

ALTISET II

or use to return to main window

Press to scroll to select ALL

Press to move forward to ALL Settings

Basic Settings

The following values can be changed:

MBAR: OFFSET mBar value

BACKLIGHT: Backlight ON / OFF

INTENSITY: Backlight intensity level (1-10)

Press to scroll to each individual value

Press to select and enter value

Press or to change the value

Press to confirm

Once all values have been entered, press to scroll to select TRANSMIT

Press to start IrDA transmission, and point towards LB altimeter set in IrDA transceiver mode

ALTISET II

- Rev. 1.01 Page 7 of 16

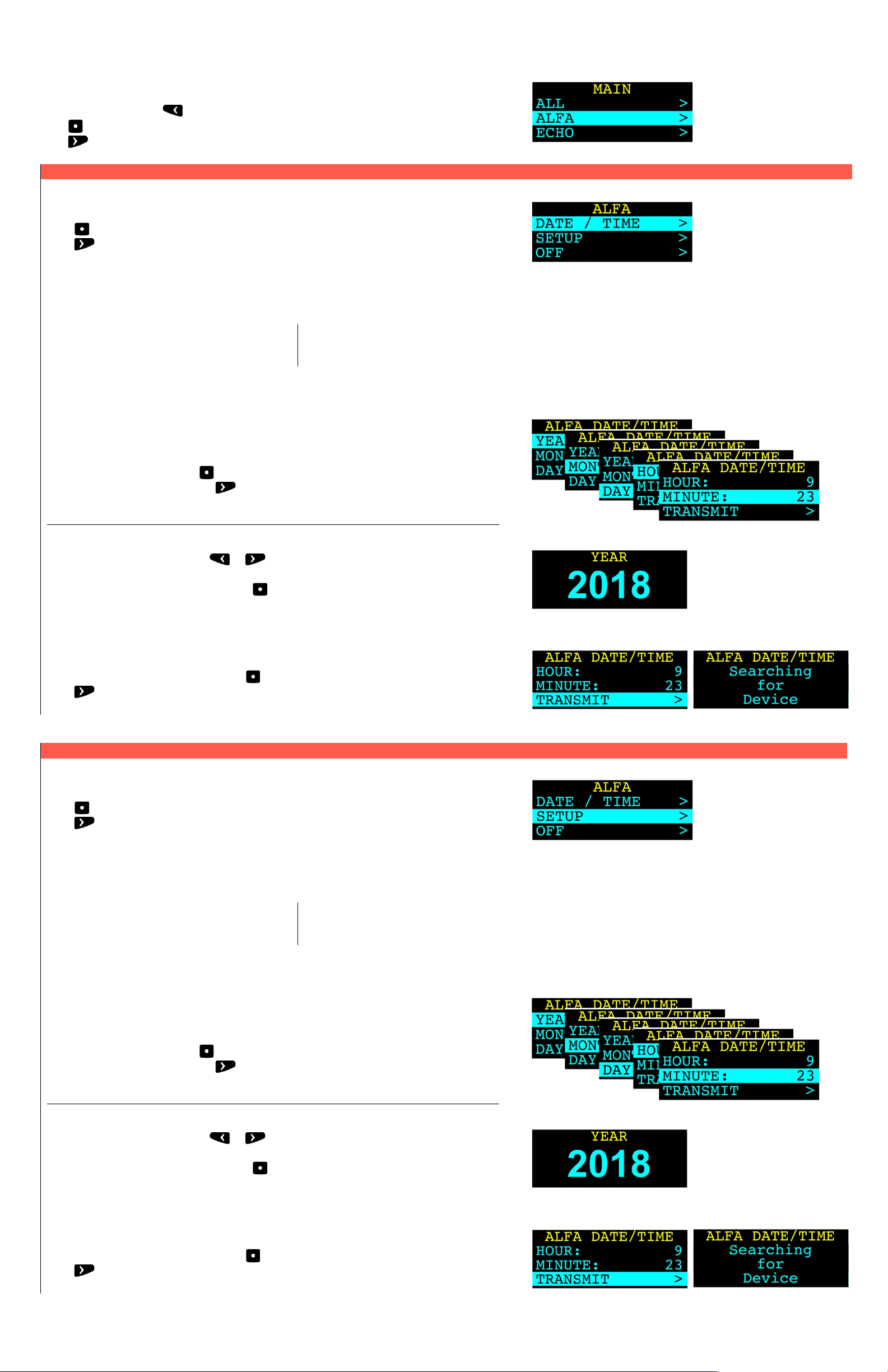

ALFA SETTINGS

ALFA Settings are used to

setup the ALFA digital Altimeter

Turn on

ALTISET II

or use to return to main window

Press to scroll to select ALFA

Press to move forward to ALFA Settings

Date / Time

Press to scroll to select DATE / TIME

Press to move forward to Date / Time Settings

The following values can be changed:

YEAR: The current year

MONTH: The current month

DAY: The current day

HOUR: The current hour

MINUTE: The current minute

Press to scroll to each individual value

Press to select and enter value

Press or to change the value

Press to confirm

Once all values have been entered, press to scroll to select TRANSMIT

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

ALFA Setup

Press to scroll to select SETUP

Press to move forward to ALFA Setup

The following values can be changed:

COUNTER: Daily Counter

ALT.UNIT: Feet / meter

SPEED: Mph / Kmh

DIVE TYPE: Dive Type

Press to scroll to each individual value

Press to select and enter value

Press or to change the value

Press to confirm

Once all values have been entered, press to scroll to select TRANSMIT

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

ALTISET II

- Rev. 1.01 Page 8 of 16

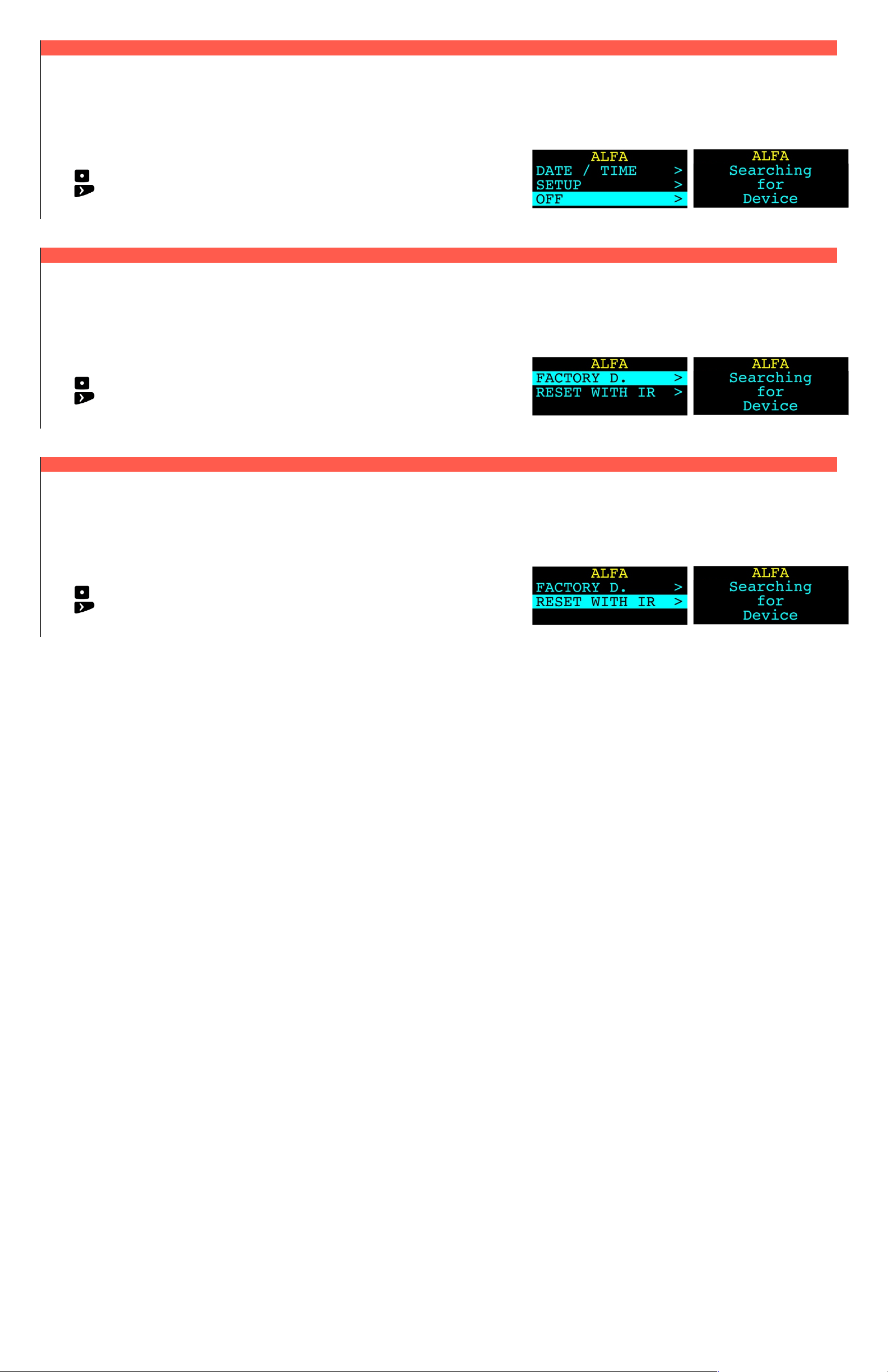

Turn OFF ALFA

Selecting this option will turn

ALFA

OFF

Press to scroll to select OFF

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

Return ALFA to Factory Default settings

Selecting this option will return

ALFA

to Factory Default settings

Press to scroll to select FACTORY D.

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

Reset ALFA

Selecting this option will reset

ALFA, with IrDA active

Press to scroll to select RESET WITH IR

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

ALTISET II

- Rev. 1.01 Page 9 of 16

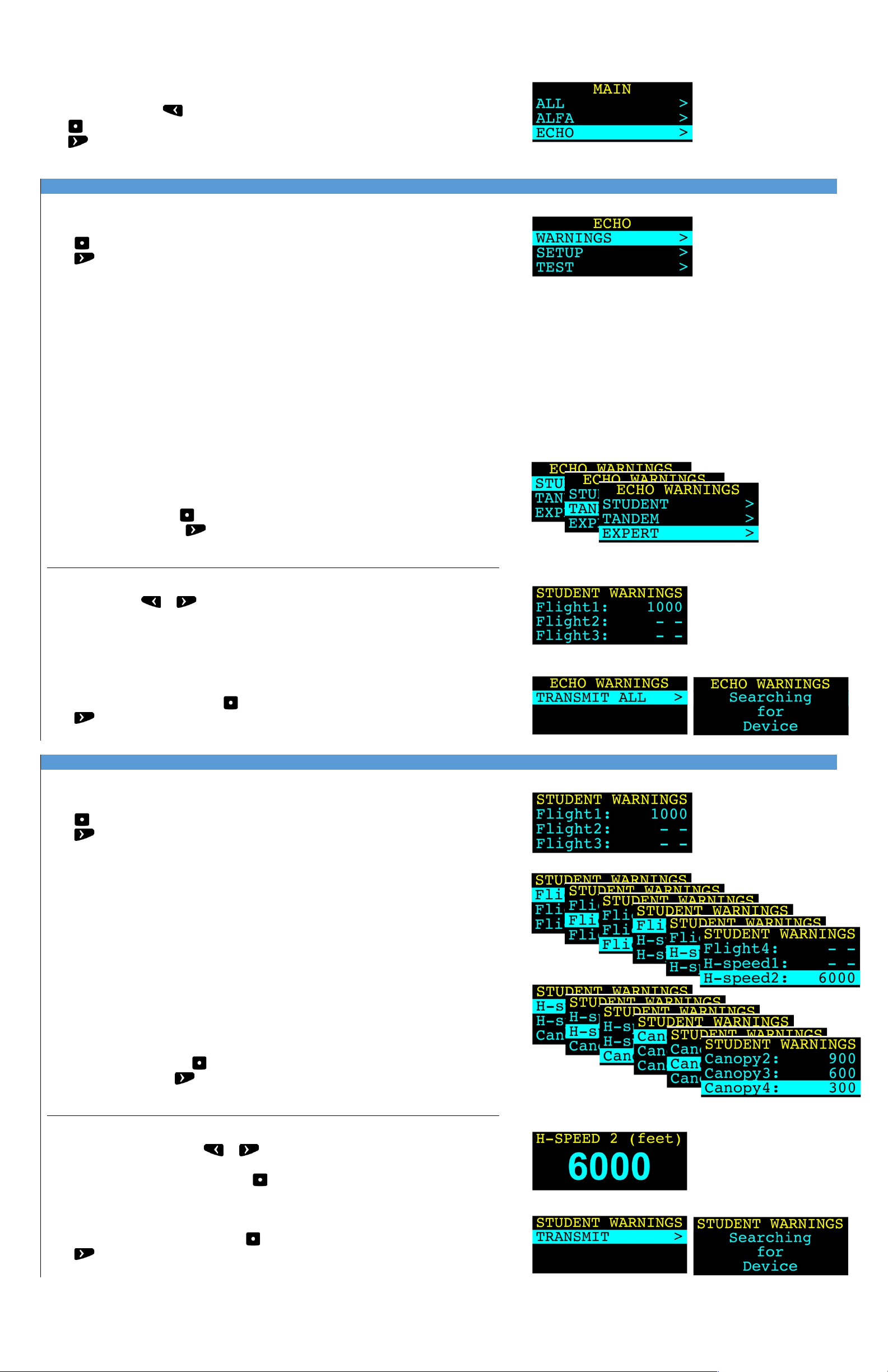

ECHO SETTINGS

ECHO

Settings are used to

setup the ECHO digital Altimeter

Turn on

ALTISET II

or use to return to main window

Press to scroll to select ALFA

Press to move forward to ALFA Settings

Memory Bank Selection

Press to scroll to select WARNINGS

Press to move forward to WARNINGS

The following menus can be selected:

STUDENT: Enter Warning altitudes for Student Memory Bank

TANDEM: Enter Warning altitudes for Tandem Memory Bank

EXPERT : Enter Warning altitudes for Expert Memory Bank

After making changes, Memory Banks can be transmitted individually from inside their

respectivemenu, or all at once by moving back to the Memory Bank Selection

Press to scroll to each individual Memory Bank

Press to select the individual Memory Bank

Press or to move back or forward between Memory Banks

To transmit all Memory Banks, press to scroll to select TRANSMIT ALL

Press to start IrDA transmission, and point towards any

ECHO

set in IrDA transceiver mode

Warning Altitude Selection

Press to scroll to select one of the 12 Warning altitudes for the selected Memory Bank

Press to move forward and input value for the selected Warning altitude

The following Warnings can be selected in each Memory Bank:

Flight1 – Flight4: Enter Warning altitudes for Aircraft Alarms

H-speed1 – H-speed4: Enter Warning altitudes for Freefall Alarms

Canopy1– Canopy4 Enter Warning altitudes for Canopy Alarms

If no value is added, the Warning will disabled.

Press to scroll to each individual Warning

Press to select and enter the individual altitude

Press or to change the altitude

Press to confirm

Once all values have been entered, press to scroll to select TRANSMIT for current Memory Bank

Press to start IrDA transmission, and point towards any

ECHO

set in IrDA transceiver mode

ALTISET II

- Rev. 1.01 Page 10 of 16

ECHO Setup

Press to scroll to select SETUP

Press to move forward to ALFA Setup

The following values can be changed:

Mode: Current Mode/Memory Bank

LED FLASH: Turn LED ON/OFF

SCROLL: Turn Altitude Scroll ON/OFF

ALT. UNIT: Feet / Meter

PITCH: Dive Type

GUIDE: Canopy Guide ON/OFF

Press to scroll to each individual value

Press to switch value, or select and enter value

Press or to change the value

Press to confirm (if applicable)

Once all values have been entered, press to scroll to select TRANSMIT

Press to start IrDA transmission, and point towards any

ECHO

set in IrDA transceiver mode

Test ECHO

Selecting this option will test the

ECHO Warnings

Press to scroll to select TEST

Press to start IrDA transmission, and point towards any

ECHO

set in IrDA transceiver mode

Turn OFF ECHO

Selecting this option will turn

ECHO

OFF

Press to scroll to select OFF

Press to start IrDA transmission, and point towards any

ALFA

set in IrDA transceiver mode

Return ECHO to Factory Default settings

Selecting this option will return

ECHO

to Factory Default settings

Press to scroll to select FACTORY D.

Press to start IrDA transmission, and point towards any

ECHO

set in IrDA transceiver mode

This manual suits for next models

Table of contents

Other LB Altimeters Measuring Instrument manuals

LB Altimeters

LB Altimeters ECHO User manual

LB Altimeters

LB Altimeters ALFA User manual

LB Altimeters

LB Altimeters ARES II User manual

LB Altimeters

LB Altimeters ARES II User manual

LB Altimeters

LB Altimeters ALFA-Q User manual

LB Altimeters

LB Altimeters ARES II User manual

LB Altimeters

LB Altimeters ALFA User manual

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
