KYORITSU 6300 Installation guide

MODEL6300

DIGITALPOWERMETER

Quickmanual

KYORITSUELECTRICALINSTRUMENTS

WORKS,LTD.

−1−

.......................................................... 2

..............................................................3

.................................................5

............................................................................8

....................9

.....................13

...............16

........................................................19

Saving data

● Saving method

Manual saving

● Saving point

key

● Saving item

Instantaneous

value

● File name

*CF card

1F I LE000.CSV

*Internal memory

1DATA000.CSV

range

DEMAND

range

SET UP

range

1. Functional overview

(Section 1)

Measurement start/stop

* manual operation

* specifying date & time

(Section 6)

Instantaneous value

measurement

OFF

Saving data

● Saving method

Automatic saving

● Saving point

Integration interval

● Saving item

*Instantaneous value (*)

*Integration value

● File name

*CF card

2F I LE000.CSV

*Internal memory

2DATA000.CSV

Saving data

● Saving method

Automatic saving

● Saving point

Demand interval

● Saving item

*Instantaneous value (*)

*Integration value

*Demand value

● File name

*CF card

3F I LE000.CSV

*Internal memory

3DATA000.CSV

ON: (Section 3)

* AC power supply

* Battery

range

Instantaneous value

(Custom display)

range

Integration value

DEMAND

range

Demand value

Data download

(USB communication)

(Section 10) Communication

function

Saved file

External settings

(USB communication)

(Section 10) Communication

function

Indication

(*) including max & average values at each interval

key

dditional functions

(Section 11)

Other functions

(Section 7)

Integration value

measurement

(Section 8)

Demand value

measurement

(Section 4)

Setting

* Basic setting

* Setting for integration

measurement

* Setting for demand

measurement

* Other settings

Measurement screen

Setting screen

−2−

USB connecto

CF card

Connector

Eject button

LED status indicator

*Lights up: During integration/ demand

measurement

*Flashes : During integration/ demand

stand-by mode

2. Instrument layout

(Section 2)

● Display & keys (2-1)

Keys Details Keys Details

Starts/ Stops integration

and demand measurement.



* Cancels a setting

* Clears integration/ demand value



Switches on/off the

backlight of the LCD.



Measurement screen:

Switches the display contents.

Setting screen:

Changes selection, number, or

moves digits.



* Data hold

* Key lock

Pressing this key for at least 2 sec

locks keys.

Pressing again this key for at least

2 sec releases key lock.



Confirms entry such as a

change to a setting.



Saves the instantaneous

measurement data.



● Connector (2-2) ● CF card/ USB part (2-3)

Current input terminal

(A1, A2, A3

)

oltage input terminal

(VN, V1, V2, V3)

Power su

connecto

Function switch

* Turns the instrument on when it is in

any position other than OFF.

(Section 3)

1. AC power supply, or

2. Battery

LCD

−3−

● Marks displayed on the LCD (2-1)

< All marks to be displayed on the LCD>

< Marks indicate the measurement status or functions >

Mark Measurement status or function

Displayed when the keys are locked.

Displayed when voltage exceeds a certain value.

Displayed when current exceeds a certain value.

Displayed when instrument is operating with AC power supply.

Displayed when instrument if operating with batteries.

Displayed when data hold function is activated.

Displayed during integration, Flashes during stand-by mode.

Displayed during demand, Flashes during stand-by mode.

Displayed when the capacity of CF card or internal memory is full.

Displayed while saving data in CF card.

Displayed when opening/ closing a file at measurement.

Displayed when saving data.

Displayed when a file exists in the internal memory.

Displayed when VT ratio is set to at a value other than 1.

Displayed when CT ratio is set to at a value other than 1.

Unit

Phase

number

Voltage range Wiring

Current range

−4−

3. Setting: SET UP range

(Section 4)

3.1 List of setting items

(4-1)

Each Setting Item No./ Setting item Mark Setting

Wiring

1P2W(1ch)/ 1P2W(2ch)/

1P2W(3ch)/ 1P3W/ 3P3W /3P4W

Voltage range

150/ 300/ 600V

Current range

Range (

Clamp sensor)

5/ 10/ 20/ 50A : (50A)

10/ 20/ 50/ 100A : (100A)

20/ 50/ 100/ 200A : (200A)

50/ 100/ 200/ 500A : (500A)

100/ 200/ 500/ 1000A : (1000A)

1000/ 3000A : (3000A)

Clamp sensor 50/ 100/ 200/ 500/ 1000/ 3000A

VT ratio 1 ~ 10000

Basic

setting

CT ratio 1.00 ~ 10000.0

Time (*1) Year : Month : Day,

Hour : Minute : Second

Other

settings

Buzzer on (sound)

oFF (not sound)

Integration interval

1/ 2/ 5/ 10/ 15/ 20/ 30 sec.

1/ 2/ 5/ 10/ 15/ 20/ 30 min., 1 hour

Integration start

time & date

Year : Month : Day,

Hour : Minute : Second

Integration stop

time & date

Year : Month : Day,

Hour : Minute : Second

Settings

only for

integration

measurement

Reset of

integration value

on (reset)

oFF (not reset)

Demand Interval

1/ 2/ 5/ 10/ 15/ 20/ 30 sec.

1/ 2/ 5/ 10/ 15/ 20/ 30 min., 1 hour

Demand start

time & date

Year : Month : Day,

Hour : Minute : Second

Demand stop

time & date

Year : Month : Day,

Hour : Minute : Second

Demand target

value

0.1W ~ 999.9GW

Demand inspection

cycle

Can select a time from any three

of preceding time as demand

interval.

<e.g.>

Interval =30min. →10/ 15/ 20 min.

Settings

only for

demand

measurement



Reset of

demand value

on (reset)

oFF (not reset)



−5−

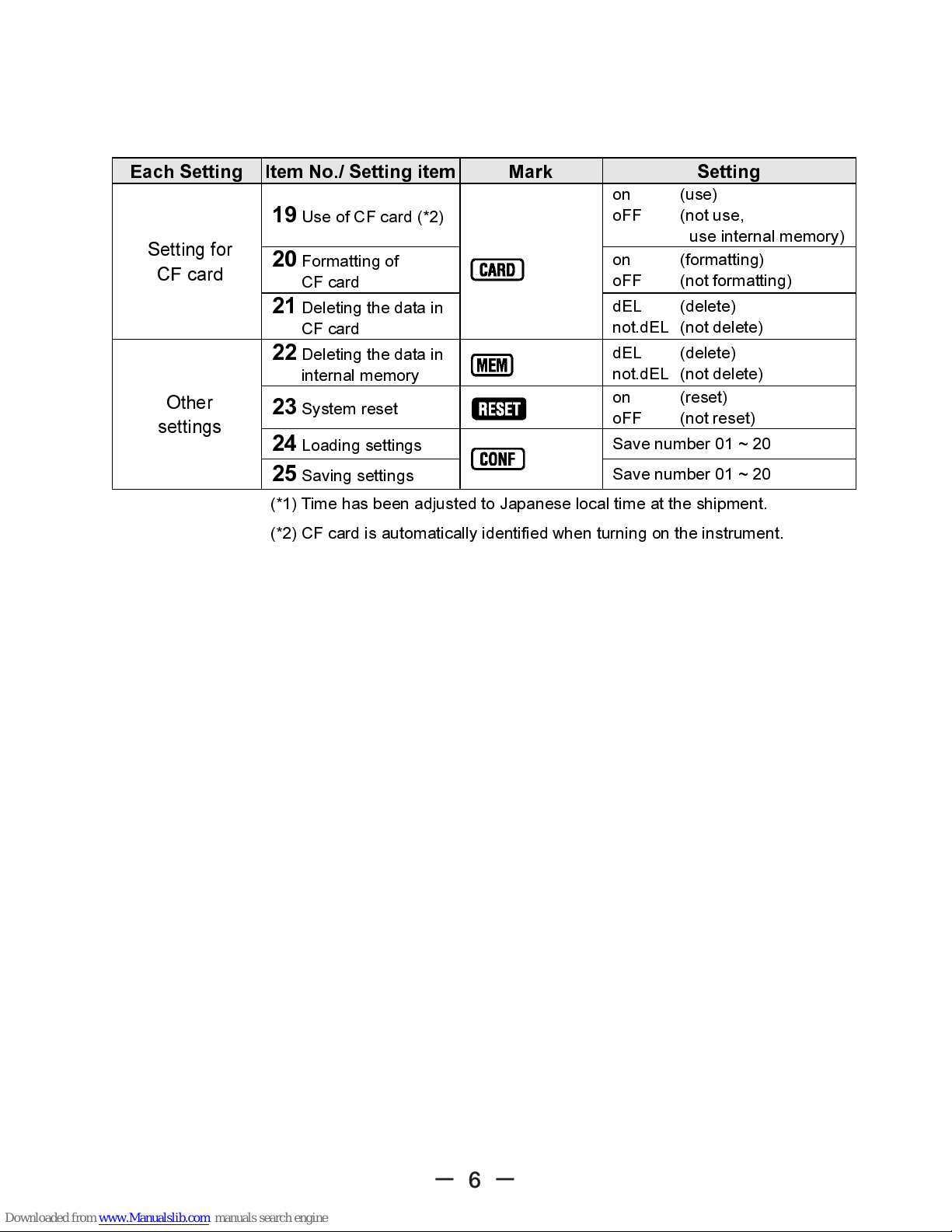

Each Setting

Item No./ Setting item

Mark Setting

Use of CF card (*2)

on (use)

oFF (not use,

use internal memory)

Formatting of

CF card

on (formatting)

oFF (not formatting)

Setting for

CF card

Deleting the data in

CF card

dEL (delete)

not.dEL (not delete)

Deleting the data in

internal memory dEL (delete)

not.dEL (not delete)

System reset on (reset)

oFF (not reset)

Loading settings

Save number 01 ~ 20

Other

settings



Saving settings

Save number 01 ~ 20

(*1) Time has been adjusted to Japanese local time at the shipment.

(*2) CF card is automatically identified when turning on the instrument.

−6−

Setting ends:

Proceed to

STEP2

to do other settings.

3-2 Setting procedure

(4-3)

STEP 1

Set the Function switch to

SET UP

range. (setting screen)

STEP 2

Switch the setting items (Item number 01 ~ 25) with keys.

STEP 3

Press the key on the selected item.

(Then settings blink and the instrument gets setting change mode.)

STEP 4

Change the settings with keys.

< Example>

Item number

[01]

, Setting item

[Wiring]

Setting

[1P2W(1ch)/ 1P2W(2ch)/ 1P2W(3ch)/ 1P3W/ 3P3W/ 3P4W]

STEP 5

Enter the settings.

STEP 5

Cancel the settings.

(Press the key.) (Press the key.)

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

Item number

Setting screen

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

‣‧•⁈ ‥••⁈ ••⁈ ‣⁂․⁉ ‣⁂‥⁉ ‥⁂‥⁉ ‥⁂…⁉

‧″ ‣•″ ․•″ ‧•″ ‣••″ ․••″ ‧••″ ‣•••″

3P3W 3P4W

1P2W(1ch)

1P3W 1P2W(3ch)

1P2W(2ch)

−7−

LOAD2

LOAD1SOURCE

4. Wiring

(Section 5)

VN V1 V2 V3

● Single-phase 2-wire (1ch) ”1P2W (1ch)”

A1 A2 A3

● Single-phase 2-wire (2ch) “1P2W (2ch)”

● Single-phase 2-wire (3ch) “1P2W (3ch)”

●Single-phase 3-wire “1P3W”

●Three-phase 3-wire “3P3W”

● Three-phase 4-wire “3P4W”

LOAD

SOURCE

LOAD1

SOURCE L

LOAD1

LOAD2

LOAD3

SOURCE N

LOAD

SOURCE

LOAD

SOURCE N

LOAD

SOURCE L2

−8−

range

Safety first!

Turning on the instrument

Basic setting

Wiring

Instantaneous value

measurement

5. Instantaneous value measurement: W range

(Section 6)

● Measurement flow chart

● Displayed items on

range

Displayed parameters Unit

Voltage (RMS) V : Average voltage of Vi Vi : Voltage per phase

Current (RMS) A : Average current of Vi Ai : Current per phase

Active power P : Total active power Pi : Active power per phase

Polarity: + (no mark) consumption,

- (minus) regenerating

Reactive power Q : Total reactive power Qi : Reactive power per phase

Polarity: + (no mark) phase lag,

- (minus) phase lead

Var

Apparent power S : Total apparent power Si : Apparent power per phase

Power factor PF : Total power factor Pfi : Power factor per phase

Polarity: + (no mark) phase lag,

- (minus) phase lead

Frequency f : Frequency at V1

Neutral current In : Current on a neutral line (only at three-phase 4-wire)

* i = 1, 2, 3

SET UP range

“ Setting 01” Wiring

“ Setting 02” Voltage range

“ Setting 03” Current range

“ Setting 04” Clamp sensor

“ Setting 05” VT ratio (if necessary)

“ Setting 06” CT ratio (if necessary)

−9−
