KROHNE BATCHFLUX 3100 User manual

For initial set up, we strongly recommend the use of the relevant manuals in addition!

on con

diti

ons

110 DN

25 DN

Adjustment after installation

- Do NOT remove the 4 spacer bushes B

max

DN15 / ½" 2L

min

11/2020 - 4008533501 - BATCHFLUX 3100 R01 en 1 2

Check the device nameplate to ensure that

the device is delivered according to your

order

No turning or twisting of device

Quick Start

BATCHFLUX 3100 Installation

General installation requirements

Inlet, outlet and T-section

www.krohne.com/Downloads

Open feed / discharge

General

≥ 2 × ∅

XYZ (3D bends upstream) inlet length:

XY (2D bends upstream) inlet length:

Depends on

2D/3D bends

upstream

≥ 10 × ∅

≥ 5 × ∅

Transport

- No special requirements

- Use the original packing of the device(s)

when transporting to the installation location.

Device version(s)

Electromagnetic flowmeter for volumetric filling machines

Installation, assembly, start-up and maintenance may only be performed by appropriately trained

personnel.

For use in hazardous areas, special codes and regulations are applicable which are supplied in a separate

document that describes all hazardous area relevant information.

The responsibility as to the suitability, intended use and corrosion resistance of the used materials against

the measured fluid of this device rests solely with the operator.

For complete documentation (manuals, supplementary manuals, data sheets and certificates) please refer

to:

Device nameplate (example)

A = T ambient:

B = T proces:

-20…+60°C /-4…+140°F

-20…+45°C /-4…+113°F

Installation position

Avoid vibration / EM field

Lmax - Lmin < 0.5 mm / 0.02"

Do not use a rotation force on the device once mounted

between flanges.

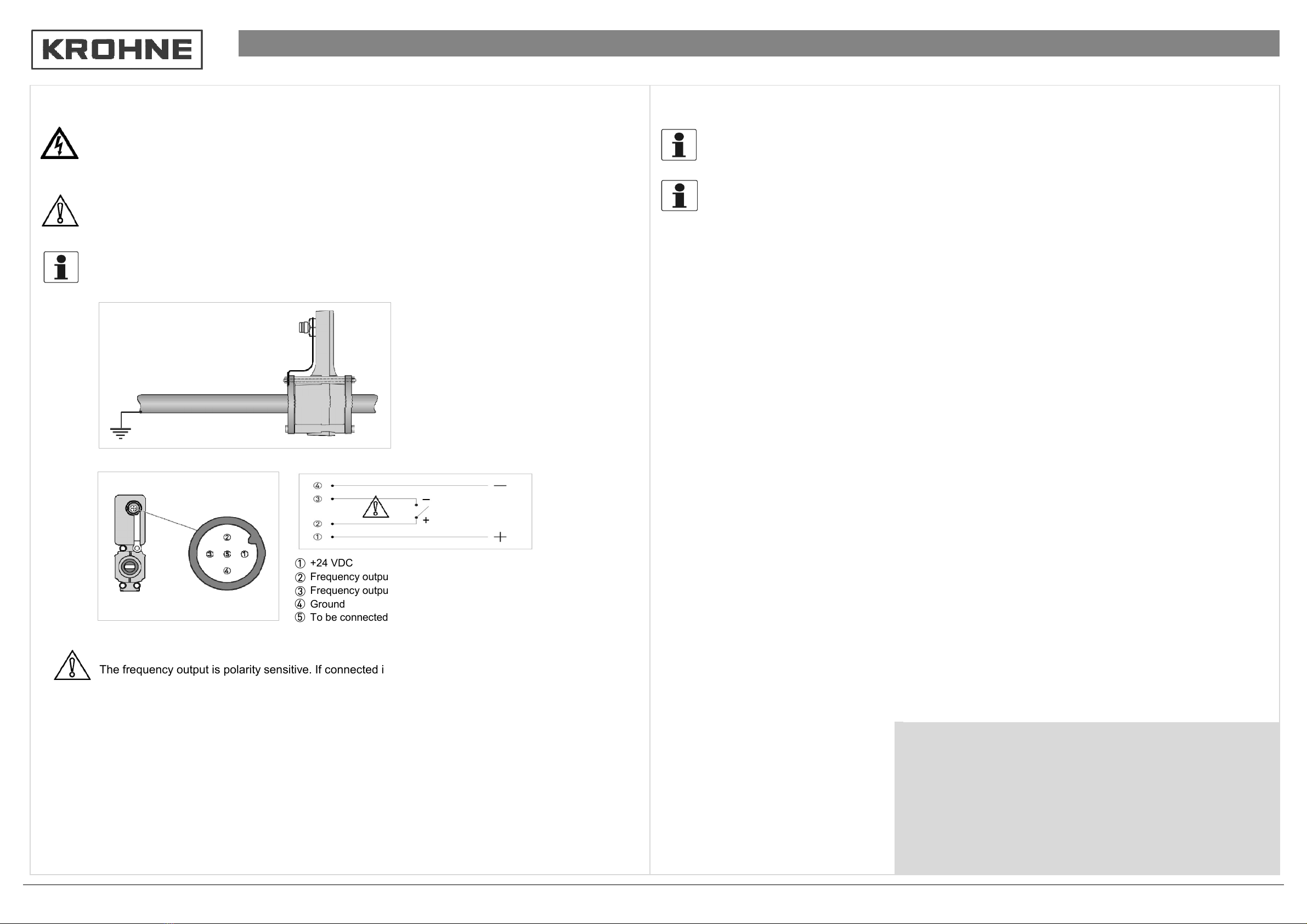

Cable connector M12 - 5 pin

1+24 VDC

11/2020 - 4008533501 - BATCHFLUX 3100 R01 en 3 4

Electrical connection2

Frequency output - (ground)

Frequency output +

Ground

Observe without fail the local occupational health and safety regulations.

Any work done on the electrical components of the measuring device may only be carried out by properly

trained specialists.

Then “Select your country“ from the drop-down list at the top left of

the page

The device must be grounded in accordance with regulations in order to protect personnel against electric

shocks.

All work on the electrical connections may only be carried out with the power disconnected.

Take note of the voltage data on the nameplate! Observe the national regulations for electrical

installations!

Contact

To view all KROHNE locations and contact details visit:

For the start up and menu description please refer to the applicable manual (e.g. BATCHMon

software/manual)

www.krohne.com

All the operating data are preset at the factory. For changing the parameters and

diagnostic purposes BATCHMon plus operation software can be used.

The frequency output is polarity sensitive. If connected incorrectly, the device will be damaged.

To be connected for servicing only

Refer to the manual for more details on connection options.

Grounding

Quick Setup
