Kontron ECX-BYT User manual

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 1

 ECX-BYT - QUICK INSTALLATION GUIDE

Thank you for purchasing the Kontron ECX-BYT embedded board. This document provides information to allow you to

quickly install this product.

Packing Checklist

1. Take the ECX-BYT out of the packing box and check if the unit is properly secure in the plastic bag.

2. Check the contents of the carton box: (*: optional)

ECX-BYT main board

1x DC IN Cable

PS/2 Cable*

COM Port Cable*

DIO Cable*

2-Port USB Cable*

1-Port USB Cable*

SATA Cable*

SATA Power Cable*

Audio Cable*

3G Mini SIM Card Holder Kit*

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 2

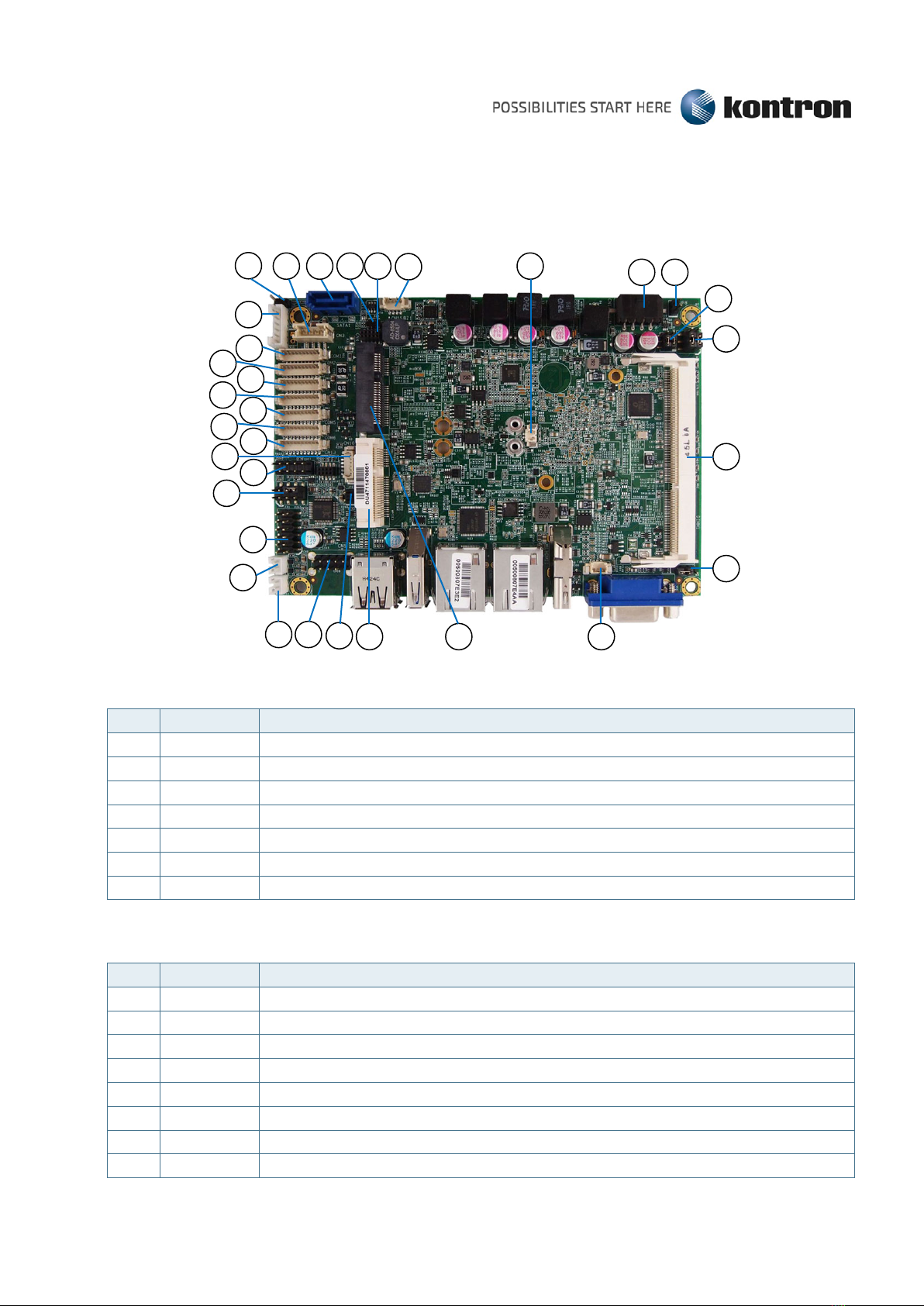

Top Side Jumper and Internal Connector Locations

Jumper List

Item Designation Description

1 JP1 RTC Reset Selection

2 JP2 MPCIE Activity LED Indication

3 JP4 Backlight Enable Selection

4 JP5 Panel & Backlight Power Selection

5 JP6 USB Power Selection

6 JP7 AT / ATX Power Mode Selection

7 JP8 ME F/W Selection

Internal Connector List

Item Designation Description

8 BAT1 CR2032 Battery Power Input Wafer

9 COM1 RS-232/422/485 Port Wafer

10 COM2 RS-232/422/485 Port Wafer

11 COM3 RS-232 Port 3 Wafer

12 COM4 RS-232 Port 4 Wafer

13 COM5 RS-232 Port 5 Wafer

14 COM6 RS-232 Port 6 Wafer

15 CN1 DC12V Power Input Wafer

2 818

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 3

Item Designation Description

16 CN2 PS/2 Keyboard / Mouse Wafer

17 CN3 HDD Power Output Wafer

18 CN4 P80 Header

19 CN9 Audio Input / Output Pin Header

20 CN10 SIM Interface Wafer for MPCIE2

21 CN11 Right Channel 3W Audio AMP Output Wafer

22 CN12 Left Channel 3W Audio AMP Output Wafer

23 CN13 Digital Input / Output Wafer

24 DIMM1 DDR3 Memory SO-DIMM Socket

25 FAN1 DC5V FAN Wafer

26 FP1 Front Panel 1 Pin Header

27 FP2 Front Panel 2 Pin Header

28 MPCIE1 Mini-PCI Express v1.2 Socket (Full Size)

29 MSATA1 Serial ATA Port-1 mSATA Socket (Full Size)

30 SATA1 Serial ATA Port 0 Connector

31 CN15 USB2.0 Port 2 Pin Header

32 CN16 USB2.0 Port USBDN_1,2 Pin Header

Jumper Settings

RTC Reset Selection (JP1)

Jumper Position Description

Pin 1-2

X Enable Clear CMOS RTC content

(board does not boot with the jumper in this position)

- Normal operation (default position)

“X” = Jumper set (short) and “-” = jumper not set (open)

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 4

MPCIE1 Activity LED Indication (JP2)

Pin Signal

1 LED+

2 LED-

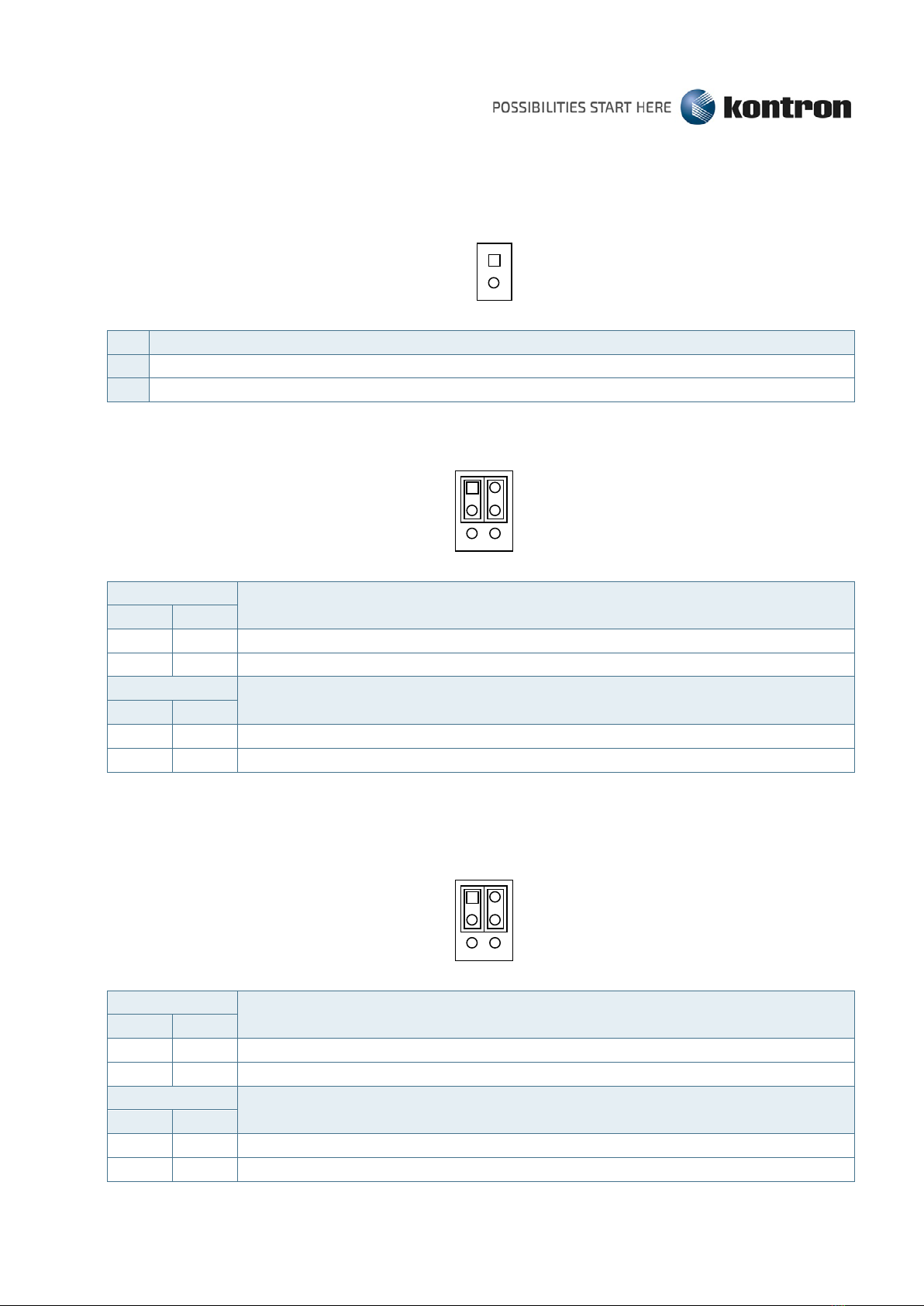

Backlight Enable Selection (JP4)

Jumper 1 Position Description

Pin 1-3 Pin 3-5

X - Backlight Enable Voltage = +3.3V

- X Backlight Enable Voltage = +5V

Jumper 2 Position Description

Pin 2-4 Pin 4-6

X - Active High

- X Active Low

“X” = Jumper set (short) and “-” = jumper not set (open)

Panel & Backlight Power Selection (JP5)

Jumper 1 Position Description

Pin 1-3 Pin 3-5

X - Backlight Power = +12V

- X Backlight Power = +5V

Jumper 2 Position Description

Pin 2-4 Pin 4-6

X - Panel Power = +3,3V

- X Panel Power = +5V

“X” = Jumper set (short) and “-” = jumper not set (open)

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 5

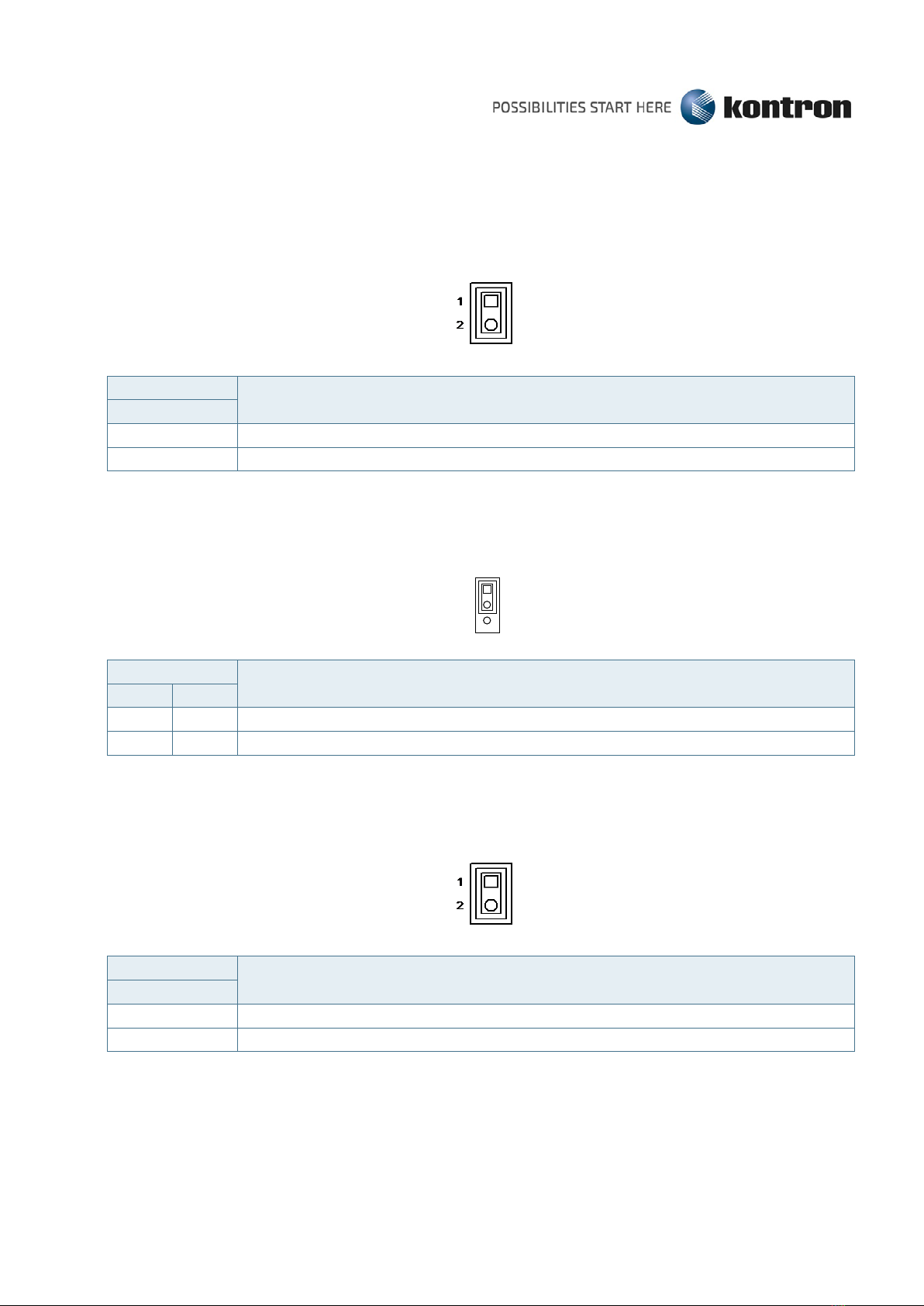

USB Power Selection (JP6)

Jumper Position Description

Pin 1-2

X USB power is always supply.

- USB power will be cut off in S4 & S5 state.

“X” = Jumper set (short) and “-” = jumper not set (open)

AT / ATX Power Mode Selection (JP7)

Jumper 1 Position Description

Pin 1-2 Pin 2-3

X - ATX Mode

- X AT Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

ME F/W Selection (JP8)

Jumper Position Description

Pin 1-2

X ME F/W Disabled

- Normal Operation

“X” = Jumper set (short) and “-” = jumper not set (open)

ECX-BYT - Quick Installation Guide - Version 1.0 // www.kontron.com // 6

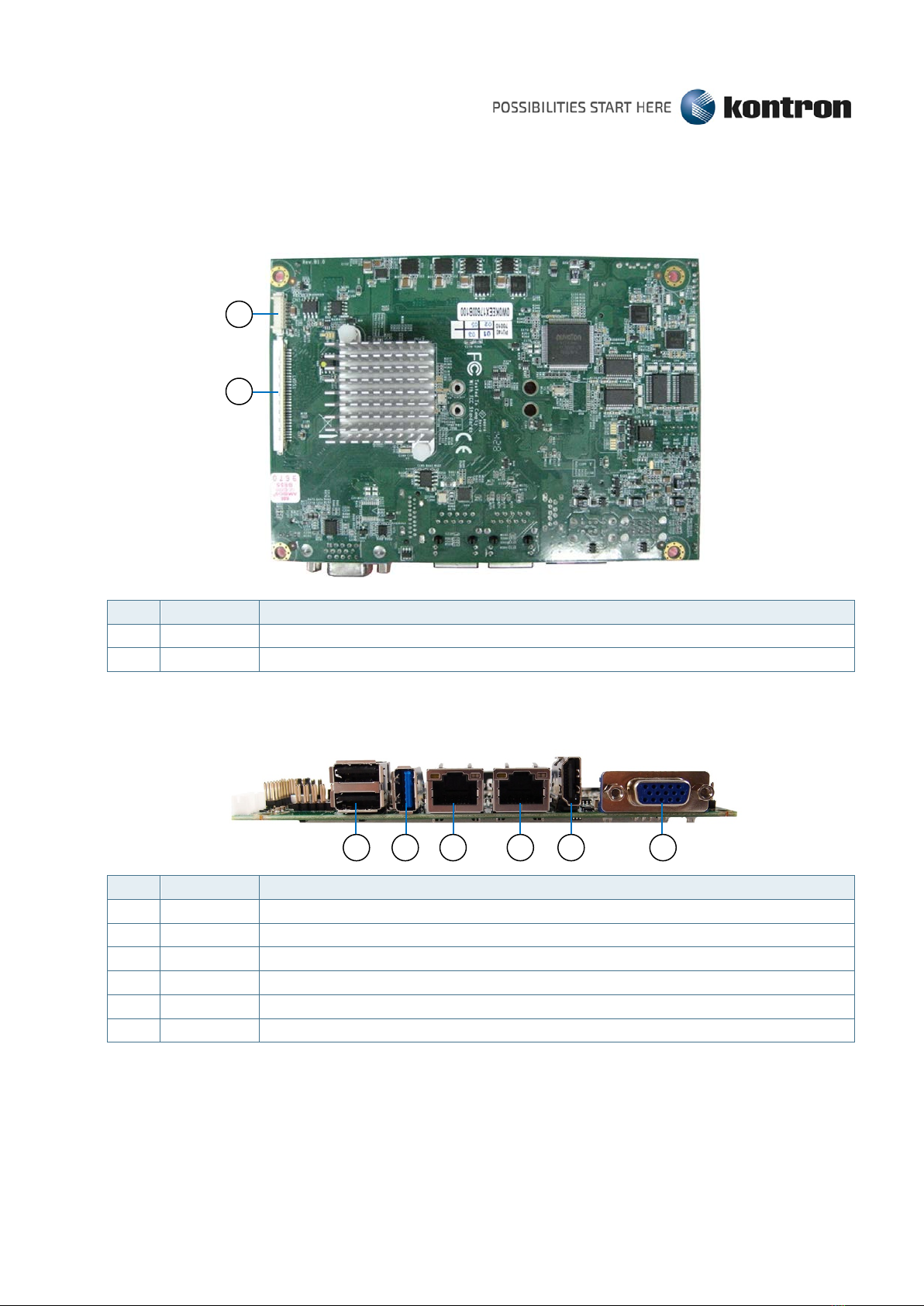

Bottom Side Internal Connector Locations

Item Designation Description

1 CN14 Backlight Power Output Wafer

2 LVDS1 18/24-bit, Single Channel LVDS Panel Connector

Real I/O Panel Connector Locations

Item Designation Description

1 CN7 GbE LAN1 RJ-45 Connector

2 CN8 GbE LAN2 RJ-45 Connector

3 CN6 USB2.0 Port 2,3 Type-A Connector

4 USB1 USB3.0 Port 0 Connector

5 VGA1 VGA Connector

6 HDMI1 HDMI Connector

1 23 4 56
