mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 1



mITX-DNV - QUICK INSTALLATION GUIDE

Thank you for purchasing the Kontron mITX-DNV embedded board. This document provides information to allow you to quickly

install this product.

Packing Checklist

1. Take the mITX-DNV out of the packing box and check if the unit is properly secure in the plastic bag.

2. Check the contents of the carton box: (*: optional)

mITX-DNV main board

Rear I/O Shield

SATA Cable*

COM Port Cable*

DIO Cable*

2-Ports USB 2.0 Cable*

PS/2 Cable*

3G / 4G Micro SIM Card Holder Kit*

mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 2

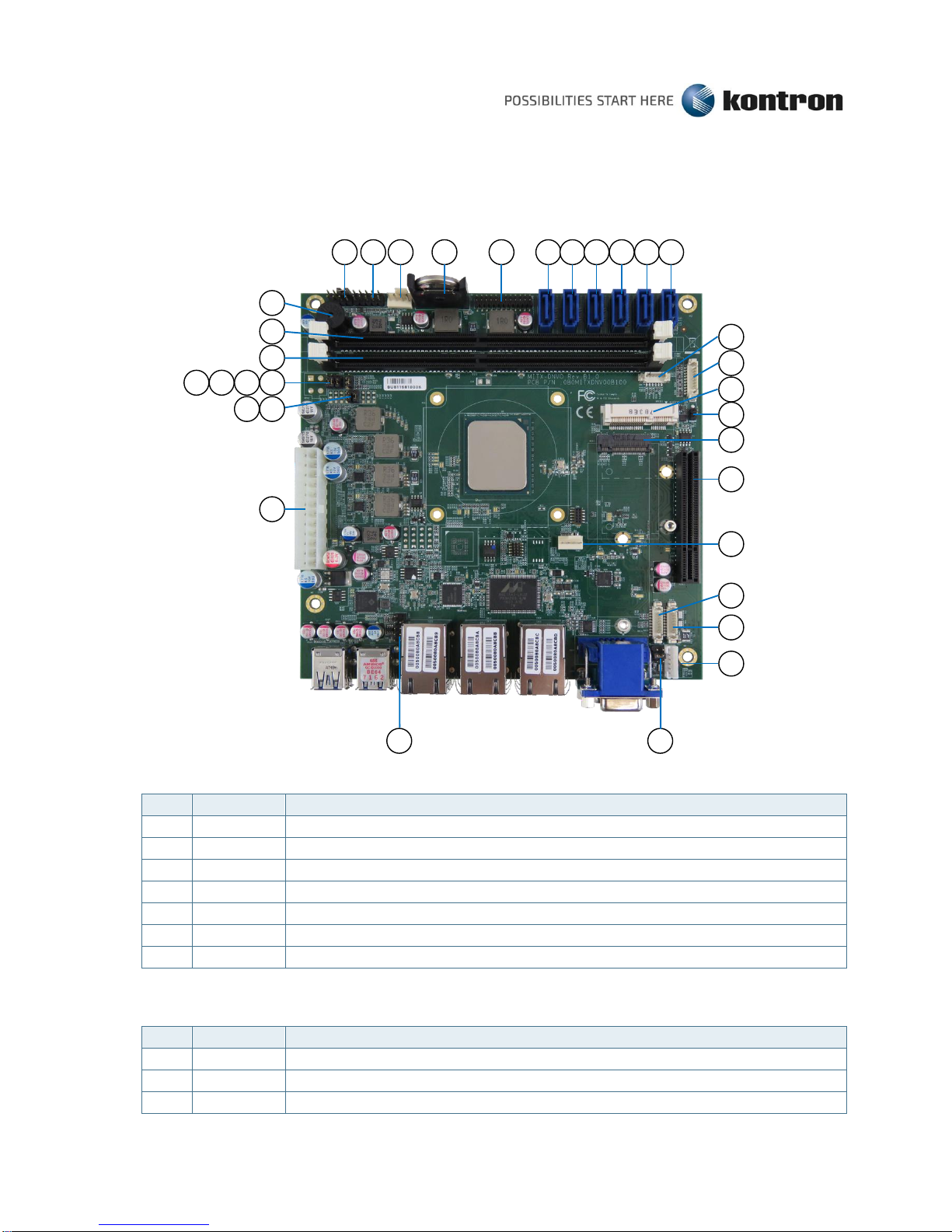

Top Side Jumper and Internal Connector Locations

Jumper List

Item

Designation

Description

JP1

mPCIE / mSATA Selection for MPCIE1

JP2

USB Power Selection

JP3

AT / ATX Power Mode Selection

JP5

MFG Mode Selection

JP10

Clear CMOS Selection

JP11

Flash Security Override Selection

JP15

Power Output Selection for COM1 Pin-9

Internal Connector List

Item

Designation

Description

ATX1

2x12-Pin ATX Power Input Wafer

FAN1

CPU FAN Wafer

FAN2

System FAN Wafer

mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 3

Item

Designation

Description

SATA1

SATA Port-1 Connector

SATA2

SATA Port-2 Connector

SATA3

SATA Port-3 Connector

SATA4

SATA Port-4 Connector

SATA5

SATA Port-5 Connector

SATA6

SATA Port-6 Connector

CN17

USB2.0 Port-1, 2 Header

FP1

Front Panel Header 1

FP2

Front Panel Header 2

CN16

RS-232/422/485 COM2 Wafer

CN15

8-bit Digital Input / Output Wafer

CN21

PS/2 KB/MS Wafer

M2B1

M.2 Key-B SSD Slot

MPCIE1

mPCIE / mSATA Port-1 Slot

CN4

SIM InterfaceWafer for MPCIE1

PCIE1

PCIE x8 Slot

CN2

GbE LAN LED Header

CN5

Wireless Activity LED Header for MPCIE1

CN25

General Purpose LED Wafer

DIMM1

Channel-0 DDR4 DIMM Slot

DIMM2

Channel-1 DDR4 DIMM Slot

CN1

CR2032 Battery Holder

BZ1

Onboard Buzzer

Jumper Settings

mPCIe / mSATA Selection for MPCIE1 (JP1)

Jumper Position

Description

Pin 1-2

Pin 2-3

mPCIe

mSATA

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 4

USB Power Selection (JP2)

Jumper Position

Description

Pin 1-2

Pin 2-3

+5V

+5VSB

“X” = Jumper set (short) and “-” = jumper not set (open)

AT / ATX Power Mode Selection (JP3)

Jumper Position

Description

Pin 1-2

Pin 2-3

ATX Power Mode

AT Power Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 5

MFG Mode Selection (JP5)

Jumper Position

Description

Pin 1-2

Pin 2-3

Normal

Enable MFG Mode

“X” = Jumper set (short) and “-” = jumper not set (open)

Clear CMOS Selection (JP10)

Jumper Position

Description

Pin 1-2

Pin 2-3

Normal

Clear CMOS

“X” = Jumper set (short) and “-” = jumper not set (open)

Flash Security Override Selection (JP11)

Jumper Position

Description

Pin 1-2

Pin 2-3

Normal

Flash Security Override

“X” = Jumper set (short) and “-” = jumper not set (open)

mITX-DNV - Quick Installation Guide - Version 1.2 // www.kontron.com // 6

Power Output Selection for COM1 Pin-9 (JP15)

Jumper Position

Description

Pin 1-2

Pin 3-4

Pin 5-6

+5V

RI#

+12V

“X” = Jumper set (short) and “-” = jumper not set (open)

Real I/O Panel Connector Locations

Item

Designation

Description

CN18

GbE LAN1, 2 RJ45 Connector

CN19

GbE LAN3, 4 RJ45 Connector

CN20

GbE LAN5, 6 RJ45 Connector

CN22

USB 3.0 Port 3, 4 Connector

CN23

USB 3.0 Port 1, 2 Connector

CN24

VGA Connector

CN26

RS232/422/485 COM1 Connector
