Konica Minolta PagePro 1350E User manual

The powerful

Personal printer

Trademark Statement

trademarks, are trademarks or registered trademarks of Konica Minolta Holdings, Inc. All other trademarks or

registered trademarks are the property of their respective owners or manufacturers.

The Powerful

Personal Printer

REVOLUTION IN LASER PRINTING

PagePro 1350E

Contents

Introduction 3

Specs at a glance 4

Ready to run 5

Engine 6

Dimensions & Environment 7

Controller 8

Paper Handling 9

Printer Control 12

Consumables 15

Online Support 16

Appendix 17

PagePro 1350E

Introduction

The PagePro™ 1350E : The

powerful personal laser printer

When it comes to a personal laser printer in a professional environment, a

few fundamentals are paramount: compatibility, reliability, speed, ease of

operation and high quality printing. The PagePro 1350E has all of these,

in one compact and durable unit. With superb power ensuring full

compatibility with a broad range of enterprise applications, it integrates

perfectly into any medium to large-size corporation.

The powerful personal printer

•Fast: up to 20 ppm A4, first page out in less than 13 seconds

•Powerful: PCL6 emulation, 200 MHz processor, 16 MB standard

memory.

•Reliable: High duty cycles (15000 pages), robust but stylish design

•Simple to use: toner starter kit, easy replaceable consumables,

simple control panel, status monitor

•Professional Quality: Professional laser sharp 1200x1200 dpi print

resolution.

•Affordable: low purchase price, low maintenance costs

Target users

The PagePro 1350E is targeted at small businesses and organisation

working with applications requiring PCL compatibility, but is also suitable fo

larger organisations – for employees who want to have direct access to

laser printer for their personal use and privacy.

•Personal laser printer in a professional environment

•Medium to large-size Corporation working with applications requiring

PCL compatibility.

•Employees in large organizations who need direct access to a laser

printer for their personal use and privacy

•Warehouse and Reception desks

PagePro 1350E

Specs at a glance

Technology Monochrome laser printer

Print Speed 20 ppm

First page out 13 seconds

Print resolution 1200 x 1200 dpi

Memory 16 MB standard, upgradeable to 144 MB

Emulation PCL 6, PCL 5e

OS Supported Windows 98 SE/ 2000 Professional/ Me/ XP Home Edition & XP Professional/ NT 4.0

Workstation & Server/ 2000 server/ 2003 server/ DOS, SAP3. (Mac OSX 10.2 and higher &

Linux are compatible by using third party solutions).

Interfaces Standard: IEEE 1284 parallel interface, USB 2.0 (High-Speed). Optional: external print server

Typerfaces 45 PCL Fonts

Paper Size supported A4, A5, B5, Letter, Legal, Postcard, Envelope

Media Supported Plain paper, recycled paper, thick stock, OHP transparencies, laser-quality labels, envelopes

and Japanese post office standard postcards

Paper Input 250-sheets multi-purpose tray

Paper Output 100-sheets face-down output tray

Consumable Yield Starter Kit: toner; 1,500 pages, OPC drum; 20,000 pages. Replacement consumables: Toner;

high capacity 6,000 pages, standard capacity; 3,000 pages. Drum; OPC drum 20,000 pages

Warranty 1 year PROTECT.REPLACE swap warranty (within EU; local law applies)

Max. Monthly duty Up to 15,000 pages per month

Size (W) 387 mm x (D) 430 mm x (H)283 mm

Weight Without consumables 7 kg, with consumables 7.8 kg

100-sheet ou

ut tra

Easy front door

access to consumables Easy to use

control panel

1200 x 1200 d

Manual tray

(1 sheet)

PCL 6,

PCL5e

16 MB

(144 MB max)

USB 2.0, Parallel,

Optional Print Server 250-sheets paper

input tray

PagePro 1350E

Ready to run

What ships in the box

•PagePro 1350E

•Utilities and Documentation CD

•One toner cartridge, 1500 prints (installed)

•One OPC drum cartridge, 20.000 prints (installed)

•Power Cord

•One 250-sheet paper input tray

•Installation guide (printed)

•General Information Guide (printed)

Printer Software

The following is included on the Utilities and Documentation CD:

•User Guide

•Installation Guide

•Installer

•Uninstaller

•Printer status monitor

•Driver set

PagePro 1350E

Engine

Excellent print quality and durability

are hallmarks of the PagePro 1350E

print engine.

The PagePro 1350E is based on the Minolta SP701 laser printer engine.

The engine features selectable resolutions of 600 x 600, 1200 x

600 (default), and 1200 x 1200 dpi. (At 1200 x 1200 dpi, the print speed

reduces by approximately half.)

Duty cycle

15,000 prints (A4 size) per month maximum.

Print speeds by page size and resolution

Page size* 600x600 dpi

1200x600 dpi 1200x1200 dpi

A4 20 ppm 10 ppm or more

* Normal paper

Note: print speeds for 1200x600 dpi are the same as 600x600 dpi

The PagePro 1350E produces high

quality prints like the one above at

full speed in both 600 dpi and 1200

x 600 dpi resolutions. Get 1200 x

1200 dpi resolution prints at 10

ppm.

First page out times

Page size*

600x600 dpi

1200x600 dpi 1200x1200 dpi

A4 13 seconds 22 seconds

* Normal paper

Note: First page out time for 1200x600 dpi is the same as 600x600 dpi

PagePro 1350E

Dimensions &

Environment

The PagePro 1350E is a powerful

machine in a compact body

Physical dimensions

Packaging

Width Depth Height

393 mm 493 mm 512 mm

Printer

Width Depth Height

387 mm 448 mm 283 mm (paper output tray closed)

387 mm 448 mm 348 mm (paper output tray extended)

Weight

Shipping 10.2 kg

Printer w/o consumables 7 kg

Operating environment conditions

Power supply 220-240V at 50/60 Hz

Power consumption •900W maximum

•400W or less (continuous printing)

•15W or less (Standby/Fuser off)

•80W or less (Standby/Fuser on)

•15W or less (Standby/Sleep)

Temperature (operating) 10° -35° C

Humidity (operating) 15 - 85% RH

Noise •54 dB (printing)

•52 dB (Midnight Mode)

•39 dB (standby)

Use the Status Display to enable “Midnight Mode” quieter printing for all

times or selected times during the day:

PagePro 1350E

Controller

Designed for professional Business

Individuals and small workgroups

the PagePro 1350E includes the

features needed.

Processor

The PagePro 1350E is powered by a ASIC D8701 processor operating at

200 MHz

Printer memory

The PagePro 1350E includes 16 MB of RAM on the controller. One DIMM

(Dual In-Line Memory) socket is available for additional system RAM. The

PagePro 1350E has a maximum memory capacity of 144 MB. An optional

128 MB DIMM Upgrade kit is available to reach maximum memory

capacity.

•Standard RAM: 16 MB

•Maximum RAM: 144 MB

Resolution

The printers default resolution setting is 1200x600 dpi. At 1200x1200 dpi

the printer speed decreases by approximately 50%.

•600x600 dpi

•1200x600 dpi (default)

•1200x1200 dpi (half speed)

Language Emulations

The PagePro 1350E is designed as a capable office laser printer

supporting common page description languages.

•PCL 6

•PCL 5e

•PJL (Compatible with HP LaserJet 1300)

Connectivity

Standard Interfaces:

•IEEE 1284 parallel

•USB 2.0.

Optional Interface:

•S.E.H. Baseline 650 PrintServer

Host computer requirements

PC Hardware IBM-compatible PC with at least a 233 MHz CPU

Operating System Windows Server 2003/XP/2000/Me/98SE

PC memory Windows Server 2003/XP: 129 MB, Win. 2000:

65MB, Win Me: 33MB, Win. 98SE: 17 MB

Hard disk space 128 MB or more

CD-ROM 1x or faster CD-ROM/DVD drive

PagePro 1350E

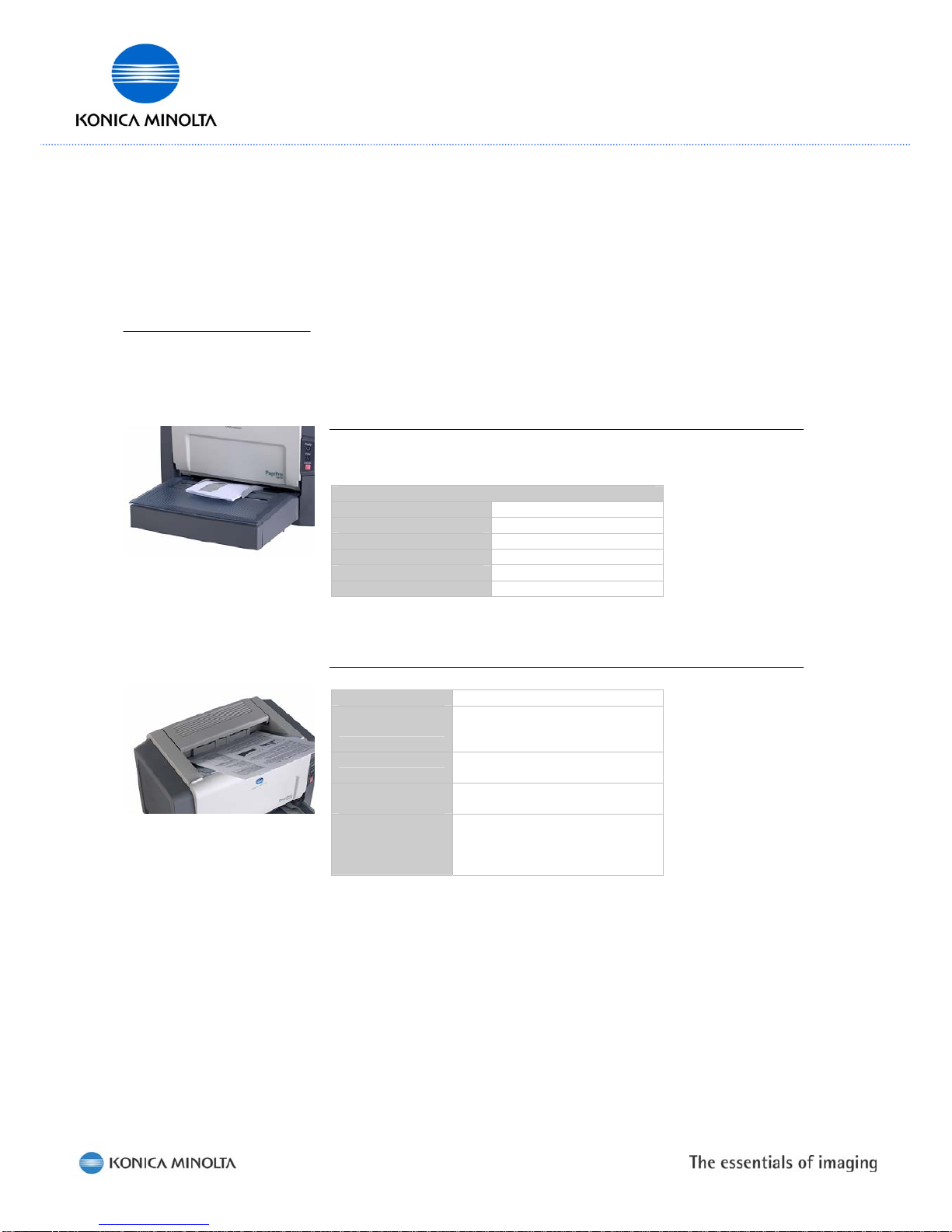

Paper handling

The PagePro 1350E supports a wide

range of paper sizes to meet the

needs of professional business

users.

The multipurpose tray holds up to

250 sheets of paper.

The output tray must be fully

extended for proper stacking and full

100-sheet capacity.

The PagePro 1350E includes a 250-sheet multipurpose tray for paper and

other print media. The tray accommodates all supported page sizes up to

A4 (210 x 297 mm).

Print media

The PagePro 1350E supports a range of print media to handle a variety of

applications.

Supported media

Normal/Plain paper 60 – 90 gsm

Recycled paper 60 – 90 gsm

OHP transparency *

Envelopes *

Post Card *

Thick stock 90 – 163 gsm

* Must be certified for laser printer and capable of withstanding fusing temperature

of 205° C (401° F)

Recommended Paper

Sheet Type Europe

Plain Paper

(recommended) Copy Paper 80

Copy Paper 70

(Neusiedler)

Recycle Paper Recycling Copy 80

(Steinbeis)

Transparency

Film 3M PP2500

Letterhead Fourstar 403C 75g/m²

Parchment Deed 13C 75g/m²

Parmanent Record 33C 75g/m²

Neenah Bond 2700 75g/m²

PagePro 1350E

The PagePro 1350E’s design motto

was “Easy to own, easier to use”.

Supported media sizes

Cut sheet x-dimension y-dimension

A4 210 mm 297 mm

B5 (JIS) 182 mm 257 mm

A5 148 mm 210 mm

Legal 8.5” 14”

Letter 8.5” 14”

G. Letter 8” 10.5”

Statement 5.5” 8.5”

Executive 7.25” 10.5”

Folio 210 mm 330 mm

Letter plus 8.5” 12.69”

UK Quarto 8” 10”

Foolscap 8” 13”

G. Legal 8.5” 13”

Chinese 16K 185 mm 260 mm

Chinese 32K 130 mm 185 mm

16K 195 mm 270 mm

Custom 76 mm (min)

216 mm (max) 127 mm (min)

356 mm (max)

Envelope

B5 (ISO) 176 mm 250 mm

#10 4.125” 9.5”

C5 162 mm 229 mm

DL 110 mm 220 mm

Monarch 3.875” 7.5”

C6 114 mm 162 mm

Cho #3 120 mm 235 mm

Cho #4 90 mm 205 mm

Postcard

Japanese postcard 100 mm 148 mm

Double postcard 148 mm 200 mm

The table at right refers to

X and Y dimensions of the

media as diagrammed

above.

Define custom page sizes from the PagePro

1350E driver

Other manuals for PagePro 1350E

Table of contents

Other Konica Minolta Printer manuals

Konica Minolta

Konica Minolta bizhub PRESS C70hc User manual

Konica Minolta

Konica Minolta magicolor 1600W User manual

Konica Minolta

Konica Minolta Magicolor 7300 User manual

Konica Minolta

Konica Minolta Magicolor 2400 Series User manual

Konica Minolta

Konica Minolta PagePro 1350EN User manual

Konica Minolta

Konica Minolta bizhub C224e User manual

Konica Minolta

Konica Minolta bizhub PRESS C8000 User manual

Konica Minolta

Konica Minolta PagePro 1300W Configuration guide

Konica Minolta

Konica Minolta Magicolor 3300 User manual

Konica Minolta

Konica Minolta magicolor 7450 II User manual

Konica Minolta

Konica Minolta magicolor 4750EN/4750DN User manual

Konica Minolta

Konica Minolta Screen Truepress Jet520 Series User manual

Konica Minolta

Konica Minolta DRYPRO 771 User manual

Konica Minolta

Konica Minolta magicolor 3730DN User manual

Konica Minolta

Konica Minolta Drypro 832 User manual

Konica Minolta

Konica Minolta Magicolor 2530 DL Original instructions

Konica Minolta

Konica Minolta bizhub 163 User manual

Konica Minolta

Konica Minolta bizhub C4000i User manual

Konica Minolta

Konica Minolta Magicolor 2500W Quick start guide

Konica Minolta

Konica Minolta PagePro 1300W User manual

Konica Minolta

Konica Minolta Magicolor 3300 User manual

Konica Minolta

Konica Minolta BIZHUB 131F User manual

Konica Minolta

Konica Minolta Magicolor 4750DN User manual

Konica Minolta

Konica Minolta bizhub 40p User manual

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series quick start guide

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Canon

Canon LASER SHOT LBP-1210 Specifications

Samsung

Samsung BIXOLON SRP-350plusF user manual

Canon

Canon PIXMA PRO-1 Series Getting started

Canon

Canon PIXMA G3560 Online manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Epson

Epson ET-7750 Programming guide

Canon

Canon CLBR 460ps Service manual

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Epson

Epson SC-F7100 series user guide

Epson

Epson Stylus C40UX Service manual

Canon

Canon imagePASS-A2 Service guide

Canon

Canon S820D user guide
