Konica Minolta MYIRO-1 User manual

MYIRO-1

Introduction Instruction Manual

[Rev 1.01]

KONICA MINOLTA, INC.

R＆DDivision, Sensing Business Unit

ンシング事業部開発部

1. System configuration

Standard accessories

2. Name and function of each part

Name

Explanation

①Power button

It is a button to turn the power on / off. Each time the button is pressed, the

status changes to ON and OFF.

②Measurement button

It is used for measurement.

③Status indicator

The status of MYIRO - 1 is displayed.

Indicates states such as measurable, scan success / failure, errors, etc. with

color and blinking.

④Network indicator

Indicates the connection status of the wireless LAN.

⑤Battery indicator

Indicates the battery status of the battery remaining capacity and charging.

⑥USB connection terminal

It is used to connect MYIRO-1 and PC with USB cable. Besides communication

with the PC, it is also used for charging.

⑦White calibration cap

It is used for calibration. When calibrating, attach it to the measurement

opening.

⑧Measurement opening

It is an opening for measuring the sample.

⑨Tripod screw hole

It is a screw for fixing a commercially available tripod. It is used for display

measurement.

3. Attaching / removing the ambient light attachment

Used for ambient light measurements.

How to install

1 You can install the ambient light

attachment by turning the ▲ mark in the

right figure in the direction of the arrow.

How to uninstall

2 You can uninstall the ambient light

attachment by turning the ▲ mark in the

right figure in the direction of the arrow.

4. Charging method

It charges by connecting to a PC or a commercially available USB-AC adapter with a USB cable.

The remaining amount and state of charge of the built-in lithium-ion battery are indicated by the battery

indicator as follows.

Indicator status

Status

Explanation

Supplementary explanation

No light

Enough

battery

power

Built-in lithium-ion batteries have

sufficient power and can be

measured.

Approximately 670 scan

measurements are possible from

the fully charged state.

If you leave after turning on the

power, the power will run out in

about 2 hours.

Blinking(Dark

orange)

Low

battery

level

Battery level is low. Although you can

measure for a while, we recommend

charging.

Approximately more than 50

scanning measurements can be

done after flashing begins.

Lighting up(Dark

orange)

Charging

Battery is charging.

It will be fully charged in about 2

to 3 hours with the power off

status.

5. Power ON / OFF

Pushing the power button from the OFF state turns on the power.

Pushing the power button from the ON state turns off the power.

6. Auto power off function

MYIRO-1 has “auto power off” function, and when communication doesn’t operate for a certain period of time,

the power turns off automatically.

To turn on the power again, press the power button. At this time, the connection with the application is

disconnected and the calibration data is deleted, so it is necessary to reconnect with the application and

recalibrate.

7. Connecting to PC

Connection with PC has USB connection and wireless LAN connection.

When using USB connection, connect MYIRO-1 and PC with USB cable.

In the case of wireless LAN connection, connection work with the initial setting tool is necessary at first

connection. Please look at the instruction manual of the initial setting tool.

The second and subsequent times are automatically connected to the network under the conditions set above.

If both USB and wireless LAN are connected, priority is given to USB connection.

If you disconnect the USB cable, it will be connected via wireless LAN.

8. Calibration

There are the following types of calibrations, but in either case the work in MYIRO-1 is the same.

For Chart measurement

For Ambient light measurement

For Display measurement

Procedure

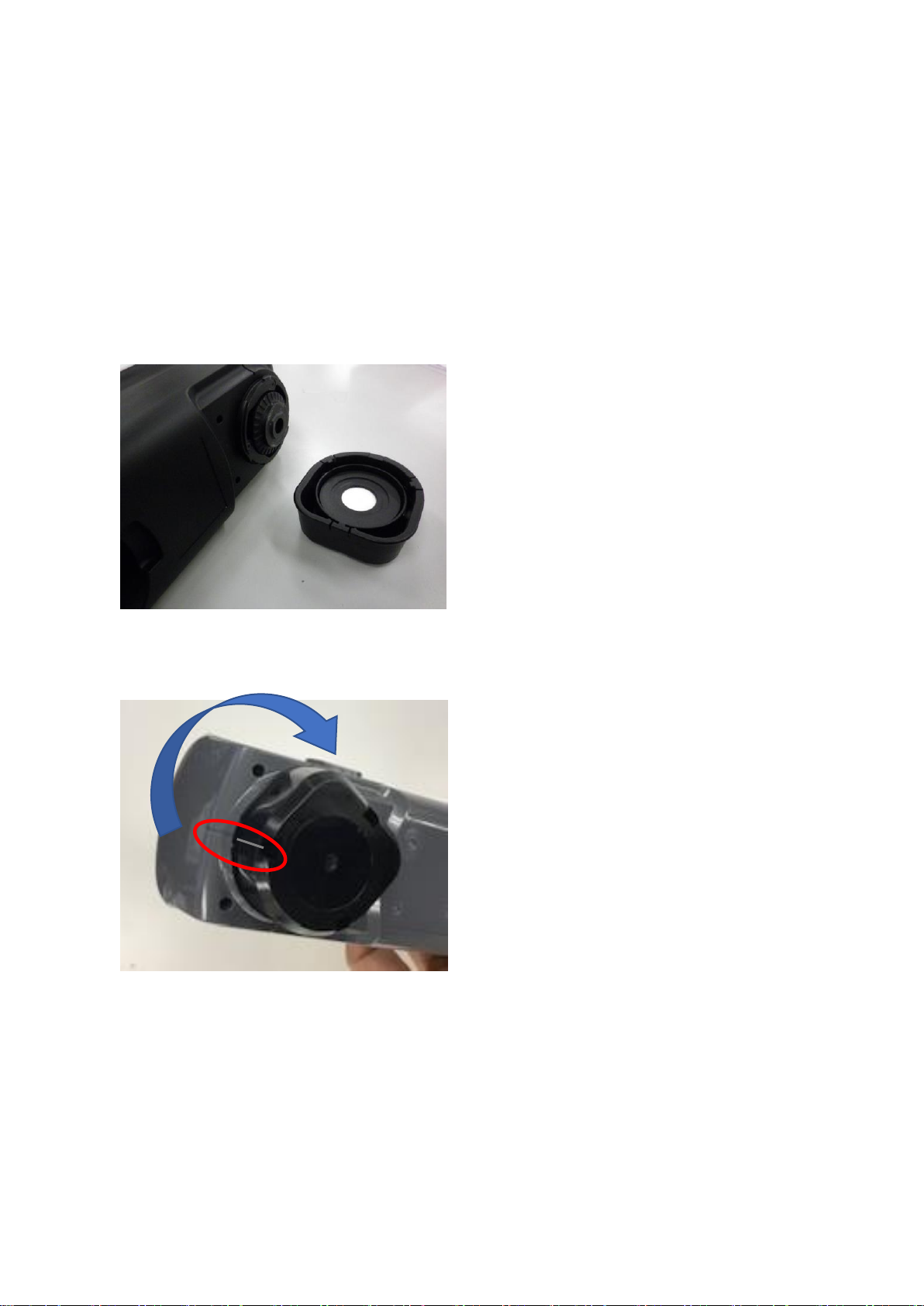

8－１ Attach the white calibration cap to the measurement opening.

Before mounting the cap）

How to attach) Align the line of the main body and the line of the calibration cap (hereinafter, gray line) and

rotate it in the direction of the arrow described on the calibration cap.

After mounting the cap）

Note:When not using the measuring instrument, keep it with the calibration cap attached to prevent dust

adhesion.

Reference) At the time of measurement, the calibration cap can be stored as shown below.

8－2White calibration is performed by measurement button or control from SDK.

When white calibration is performed, the status indicator changes as follows depending on the calibration

status.

Status indicator

Status

Explanation

Supplementary

explanation

Lighting up(Yellow)

Uncalibrated

In uncalibrated condition,

calibration is necessary to

measure.

Blinking light blue

During

calibration

Calibration is in progress.

After blinking light blue (during

calibration), green lighting

(calibration success)

Successful

calibration

The calibration was

completed correctly.

After that, the state

becomes automatically

measurable.

After blinking light blue (during

calibration), dark orange

lighting (calibration failure

Calibration

failure

The calibration failed. It is

necessary to recalibration in

the correct way.

After that, it is

automatically

uncalibrated.

After successful calibration,

lights up(Blue).

Measurable

Measurement is possible.

9. Scanning measurement

Set the ruler on the chart so that the △ mark(Red arrow in the figure) of the ruler matches the left edge of the

chart.

Set MYIRO - 1 to the left edge of the ruler. The scan operation needs to start from the paper white part.

If you keep pushing the measurement button and the status indicator changes from blue to white, slide

MYIRO - 1 as it is. After measuring, release the button and the measurement is over. Please slide at a

constant speed as much as possible, in about 3 to 5 seconds from the edge of the ruler to the end.

Scanning is possible from the right or from the left. Regardless of which way you operate, the data will be

output from left to right.

When measuring, the status indicator changes as follows depending on the condition.

Indicator status

Status

Explanation

Supplementary explanation

Lights up(Blue)

Measurable

Measurable.

Lights up(Blue)

→Lights up(White)

Scannable

Start sliding after this state

（White lit）.

If you start the slide earlier,

a measurement error will

result.

Lights up(White)

During scanning

measurement

Scanning measurement in

progress

After light white (During

measurement), green

lighting (Measurement

success)

Measurement

success

Correct measurement

completed.

After that, the state

becomes automatically

measurable.

After light white (During

measurement), dark

orange lighting

(Measurement failure)

Measurement

failure

Measurement failed. Please

repeat the measurement in

the correct way.

After that, the state

becomes automatically

measurable.

Measurement range

10. Spot measurement

Adjust the spot target of the ruler to the part to be measured.

Place the measurement opening of MYIRO-1 so that it meets the spot target, and perform measurement with

the measurement button or control from the SDK.

11. Ambient Light Measurement

With the ambient light attachment attached, perform measurement with the measurement button or control

from the SDK.

12. Display measurement

Attach a commercially available tripod to the tripod screw of MYIRO - 1 and set the MYIRO - 1 so that the

measurement opening faces the display to be measured at a distance of about 5 to 30 mm.

Measurement is performed by measurement button or control from SDK.
