Instruction Manual

52” Ridley™ II LED

Includes our new

Wall Remote Control System

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After marking electrical connections,

spliced conductors should be turned

upward and pushed carefully up into

outlet box. The wires should be spread

apart with the grounded conductor and

the equipment-grounding conductor on

one side of the outlet box.

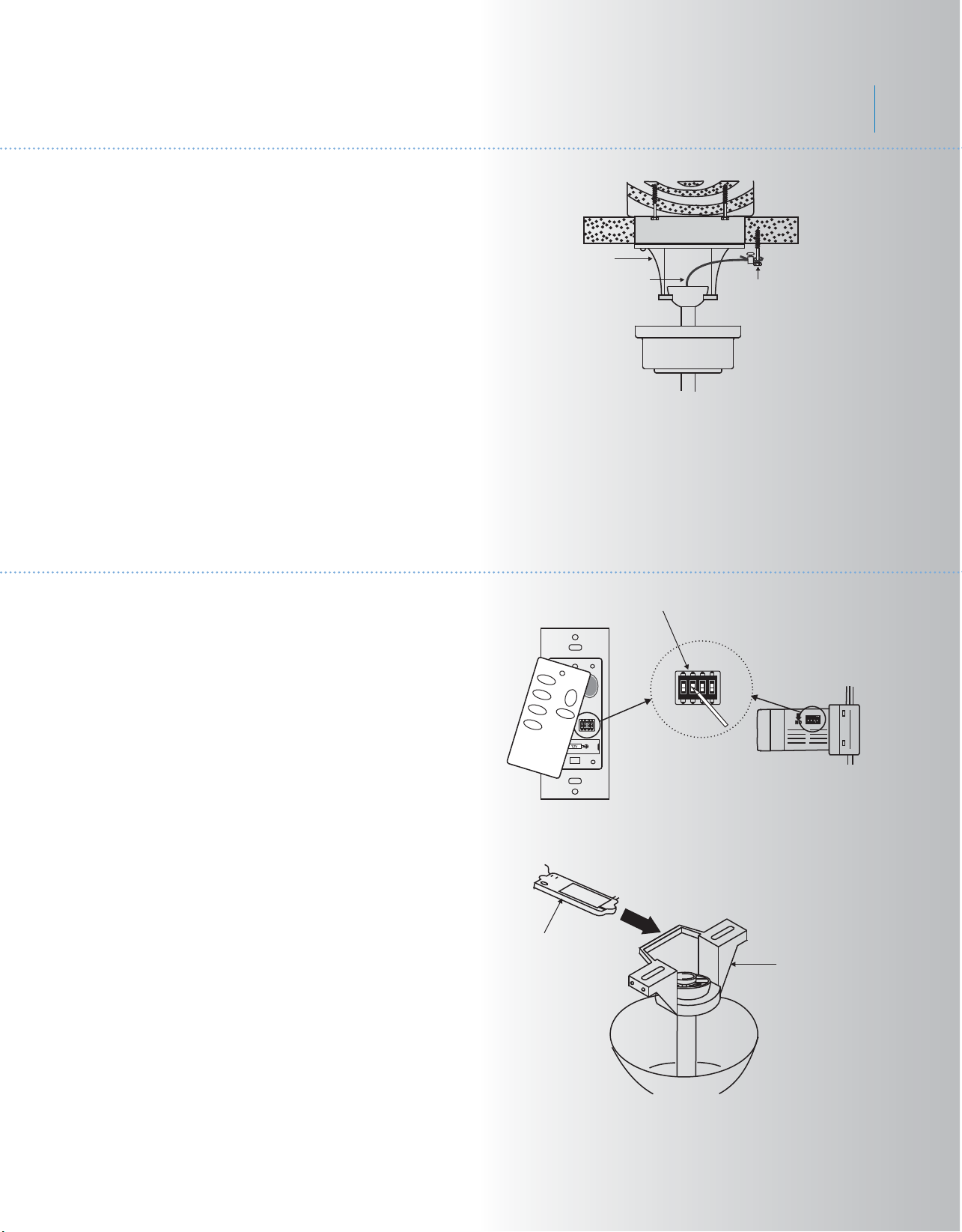

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

1. SAFETY RULES

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can

not be removed.

Installing Lamps in excess of 190 total

watts will disable the unit's light ﬁxture. If

this should happen, you will need to reset

the lighting ﬁxture by turning the power off

to the ceiling fan and/or light ﬁxture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local

electrical codes. Electrical installation

should be performed by a qualied

licensed electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of ﬁre,

electric shock, or personal injury, mount to

outlet box marked "acceptable for fan

support of 15.8 kg (35 lbs.) or less" and

use mounting screws provided with the

outlet box. Most outlet boxes commonly

used for the support of light ﬁxtures are

not acceptable for fan support and may

need to be replaced. Due to the

complexity of the installation of this fan, a

qualiﬁed licensed electrician is strongly

recommended.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the oor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned

off and blades stopped before reversing

blade direction.

8. Avoid placing objects in the path of the

blades.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

FAN TO OUTLET BOX MARKED

"ACCEPTABLE FOR FAN SUPPORT".

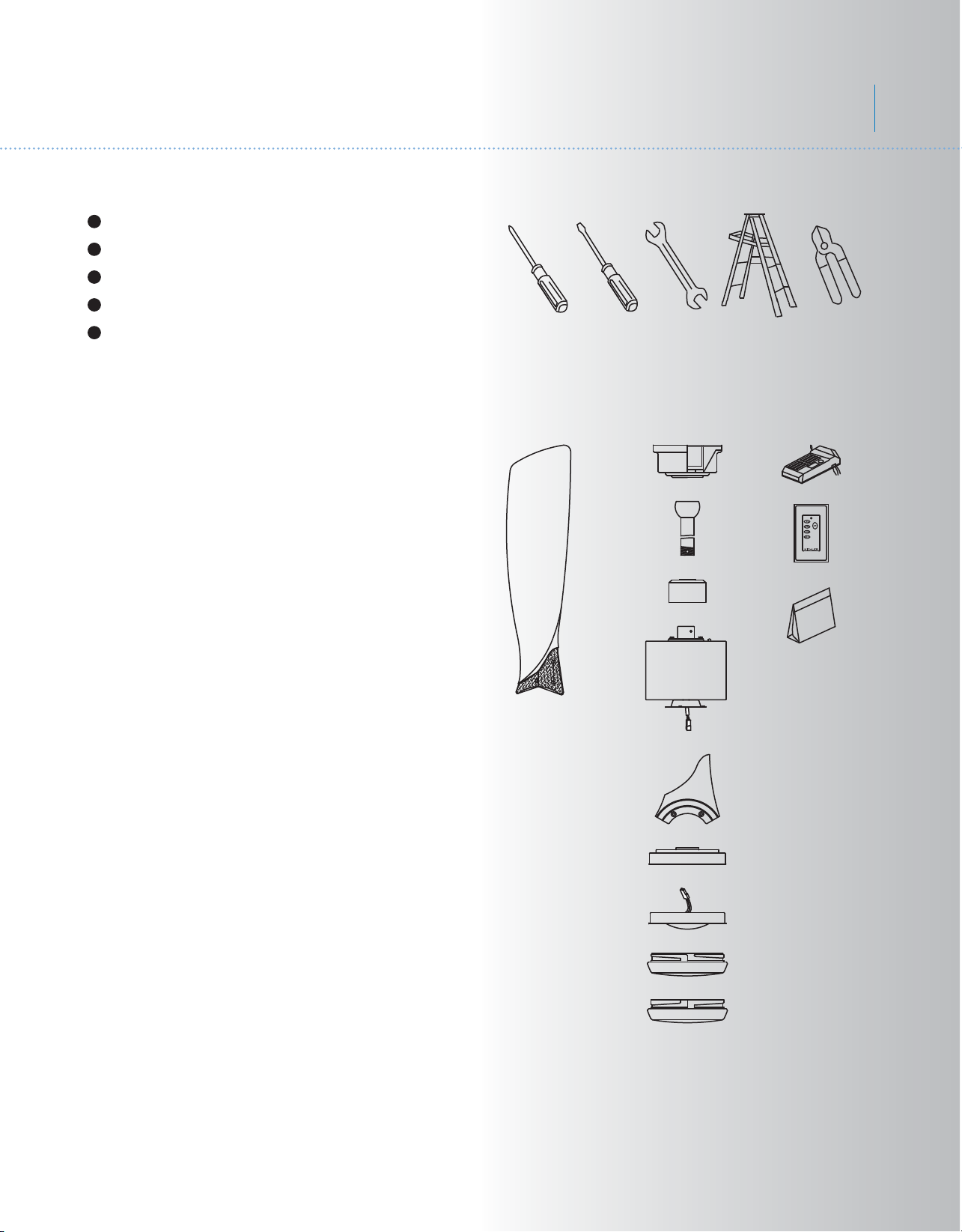

3. PACKAGE CONTENTS

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

52" RidleyTM II LED

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (3)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of 3 blade brackets and Pre-Installed

mounting screws

g. Light plate

h. 17W LED light kit

i. Glass shade

j. Decorative bottom cover

k. Receiver

l. Wall Transmitter

m. Part bag contents

1) Mounting hardware:

wood screws (2), ﬂat washers (2),

star washers (2), wire nuts (3),

screws (2)

2) Blade attachment hardware:

screws (11), ﬁber washers (11)

3) Blade bracket attachment hardware:

screws (2)

4) Safety cable hardware:

wood screw, spring washer, ﬂat washer

5) Balance Kit

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power

by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

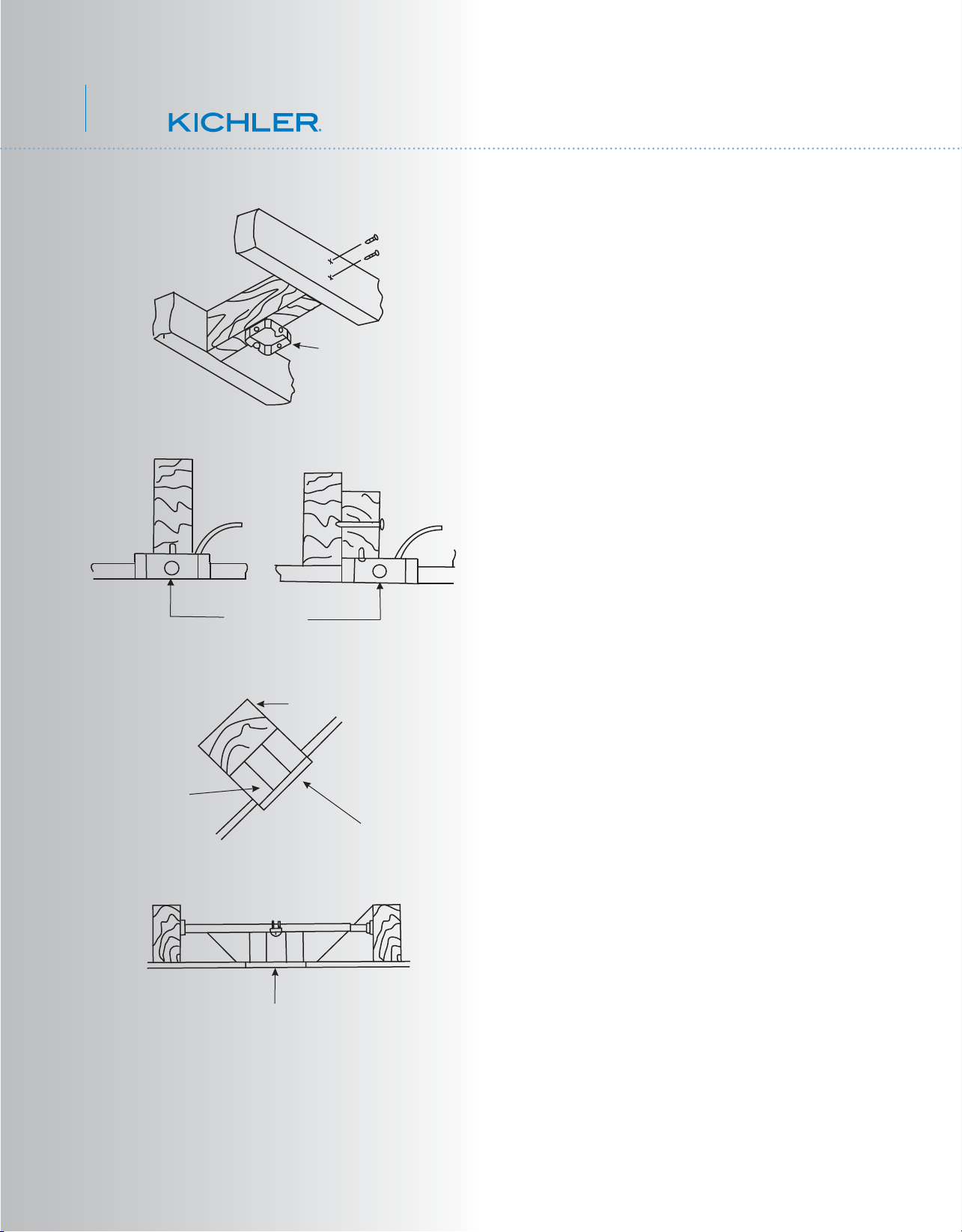

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

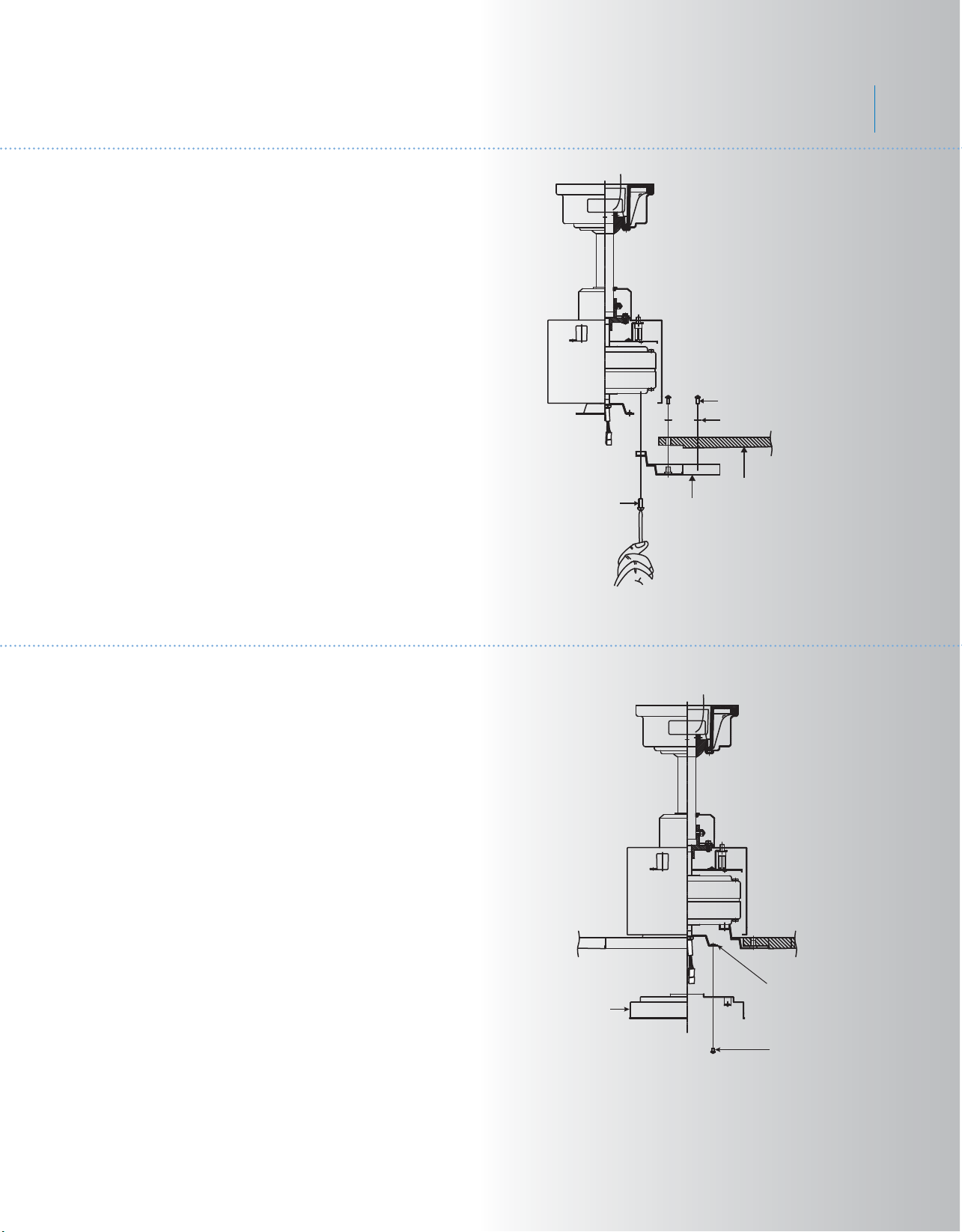

ANGLED CEILING

MAXIMUM 30°ANGLE

Fig. 6

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

CUL Listed

electrial

box

120V Wires

Washers

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

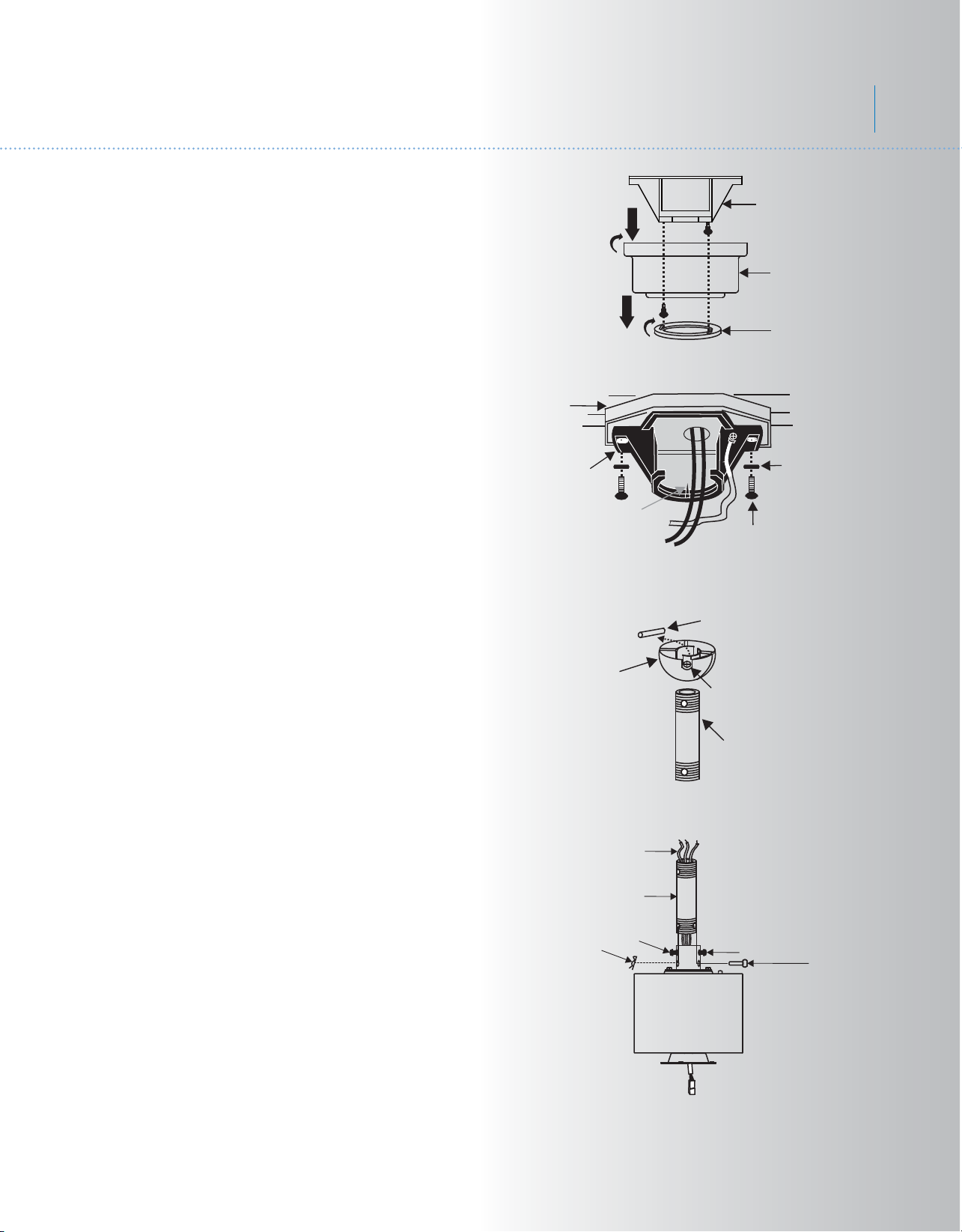

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and

unscrewing the ball off the rod. (Fig.7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Downrod

Cross pin

Hanger

ball Set screw

Supply wires

Downrod

Hitch pin

Retaining clip Set screws

Set screws

Fig. 5

Hanger bracket

Ceiling

canopy

Canopy

cover

5. HANGING THE FAN

52" RidleyTM II LED

Fig. 9

Fig. 10

Registration slot

Downrod

Canopy

Canopy cover

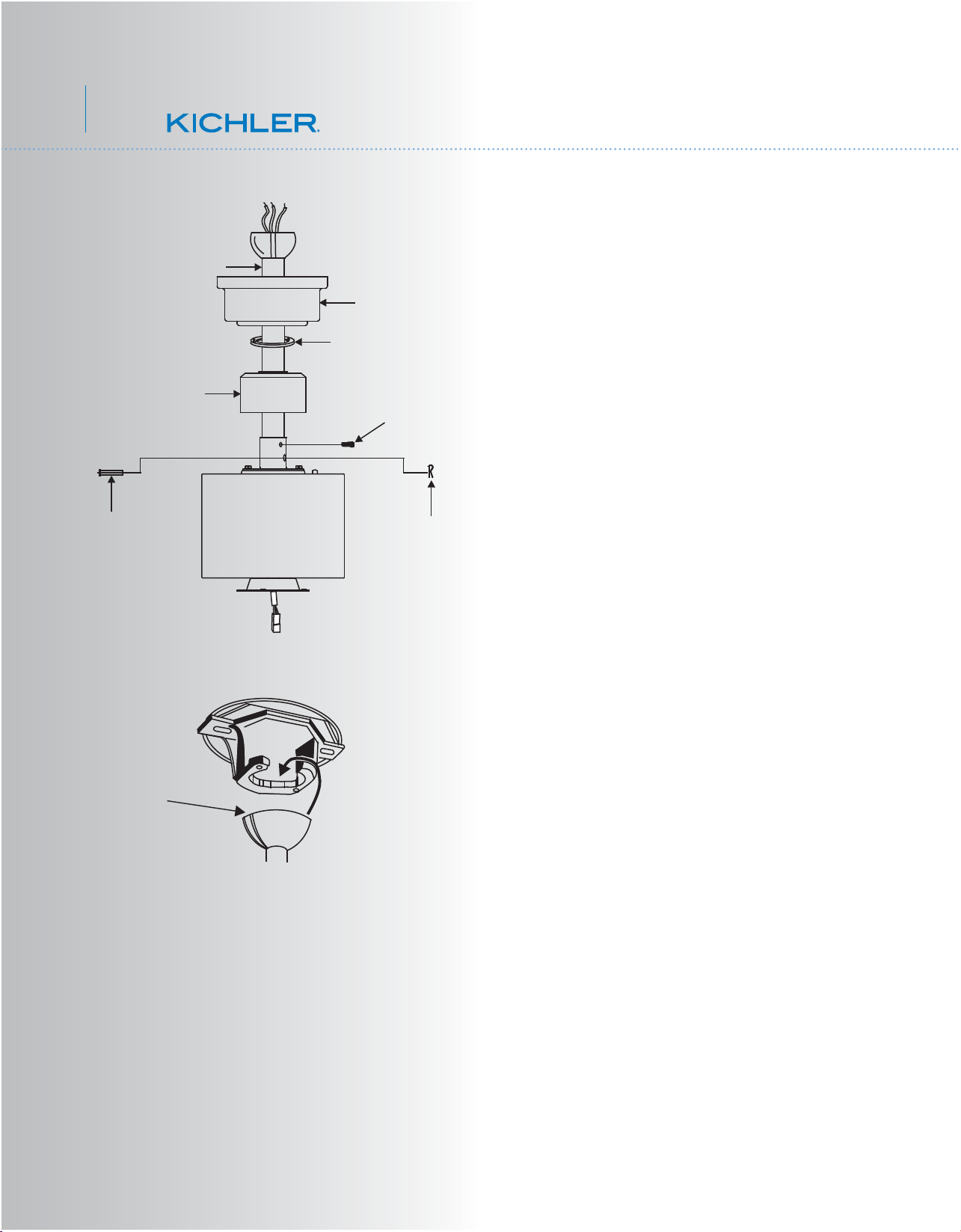

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats rmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Set screws

Hitch pin Retaining

clip

Coupling cover

Fig. 11

Fig. 12

Fig. 13

Code switch

Receiver

Hanger

bracket

Hanger bracket

Safety cable Attach safety cable

to ceiling joist with

screw and washer

7. ELECTRICAL CONNECTIONS

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose wire strands or connections.

NOTE: The CoolTouch™ Control System is

equipped with 16 possible frequency

combinations to prevent interference from or

with other remote control units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to

the same position. (Fig. 12)

Step 1. Insert the receiver into the ceiling

mounting bracket with the ﬂat side of the

receiver facing the ceiling. (Fig. 13) For best

performance, make sure the Black Antenna, on

the end of the receiver, remains extended and

not tangled with any of the electrical wires.

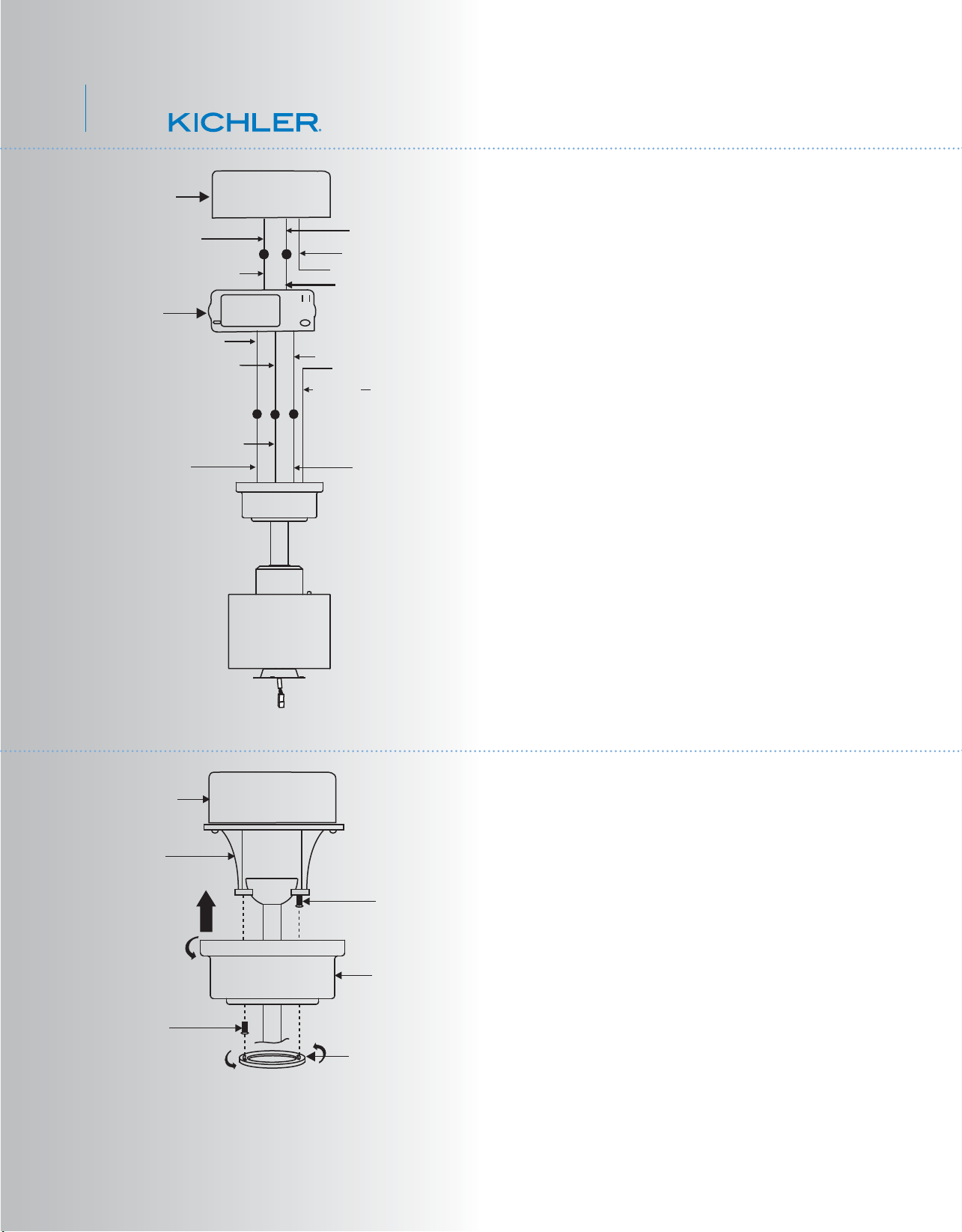

Step 2. Motor to Receiver Electrical

Connections: (Fig. 14) Connect the black wire

from the fan to the black wire marked "TO

MOTOR L" on the receiver.

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please install

it as follows.

Step 1. Attach the provided wood screw and

washers to the ceiling joist next to the mounting

bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washers by pulling the

extra cable through the cable clamp until the

overall length is correct, put the end of the cable

back through the cable clamp, forming a loop at

the end of the cable. Tighten the cable clamp

securely. Now, put the loop in the end of

the safety cable over the wood screw and under

the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is

required for Canadian installations only. It's a

good idea to make the attachment with any

installation.

MED

LOW

FAN OFF

LIGHT

ON ECE

1234

ON ECE

1234

52" RidleyTM II LED

Fig. 14

Fig. 15

Outlet box

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

Step 1. Tuck all the connections neatly into the

ceiling outlet box.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots over

the mounting screw on the mounting bracket.

Rotate the canopy until the screw head locks in

place at the narrow section of the key hole. See

ﬁgure 16.

Step 3. Align the remaining circular hole on the

canopy with the remaining hole on the Ceiling

Mounting Bracket. Insert and tighten the

mounting screw you removed earlier and the

mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting screw

heads by inserting the screw heads into the

bottom side of the canopy cover and rotating

the cover clockwise.

NOTE: Adjust the canopy screws as necessary

until the canopy and canopy cover are snug.

(Fig. 15)

Connect the white wire from the fan to the white

wire marked "TO MOTOR N" on the receiver.

Connect the blue wire from the fan to the blue

wire marked "FOR LIGHT" on the receiver.

Secure all the wire connections with the plastic

wire nuts provided.

Step 3. (Fig. 14) Receiver to House Supply

Wires Electrical Connections: Connect the black

(hot) wire from the ceiling to the black wire

marked "AC in L" from the receiver. Connect the

white(neutral) wire from the ceiling to the white

wire marked "AC in N" from the Receiver.

Secure the wire connections with the plastic

wire nuts provided.

Step 4. (Fig. 14) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires, spread

them apart so that the green and white wires are

on one side of the outlet box and black and blue

wires are on the other side. Carefully tuck the

wire connections up into the outlet box.

Note: Fan must be installed at a maximum

distance of 30 feet from the CoolTouch™

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

8. FINISHING THE INSTALLATION

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Outlet box

Black (hot)

Black ("AC IN L")

Receiver

White (neutral)

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Black ("to motor L")

Blue (for light)

Black (motor)

9. ATTACHING THE FAN BLADES

Fig. 16

Fig. 17

Step 1. Attach a blade to a blade bracket

using the screws and ﬁber washers provided.

(Fig. 16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw and then repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

Screws

Blades

Blade brackets

Screws

Fiber

washers

Light plate

Mounting ring

Screws

10. INSTALLING THE LIGHT PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 17)

Step 2. Place the key hole slots on the light

plate over the two screws previously loosened

on the mounting ring.

Turn the light plate until is locks in place at the

narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

52" RidleyTM II LED

Fig. 19

Fig. 20

Decorative

bottom cover

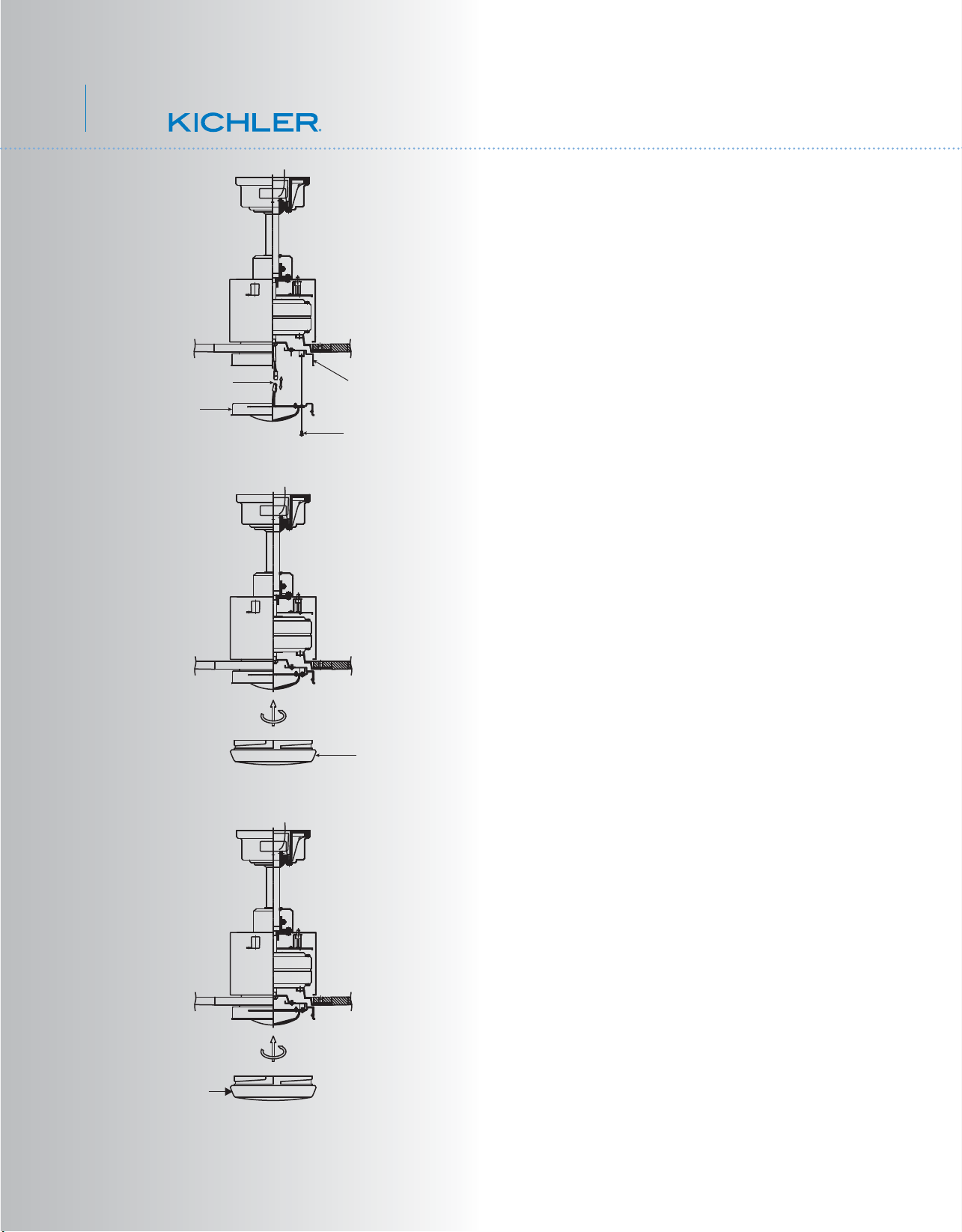

11. INSTALLING THE LED LIGHT KIT

AND GLASS SHADE

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box.

Step 1. Loosen the three mounting screws on

the inside of the LED light kit. (Fig.18)

Step 2. While holding the LED light kit under

the fan motor, make the wire connections:

(Fig. 18)

- Red to white

- Black to black

NOTE: If you do not plan to install the LED

light kit with your fan at this time, don’t

make the wire connections. Raise the

decorative bottom cover against the LED light

kit and turn clockwise until snug, DO NOT

OVERTIGHTEN. (Fig. 20)

Step 3. Tuck the connections neatly into the

light plate. Place the key holes on the LED

light kit over the 2 screws previously loosened

from the light plate, turn the LED light kit until

it locks in place at the narrow section of the

key holes. Secure by tightening all three

screws. (Fig.18)

Step 4. Raise the glass shade against the light

kit and turn clockwise until snug, DO NOT

OVERTIGHTEN. (Fig. 19)

Fig. 18

Screws

Glass shade

Wire connectors

LED light kit

Light plate

This manual suits for next models

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Cameron User manual

Kichler Lighting

Kichler Lighting 300044 User manual

Kichler Lighting

Kichler Lighting 300260/60-GENT Series User manual

Kichler Lighting

Kichler Lighting 35156 User manual

Kichler Lighting

Kichler Lighting 300370 User manual

Kichler Lighting

Kichler Lighting Lehr II User manual

Kichler Lighting

Kichler Lighting Kevlar 310150WCP User manual

Kichler Lighting

Kichler Lighting Select Canfield 300107 User manual

Kichler Lighting

Kichler Lighting Crystal Bay User manual

Kichler Lighting

Kichler Lighting 380106 User manual

Kichler Lighting

Kichler Lighting Deckard User manual

Kichler Lighting

Kichler Lighting 330163 User manual

Kichler Lighting

Kichler Lighting Botella User manual

Kichler Lighting

Kichler Lighting Renew Select User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Kichler Lighting

Kichler Lighting KOSMUS User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting 300026 User manual

Kichler Lighting

Kichler Lighting Porters Lake User manual

Kichler Lighting

Kichler Lighting 35155 User manual

Kichler Lighting

Kichler Lighting Meredith User manual

Kichler Lighting

Kichler Lighting Eris User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
