Kichler Lighting Decor Dorset User manual

 2*

Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

DorsetTM

A Kichler®Decor™

ceiling fan

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR PERSONAL INJURY, MOUNT FAN TO OUTLET

BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can not

be removed.

Installing Lamps in excess of 190 total watts

will disable the unit's light fixture. If this

should happen, you will need to reset the

lighting fixture by turning the power off to

the ceiling fan and/or light fixture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

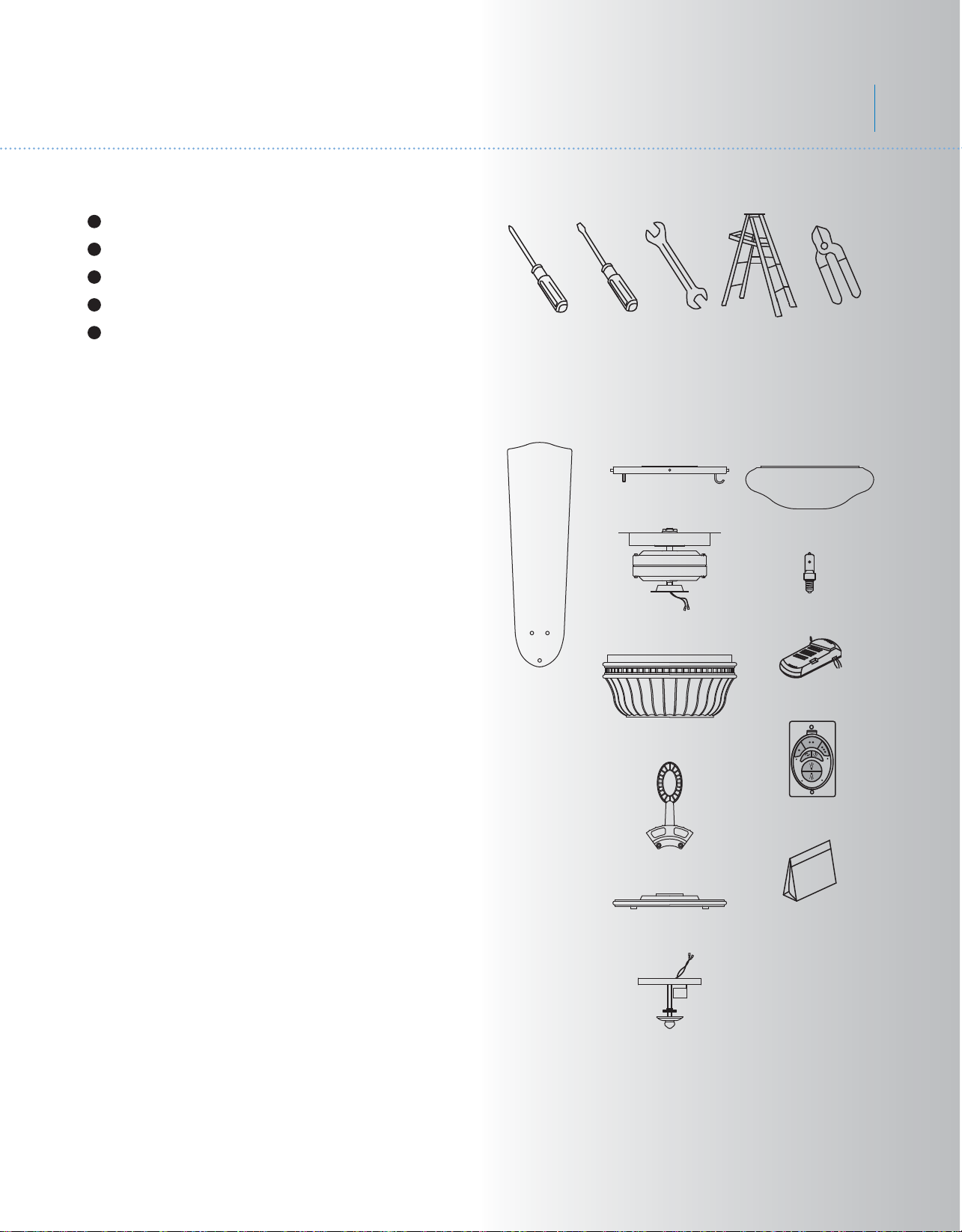

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (5)

b. Ceiling mounting plate

c. Motor and hanger plate assembly

d. Motor housing

e. Set of 5 blade brackets and Pre-Installed

mounting screws

f. Light fixture mounting plate

g. Light fixture

h. Glass shade

i. E-12 40 Watt T-3 Krypton Lamps (3)

j. Receiver

k. CoolTouch™Control System

l. Part bag contents

1) Mounting hardware:

star washers (2), wire nuts (3),

machine screws (2), washers (2),

screws (2)

2) Blade attachment hardware:

screws (17), washers (17),

fiber pads (17)

3) Safety cable hardware:

wood screw, lock washer, flat washer

4) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

DorsetTM

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

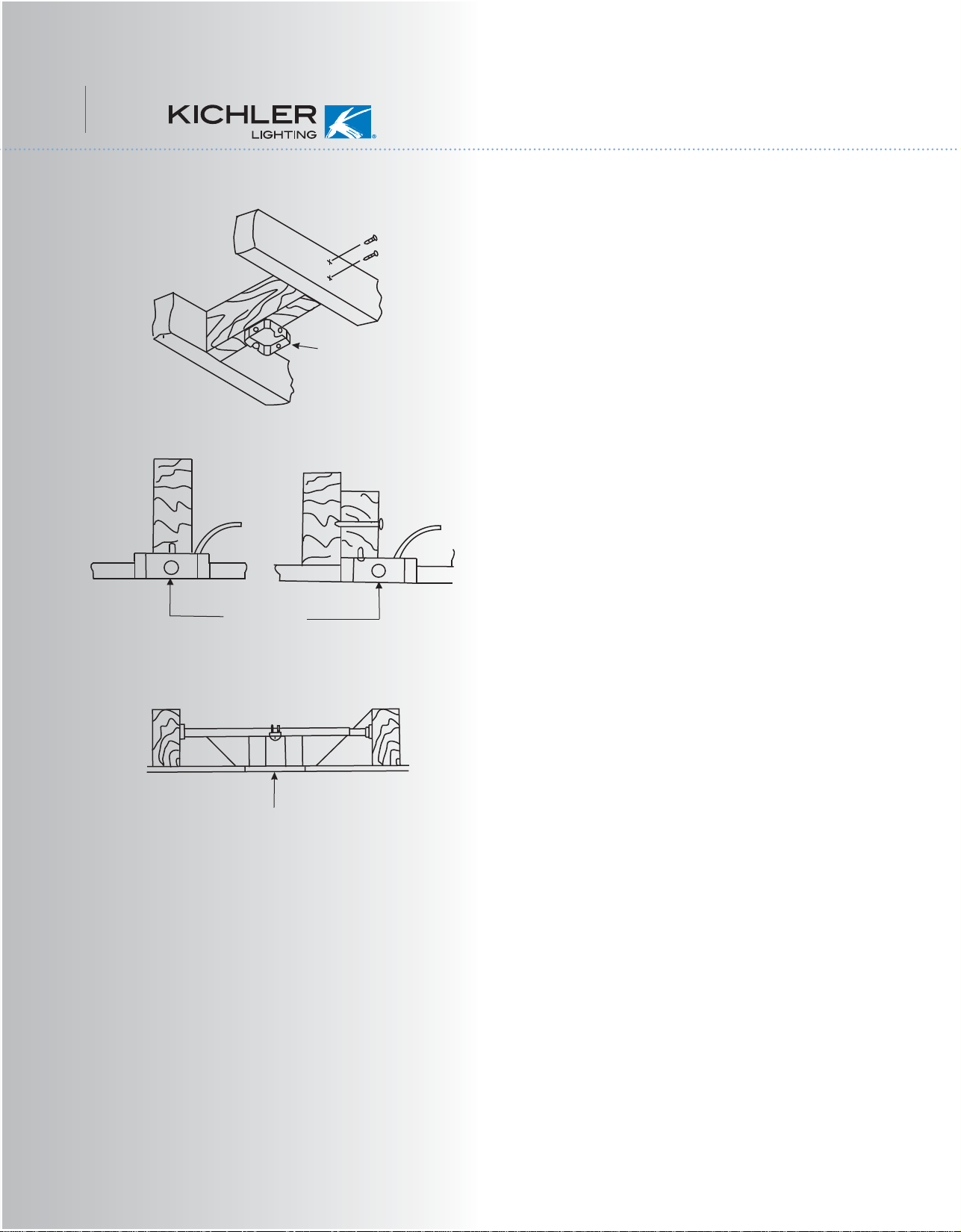

Figures 1, 2 are examples of different ways to

mount the outlet box.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 3)

Outlet box

Fig. 1

Fig. 3

Outlet box

Fig. 2

Fig. 5

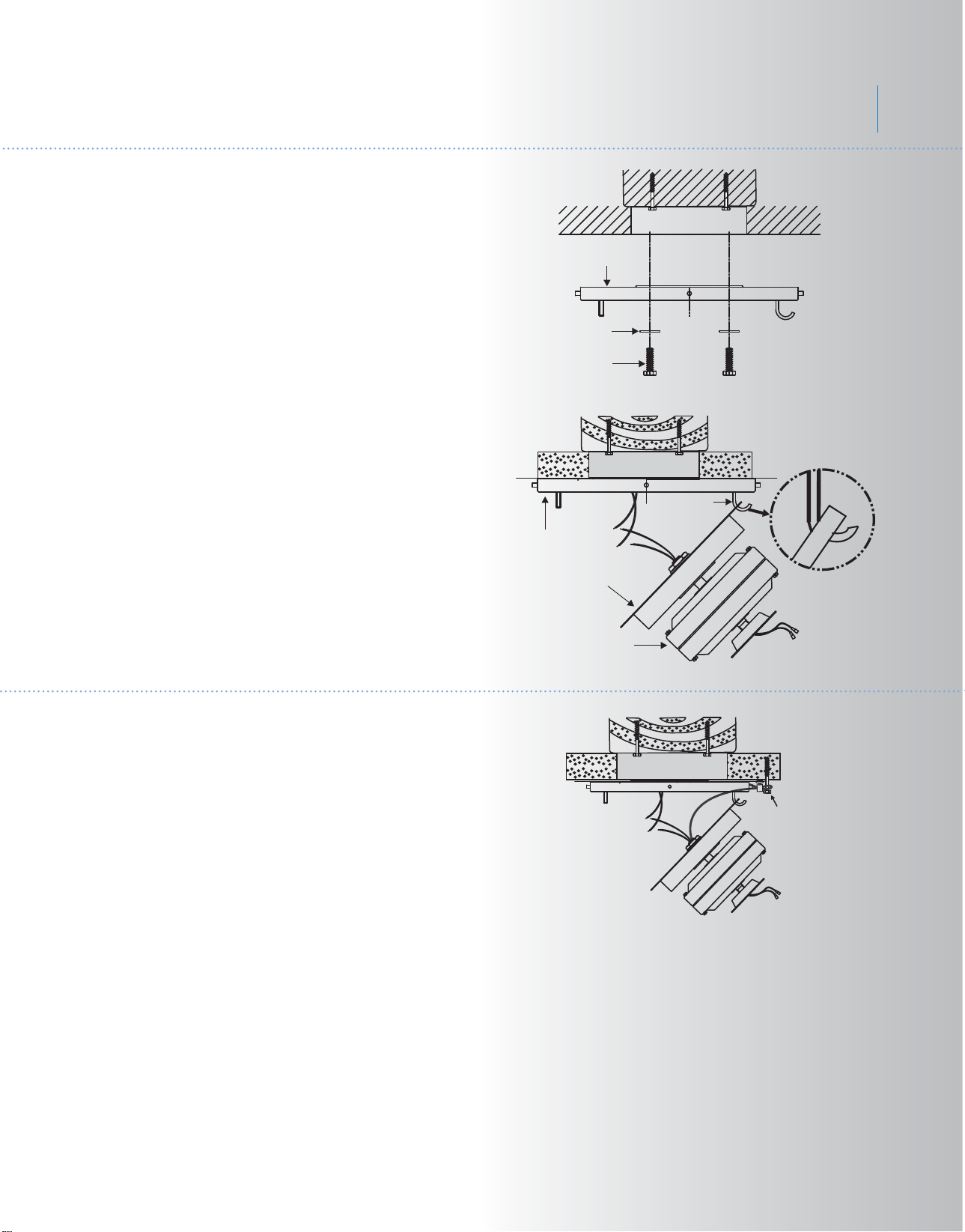

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Secure the ceiling mounting Plate to

the ceiling outlet box using screws and

washers included with your outlet box. (Fig. 4)

Step 2. Carefully lift the fan motor/hanger

plate assembly up to the ceiling mounting

plate and hang the assembly on the hook

attached to one end of the ceiling mounting

plate. See figure 5.

Fig. 4

5. HANGING THE FAN

CUL Listed

electrial box

Washers

Mounting screws

Ceiling mounting

plate

Motor

Hook

Ceiling mounting

plate

Hanger plate

DorsetTM

Fig. 6

6. INSTALLATION OF SAFETY SUPPORT

(required for Canadian Installations ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling.

Step 1. Attach the provided wood screw and

washer to the ceiling joist next to the mounting

bracket but do not tighten. (Fig. 6)

Step 2. Adjust the length of the safety cable to

reach the screw and washer by pulling the

extra cable through the cable clamp until the

overall length is correct. Put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end

of the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

Attach safety cable

to ceiling joist with

screw and washer

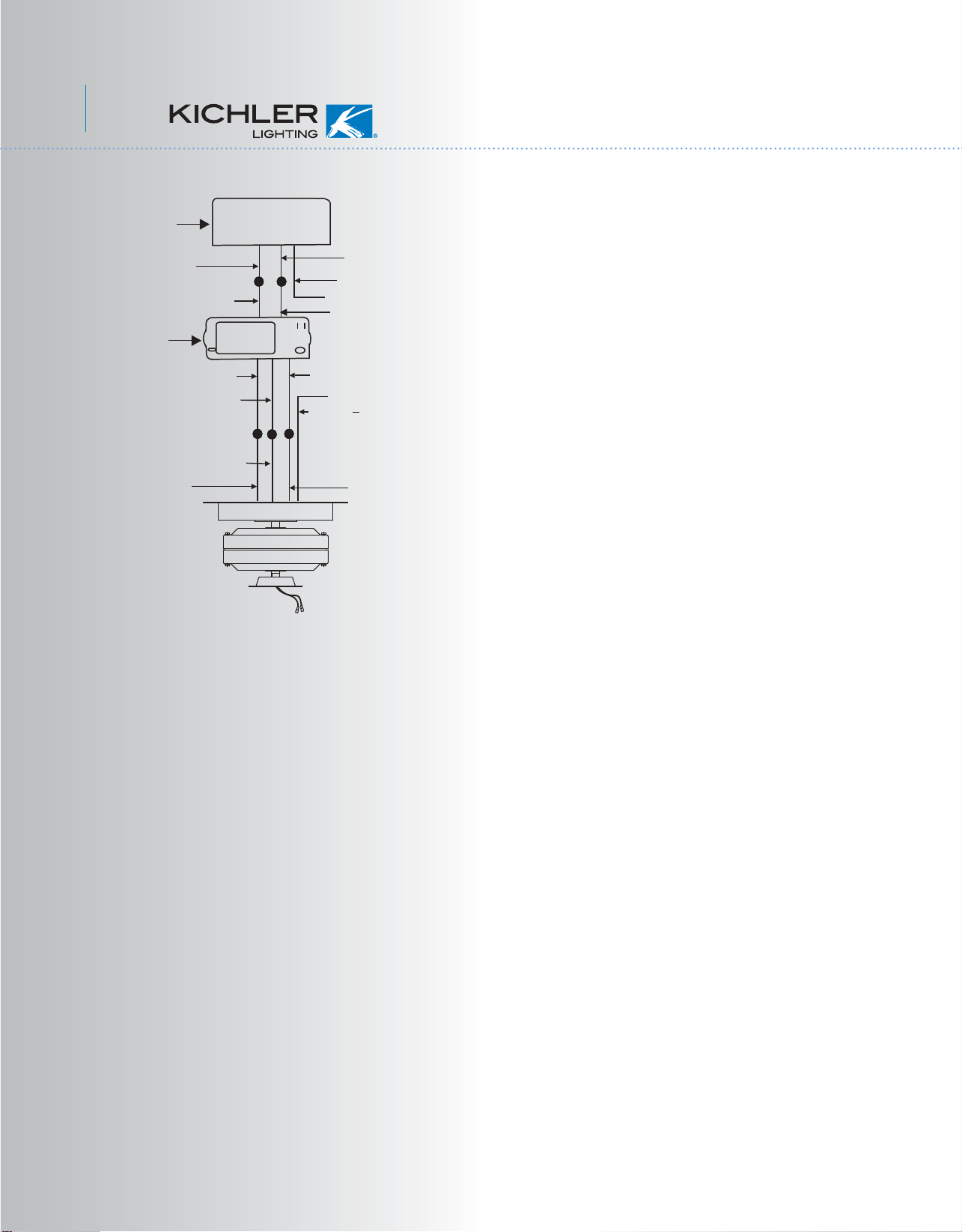

7. ELECTRICAL CONNECTIONS

Fig. 7

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose wire strands or connections.

1. Motor to Receiver Electrical Connections:

(Fig. 7)

Connect the black wire from the fan to the

black wire marked "TO MOTOR L" on the

receiver.

Connect the white wire from the fan to the

white wire marked "TO MOTOR N" on the

receiver.

Connect the blue wire from the fan to the blue

wire marked "FOR LIGHT" on the receiver.

Secure each set of wire connections with the

plastic wire nuts provided in the parts bag.

2. Receiver to Supply Wires Electrical

Connections: (Fig. 7)

Connect the black (load) wire from the ceiling

outlet box to the black wire marked "AC in L"

on the receiver.

Connect the white (neutral) wire from the

ceiling outlet box to the white wire marked "AC

in N" on the receiver.

Secure each set of electrical connections with

with the plastic wire nuts provided in the parts

bag.

3. Connect the ground wire (green or bare

copper) from the outlet box to the ground wire

on the ceiling mounting bracket and the

ground wire from the ceiling fan.

After making all connections, separate the

white and green wire connections to one side

and the black wire connections to the other

side of the outlet box.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Black (motor)

DorsetTM

Note: Fan must be installed at a maximum

distance of 30 feet from the CoolTouch™

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

For best performance, make sure the Black

Antenna, on the end of the receiver, remains

extended and not tangled with any of the

electrical wires.

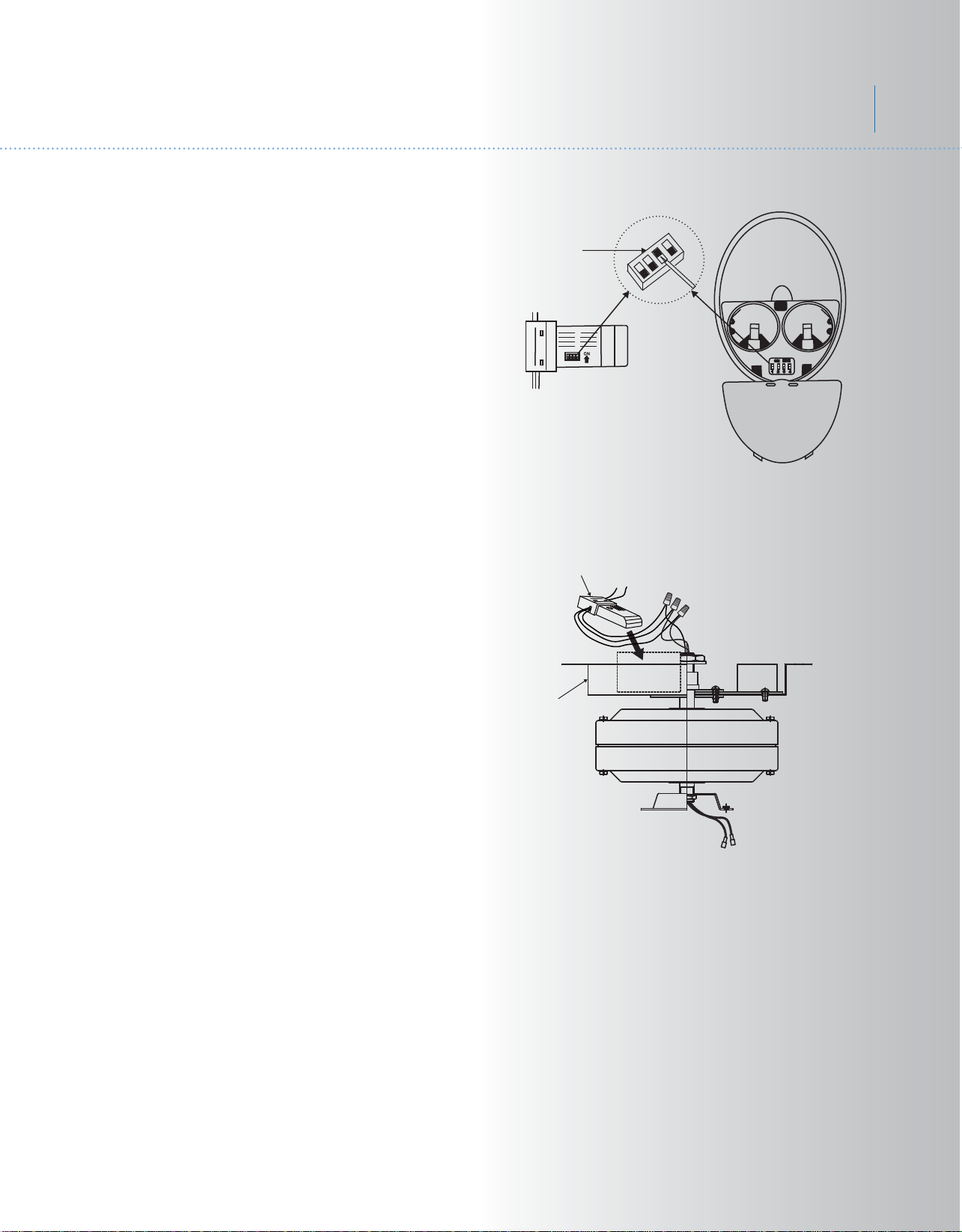

NOTE: The CoolTouch™ Control System is

equipped with 16 possible frequency

combinations to prevent interference from or

with other remote control units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to

the same position. (Fig. 8)

Insert the receiver into the receiver socket

located in the mounting bracket with the flat

side of the receiver facing the motor. (Fig. 9)

Fig. 8

Fig. 9

Code switch

Receiver

(on top of the Hanger plate)

Transmitter

Receiver

Mounting

Bracket

Receiver

Socket

Fig. 10

Fig. 11

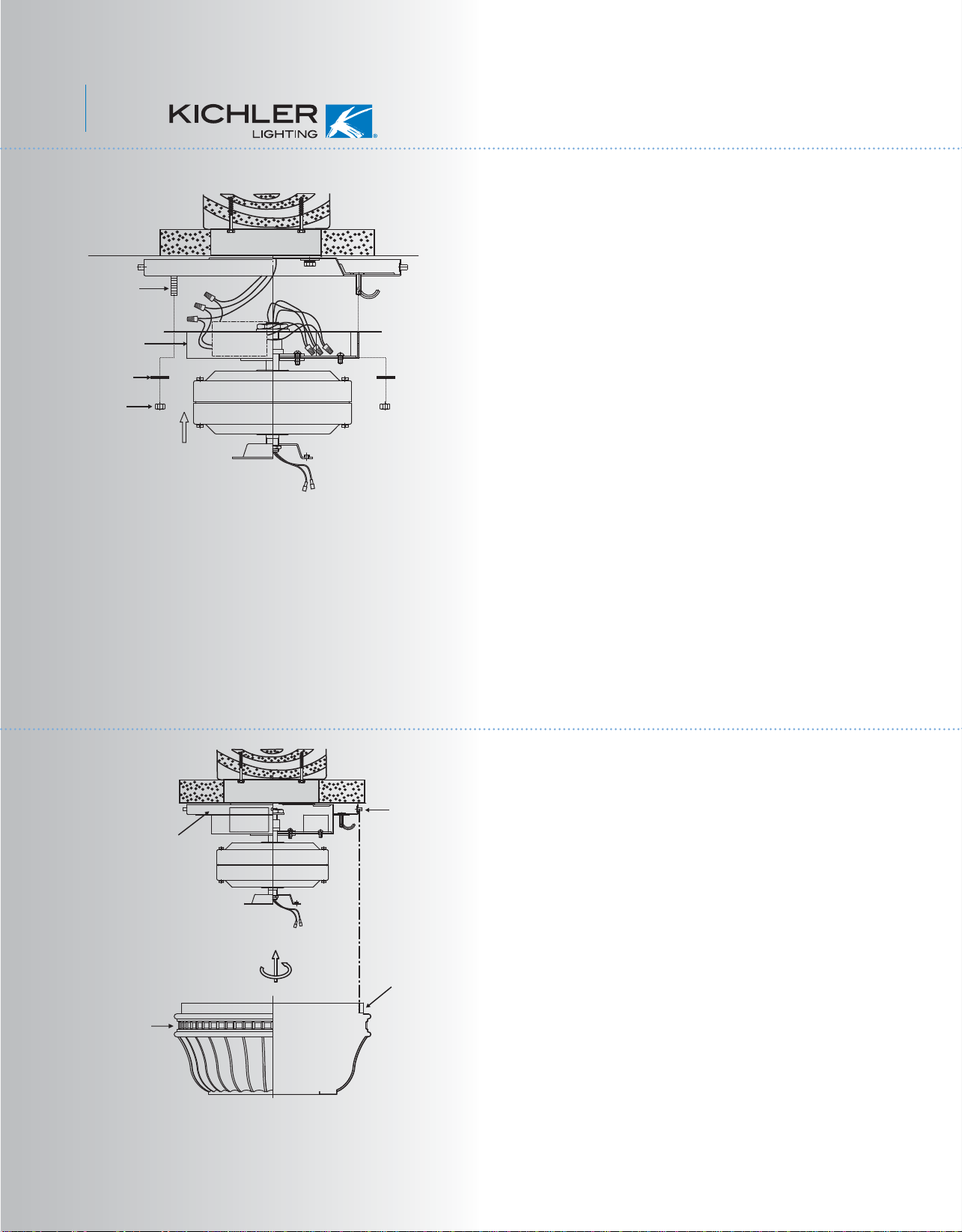

1. Remove the four sets of nuts and washers

located on the mounting plate threaded

studs.

2. Place the control receiver between the

mounting bracket and the ceiling mounting

plate with all of the wiring connection made

in the previous step.

3. Swing the motor assembly up into position

under the ceiling mounting plate, align the

holes on the mounting bracket with the four

studs on the mounting plate and secure with

the nuts and washers previously removed.

(Fig. 10)

NOTE: If the receiver included with your

ceiling fan has an "orange wire", Insure that it

has a wire nut attached to the end of the wire.

No exposed wire should show after

installation.

The Orange wire is intended for use with

"Decorative Up lighting" on most models.

8. FINISHING THE INSTALLATION

Washers

Nuts

Mounting

Plate threaded

studs

Mounting

plate

Motor

housing

Carefully lift the motor housing up to the ceiling

mounting plate aliening the mounting studs

with the mounting supports on the inside of the

motor housing.

The four mounting studs should be place into

the mounting supports on the inside of the

motor housing.

Twist the housing clockwise until snug. (Fig. 11)

9. FINISHING THE FAN INSTALLATION

Mounting

supports

Ceiling

mounting

plate

Mounting

studs

Receiver

Fig. 12

Fig. 13

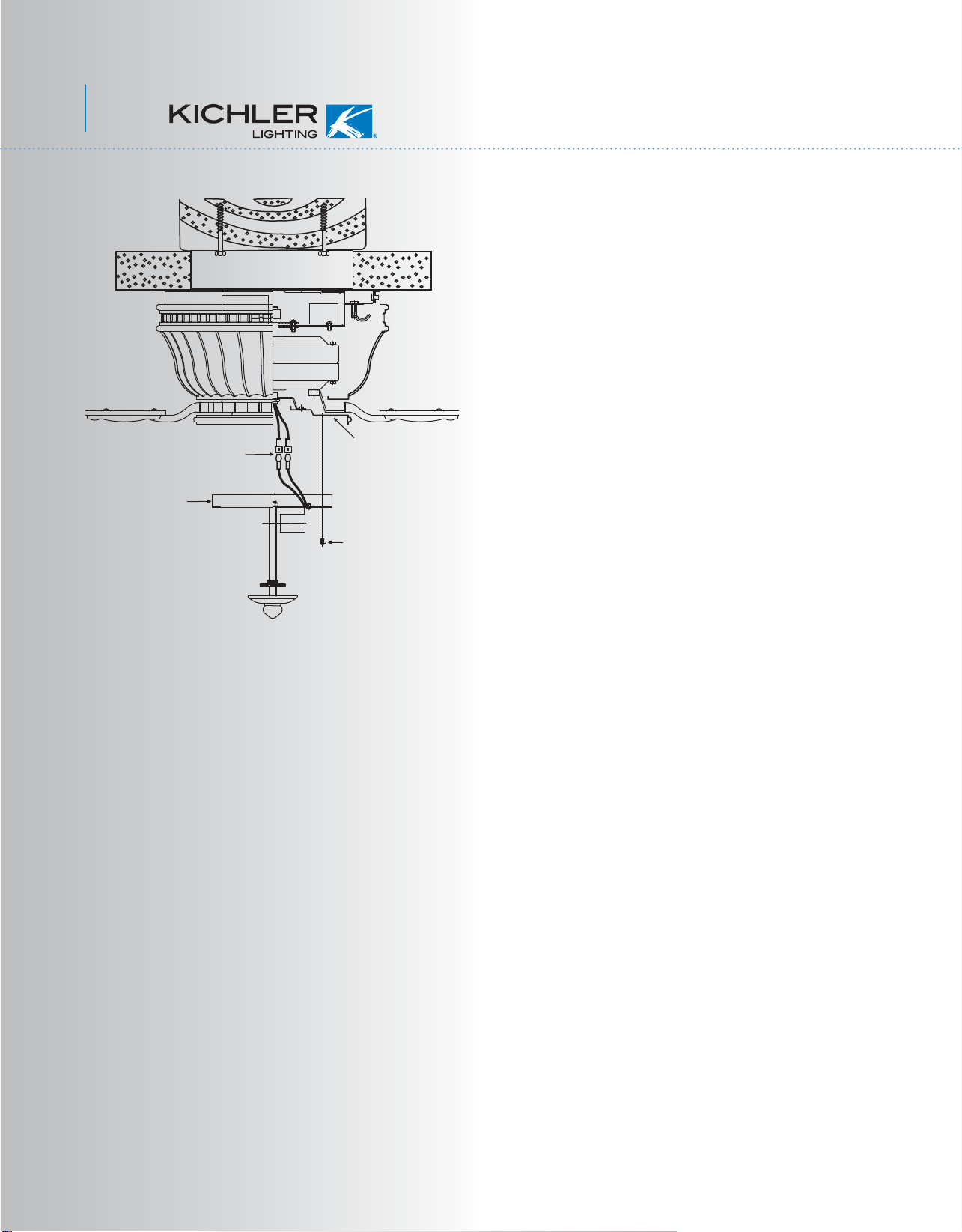

10. ATTACHING THE FAN BLADES

Step 1. Place a blade on a blade bracket

aligning the mounting holes on each. Start

each set of mounting screws, washers and

fiber pads into each hole.

Make sure the blade is straight on the blade

bracket and tighten each mounting screw until

the fiber pad is slightly compressed.

Step 2. Attach each blade assembly to the

motor using the "Pre-installed" mounting

screws in the blade bracket. (Fig 12)

Repeat the above process for each blade

assembly.

11. INSTALLING THE LIGHT FIXTURE

MOUNTING PLATE

1. Loosen two screws on the mounting ring

attached to the motor shaft and "remove" and

save the third screw. (Fig. 13)

2. Place the key holes on the light fixture

mounting plate over the 2 screws previously

loosened on the mounting ring, turn light

fixture mounting plate until it locks in place at

the narrow section of the key holes. Secure by

tightening the 2 screws previously loosened

and the one previously removed. (Fig. 13)

Blades

Blade bracket

Fiber pads

Washers

Screws

Light Fixture

Mounting Plate

Mounting ring

DorsetTM

Fig. 14

12. INSTALLING THE LIGHT FIXTURE

NOTE: Before continuing installation, confirm

that the power is still turning off at the main

circuit breaker or by removing the correct fuse.

Turning the power off using a wall switch is not

sufficient to prevent electrical shock.

1. Loosen the two screws on the light fixture

mounting plate attached to the motor shaft and

"remove" and save the third screw. (Fig. 14)

2. Hold the light fixture close to the fan and

connect the white wires by pushing the

connectors on the wire ends together. Follow

the same procedure for the black wires. (Fig

14)

3. Tuck the connections neatly into the light

fixture mounting plate. NOTE: Be careful not

to pinch the light fixture wires between the

light fixture and the light fixture mounting plate.

4. Place the key hole slots on the light fixture

over the two screws previously loosened on

the light fixture mounting plate.

Turn the light fixture until is locks in place at

the narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely. (Fig. 14)

Screws

Light fixture

Wire Connector Light fixture

mounting plate

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Logan User manual

Kichler Lighting

Kichler Lighting Canfield 300117WH User manual

Kichler Lighting

Kichler Lighting ELLYS User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting Sola 330151 Instruction Manual

Kichler Lighting

Kichler Lighting Lyndon 300120 User manual

Kichler Lighting

Kichler Lighting Makoda User manual

Kichler Lighting

Kichler Lighting True User manual

Kichler Lighting

Kichler Lighting BASICS PRO PREMIER 330016WH User manual

Kichler Lighting

Kichler Lighting Lija 330140NI User manual

Kichler Lighting

Kichler Lighting Cortez User manual

Kichler Lighting

Kichler Lighting Terra Select User manual

Kichler Lighting

Kichler Lighting 300026 User manual

Kichler Lighting

Kichler Lighting Starkk 330174OZ User manual

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR User manual

Kichler Lighting

Kichler Lighting 35157 User manual

Kichler Lighting

Kichler Lighting Celino User manual

Kichler Lighting

Kichler Lighting Tranquil User manual

Kichler Lighting

Kichler Lighting Kyte 50 User manual

Kichler Lighting

Kichler Lighting Monarch User manual

Kichler Lighting

Kichler Lighting Saxon Premier User manual

Kichler Lighting

Kichler Lighting ERIS 337060 User manual

Kichler Lighting

Kichler Lighting Hatteras Bay Patio User manual

Kichler Lighting

Kichler Lighting Maeve LED 52 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
