Kichler Lighting ERIS 337060 User manual

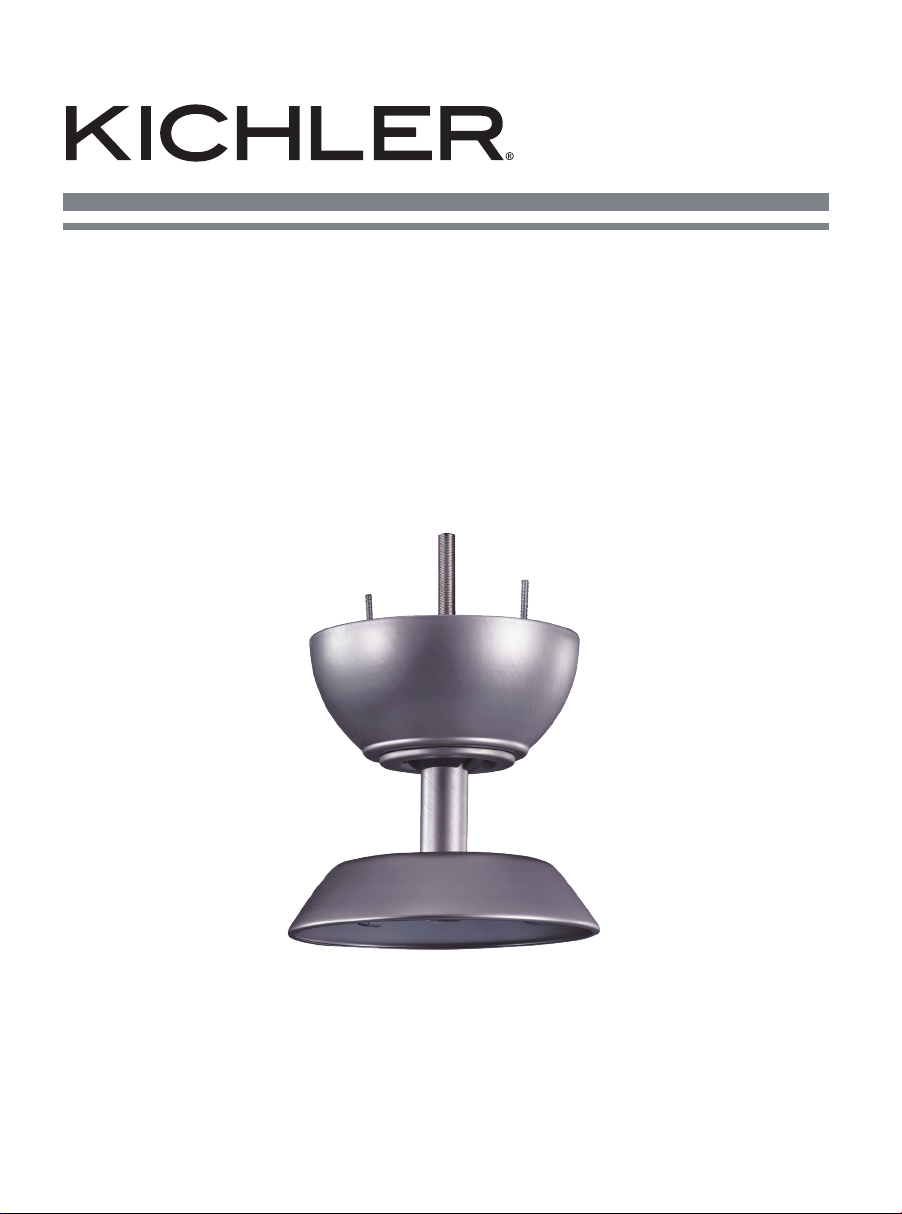

ERIS DOWN ROD HANGER KIT

READ AND SAVE THESE INSTRUCTIONS

337060

U.S. Patent Pending

A. Mounting Bracket .......................................... (1pc)

B. Downrod Assembly ....................................... (1set)

C. Canopy .......................................................... (1pc)

D. Canopy Screw Cover .................................... (1pc)

E. Coupling Cover ............................................. (1pc)

F. Package Hardware ........................................ (1set)

This carton contains the following parts. Please make sure you have everything.

Phillips screwdriver

Blade screwdriver

11 mm wrench

Step ladder

Wire cutters

TOOLS AND MATERIALS REQUIRED

A B

D F

ERIS DOWN ROD HANGER KIT

Fig. 1

Fig. 2

Fig. 3

Ceiling joist

MOUNTING OPTIONS

Make sure the outlet box you've selected

for mounting your ceiling fan is UL listed

and rated for ceiling fan use.

NOTE: Make sure the electrical power is

turned off before starting. Disconnect at

the main circuit box.

It's very important that the outlet box is

securely installed and will not move or

your ceiling fan will wobble after

installation.

If you need to install a new outlet box,

secure it directly to the building structure

using appropriate fasteners and building

materials.

The outlet box and its support must be

able to fully support the moving weight of

the fan (at least 50 lbs.). Do not use

plastic outlet boxes.

Outlet box

W/Bracket

Ceiling joist

Outlet box

Expandable

joist hanger

Ceiling joist

Outlet box

JOIST MOUNT

BOTTOM FACE MOUNT

SIDE MOUNT

Step 1. Assemble the mounting bracket to ceiling

outlet box using the screws and washers

supplied with the outlet box. (Fig. 4)

Step 3. Remove the hanger ball from downrod

assembly by loosening set screw, removing

the pin, and sliding ball off the rod.

Remove the clip and cross pin from the

downrod. (Fig. 6)

Step 2a. For Eris fan installed with mounting

plate cover.

Remove the three (3) mounting screws to release

the mounting plate cover from ceiling fan, then

reinstall the removed screws back to the ceiling

fan. (Fig. 5).

Step 2b. For Eris fan installed without

mounting plate cover.

IMPORTANT: Must install and tighten three (3)

mounting screws, otherwise will destroy your

fan.

Install three (3) mounting screws found in the fan

mounting plate cover hardware bag to the ceiling

fan, and tighten them.(Fig. 5).

Flat Washer

Screw

Mounting Bracket

Outlet Box

Mounting Plate Cover

Screw

Pin Set Screw

Hanger Ball

Cross Pin

Clip

Fig. 4

Fig. 5

Fig. 6

ERIS DOWN ROD HANGER KIT

Step 4. Route the black, white, blue wires

and safety cable through the downrod.

Thread downrod into the downrod support

on top of the motor. Install the cross pin by

aligning the holes in the downrod support

with holes in the downrod. Secure cross pin

with clip. Install and tighten the two set

screws to the downrod support. (Fig. 7)

Step 5. Route wires through coupling cover,

canopy screw cover and canopy.（Fig. 8）

Step 6. Carefully reinstall the hanger ball

on the downrod as follows. Route the wires

through the hanger ball. Position the pin

through the two holes in the downrod and

align the hanger ball so the pin is captured

in the groove on the top of the hanger ball.

Pull the hanger ball up tight against the pin.

Securely tighten the set screw in the hanger

ball. A loose set screw could cause fan

wobble. (Fig. 9)

NOTE: All set screws must be checked, and

retightened where necessary, before

installation.

Fig. 7

Fig. 8

Fig. 9

Cross Pin

Clip

Downrod

Downrod Support

Cross Pin

Set Screw

Clip

Canopy

Canopy Screw Cover

Coupling Cover

Hanger Ball

Set Screw

Step 9. Assemble canopy by rotating key slot

in canopy over shoulder screw in hanger

bracket. Tighten shoulder screw. Fully

assemble and tighten second shoulder screw

that was previously removed. Securely attach

and tighten the canopy screw cover over the

shoulder screws in the mounting bracket

utilizing the keyslot twist-lock feature. (Fig. 12)

Step 8. Now lift the motor assembly into

position and place the hanger ball into the

mounting bracket. Rotate until "Check Tab" has

dropped into the "Registration Slot" and seated

firmly. (Fig. 11) The entire motor assembly

should not rotate.

WARNING: Failure to properly seat the

"Check Tab" can damage the ceiling fan

during operation.

Fig. 10

Fig. 11

Fig. 12

Step 7. Remove one of the two shoulder screws

in the mounting bracket and save for use in

Step 9. Loosen the second shoulder screw

without fully removing it. (Fig. 10)

Mounting Bracket

Shoulder Screw

Check Tab Registration Slot

Canopy

Shoulder Screw

Canopy Screw Cover
