Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

Instruction Manual

CelinoTM

A Kichler

Includes our Hand Held

Remote Control System

®Décor™ceiling fan

Designed to coordinate with a popular Kichler Lighting collection.

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualified licensed

electrician.

3. WARNING: Suitable for use with solid-

state speed controls.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box

for mounting to the outlet box. Most outlet

boxes commonly used for the support of

lighting fixtures are not acceptable for fan

support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must

be securely mounted and capable of

reliably supporting a minimum of 50

pounds. Use only CUL Listed outlet boxes

marked "FOR FAN SUPPORT".

6. The fan must be mounted with a minimum

of 7 feet clearance from the trailing edge of

the blades to the floor.

7. To operate the reverse function on this fan,

press the reverse button while the fan is

running.

8. Avoid placing objects in the path of the

blades.

9. To avoid personal injury or damage to the

fan and other items, be cautious when

working around or cleaning the fan.

10. Do not use water or detergents when

cleaning the fan or fan blades. A dry dust

cloth or lightly dampened cloth will be

suitable for most cleaning.

11. After making the electrical connections,

spliced conductors should be turned

upward and pushed carefully up into outlet

box. The wires should be spread apart with

the ground wire and white (common) wire

to one side with the black (load) wire to the

other side of the outlet box.

12. Electrical diagrams are reference only.

Light kits that are not packed with the fan

must be CUL Listed and marked suitable

for use with the model fan you are

installing. Switches must be CUL General

Use Switches. Refer to the Instructions

packaged with the light kits and switches

for proper assembly.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK

OR PERSONAL INJURY, MOUNT FAN TO OUTLET

BOX MARKED "ACCEPTABLE FOR FAN

SUPPORT".

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE BRACKETS (ALSO

REFERRED TO AS FLANGES) DURING ASSEMBLY

OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

1. SAFETY RULES

Special Notice

This appliance is equipped with a "Wattage

Limiting Device" required by the United

States Department of Energy. The device

has been installed at the factory and can not

be removed.

Installing Lamps in excess of 190 total watts

will disable the unit's light fixture. If this

should happen, you will need to reset the

lighting fixture by turning the power off to

the ceiling fan and/or light fixture,

reinstalling lamps totaling less that 190

watts and then turning the power back on.

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blades (3)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Set of blade brackets (3)

g. Mounting plate

h. Light kit

i. Glass shade

j. 50W T4 halogen bulbs (2)

k. Hand Held Remote Control System

l. Receiver

m. Part bag contents

1) Mounting hardware:

wood screw, flat washer, spring washer,

star washers (2), wire nuts (3),

machine screws (2), washers (2),

screws (2)

2) Blade attachment hardware:

screws (11), washers (11),

fiber washers (11)

3) Safety cable hardware:

wood screw, lock washer, flat washer

4) Balance Kit

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

2. TOOLS AND MATERIALS REQUIRED

CelinoTM

MED LOW

OFF

4. MOUNTING OPTIONS

If there isn't an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and

building materials. The outlet box and its

support must be able to fully support the

moving weight of the fan (at least 50 lbs). Do

not use plastic outlet boxes.

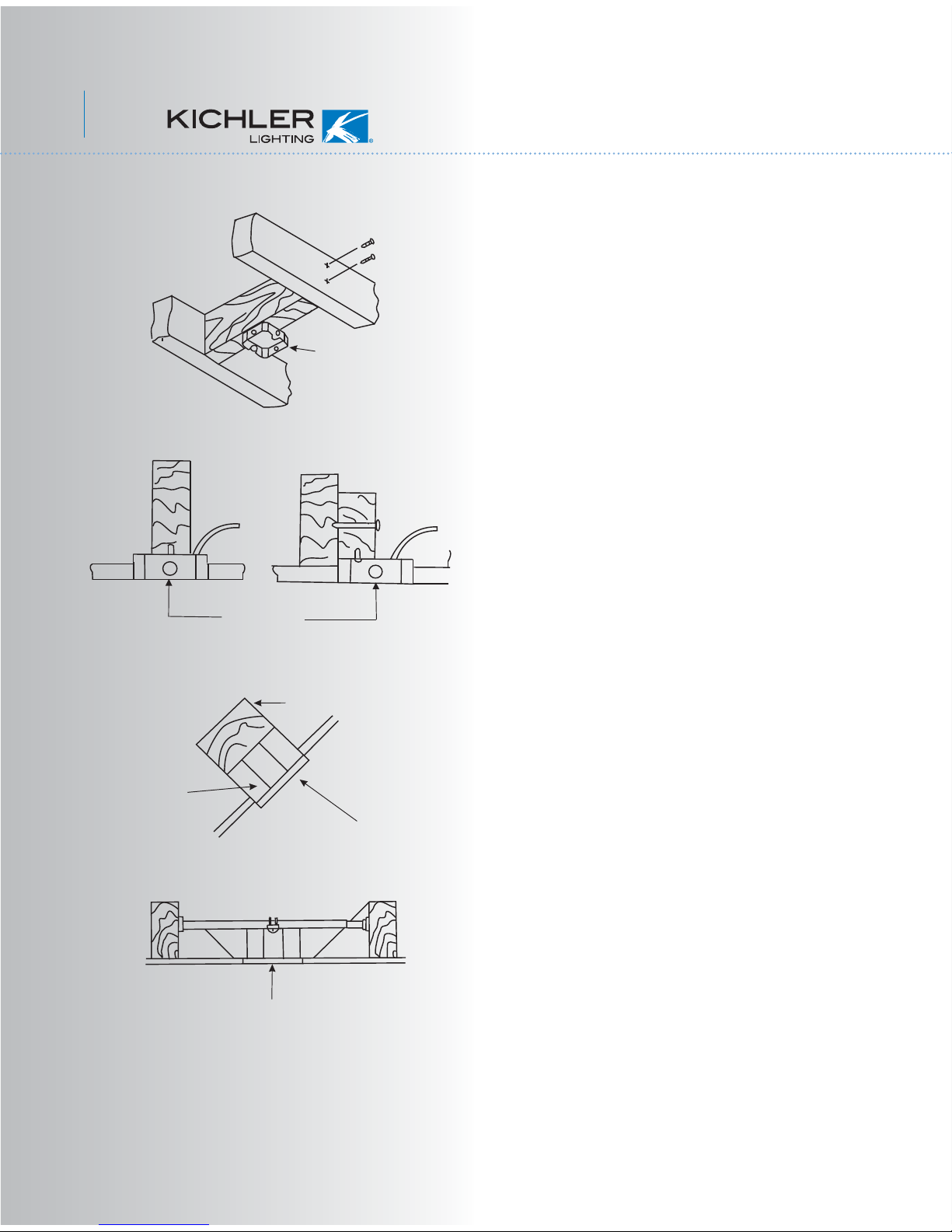

Figures 1, 2 and 3 are examples of different

ways to mount the outlet box.

NOTE: If you are installing the ceiling fan on a

sloped (vaulted) ceiling, you may need a

longer downrod to maintain proper clearance

between the tip of the blade and the ceiling. A

minimum clearance of 12" is suggested for

optimal operation.

NOTE: Depending on the location you have

selected for installation, you may need to

purchase and install a "Joist Hanger" for the

support of the outlet box. Make sure the joist

hanger you purchase has been designed for

use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

Fig. 1

Fig. 3

Fig. 4

Outlet box

Fig. 2

ANGLED CEILING

MAXIMUM 20°ANGLE

Fig. 7

Fig. 8

Mounting screws

(supplied with

electrical box)

Hook

Ceiling

mounting

bracket

UL Listed

outlet box

120V Wires

Washers

Downrod

Cross pin

Hanger

ball Set screw

Fig. 6

Fig. 5

5. HANGING THE FAN

Supply wires

Downrod

Retaining pin

Hitch pin

Set screws

Coupling

Set screws

CelinoTM

Ceiling mounting

bracket

Canopy

Canopy cover

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket

from the canopy by loosening the two screws

on the bottom of the ceiling mounting bracket.

Turn the canopy counterclockwise and

remove. (Fig. 5)

Step 3. Pass the 120 volt supply wires from

the ceiling outlet box through the center of the

ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to

the outlet box using the screws and washers

included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set screw,

removing the cross pin and sliding the ball off

the rod. (Fig. 7)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 8)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 8)

Fig. 9

Fig. 10

Registration slot

Check tab

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats firmly. (Fig. 10)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to properly seat the

"Check Tab" can damage the ceiling fan

during operation.

Hanger ball

Canopy

Canopy cover

Set screws

Hitch pin Retaining pin

Coupling cover

Downrod

CelinoM

Fig. 11

7. ELECTRICAL CONNECTIONS

6. INSTALLATION OF SAFETY SUPPORT

(for Canadian Installation ONLY)

A safety support cable is provided to help

prevent the ceiling fan from falling, please

install it as follows.

Step 1. Attach the provided wood screw and

washer to the ceiling joist next to the mounting

bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to

reach the screw and washer by pulling the

extra cable through the cable clamp until the

overall length is correct. Put the end of the

cable back through the cable clamp, forming a

loop at the end of the cable. Tighten the cable

clamp securely. Now, put the loop in the end of

the safety cable over the wood screw and

under the washer. Tighten the wood screw

securely.

Ceiling mounting

bracket

Attach safety cable

to ceiling joist with

screw and washer

Fig. 12

Fig. 13

Code switch

Receiver

Ceiling

mounting

bracket

WARNING: To avoid possible electrical shock,

be sure you have turned off the power at the

main circuit panel.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts suppled with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose wire strands or

connections.

NOTE: The Hand Held Control System is

equipped with 16 possible frequency

combinations to prevent interference from or

with other remote control units. The frequency

switches on your receiver and transmitter have

been preset at the factory. Please recheck to

make sure the switches on transmitter and

receiver are set to the same position, any

combination of settings will operate the fan as

long as the transmitter and receiver are set to

the same position. (Fig. 12)

Step 1. Insert the receiver into the ceiling

mounting bracket with the flat side of the

receiver facing the ceiling. (Fig. 13)

For best performance, make sure the Black

Antenna, on the end of the receiver, remains

extended and not tangled with any of the

electrical wires.

Step 2. Motor to Receiver Electrical

Connections: (Fig. 14)

Fig. 15

Outlet box

Ceiling Mounting

Bracket

Canopy

Canopy cover

Screws

Fig. 14

Step 1. Tuck all the connections neatly into

the ceiling outlet box.

MAKE SURE the Black Antenna wire on the

receiver remains free from all other wires.

Step 2. Slide the canopy up to ceiling and over

the two screws on hanger bracket. Rotate

canopy clockwise, next, while holding the

canopy with one hand, slide the canopy cover

over the screws and rotate clockwise until

tight. NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig.15)

Connect the black wire from the fan to the

black wire marked "TO MOTOR L" on the

receiver. Connect the white wire from the fan

to the white wire marked "TO MOTOR N" on

the receiver. Connect the blue wire from the

fan to the blue wire marked "FOR LIGHT" on

the receiver.

Secure each set of wire connections with the

plastic wire nuts provided in the parts bag.

Step 3. Receiver to Supply Wires Electrical

Connections: (Fig. 14)

Connect the black (load) wire from the ceiling

outlet box to the black wire marked "AC in L"

on the receiver. Connect the white (neutral)

wire from the ceiling outlet box to the white

wire marked "AC in N" on the receiver.

Secure each set of electrical connections with

with the plastic wire nuts provided in the parts

bag.

Step 4. Connect the ground wire (green or

bare copper) from the outlet box to the ground

wire on the ceiling mounting bracket and the

ground wire from the ceiling fan.

After making all connections, separate the

white and green wire connections to one side

and the black wire connections to the other

side of the outlet box.

Note: Fan must be installed at a maximum

distance of 30 feet from the Hand Held

Remote Transmitter for optimal signal

transmission between the transmitter and the

fan's receiving unit.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

White ("to motor N")

Ground

(green) (Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Outlet box

Black (hot)

Black ("AC IN L")

Black ("to motor L")

Receiver

Blue (for light)

Black (motor)

8. FINISHING THE INSTALLATION

9. ATTACHING THE FAN BLADES

Fig. 16

Fig. 17

10. INSTALLING THE LIGHT FIXTURE

CAUTION: Remove the five rubber shipping

blocks attached to the face of the motor.

These blocks keep the motor from shifting

during shipping and MUST be removed during

installation.

Step 1. Attach the blade to a blade bracket

using the screws, metal washers and fiber

washers provided. (Fig. 16)

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw and then repeat this procedure for each

blade.

Step 2. Attach each blade assembly to the

motor using the "Pre-Installed" mounting

screws in the blade bracket. (Fig 16)

1. Loosen the two screws on the mounting ring

attached to the motor shaft and "remove" and

save the third screw. (Fig. 17)

2. Place the key hole slots on the light fixture

over the two screws previously loosened on

the mounting ring.

Turn the light fixture until is locks in place at

the narrow section of the key hole slots.

Tighten both key hole screws and replace the

third screw previously removed and tighten

securely.

Screws

Blade

Blade bracket

Screws

Metal

washers

Fiber

washers

Light Fixture

Mounting ring

Screws

CelinoTM

Fig. 18

Fig. 19

Step 1. Install 2, 50W T4 halogen bulbs

(provided). (Fig. 19)

Step 2. Raise the glass shade against the light

plate and turn clockwise until snug, do not

overtighten. (Fig. 19)

12. INSTALLING THE LIGHT BULBS AND

GLASS SHADE

NOTE: Before starting installation, disconnect

the power by turning off the circuit breaker or

removing the fuse at fuse box.

Step 1. Loosen the three mounting screws on

the inside of the light fixture.

Hold the light plate close to the light fixture and

connect the white wires from the light plate

and the fan. Follow the same procedure with

the black wire connectors. (Fig. 18)

Step 2. Tuck the connections neatly into the

light fixture. Place the light plate key holes

over the three mounting screws inside the light

fixture and turn the light plate until it locks in

place at the narrow section of the key hole

slots. Secure by tightening all three screws.

(Fig.18)

11. INSTALLING THE LIGHT FIXTURE

Light kit

Wire connectors

Mounting plate

Screws

Glass shade

Light kit

Bulbs

Mounting plate

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting 35156 User manual

Kichler Lighting

Kichler Lighting Golden Iridescence User manual

Kichler Lighting

Kichler Lighting Lija 330140NI User manual

Kichler Lighting

Kichler Lighting Maor 310136 User manual

Kichler Lighting

Kichler Lighting Vinea 52 User manual

Kichler Lighting

Kichler Lighting Verdi User manual

Kichler Lighting

Kichler Lighting 54 Skye LED User manual

Kichler Lighting

Kichler Lighting BASICS PRO SELECT 330017MWH User manual

Kichler Lighting

Kichler Lighting Olympia User manual

Kichler Lighting

Kichler Lighting Pacific Edge 300157 User manual

Kichler Lighting

Kichler Lighting Eads 310135 User manual

Kichler Lighting

Kichler Lighting ZEUS KLF-ZEUS-60-WHT-BN User manual

Kichler Lighting

Kichler Lighting FRYST User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting Riggs 300143 User manual

Kichler Lighting

Kichler Lighting POLA User manual

Kichler Lighting

Kichler Lighting Arkwet Patio User manual

Kichler Lighting

Kichler Lighting Jace LED User manual

Kichler Lighting

Kichler Lighting 35157 User manual

Kichler Lighting

Kichler Lighting BISC 300710MWH User manual

Kichler Lighting

Kichler Lighting IMARI 300365SBK User manual

Kichler Lighting

Kichler Lighting True User manual

Kichler Lighting

Kichler Lighting Lehr II User manual

Kichler Lighting

Kichler Lighting Harbour Walk Patio User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
