Keysight Technologies
N9020A Signal Analyzer
Analog Baseband IQ Inputs (Option BBA) Retrofit Kit
Installation Note
Notices
© Copyright 2012-2015 Keysight Technologies, Inc.
The information contained in this document is subject to change without notice.
Keysight Technologies makes no warranty of any kind with regard to this material, including but
not limited to, the implied warranties of merchantability and fitness for a particular purpose.
Keysight Technologies shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.
Manual Part Number
N9020-90189
Supersedes N9020-90167
Edition
Edition 1, May 2015
Printed in USA/Malaysia
Published by:
Keysight Technologies, Inc.
1400 Fountaingrove Parkway
Santa Rosa, CA 95403
Installation Note N9020-90189 3
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Products Affected: N9020A, MXA Signal Analyzer
Serial Numbers: All
Option BBA
To Be Performed By: (X) Keysight Service Center
(X) Personnel Qualified by Keysighta
( ) Customer
a.To ensure that this newly installed option is functioning properly, the procedure that follows includes the
requirement of performing certain adjustments and performance verification tests. However, the completion of
these tests does not guarantee that the instrument meets all advertised specifications.
Software and test equipment is required for making adjustments and for performance verification testing.
Information on how to obtain this software can be found at:
www.keysight.com/find/calibrationsoftware
While Keysight does recommend that a full calibration be performed after the installation of this upgrade, the
end user must ultimately determine whether they want this service or not. If a full calibration is required,
arrangements regarding the level of calibration must be made between the end user and the calibration
provider.
Estimated Installation Time:
Estimated Adjustment Time:
Estimated Verification Time:
2.0 Hours
0.5 Hours
1.25 Hours
4Installation Note N9020-90189
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Introduction
You may have received a front frame replacement kit and a memory upgrade kit in addition to this
Option BBA upgrade kit. If so, it is recommended that you first verify the amount of RAM in the
analyzer by performing the following steps:
1. Turn the instrument on.
2. Verify that the Operating System can be found and that the Keysight Spectrum Analyzer
measurement application starts up and is sweeping.
3. Connect a USB mouse.
4. Verify the RAM size by going to the Start menu, right click on “My Computer”, and select
“Properties”. A window will pop up showing the computer properties. Under the General
information tab the RAM size will be listed.
If the analyzer has 1 GB of RAM, the memory upgrade must be performed. This upgrade should be
installed during the BBA upgrade when there is access to the processor board. Installing the
memory upgrade now will cause extra assembly time that is not necessary. The BBA upgrade
procedure below will identify the appropriate time to perform the memory upgrade.
If the analyzer identifies as having 1 GB of memory and you did not receive the memory upgrade kit
— Subject: “1 GB Memory Upgrade Kit (BBA Upgrade)”
— Instrument serial number that is being upgraded
— Complete ship to address, so we priority ship the memory upgrade
If the analyzer already has 2 GB of RAM, you do not need to perform the memory upgrade and can
begin converting the installation of the new front frame. Instructions for the front frame
replacement kit are located inside that kit.
This procedure is used to retrofit Option BBA into the N9020A Signal Analyzer.
Earlier vintages of analyzers had an LCD which uses slightly different mechanical parts. This
installation note addresses both the LCD and LED displays.
Installation Note N9020-90189 5
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Installation Kit Parts List
Quantity Description Keysight Part Number
1 BBIQ Main Board N9020-60093
1 LED Board N9020-63095
1 BBIQ Interface Board N9020-60094
1 LED Board Overlay, Bottom N9020-80013
1 LED Board Overlay, Top N9020-80014
1 Cable, Flex Ribbon 8121-1683
1 Cable, Small Coaxial 8121-1401
1 Fan Bracket W1312-00133
1 Cable, Semi-Rigid N9020-20155
1 Cable, Semi-Rigid N9020-20156
1Inverter Top Shielda
a.These items are only used if the analyzer has an LCD display. LCD’s were used on serial prefix < MY or
SG5124 for the N9020A.
N9020-00010
1Inverter Bottom ShieldaN9020-00011
1 Core Bracket N9020-00012
2Grommeta0400-0385
60 Screws, M3 X 0.5 (8 mm long) 0515-0372
1 Vibration Mount 0460-2725
9 Screws, M3 X 0.5 (6 mm long) 0515-1227
9 Screws, M3 X 0.5 (8 mm long) 0515-1035
2 Screws, Hex Shoulder N9020-20017
4 Screws, M5 X 0.8 (14 mm long) 0515-5209
8 Fan Rivets 0361-1272
2 Main Board Warning Labels N9020-80036
1 Entitlement Certificate 5964-5178
1 Entitlement Certificate Envelope 5967-7169
2 #1 Cable Label 7121-5601
2 #7 Cable Label 7121-5607
2 #0 Cable Label 7121-5610
1Channel Grommet (edge protector)a0400-0018
5 Tie Wrap 1400-0249
1 Installation Note This note
1 Probe tip BNC adapter 5063-2143
1 Cable 8120-2682
6Installation Note N9020-90189
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Tools Required
— T-10 Torx Driver
— T-20 Torx Driver
— 5/16-inch torque wrench
— 1/4-inch socket on 4 lb torque wrench
—scissorsorknife
—diagonalcutters
— USB storage device with > 2 GB free memory
Keysight Service Center
The following kit items will not be installed in the analyzer upgrade and need to be shipped back to
the end user for their use:
— 5063-2143, Probe tip BNC adapter
— 8120-2682, cable
— Entitlement Certificate
Before you disassemble the instrument, turn the power switch to Standby and
unplug the instrument. Failure to unplug the instrument can result in personal
injury.
Electrostatic discharge (ESD) can damage or destroy electronic
components. All work on electronic assemblies should be performed at a
static-safe workstation. Refer to the documentation that pertains to your
instrument for information about static-safe workstations and ordering
static-safe accessories.
Installation Note N9020-90189 7
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Installation Procedure
Standard Instrument (Benchtop Configuration)
1. Disconnect the instrument from ac power.
2. Refer to Figure 1. Using the T-20 driver, remove the 4 screws (1) (two on each side) that
attach the strap handles (2) on each side of the instrument.
3. Remove the four key locks from the instrument four bottom feet.
4. Remove the four instrument bottom feet.
5. Using the T-20 driver, remove the four screws (including washers) (3) that hold the rear feet
(4)in place.
6. Pull the instrument cover (5) off towards the rear of the instrument.
If the instrument is placed on its face during any of the following procedures, be
sure to use a soft surface or soft cloth to avoid damage to the front panel, keys, or
input connector.
Make sure any adapters on the front panel are removed.
If the analyzer has Option PRC, Portable Configuration, go to the “Portable
Instrument (Option PRC)” section to remove the outer case.
Installation Note N9020-90189 9
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit
Portable Instrument (Option PRC)
1. Disconnect the instrument from ac power.
2. Refer to Figure 2. Using the T-20 driver, remove the four screws (1), two on each side, to
detach the Bail Handle Assembly (2) from the front frame.

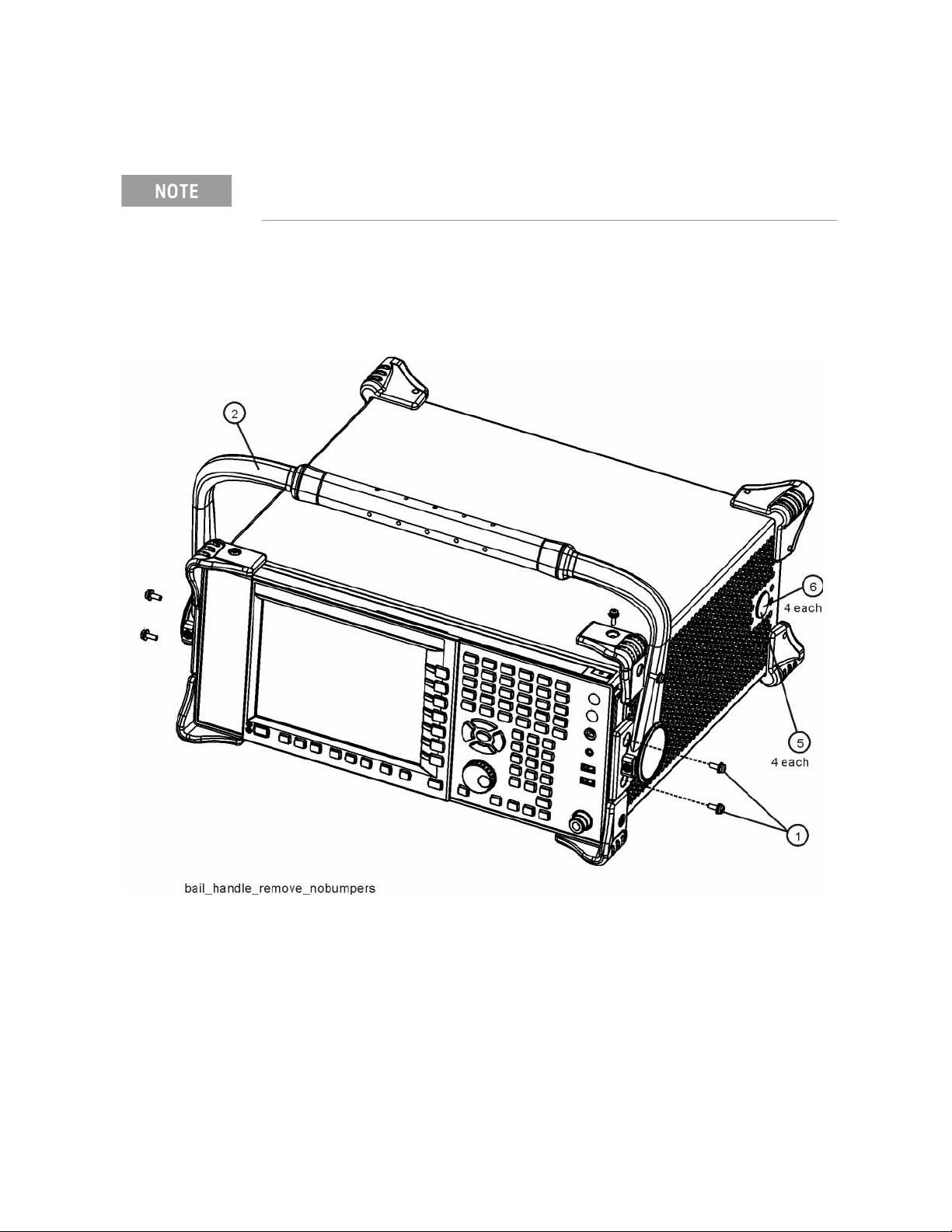

Figure 2 Bail Handle and Front Bumpers Removal (Option PRC)
3. Using the T-20 driver, remove the four screws (6) (two on each side) that attach the four strap
handle plugs (5) from both sides of the instrument. Discard these screws as they must be
replaced with the 0515-5209 screws supplied in this kit. Otherwise damage to the BBIQ
Interface Board will occur.
4. Refer to Figure 3. Using the T-20 driver, remove the four screws including washers (1) that
hold the rear bumpers (2) in place.
5. Pull the instrument cover (3) off towards the rear of the instrument.
Make sure any adapters on the front panel are removed.
10 Installation Note N9020-90189
Option BBA, Analog Baseband I/Q Inputs Retrofit Kit

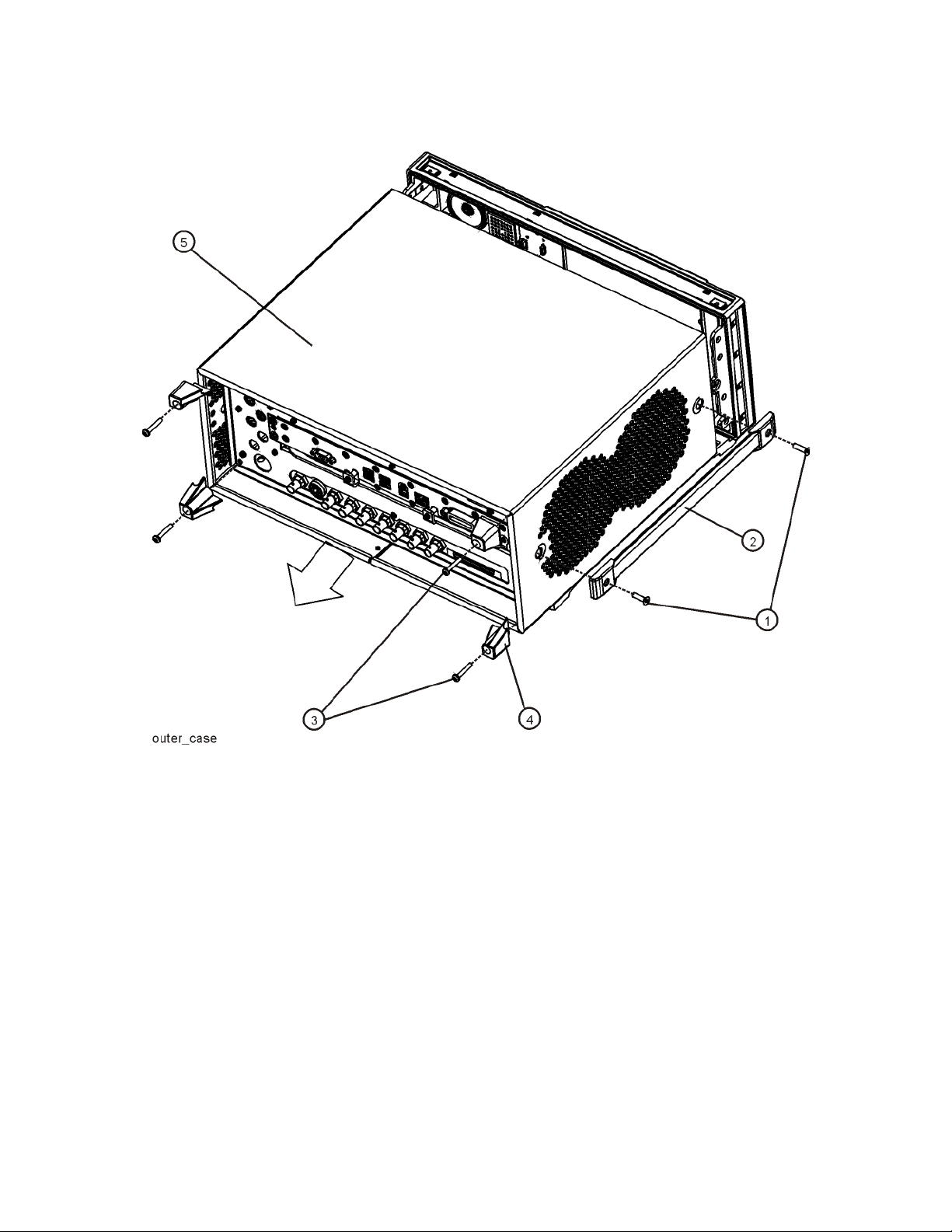

Figure 3 Portable Instrument Outer Case Removal (Option PRC)
