Keysight Technologies E5061B ENA Series User manual

Demo Guide

Keysight Technologies E5061B ENA Series Network Analyzer

Option 3L5/005 LF-RF Network Analyzer with Impedance Analysis, 5 Hz – 3 GHz

Procedure overview

– Connect xture to Gain-Phase test port

– Set measurement parameters

– Perform calibration

– Connect DUT then scale measurement trace

– Perform equivalent circuit analysis

In this demo…

– Impedance measurement (Series-thru method,

GP port)

– Calibration at the xture

– Equivalent Circuit Analysis

Required Instrument and fixture

Instrument

E5061B-3L5/005/720 or E5061BEP-NZA

(E5061BEP-NZA is the package solution which has all

required option for impedance analysis)

In this demo, a 0.1 uF leaded capacitor is measured.

You can evaluate other components as well. Also,

you can even evaluate SMD(chip) components if

you have a test fixture for SMD components (16034E

or 16034G).

Fixture

16047E

DUT

Leaded component

1. Connect fixture to Gain-Phase test port

2. Set measurement parameters

Legend: [Key name] = front panel hardware key

Key name = soft key

Number = front panel hardware numeric key

a. Press [Preset] then press OK

Set measurement traces

b. Press [Display] then press Num of traces , and 2

Press Allocate Traces and x2

c. Set measurement parameters

Press [Meas] the press Impedance analysis menu

Press Method then press GP Series (T 50 ohm, R 1

Mohm)

Press |Z|

Press [Trace Next] to select trace2 then press Cs

d. Set Y-axis to log scale for trace1

Press [Trace Next] to select trace1

Press [Scale] then Y-Axis and Log

What is the method under impedance analysis menu?

There are several topologies (or methods) to measure

impedance depending on the DUT’s impedance range.

With the GP Series (T 50 ohm, R 1 Mohm), Series-

though method at GP (Gain-Phase) port of the E5061B

(port impedance: T: 50 ohm, R: 1 Mohm) is used.

e. Set log sweep parameters

Press [Sweep Setup] then press Sweep type, and

Log Freq

Press [Start] then enter 100 Hz

Press [Stop] then enter 30 MHz

f. Set IF bandwidth

Press [Avg] then press IFBW AUTO

Press IFBW Auto Limit and enter 100 Hz

T 50Ω 20dB R 1 MΩ 20dB

IFBW Auto<= 100 Hz

Start 100 Hz Stop 30 MHz

►Tr2 Cs (GP Series) 200.0mF 0.000F

Tr1 |2| (GP series) Top 1.000kΩ/ BOTTOM 1.000mΩ

This information is subject to change without notice.

Published in USA, August 1, 2014

5990-8374EN

www.keysight.com

Keysight | E5061B ENA Series Network Analyzer – Demo Guide

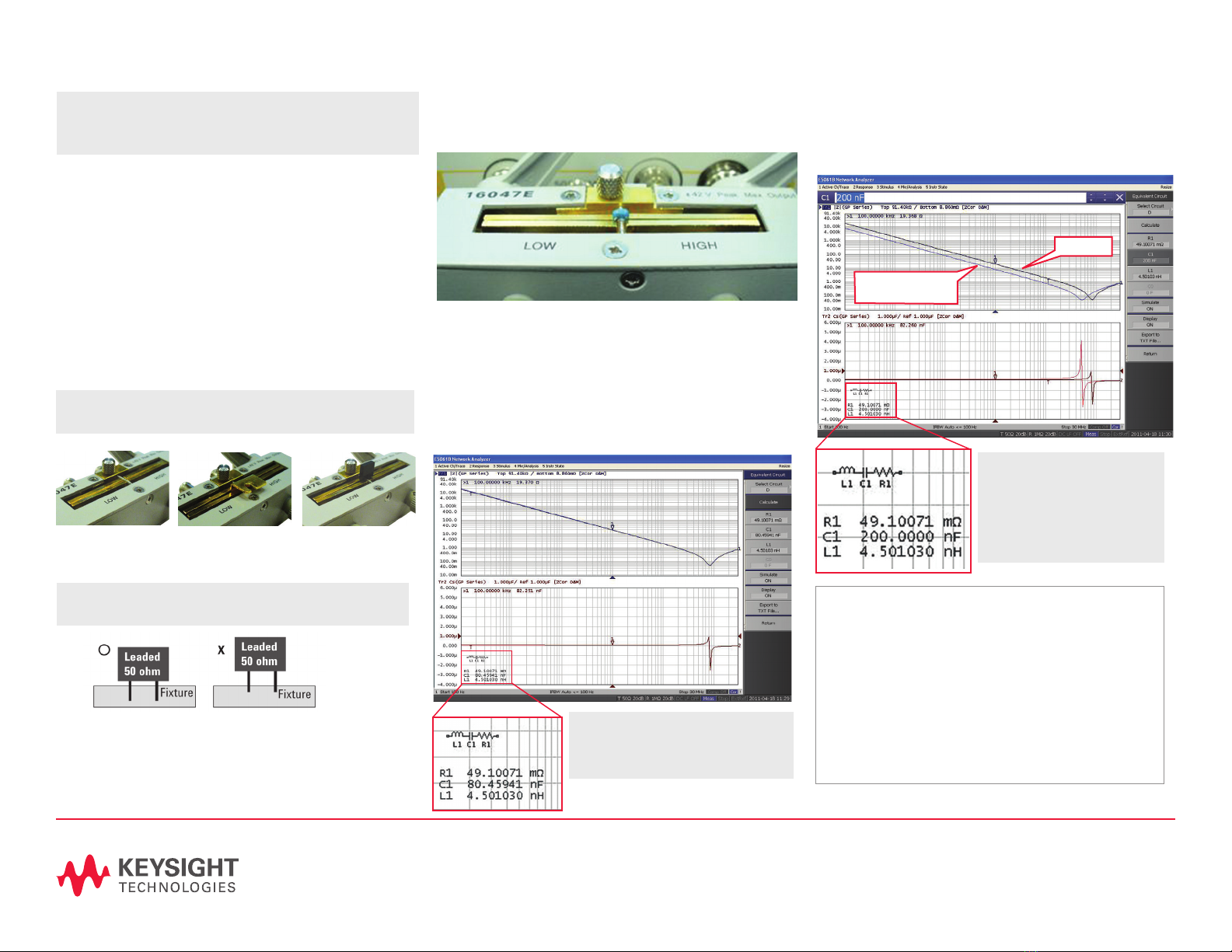

3. Perform calibration

To measure impedance accurately, recommend to

perform calibration. However, if you don’t have

calibration kit, you can skip step 3.

a. Select calibration kit

Press [Cal] then press Cal Kit, and Leaded 50 ohm

b. Measure calibration standard

Press [Cal] then press Calibrate

Press Impedance calibration

Make open state then press Open

Make short sate then press Short

Make load state then press Load

c. Activate calibration

Press Done

Refer to following figure to make each state for the

standard measurement.

Open Load

Short

Insert short bar

(equipped with

fixture)

Nothing Insert 50 ohm

resister

For load state, use leaded 50 ohm standard (5012-

8846) equipped with E5061B-720

4. Connect DUT then scale measurement trace

a. Connect DUT to the xture

b. Press [Scale] then press Auto Scale All

5. Perform equivalent circuit analysis

a. Select equivalent circuit

Press [Analysis] then press Equivalent Circuit

Press Select circuit then press D

Press Display to turn on analysis

Press Calculate

Equivalent circuit is calculated

with the specied circuit model

and measured impedance value.

b. Perform simulation

Press [Analysis] then press Equivalent Circuit

Press Simulate

Press C1 then change value by [↑] or [↓]

Measured trace and

simulated trace can be

compared by changing

each component’s value.

Simulated trace is stored

in the Memory trace.

Which is the right circuit model for my DUT?

Models for equivalent circuit should be selected

depending on the type of the DUT.

A. Inductors with high core loss

B. Inductors with high winding resistance or

resistors with low resistance value

C. Resistors with high resistance value

D. Capacitors

E. Resistors

Measured

Simulated

(stored in Mem trace)
