JSPORT JB101 User manual

Accessories included with your product 配件

Speed MeterJB101

CR2450

8910

Install Battery

安裝示意圖

User Manual

Remove JB101 rubber stand 打開橡皮底座

Pull out battery Ribbon 拉出電池拉帶,

Pull out the battery

ribbon, then following

battery indicator

direction, push battery

into battery holder.

保持電池拉

帶在殼外,注

意殼底部電

池標誌, 電池

保持如圖示

方向塞入電

池座中

LED light flashing when

battery is installed correctly

LED燈亮起,代表

電池安裝正確

Push back the battery ribbon

then cover with rubber stand

at same time

塞回電池拉帶,

闔上橡皮底座

安裝 JB101 上單車

Install JB101 on Bike

Put JB101 on chain stay,

place cable tie on from left

side (inside), keep“JS”logo

facing outside.

由 JB101 後方穿

入束線帶,放置於

單車後下叉桿

Tighten the cable tie, make

sure the cables allow some

space for tilt angle

adjustment

將兩條束線帶束

上,不要束到最

緊,JB101於叉桿

上需要可以左右

滑動

Loosen the magnet screw

and basement, please note

that the magnet basement‘

groove fits with spoke, then

lock magnet screw and

basement together

取出磁鐵,鬆開磁

鐵與磁鐵座,注意

磁鐵座上有凹槽

將磁鐵座上的凹

槽對上單車輪圈

鋼絲, 磁鐵與磁鐵

座對鎖

Adjust magnet to align

triangle mark on JB101 then

tight the screw to lock magnet

location

轉動輪圈,將磁鐵

移至 JB101 附近,

移動磁鐵至磁鐵

對準點 ,鎖緊

磁鐵,固定位置

泡殼

Blister

距離量規

gauge

5mm

Keep magnet and

JB101 on the same

direction

Make sure JB101 and

magnet are both tightly

locked

Completed

installation

保持上述定位

位置

旋緊磁鐵螺

絲

拉緊束線帶

剪掉多餘束帶

安裝完成

① Magnet alignment mark 磁鐵對準點

② LED indicator LED指示燈

③ Cable tie through hole 束帶孔

④ Rubber stand 橡皮底座

⑤ Indicator, battery direction 電池方向圖

⑥ Battery holder 電池座

⑦ Battery ribbon 電池拉帶

⑧ Spoke magnet 感應磁鐵

⑨ Battery 電池

⑩ Cable tie 束帶

Installation diagram

安裝電池

JB101靠緊泡殼上量規後,抽出泡

殼

Put assembly gauge between

magnet and JB101 sensor, close

the magnet.

Push JB101 on the top to tile it

until touch the assemble gauge.

Remove “blister” then

spinning bicycle

wheel then check

the sensor LED light flashing or

not.

If flashing then keep the location

and angle of JB101, tighten both

of cables tie.

於磁鐵和

JB101中間置

入距離量規,

推JB101傾斜

到貼緊量規

,抽出泡殼量規

轉動輪圈,確認

LED燈循序亮

起,定位完成,

將束線帶綁

緊

Visit our JSports website

Android IOS User Manual

APP

Device Requirement

Enable App

Setup

設定鍵

Track Log

紀錄資料夾 Information

產品資訊

Recording

記錄鍵

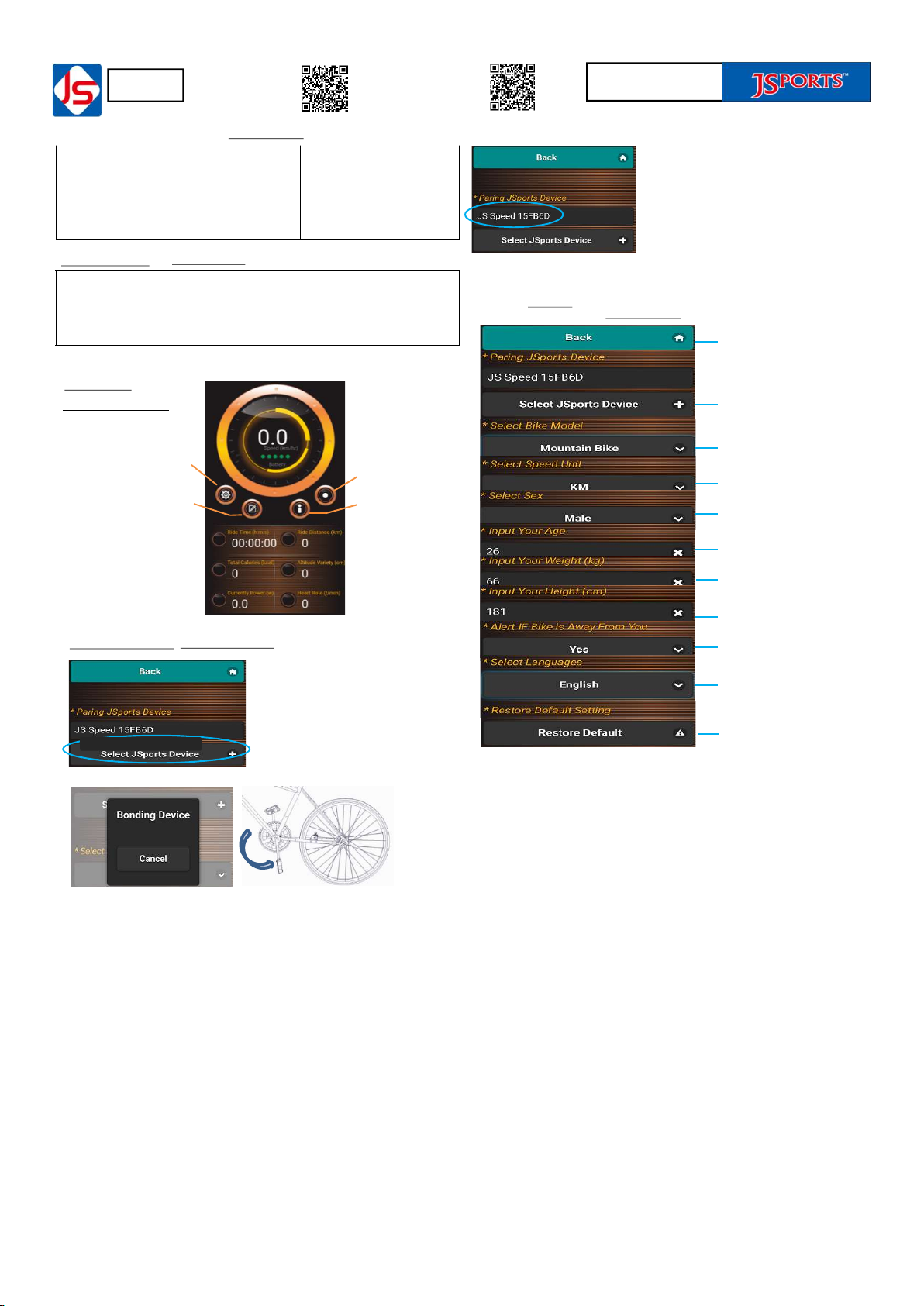

Step 1:

Open the JSports App then press setup

button, go through to "Select JSports

Device “ for Bluetooth Pairing Search

第一步:開啟APP設定鍵,選取“選擇

JSPorts 設備”

Paring Device
