Javad TRIUMPH-3NR User manual
1. Battery Charging
Plug the power adapter into a wall outlet (110 –240V) and plug cable 14-578125-01 into the
TRIUMPH3-NR port indicated by the plug icon. The Battery LED (far left) will show the battery
charge status:
•Green –Fully charged.
•Yellow –Charging in progress.
•Red –Failed Charging
•No Light –Charger connector is not recognized.
2. Power On / Off
a. Power On:
•Press and hold the PWR button for about 2 sec. (the LED will blink blue, indicating the
power button is active).
•Release the PWR button. The PWR LED will flash yellow (device turning on). The SAT
and POS LEDs will flash red/yellow/green several times (system is loading).
•Wait until the PWR, SAT and POS LEDs stop blinking. The rest of LEDs will work
according to their status.
Note: If the PWR LED flashes several times red and turns off, this means the battery is discharged.
b. Power Off:
•Press and hold the PWR button for 2 sec. (the LED will flash yellow).
•The device will turn off.
For a long internal battery pack life, use the JAVAD supplied power cables and adapter.
TRIUMPH-3NR
Quick Start Guide
Version 8
June 2023
Page 2of 2
3. Device Connections
a. JMT via Bluetooth:
Connect the TRIUMPH-3NR to JMT using Bluetooth. Open JMT and click on the connection
icon in the upper right corner to open the ‘Connections screen. Select the
TRIUMPH_3NR_[S/N] with the Bluetooth radio check box enabled (Figure 1).

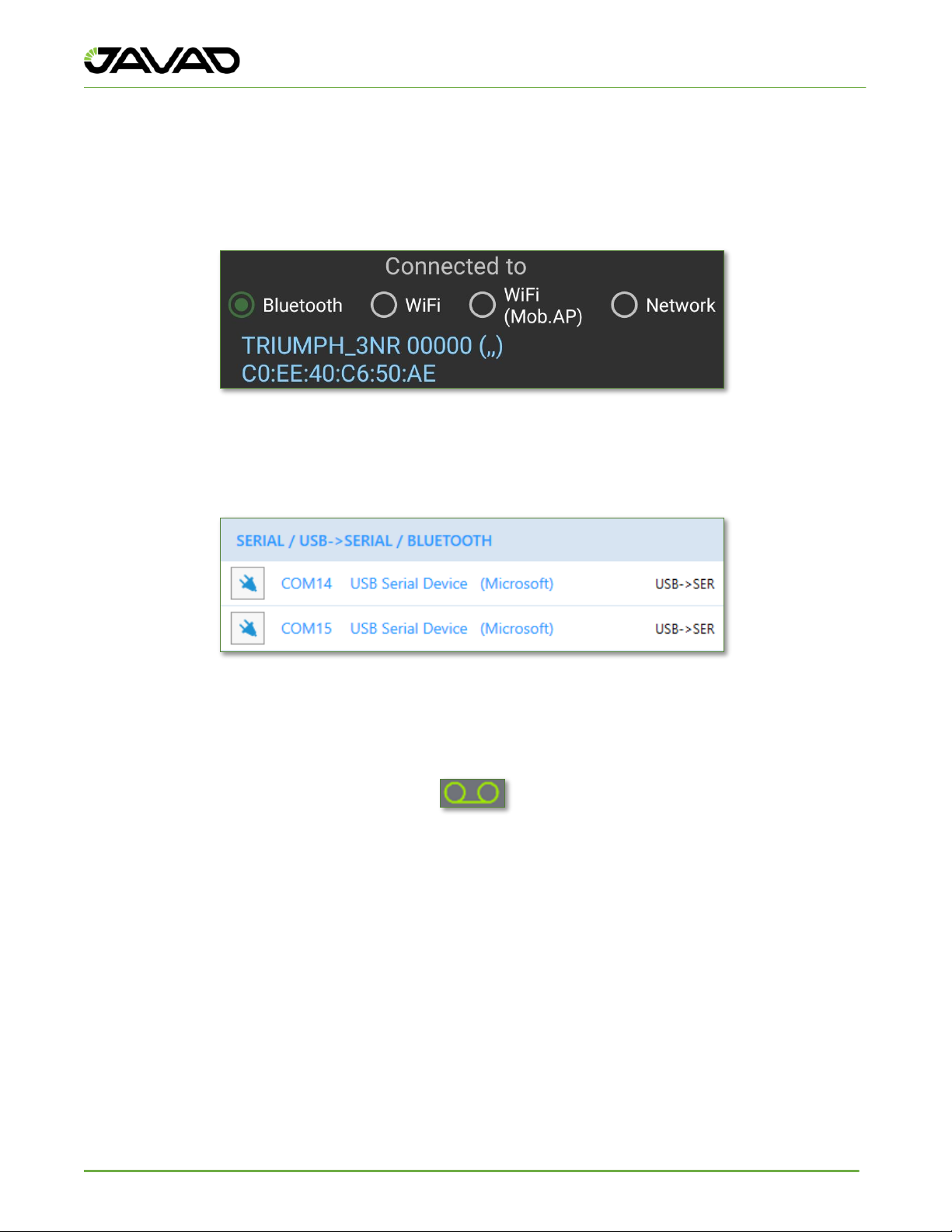

Figure 1: JMT Bluetooth Connection
b. NetView&Modem via USB:
Connect the TRIUMPH-3NR to NetView&Modem using the USB cable (Micro B type, labeled
14-578156-01). Open NetView&Modem and select the USB device port (Figure 2).
Figure 2: NetView&Modem USB Connection
4. Data Logging
Start and stop data logging directly on the TRIUMPH-3NR with the data logging button (Figure
3).
Figure 3: Data Logging Button
Press and hold the data logging button between 1 –5 seconds to start / stop data logging.
Start and stop data logging in JMT (Under Survey Settings), or in NetView&Modem (under the
Files menu).
5. Antenna Name
The TRIUMPH-3NR’s Antenna Name is “JAVTRIUMPH_3NRA”. The antenna name is used to
call calibrated antenna phase center offsets.
