sabella® whirlpool bath

sabella®. dissect the name and you discover beauty—“bella,” the Italian word for beautiful.

Consider the look, and you know that

this clean lined splendor makes a classic

companion to your contemporary interior.

In any décor, the Sabella®is a deep-welled

refuge of profound relaxation.

features:

• 4 fully adjustable PowerPro® jets

• 4 spinning neck jets

• 2 directionally adjustable AccuPro™ foot jets

• Handrails (purchased separately)

• RapidHeat™ inline heater

• Wave Pulse™ system

• Water level sensor

• Multi-speed motor

• 256 color Chromatherapy lighting system

• All-in-one electronic control panel

• Sculpted armrest

• PrO

™

Ozone Sanitation System standard

sabella®whirlpool bath

model number: EH90

exterior dimensions:

72" long x 47" wide x 23¾" high

interior dimensions:

44" long x 26" wide

# of Jets/type of Jets:

4 PowerPro®Jets,

4 AccuPro™ Rotating Neck Jets,

2 AccuPro™ Foot Jets

operating gallons:

98 gallons

Detail: The Sabella® whirlpool’s gentle curves embrace a

relaxing body. Handrails make for safe entry and exit.

(Handrails are a must-buy accessory and are not included.)

Sabella™ Whirlpool Bath

Model: EH90

Installation Notes

Refer to installation instructions included with ﬁxture before beginning installation.

Please conﬁrm product availability and speciﬁcations before commencing with any

installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE

WITHOUT NOTICE.

Ordering Information

Product Code:

EH90Sabella™ Whirlpool Bath

Right Hand

• Center Drain Location

• Accessories / Hardware:

Trim Kit: 4 HTA Jet Rings #M952

Rotary Drain Kit, 30” Cable #K606

Trim Kit: 2 BMH Jet Rings #J869

Oval Trim Kit #N557

2 X Trim Kit: 2 Neck Jet Rings #P556

Panel Overlays #P205

Hand Rails (Must Buy) #D461

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Speciﬁcations

Dimensions

72” L x 47” W x 23-3/4” H

(1829 mm) L x (1194 mm) W x (603 mm) H

Drain/Overﬂow

A: 20 “ (508 mm) B: 14 “ (356 mm)

Cutout

Template Provided Part Number #P187000

Total Weight

1199 lb (544 kg) / 51 lb/sq. ft. (249 kg/m2)

Operating Gallonage

98 U.S. Gal. (371 Liters)

Product Weight

133 lb (60 kg)

Skirt Mounting

Not Available

Electrical Speciﬁcations

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Standard)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

† Add 1/4” to this dimension when roughing-in for 3-wall niche.

72"

10-1/4" 36"

47"

13-3/4"

18" x 4"

Heater

Motor

Opt. Service

Access

12" H x 18" L

Service Access

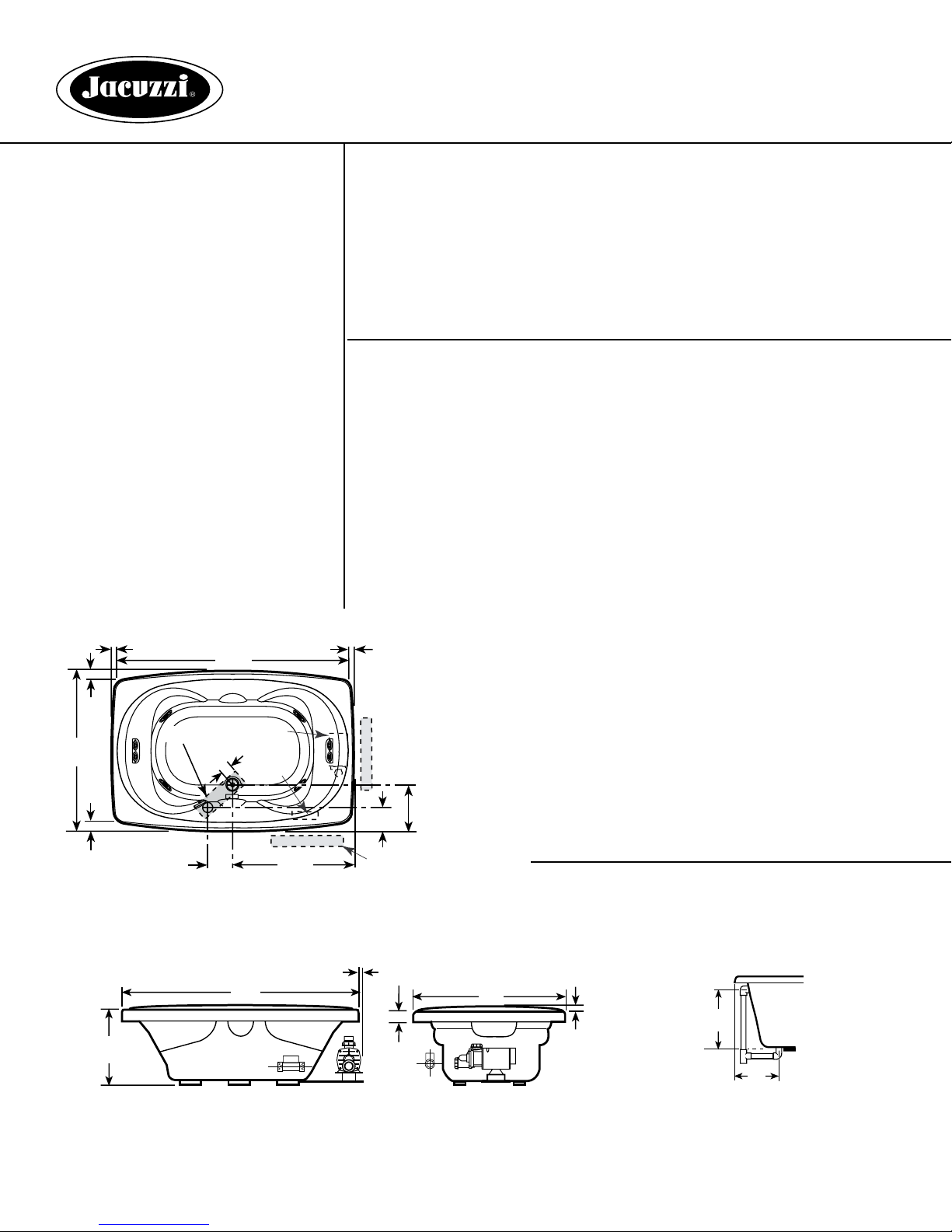

SABELLA

(51 mm)2"

(25 mm)

SIDE VIEW END VIEW

(Heater)

(Motor)

MAX. 1/2"**

#FS12 12/06

DRAIN/OVERFLOW

Product Shown: Sabella™ Whirlpool Bath Right Hand Shown Model: EH90

* Measurements inside unit represent cutout in ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
