Jacuzzi Fuzion 7260 User manual

Fuzion™7260

WHIRLPOOL BATH

UNDERMOUNT,

SINGLE MOTOR with

ILLUMATHERAPY™

MODEL NUMBER:

EG55 (LH)

EG25 (RH)

EXTERIOR DIMENSIONS:

72" long x 60" wide x

211⁄2" high

# OF JETS/TYPE OF JETS:

4 TheraPro™

11 Back Jets & Foot Jets

OPERATING GALLONS:

129 gallons

Bathing has never been like this before. Incorporating

exotic woods, acrylic and state-of-the art bathing

technologies, the Fuzion™combines everything you need

to create your ideal spa experience.

WHIRLPOOL BATH FEATURES:

• Multi-speed motor

• 4 fully adjustable TheraPro®jets

• 11 directionally adjustable AccuPro™ jets

• 256 color Chromatherapy lighting system

• Water level sensor

• Sculpted armrest and contoured backrest with pillows

• All-in-one electronic control panel

• Inﬁnity-edge drain system

• RapidHeat™ inline heater

• Undermount or choose Wenge or Teak wooden deck

• PrO3

™Ozone Sanitation System standard

Fuzion™7260 |WHIRLPOOL BATH UNDERMOUNT, SINGLE MOTOR

Fuzion™7260

WHIRLPOOL BATH

UNDERMOUNT,

SINGLE MOTOR with

CHROMATHERAPY

MODEL NUMBER:

EG40 (LH)

EG10 (RH)

EXTERIOR DIMENSIONS:

72" long x 60" wide x

211⁄2" high

# OF JETS/TYPE OF JETS:

4 TheraPro™

11 Back Jets & Foot Jets

OPERATING GALLONS:

129 gallons

Technical Speciﬁcations

DIMENSIONS

72" L x 60" W x 211⁄2" H

(1829 mm) L x (1524 mm) W x (546 mm) H

DRAIN/OVERFLOW

A: 16-3/4” (425 mm) B: 12-1/16” (306 mm)

CUTOUT

Template provided. PN: DD44000

OPTIONAL DIY (DO-IT-YOURSELF) FRAME

Drawing provided. PN: DE56000

(Drawing comes with tub. Additional copies can be requested.)

TOTAL WEIGHT

1730 lb. (785 kg) / 57.6 lb/ft2(281 kg/m2)

OPERATING GALLONAGE

129 U.S. Gal. (488 Liters)

PRODUCT WEIGHT

199 lb. (90 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

HEATER (STANDARD)

RapidHeat™: P/N S750000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR50000 10/07

Fuzion™7260

WHIRLPOOL BATH UNDERMOUNT, SINGLE

with CHROMATHERAPY

EG40 Fuzion™ 7260 Whirlpool UM—Single Left-hand motor

EG10 Fuzion™ 7260 Whirlpool UM—Single Right-hand motor

Fuzion™7260

WHIRLPOOL BATH UNDERMOUNT, SINGLE

with ILLUMATHERAPY™

EG55 Fuzion™ 7260 Whirlpool UM—Single Left-hand motor

EG25 Fuzion™ 7260 Whirlpool UM—Single Right-hand motor

• Center Drain Location

• Overﬂow ﬁtting comes with tub

• Accessories / Hardware:

TheraPro™ Jet Rings Kit: #D095

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Faucet Installation Note:

Selecting a faucet for rim mounting: The combined thickness of the

tub shell is 1/2” (12, 7 mm) nominal and the undermount deck

should not exceed the length of the faucet tailpiece(s) including any

assembly hardware.

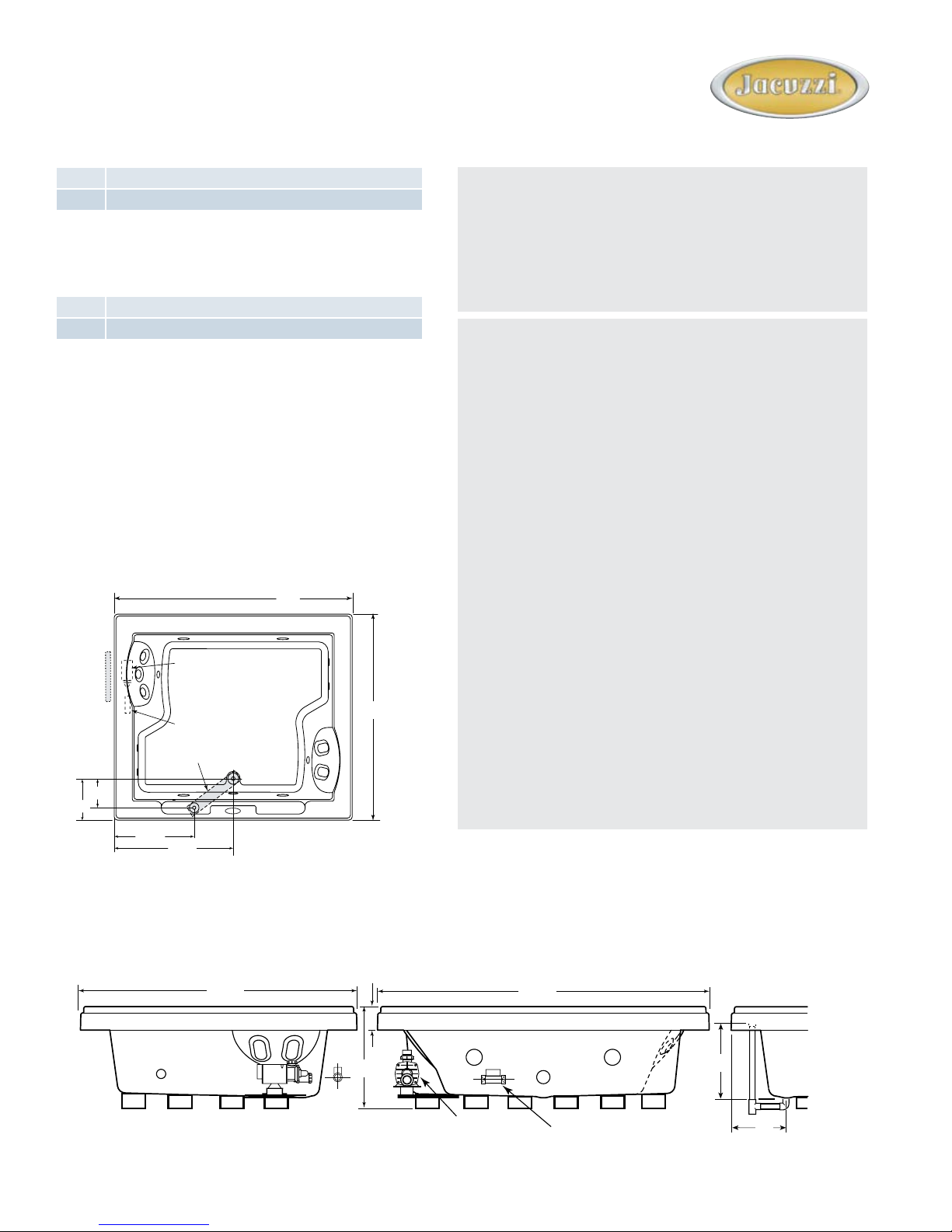

FUZION 7260 SINGLE MOTOR UNDERMOUNT

LEFT HAND MOTOR

Motor

Heater (S)

72"

60"

36"

24.19"

12"

8.47"

18-1/2" x 4"

12" H x 18" L

Service Access

Product Shown: Fuzion™ 7260 Whirlpool

Bath Undermount with Illumatherapy

Single Right Hand Motor Model: EG25

* Measurements inside unit represent cutout

in ﬂoor to allow for drain/overﬂow. Minimum

Service Access dimensions given.

(Motor 1) (Heater) B

DRAIN/OVERFLOW

SIDE VIEWEND VIEW

5" (127 mm)
