Jacuzzi FUZION 7236 RH User manual

Bathing has never been like this before. Incorporating exotic woods, acrylic and

state-of-the art bathing technologies, the Fuzion™combines everything you need

to create your ideal spa experience.

FEATURES:

• Multi-speed motor

• 2 fully adjustable TheraPro®jets

• 12 directionally adjustable AccuPro™ jets

• 900 watt variable speed heated air blower

• Bottom air channels for maximum massage

• Chromatherapy™ lighting system capable of 256 colors

• Water level sensor

• Drain-assist purge system

• Sculpted armrest and contoured backrest

with pillows

• All-in-one electronic control panel

• Inﬁnity-edge drain system

• RapidHeat™ inline heater

• Undermount or choose Wenge or Teak wooden deck

• PrO3

™Cleansing System

Fuzion™7236 |SALON™ SPA with CHROMATHERAPY

Fuzion™7236

SALON™ SPA with

CHROMATHERAPY

MODEL NUMBER:

FD85 (Wenge RH)

FD65 (Teak RH)

EXTERIOR DIMENSIONS:

7011⁄16" long x

353⁄8" wide x 251⁄4" high

# OF JETS/TYPE OF JETS:

2 TheraPro™ Jets

12 AccuPro™ Jets

OPERATING GALLONS:

70 - 94 gallons

Technical Speciﬁcations

DIMENSIONS

70-11/16" L x 35-3/8" W x 25-1/4” H

(1795 mm) L x (899 mm) W x (641 mm) H

DRAIN/OVERFLOW

A: 17” (432 mm) B: 10-1/4” (260 mm)

CUTOUT

69-1/2” (1765 mm) x 34-3/8” (873 mm)

TOTAL WEIGHT

1180 lb. (535 kg) / 65.6 lb/ft2(320 kg/m2)

OPERATING GALLONAGE

82 U.S. Gal. (310 Liters)

Min. 70 U.S. Gal. (265 Liters)

Max: 94 U.S. Gal. (356 Liters)

PRODUCT WEIGHT

200 lb (91 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS

Requires a dedicated GFCI protected separate circuit.

Blower: 120VAC, 20AMP, 60 Hz.

Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

HEATER (STANDARD)

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FR75000 10/07

Fuzion™7236

SALON™SPA with CHROMATHERAPY

FD85 Fuzion™ 7236 Salon™ Spa, Wenge

with Chromatherapy — Right Hand

FD65 Fuzion™ 7236 Salon™ Spa, Teak

with Chromatherapy — Right Hand

• Right Hand Drain Locations

• Overﬂow ﬁtting comes with tub

• Accessories / Hardware:

TheraPro™ Jet Rings Kit: #D095

BMH 2 Jet trim Kit: # J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

DRAIN

VERFL

(

133 mm

)

5-1/4"

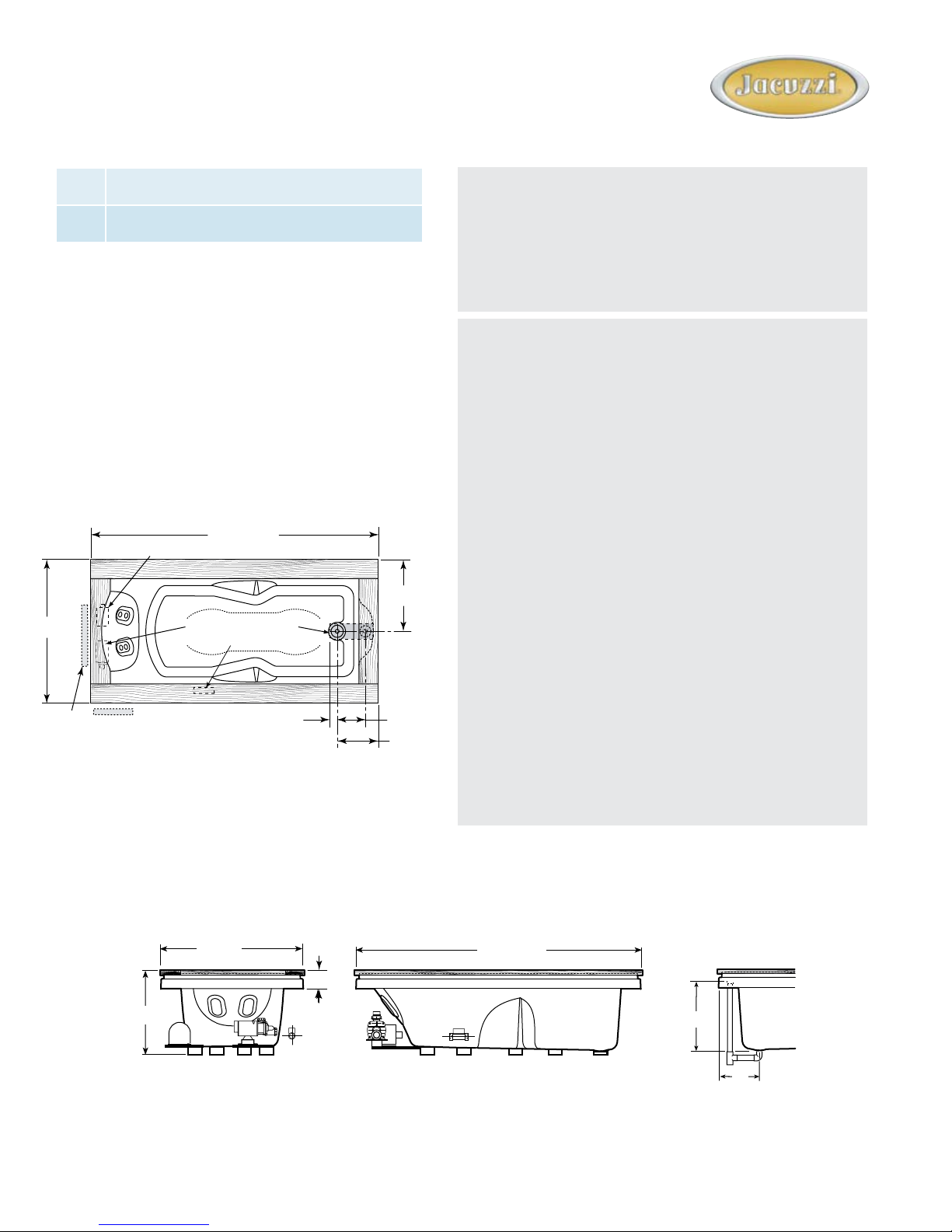

SIDE VIEWEND VIEW

70-11/16"

(Motor)

(Inlet Heater)

25-1/4"

35-3/8"

(Blower)

Motor

Opt. Service Access

17-11/16''

2'' 7''

10-1/4''

12'' x 4"*

Heater

70-11/16''

35-3/8''

12" H x 24" L

Service Access

Blower

Product Shown: Fuzion™ 7236 Salon™ Spa Teak

with Chromatherapy Right Hand Model: FD65

* Measurements inside unit represent cutout in ﬂoor

to allow for drain/overﬂow.

Minimum Service Access dimensions given.
