Infineon TLE8082ES User manual

TLE8082ES + TLE8080EM

Evaluation board

Getting Started

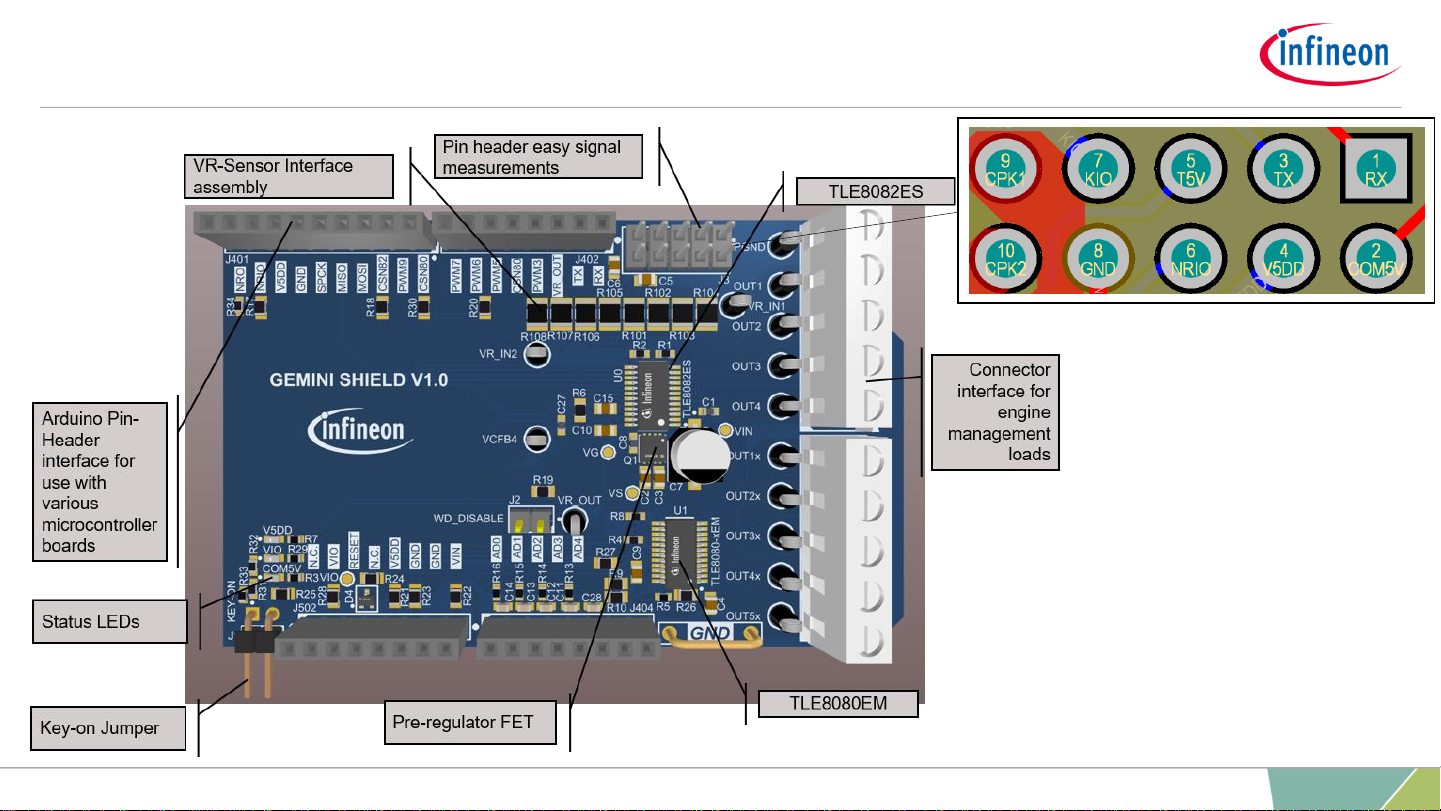

Evaluation board

Overview

An Arduino Sketch is available for two different setups

12V at Vin

GND

USB

Jumper

Key-on

Jumper to

disable

TLE8080EM

watchdog

TLE8080 TLE8082

Note: 2 pins are out of

original Arduino Form

Factor

XMC microcontroller board setup Aurix ShieldBuddy setup

USB Reset button

TLE8082

TLE8080

12V either at

•input plug

(1.5A max) or

•VIN pin

GND

To low side terminal of LOADs

NOTE for ShieldBuddy setup

Set Jumper to VDC option to

supply the Evaluation board and

ShieldBuddy from 12V input

plug (VIN voltage domain)

12V input plug

Software

Prerequisites for XMC setup

›Obtain the official Arduino IDE or any other Arduino IDE you prefer e.g. Visual

Studio Code incl. PlatformIO

–Note: this guide and the UM refer to the Standard Arduino IDE

›Integrate the XMC platforms to your Arduino IDE, see link

XMC microcontroller Software environment

Software

Prerequisites for ShieldBuddy setup

›Obtain the official Arduino IDE or any other Arduino IDE you prefer e.g. Visual

Studio Code incl. PlatformIO

–Note: this guide and the UM refer to the Standard Arduino IDE

›If not done already, please install

–the FreeEntryToolchain to use Aurix microcontrollers

–the ShieldBuddy platform to integrate the ShieldBuddy to your Arduino IDE

–Note: Further details can be found in the ShieldBuddy getting started guide

Aurix ShieldBuddy Software Environment

Select the right target board setup

XMC microcontroller board setup Aurix ShieldBuddy setup

NOTE: select the right

design step, see package

marking

›Please take care that the correct COM port has been selected

›NOTE: check the Windows device manager to identify the correct COM port in case of doubts

Info note for ShieldBuddy

If your PC does not detect the ShieldBuddy as COM port, select following option in your

Windows device manager

Library needed to be included before compile/download

Install the EveryTimer Library (Tools → Manage Libraries) to use the XMC sketch

Main Menu of XMC Script

Open serial monitor and upload Arduino script

Key-in request here

Normal on/off all together

PWM channels 82ch1/2 fixed

PWM channels 80ch1/3 adjustable

VRS adjust

others

1. Select the correct COM port

under “Tools”

2. Open “Serial monitor” under

“Tools”

3. Select correct Baud rate (see

lower right corner)

•XMC: 230400 Baud

4. Upload Sketch under Sketch

upload

5. Overview as shown on the

right pops up

6. Send “s 1” to the terminal to

switch on according output

stages of TLE8080/2

Main Menu XMCGuide
