General specifications
Characteristics Description
Display 3½ Digit LCD display
Display Count 2000 count, maximum reading 1999
Overrange Indication “OL” is displayed
Sampling Rate 2.5 time/second
Operating Environment:
Relative Humidity 0°C to 50°C (32°F to 122°F)
0 ~ 75% RH
Storage Environment: -20°C to 60°C (-4°F to 140°F) at <80% relative humidity

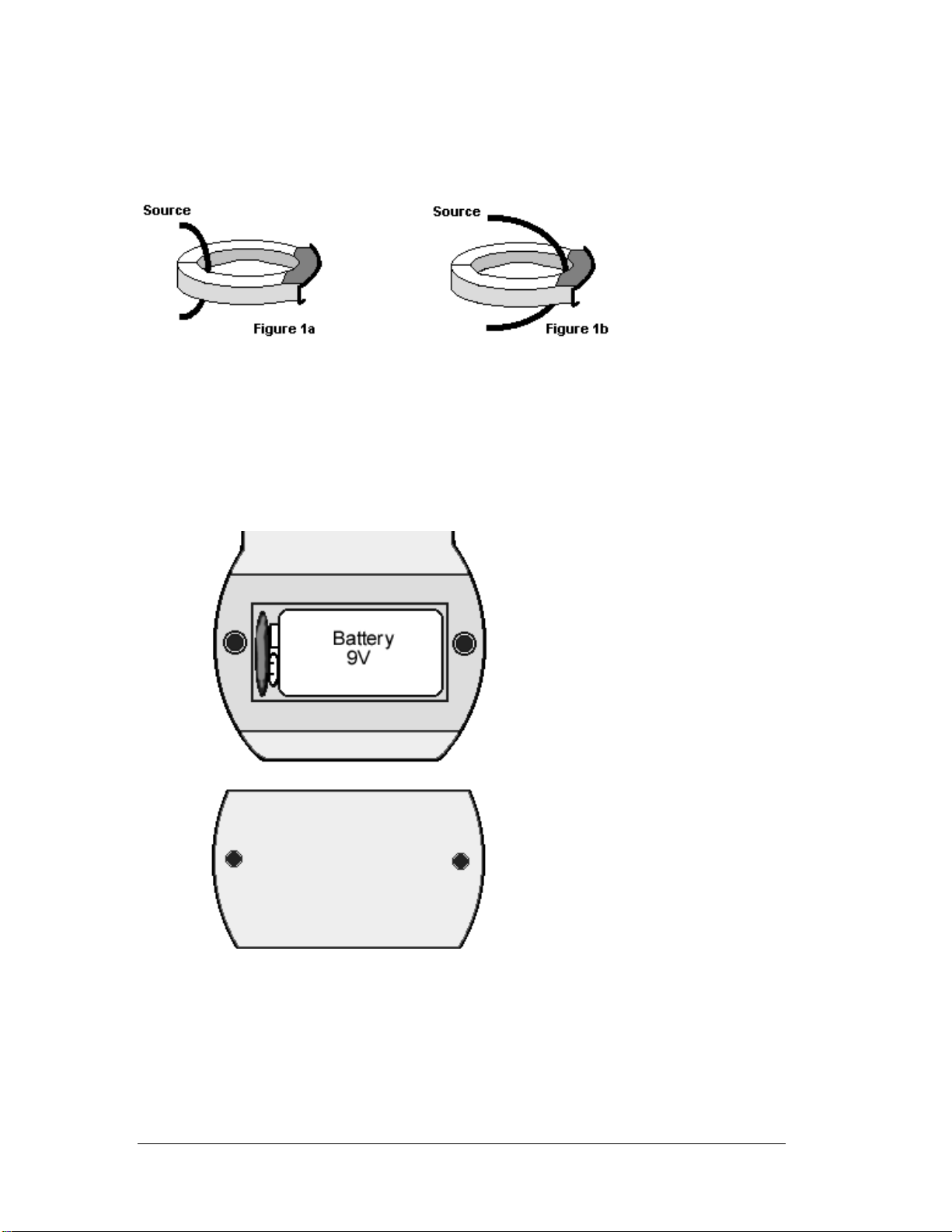

Power source: 9V Battery (NEDA 1604)
Battery Live: 150 hours typical (alkaline)
Low Battery Indicator: symbol indicates low battery voltage
Dimensions 9.7” H X 3.7” W X 1.8” D
247mm H X 94mm W X 46mm D
Maximum Cable Size ACA 1.8” (46mm), DCA 1.9” (48mm)
Weight: Approximately 13.4 oz. or 430g including battery
RANGES and ACCURACY SPECIFICATION
Accuracy: Accuracy specifications at 23°C ±5°C (73.4°F ±9°F) less than 75% RH.
Temperature Coefficient: 0.1 times the applicable accuracy specification per °C
from 0°C to 18°C and 28°C to 50°C (32°F to 64°F and 82°F to 122°F)
Electrical Specification: Accuracy are ±(reading plus number of digits) at 23°C ±5°C <75% RH
Function Setting Ranges Accuracy
AC Voltage 200.0/600V at 50-60 Hz 1.2% ±4digits
AC Voltage 200.0/600V at 40-500 Hz 2.0% ±4 digits
DC Voltage 600V 0.5% ±1 digit
AC Current 200.0/1000A at 50-60 Hz 1.75% ±4 digit
AC Current 200.0/1000A at 40- 500 Hz 3.50% ±5 digit
DC Current 200/1200A 1.5% ±5 digits
Frequency 2K ~ 20KHz (Auto-ranging only) 0.1% ±3 digits
Resistance 2.000K/200.0K 1.2% ±1 digit
Diode Check 1mA ±0.6mA 6.0% ±3 digits
Continuity Approximately < 30Ωon 2KΩ,
<100Ωon Diode, Continuity 6.0% ±3 digits
AC Converter: True RMS Responding, RMS Calibrated to Sine Wave
Overload Protection: AC and DC Voltage: 600 VDC or VAC rms for no more than one minute.
Resistance, Diode check, Continuity.: 600 VDC or VAC rms
Current: Not to exceed 1200 amp DC or 1000 amp AC for
no more than one minute.
Form number TM61724 Rev 2 Sept 2006
