IBASE Technology MB945 User manual

MB945

Socket LGA775

Intel®Q45 Chipset

Industrial Motherboard

USER’S MANUAL

Version 1.0B

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel is a registered trademark of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MB945 User’s Manual iii

Table of Contents

Introduction.......................................................1

Checklist..............................................................................1

Product Description.............................................................2

Specifications......................................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

ATX Power Installation ......................................................7

Installing the Memory.........................................................8

Setting the Jumpers .............................................................9

Connectors on MB945 ......................................................14

BIOS Setup.......................................................27

Drivers Installation......................................50

Intel Chipset Software Installation Utility.........................51

Intel Graphics Driver Installation......................................53

Realtek HD Codec Audio Driver Installation ...................55

LAN Drivers Installation...................................................57

Intel Matrix Storage Manager Driver................................59

Intel Management Engine Interface..................................61

Intel Active Management Technology..............................63

Appendix...........................................................68

A. I/O Port Address Map...................................................68

B. Interrupt Request Lines (IRQ)......................................69

C. Watchdog Timer Configuration....................................70

MB945 User’s Manual

Ordering Information:

Model ICH SATA Intel LANPHY PCI-E Gigabit LAN

MB945 ICH10DO 6 82567LM N/A

MB945F ICH10DO 6 82567LM PCI-E GbE (Intel82574L)

NOTE FOR SATA AHCI and RAID DRIVER

1. Assuming the drivers DVD is in D drive, the path for the

relevant files is D:\SataRaid\ICH10DO

2. During Windows XP installation, press F6 and note the

file path for driver installation.

NOTE FOR iAMT

1. Assuming the drivers DVD is in D drive, the path for the

iAMT files is in D:\Intel\Q45\iAMT\iAMT5.0

2. This note only applies if you are using the MB945AF

motherboard.

INTRODUCTION

MB945 User’s Manual 1

Introduction

Checklist

Your MB945 motherboard package should include the items listed

below:

•The MB945 motherboard

•This User’s manual

•1 Back I/O shield

•1 IDE cable

•1 Floppy cable

•1 SATA cable

•1 Serial-Port cable

•1 CD containing the following:

•Chipset Drivers

•Flash Memory Utility

INTRODUCTION

MB945 User’s Manual

Product Description

The MB945 LGA 775 motherboard incorporates the Intel Q45 chipset

that utilizes a single LGA775 processor and supports

800/1066/1333MT/s (200/266/333 MHz) FSB.

The Q45 chipset is designed for use with the Core 2 processor family,

including a faster 1333 MHz system bus. The integrated GMCH

component provides the CPU interface, DDR3 interface, Hub Interface

and PCI Express graphics interface.

Four DDR3 memory sockets support DDR3 800/1066 SDRAM DIMM

modules of up to 8GB in capacity.

The board is designed with an Intel 82567LM Gigabit Ethernet PHY and

an optional Intel 82574LM PCI Express Gigabit Ethernet. Six Serial-II

ATA connectors offer3Gb/s data throughput speed - faster than the most

advanced parallel ATA.

Expansion includes four PCI slots, one PCI Express x1 and one PCI

Express x16 and one ISA slot. Other advanced features include twelve

USB 2.0 ports, IrDA interface, digital I/O, four serial ports, watchdog

timer and audio function. Dimensions of the board are 12” by 9.5” in an

ATX form factor.

INTRODUCTION

MB945 User’s Manual 3

Specifications

Product Name MB945

Form Factor ATX

CPU Type Intel® Core™2 Duo Processor E8000 and E7000 series

Intel® Core™2 Quad Processor Q9000 series

Intel® Core™2 Extreme Processor QX9000 series

CPU Speed Up to 3.0 GHz or higher

CPU FSB 800/1066/1333MHz FSB

L2 Cache Up to 12MB

Green /APM APM1.2

CPU Socket LGA775

Chipset Intel Eaglelake:Q45 + ICH10DO Chipset

GMCH : AC82Q45, 34mm x 34mm, 1254-pin FC-BGA

ICH10DO: AF82801JDO, 31mm x 31mm, 676-pin mBGA

BIOS Award BIOS, support ACPI Function

Memory DDRIII 800/1066MHz

- DIMM x 4 (w/o ECC), Max. 8GB

VGA Q45 built-in Intel gen.5.0 Graphics Media Accelerator , supports

DirectX10 (Vista), Integrated DP, DVI, VGA SDVO; Dual

Independent Display

LAN 1. ICH10DO Gigabit MAC + PHY:

•Intel 82567LM Gigabit Ethernet PHY

2. Intel 82574L PCI-e Gigabit LAN controller x1 (MB945F)

USB ICH10DO built-in USB 2.0 host controller, supports 12 ports

Serial ATA ICH10DO built-in SATA controller, supports 6 ports

Parallel IDE/ CF - JMicron JM368 (PCI-e to PATA) x1 for 1 PATA channel for

IDE & CF: IDE 40 pin and vertical CF socket x 1

Audio ICH10DO built-in HD Audio controller: ALC888 w/ 7.1 channels

LPC I/O Winbond W83627DHG: IrDA x1, COM1 (RS232), COM2

(RS232/422/485), Hardware monitor (3 thermal inputs,

4 voltage monitor inputs, VID0-4 & 2 Fan Headers)

- Fintek 81216G for COM 3. COM4

Digital IO 4 in & 4 out

TPM1.2 ICH10DO built-in iTPM version1.2 controller by firmware

Keyboard/Mouse Supports PS/2 Keyboard/Mouse connector

Expansion Slots PCI slot x4, PCI-e (x1) slot x1 and PCI-e (x16) slot x1, ISA slot x1

Edge Connector PS/2 Connector x1 for keyboard/mouse

Gigabit LAN RJ-45 + dual USB stack connector x2

DB9 + DB15 stack connector x1 for COM 1 & VGA

DB25 connector x1 for SPP/ECP/EPP

RCA Jack 3x2 for HD Audio

Onboard

Header/Connector 40-pin box-header x1 for IDE

34-pin box-header x1 for FDD

SATA connector x6 for 6 ports SATAI/SATAII

CF connector x1 for CF Card

2x5-pin pin-header x4 for 8 ports USB

2x5-pin pin-header x1 for front panel audio

2x5-pin pin-header x3 for COM2/3/4

2x5-pin pin-header x1 for Digital IO

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

Other LAN Wakeup

RoHS Yes

Board Size 305mm x 244mm (12” x 9.5”)

INTRODUCTION

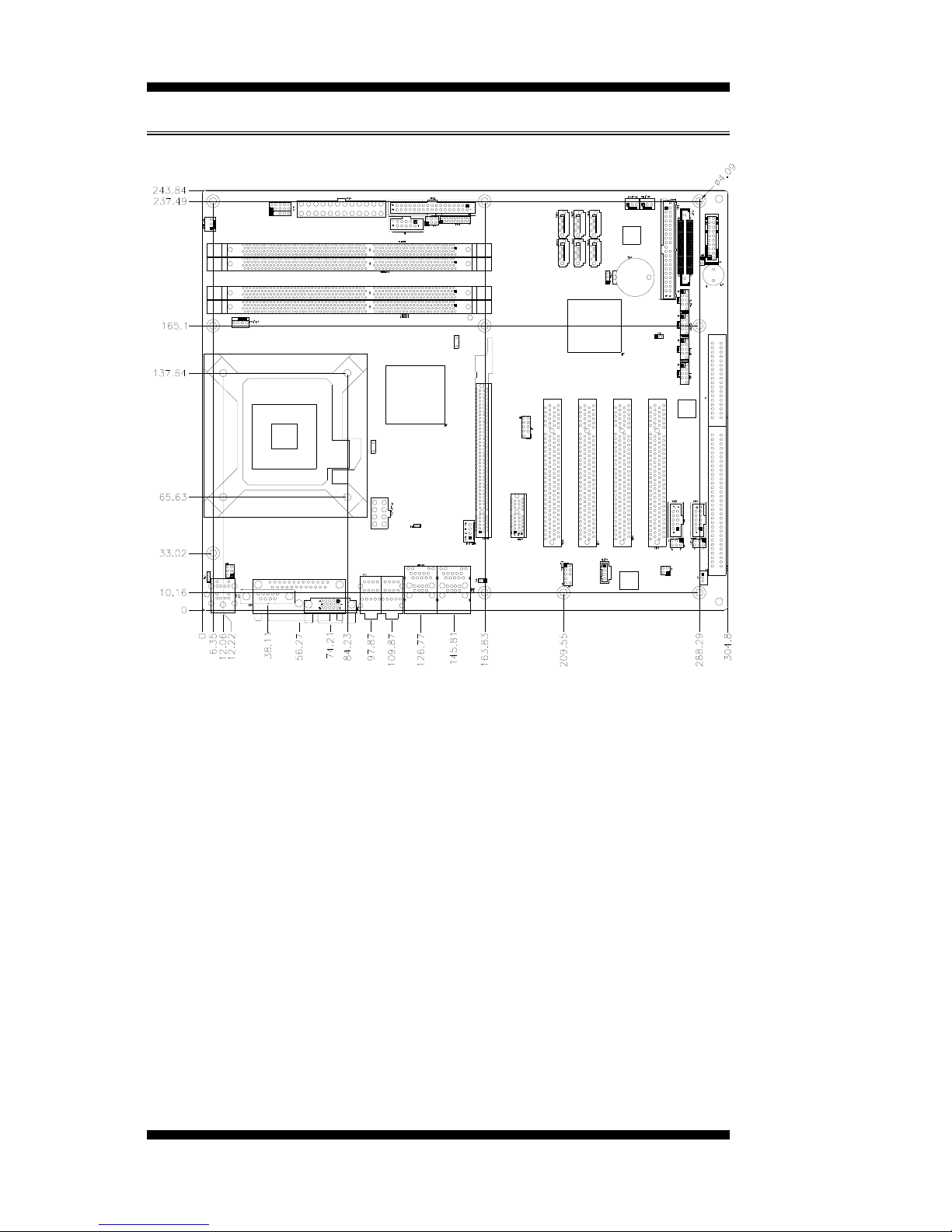

Board Dimensions

MB945 User’s Manual

INSTALLATIONS

MB945 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MB945/MB945F in order to set up a workable system.

The topics covered are:

Installing the CPU ................................................................................. 6

ATX Power Installation......................................................................... 7

Installing the Memory ........................................................................... 8

Setting the Jumpers................................................................................ 9

Connectors on MB945......................................................................... 14

INSTALLATIONS

Installing the CPU

The MB945 motherboard supports an LGA 775 processor socket for

Intel Core 2 Duo and Intel Core2 Quad processors.

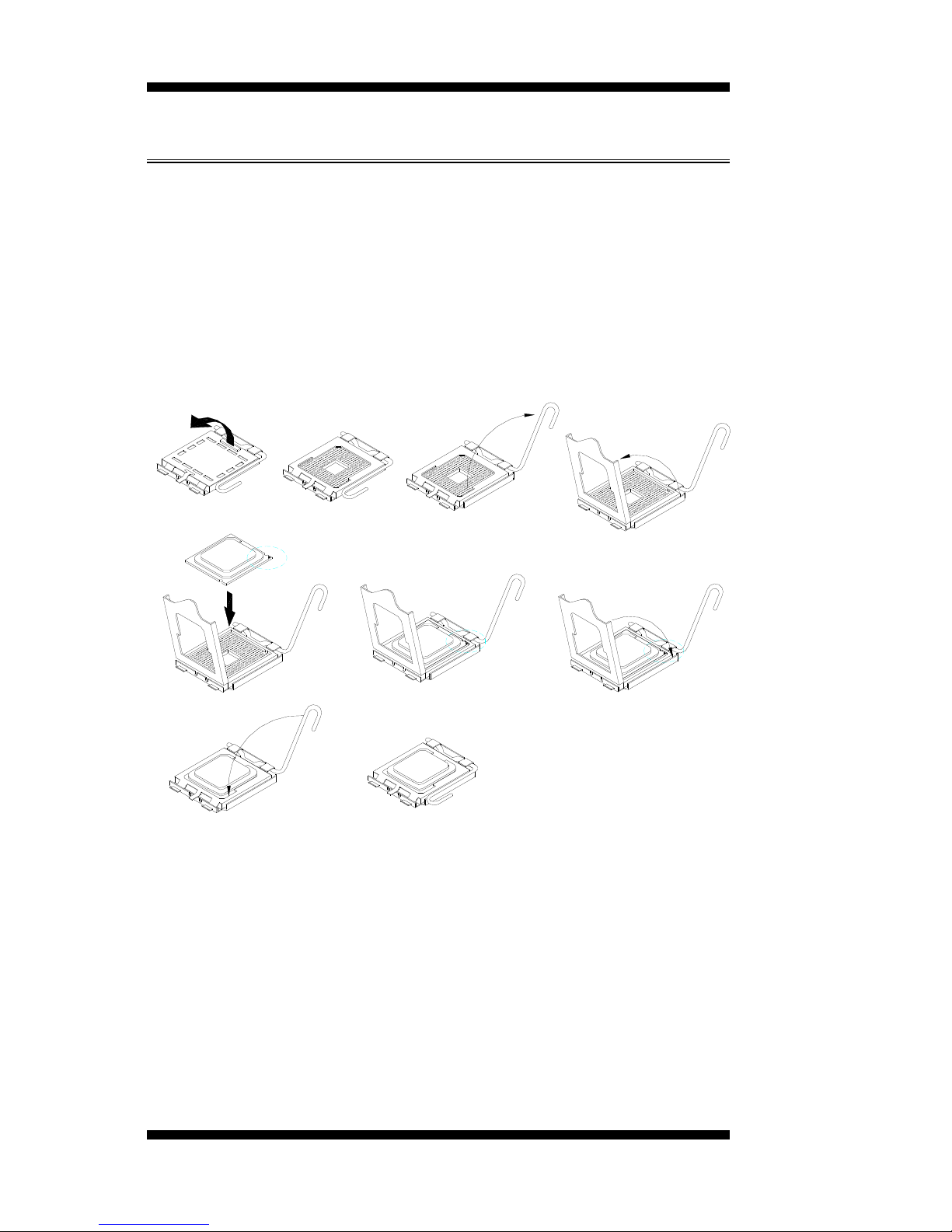

The LGA 775 processor socket comes with a lever to secure the

processor. Refer to the pictures below, from left to right, on how to place

the processor into the CPU socket. Please note that the cover of the

LGA775 socket must always be installed during transport to avoid

damage to the socket.

MB945 User’s Manual
