IBASE Technology IB895 User manual

IB895

Intel ®Cedarview-D or

Cedarview-M / NM10

3.5”Disk Size SBC

USER’S MANUAL

Version 1.1A

IB895 User’s Manual

Acknowledgments

AMI is a registered trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Sandy Bridge DC/QC Processor are registered

trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB895 User’s Manual iii

Table of Contents

Introduction...................................................... 1

Product Description............................................................1

Checklist.............................................................................2

IB895 Specifications ..........................................................3

Board Dimensions..............................................................4

Installations...................................................... 5

Installing the Memory.........................................................6

Setting the Jumpers.............................................................7

Connectors on IB895........................................................11

BIOS Setup.......................................................19

Drivers Installation......................................39

Intel Chipset Software Installation Utility.........................40

VGA Drivers Installation..................................................41

Realtek HD Audio Driver Installation ..............................42

LAN Drivers Installation ..................................................43

Appendix...........................................................44

A. I/O Port Address Map..................................................44

B. Interrupt Request Lines (IRQ)......................................46

C. Digital I/O Sample Code..............................................47

D. Watchdog Timer Configuration...................................52

IB895 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB895 User’s Manual 1

Introduction

Product Description

The IB895 is a 3.5-inch single board computer based on the Intel®Atom

Cedarview chipset. The Cedar Trail is a platform that uses the Intel

Cedarview-D or Cedarview -M Processor and Intel NM10 Express

Chipset family in the desktop platforms.

The role of the processor in the system is to manage the flow of

information between the following interfaces: DDR3 System Memory

interface, DVI display interface, VGAgraphics interface, Low Voltage

DifferentialSignaling (LVDS) and the Direct Media Interface (DMI). The

processor supports single channel, one DDR3 SODIMMs.

The Intel®processors provide advanced performance in both computing

and graphics quality. This meets the requirement of customers in the

gaming, POS, digital signage and server market segment.

The processor is built on 32-nanometer Hi-K process technology with

Micro-FCBGA11 packaging.

IB895 FEATURES:

Supports Intel®Cedarview -D and Cedarview-M processors

One DDR3 SO-DIMM, 800/1066 MHz, Max. 2GB/4GB

memory*

Integrated Graphics for DVI-I, LVDS displays

2 x SATA Connector

4x COM Port Connector

2 x Mini-PCIe(x1) slot (w/ USB support)

2x GbE (RJ-45) Connector

1x 24V to 12V DC-IN Power Connector

*Note: IB895 with Intel Atom D2550 supports up to 4GB memory

and IB895N with Intel Atom N2600 supports up to 2GB memory.

INTRODUCTION

IB895 User’s Manual

Checklist

Your IB895 package should include the items listed below.

The IB895 Embedded Flex Motherboard

This User’s Manual

1 CD containing chipset drivers and flash memory utility

INTRODUCTION

IB895 User’s Manual 3

IB895 Specifications

Product Name

IB895 [default silk screen model # on PCB]

IB895N(N2600 onboard)

Form Factor

3.5”

CPU

Type/Speed

Intel® AtomTM DC D2550 / 1MB cache / 1.86 GHz [TDP=10W] (IB895)

Intel® AtomTM DCN2600/ 1MBcache/1.60GHz[TDP=3.5W] (IB895N)

Package = FCBGA437 [ 22 mm x 22 mm] ; Cores / Threads = 2 / 4

Chipset

Intel®CG82NM10 PCH [TDP = 2.1W]

Package = BGA360, 17mm x 17 mm

BIOS

AMI BIOS, support ACPI Function

Memory

Intel®AtomTM on-die memory controller

1x DDR3-1066 SO-DIMM socket [Horizontal type]

Maximum memory: 4GB for D2550; 2GB for N2600

Non-ECC, Unbuffered, 1.5V

VGA

Intel® GMA 3650 (Gfx freq @ 640MHz) for D2550

Intel® Graphics MediaAcc GMA elerator 3600 (Gfxfreq @ 400MHz) for

N2600

Supports DirectX 9 Graphics, OpenGL 3.0

DVI-I x 1 (Thru VGA + ASM1422 for DVI-D via D2550 or N2600)

LVDS

24-bit dual channel via CH7511thru eDP

LAN

Intel 82583V PCIe Gigabit LAN x 2

USB

NM10 built-in USB 2.0 host controller, support 6 ports

Serial ATAPorts

NM10 built-in SATA II controller, supports 2 ports

Audio

Intel®NM10 PCH built-in HD Audio controller + Realtek ALC269QHD

Codec w/class-D speaker amplifier(2.3W per channel @ 5V power

supply) [7mm x 7mm @ 48-QFN] ; support 2-channel audio out + amp

LPC I/O

Nuvoton NCT6627UD [128-pin QFP, 14x14x1.4mm]

-COM #1 (RS232/422/485) support ring-in with power @500 mA

(selectable for 5V or 12V) [EXAR SP339EER1 232/422/485

transceiver x 1 for jumper-less]

-COM #2 (RS232 only)

-COM #3 / COM #4 (RS-232 only)

[Hardware Monitor]

2 x Thermal inputs; 2 x Voltage monitoring

1 x Fan Header(DC Fan type)

Digital IO

4 in & 4 out

Keyboard/

Mouse Connector

Pin headers

Expansion Slots

Mini PCI-e socket x 2 (1x Full-sized+1xHalf-sized)

**Full-sized MiniPCIe(1x) support mSATA**

Edge Connector

DVI-I, 2x RJ45, 2x USB, COM1

Onboard

Header/Connector

Keyboard/mouse, 4x USB 2.0, 2x DF13 for 24-bit dual channel LVDS,

Audio, speaker, COM2, COM3/4, LPC (80-port card debugging

purpose), 2x MiniPCI-e(1x), smart battery, backlight/brightness control,

2x power connector SATA HDD [JST type]

INTRODUCTION

IB895 User’s Manual

[Watchdog

Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

Power

Connector

+12V ~ +24V DC-in

Others

- i-Smart function (TI MSP430G2433 MCU)

- AT24C02C EEPROM [SO8 type] via SMbus (Optional)

OS Support

- Windows 7 (32-bit only)

- Linux

RoHS

Yes

Board Size

102mm x 147mm

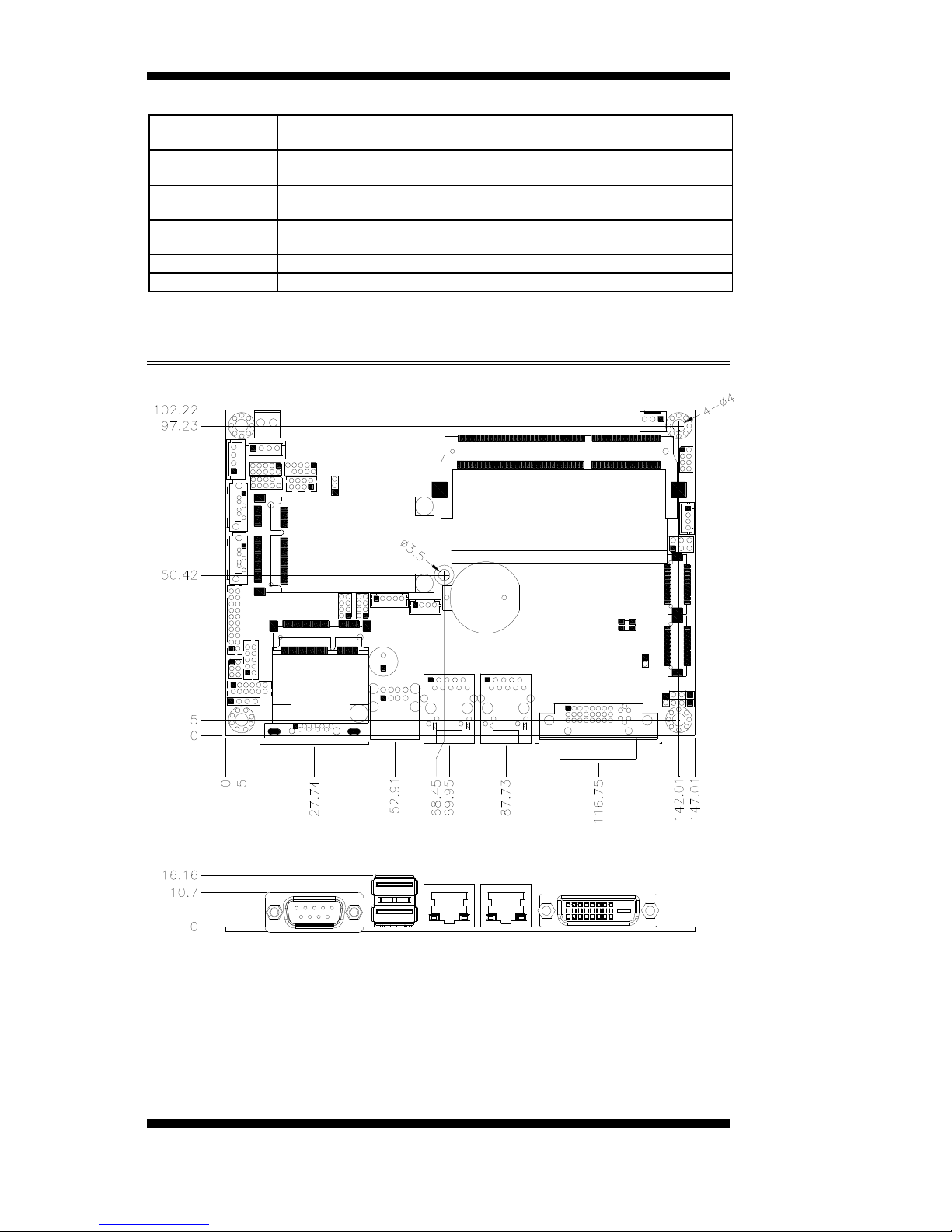

Board Dimensions

INSTALLATIONS

IB895 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the IB895 in order to set up a workable system. The topics

covered are:

Installing the Memory..........................................................................6

Setting the Jumpers..............................................................................7

Connectors on IB895.........................................................................11

INSTALLATIONS

IB895 User’s Manual

Installing the Memory

The IB895 board supports one DDR3 memory socket for a maximum

total memory of 2GB or 4GB DDR3 memory type.

Note: IB895 with Intel Atom DC D2550 supports up to 4GB and

IB895N with Intel Atom DC N2600 supports up to 2GB.

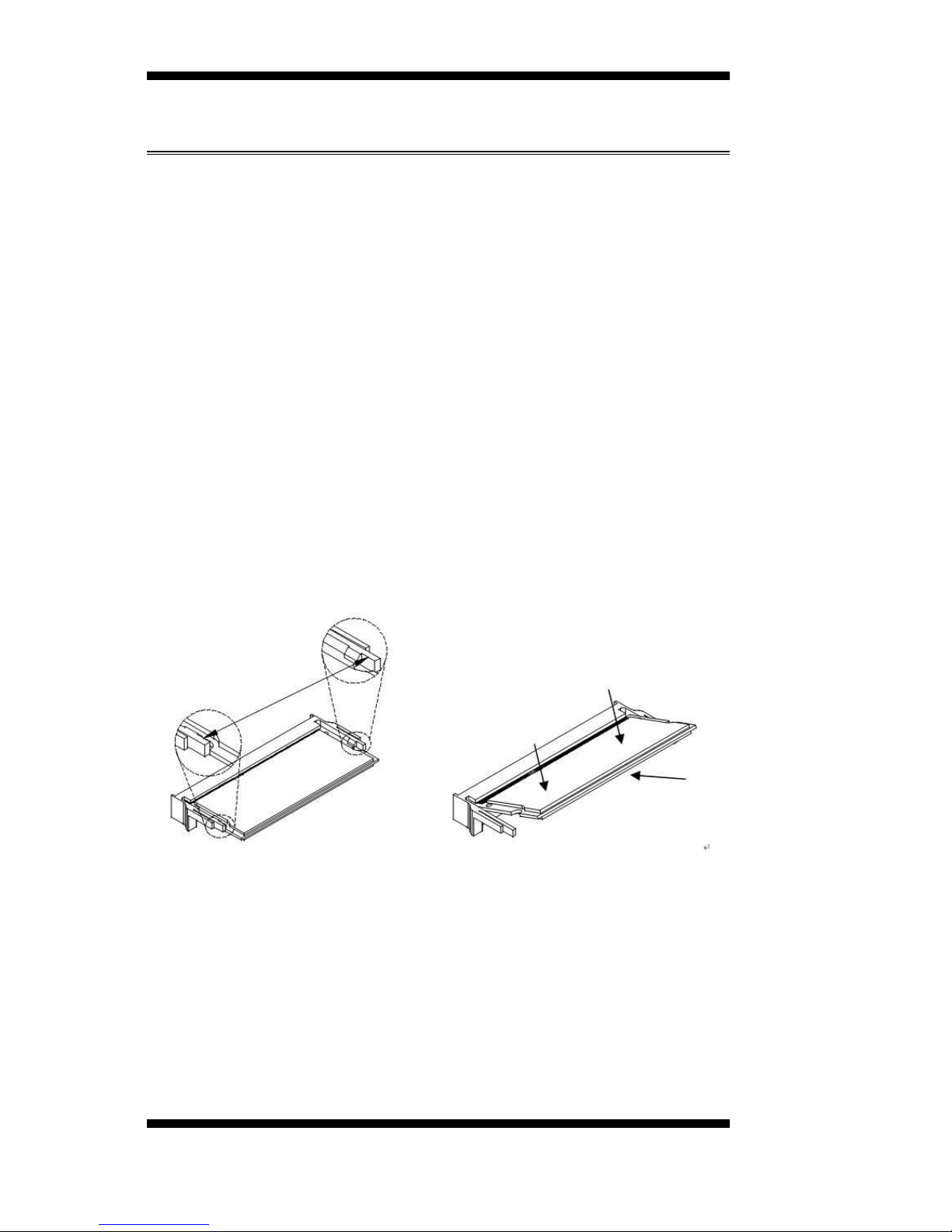

Installing and Removing Memory Modules

To install the DDR3 modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR3 module so that the key of the DDR3 module aligned

with that on the memory slot.

2. Gentlypush the DDR3 module in an upright position until the clips of

the slot close to hold the DDR3 module in place when the DDR3

module touches the bottom of the slot.

3. To remove the DDR3 module, press the clips with both hands.
