HunterDouglas Skyline Parts list manual

Installation •Operation •Care

Skyline®Gliding

Window Panels

Manual Control Systems

CONTENTS

Questions?

Call the Hunter Douglas Customer Information Center at

1-888-501-8364.

Getting Started:

Mounting Types and Window Terminology...............................................................1

Unpack the Box.....................................................................................................1

Installation Components Required ........................................................................2

Optional Components............................................................................................4

Tools and Fasteners Needed .................................................................................5

Product View — Skyline®Gliding Window Panels ...................................................6

Product View — Top Treatment Options .................................................................7

Installation:

Inside and Ceiling Mount Applications.....................................................................8

Outside Mount Applications .................................................................................16

Metal Box Valance Installation..............................................................................17

Fabric-Wrapped Large Cassette Installation

(Inside and Outside Mounts) ................................................................................21

Mount the Headrail..............................................................................................23

Outside Mount Valance Installation (Optional)........................................................26

Attach the Universal Cord Tensioner (Cord Loop Units Only) ..................................29

Fabric Panel Installation.......................................................................................30

Connect the Bottom Weights................................................................................39

Install the Room Divider Kit (Optional) ...................................................................40

Operation:

Operate the Panels..............................................................................................43

Adjustments .......................................................................................................44

Troubleshooting ..................................................................................................51

Care:

Removal Procedures ...........................................................................................53

Cleaning Procedures ...........................................................................................56

Child Safety:

Warning .............................................................................................................57

Cord Loop Panels................................................................................................57

GETTING STARTED

Thank you for purchasing Hunter Douglas Skyline®Gliding Window Panels. With proper

installation, operation, and care, your new unit will provide years of beauty and performance.

Please thoroughly review this instruction booklet and enclosed packing list before beginning the

installation.

Mounting Types and Window Terminology

If the installation brackets are mounted correctly, the rest of the installation process ﬂows easily.

To prepare for this important ﬁrst step, review the mounting types and basic window terminology

illustrated below.

Unpack the Box

■Carefully remove the rolled up fabric panels and set aside. Locate the panels marked

“FRONT — INSTALL LAST” and “REAR — INSTALL FIRST.” Set them aside, separated

from the other panels. Do not unroll the panels until installation. Carefully remove the

headrail and optional valance from the packaging. Keep all packaging until the unit

operates to your satisfaction.

■Save these instructions for care and cleaning, panel removal, unit removal, and

reinstallation procedures.

■Check the Product Views on pages 6 and 7 to make sure you have all of the necessary

parts. Contents of the hardware package may vary depending upon how the unit was

ordered and how it will be mounted.

Outside Mount

Shade is mounted outside

window opening.

Inside Mount

Shade ﬁts within

window opening.

Collectively, the sill and

jambs are called the

“window casement.”

Molding

Head Jamb

Sill

Jamb Jamb

GETTING STARTED

Installation Components Required

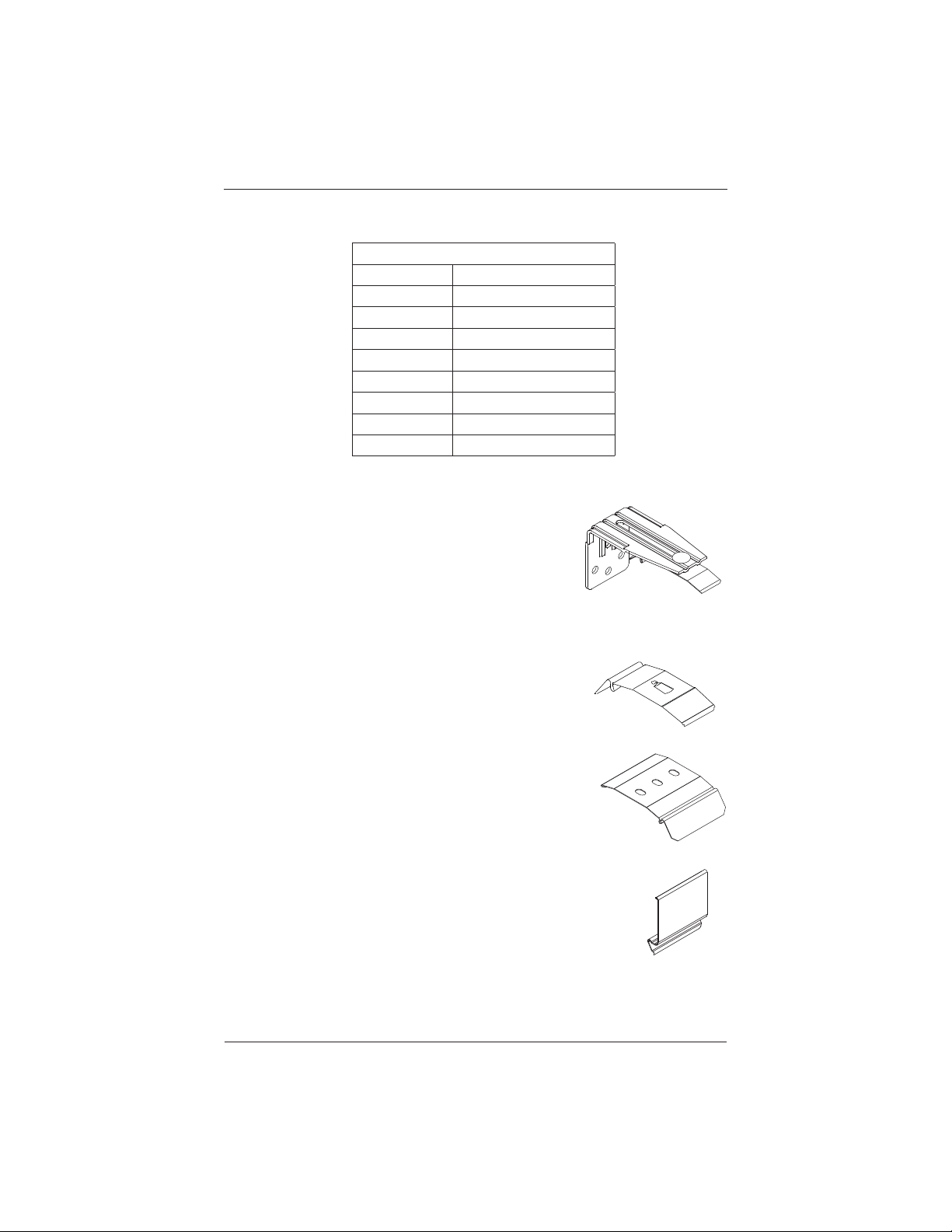

■Installation Brackets. This style of installation bracket

is used for outside mounts. The number of installation

brackets required varies based on headrail width, as

shown in the table above.

■Mounting Clips. This style of mounting clip is used for inside

mounts. The number of mounting clips required varies based

on headrail width, as shown in the tableabove.

■Splice Clip. A splice clip allows a long headrail to be split

in half during shipping, and reconnected during installation.

Once installed, a spliced headrail functions seamlessly as if it

were onepiece.

■Valance Splice Clip. A splice clip allows a long valance to be

split in half during shipping, and reconnected during installation.

Once installed, a spliced valance functions seamlessly as if it were

onepiece.

Valance and Headrail Installation Brackets

Width Brackets/Clips Required

28" – 32" 2

32 1/8" – 56" 3

56 1/8" – 80" 4

80 1/8" – 104" 5

104 1/8" – 128" 6

128 1/8" – 152" 7

152 1/8" – 176" 8

176 1/8" – 200" 9

Installation Bracket

Mounting

Clip

Splice

Clip

Valance Splice Clip

GETTING STARTED

■Fabric-Wrapped Large Cassette Installation Bracket.

This style of installation bracket is used for Skyline®units ordered

with the fabric-wrapped large cassette. The brackets are used in

both inside and outside mount applications. The number of

installation brackets required varies based on headrail width, as

shown in the tablebelow.

■Fabric-Wrapped Large Cassette Splice Clip. This component is only

provided with Skyline units ordered speciﬁcally with a spliced headrail.

This clip joins two pieces of the cassette together. Once installed, a

spliced cassette functions seamlessly as if it were onepiece. If you

have not ordered the Skyline unit with a spliced cassette, you will not

receive this component.

■Fabric-Wrapped Large Cassette Splice Cover. This is the decorative

trim cover over the fabric seam in a spliced fabric-wrapped large

cassette. It will also be used when the fabric is seamed. The fabric

seaming is sometimes necessary to obtain the full width of the

cassette. In this case, the splice cover will be installed by the

fabricator. If you have not ordered the Skyline unit with a fabric-

wrapped large cassette, you will not receive this component.

■Universal Cord Tensioner (UCT). The UCT functions as a safety

device that makes the cords less accessible to children and

pets for those units with a cord control. The cord control will

not function properly without the UCT installed correctly.

Fabric-Wrapped

Large Cassette

Installation Bracket

Cassette Installation Brackets Required

Shade Width Brackets Required

Up to 36" 2

361

/8" – 72" 3

721

/8" – 90" 4

901

/8" – 120" 5

1201

/8" – 156" 6

1561

/8" – 192" 8

Fabric-Wrapped

Large Cassette

Splice Clip

Fabric-Wrapped

Large Cassette

Splice Cover

Universal Cord Tensioner

GETTING STARTED

Optional Components

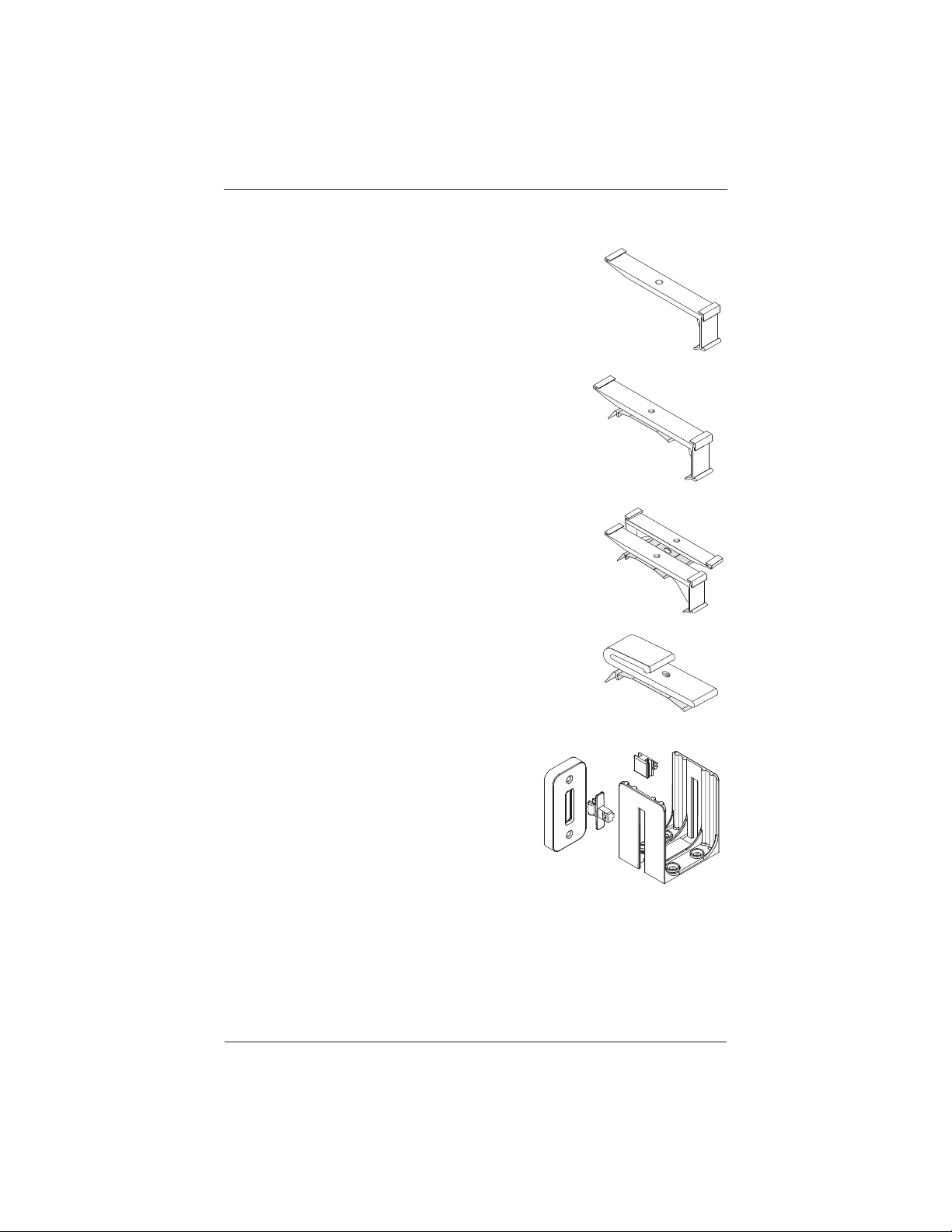

■Valance Brackets Inside Mount. The number of valance

brackets will be the same as the number of installationbrackets

shown in the table on page 2.

■Valance Brackets Outside Mount. The number of valance

brackets will be the same as the number of installation brackets

shown in the table on page 2.

■Box Valance Brackets. A box valance wraps around the

entire headrail. The number of valance brackets will be the same

as the number of installationbrackets shown in the table on

page2.

■Fabric Valance Installation Brackets. The number of

fabric installation brackets will be the same as the number

of installationbrackets shown in the table on page 2. These

brackets are only used for outside mounts.

■Room Divider Kit. This set of parts holds the

panels in place at each end of a Skyline®unit used as

a room divider.

Valance Brackets

Inside Mount

Valance Bracket

Outside Mount

Box Valance

Bracket

Fabric Valance

Mounting Bracket

Room Divider Kit

GETTING STARTED

Tools and Fasteners Needed

■Flat blade and Phillips screwdriver

■Level (laser level is recommended)

■Measuring tape and pencil

■Needle nose pliers

■Power drill and drill bits (1∕4" hex

driver also recommended)

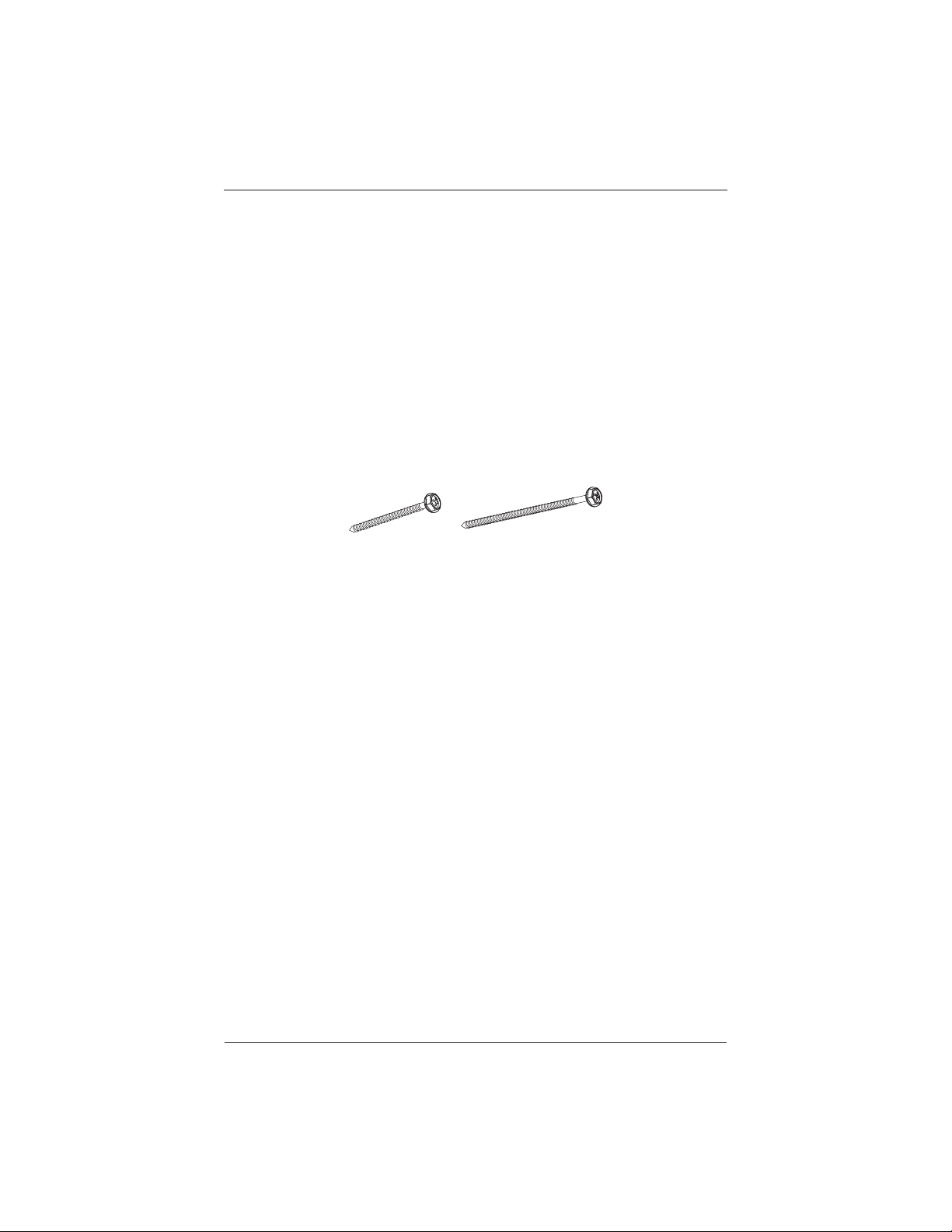

In addition, you will need fasteners designed to work with your speciﬁc mounting surface(s).

■#6 Hex Head Screws (Provided). Two 11∕2" screws are provided per installation bracket.

■Longer #6 Hex Head Screws (Not Provided). If using spacer blocks, use #6 screws

long enough for a secure attachment.

#6 x 1½"

Hex Head Screw

(Provided)

Longer #6 Hex Head Screw

For Use With Spacer Blocks

(Not Provided)

GETTING STARTED

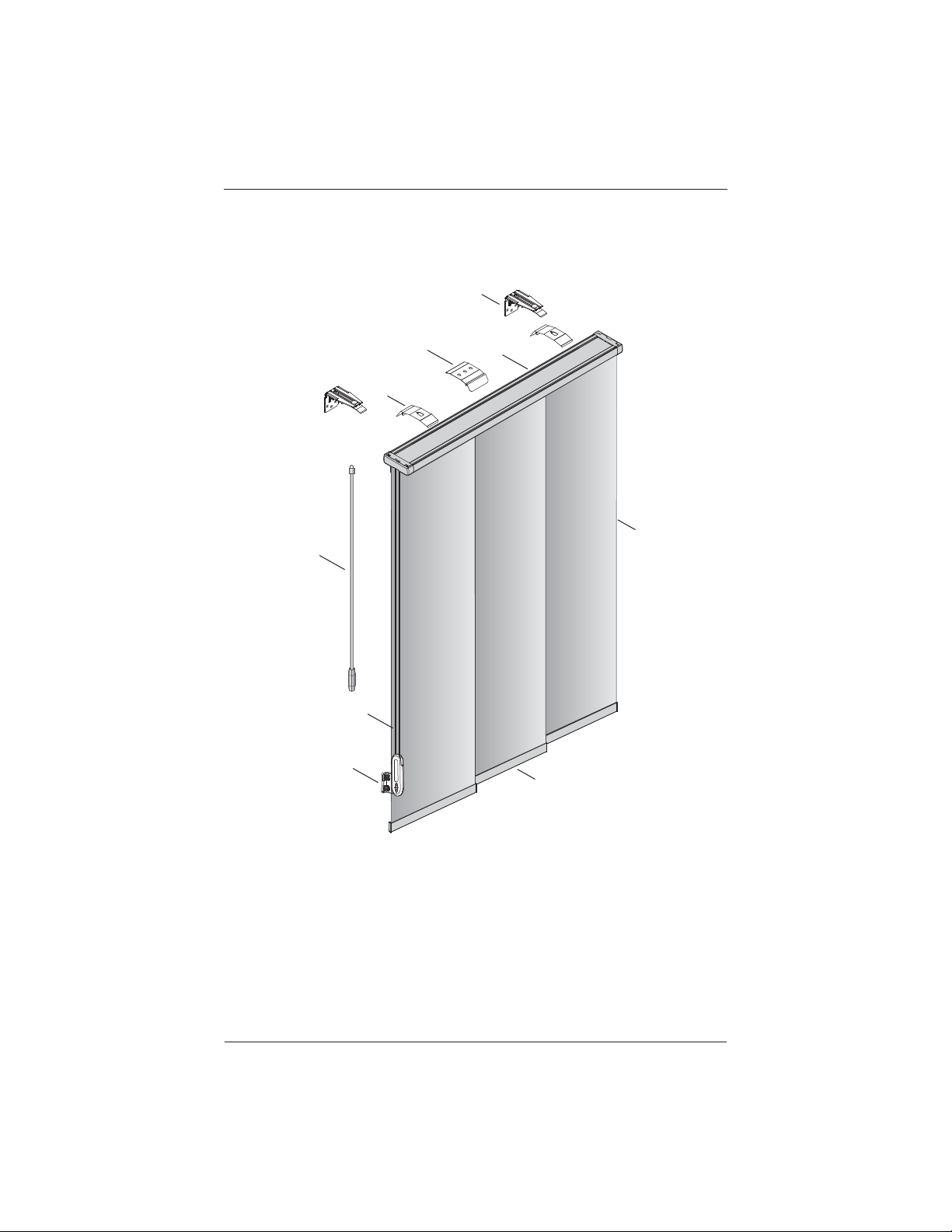

Product View — Skyline®Gliding Window Panels

Fabric

Panels

Bottom

Weights

Installation

Bracket

Mounting Clip

Operating

Cord

Headrail

Universal Cord

Tensioner (UCT)

and Mounting

Bracket

Single or Dual

Wand

Control

(Optional)

Headrail Splice Clip

(Optional)

GETTING STARTED

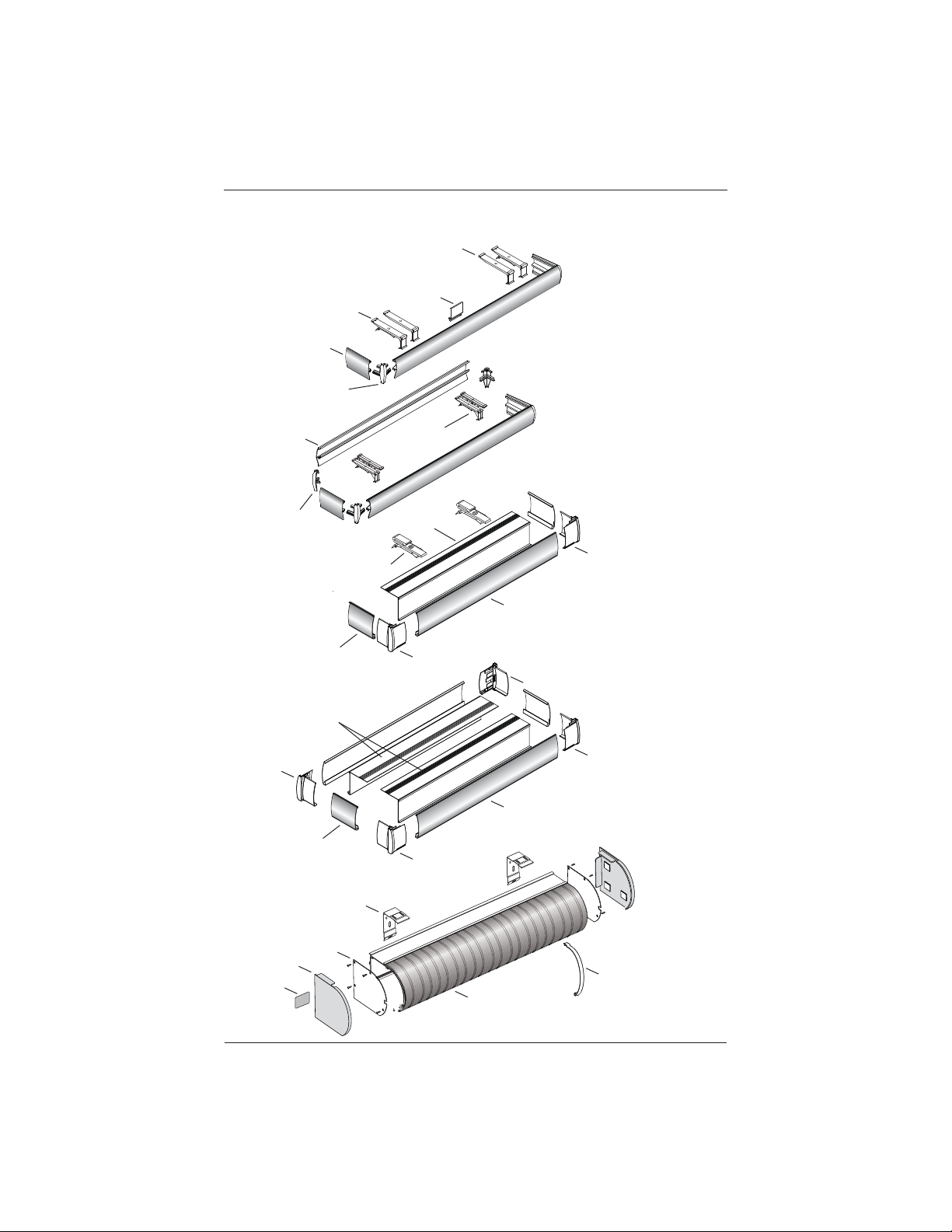

Product View — Top Treatment Options

Valance

Return

Valance Bracket

Outside Mount

Valance Corner

End Cap

Valance

Corner

End Cap

Box

Valance

Bracket

Box Valance

Rear

Valance Bracket

Inside Mount

Skyline Box Metal Valance

(Optional)

Skyline Fabric-Wrapped

Large Cassette

(Optional)

Skyline®Metals Valance

(Optional)

Skyline Fabric Valance

(Optional)

Skyline Fabric Box Valance

(Optional)

Valance Splice Clip

Fabric Valance

Mounting Bracket

Dust Cover

Valance

Return

Dust Covers

Right Corner

Left Corner

Right Corner

Large Cassette

End Cap

Cassette

End Plate

Fabric-Wrapped Large Cassette

Installation Bracket

Fabric Wrapped

Large Cassette

Cassette

Splice

Clip

Splice

Cover

Valance

Return

Left Corner

Right Corner

INSTALLATION

Inside and Ceiling Mount Applications

For panel order without a valance continue below. If you ordered a valance, see “Inside and

Ceiling Mount Applications WITH A Valance” on page 9.

Inside and Ceiling Mount Applications WITHOUT a Valance

■Mark the mounting clip locations on the ceiling or inside the window casement. Use the

ﬁgure below as a guide for locating the mounting clips.

■Use a 3∕32" drill bit to drill holes for the screws.

CAUTION: Do not mount into drywall, only mount into wood.

■Use a level to check that the mounting surface is level. Shim the brackets if necessary.

Shims are not provided.

■Ensure the mounting clips are all facing

the same direction.

➤Standard Mount — The release

tabs are toward to the window.

➤Flush Mount — The release tabs

are toward the room to allow for a

ﬂush mounting.

IMPORTANT: The mounting tabs

will be visible on a ﬂush mount unless

concealed by a valance.

■Use the hex head screws provided

to fasten the mounting clips to the

mounting surface.

■Verify that the mounting clips are

mounted level and are aligned to

eachother.

Proceed to “Mount the Headrail” on page 23.

2"-4"

18"-24"

2"-4"

18"-24" 18"-24"

Jamb Jamb

Flush Mount Option

Inside Mount (Standard)

Release Tab

Toward Wall

Release Tab

Toward Room

For Closest

Wall Clearance

Ceiling/Top Sill

Room

Wall

Table of contents

Other HunterDouglas Window Blind manuals

HunterDouglas

HunterDouglas RB 500 Safety guide

HunterDouglas

HunterDouglas RB 500 User manual

HunterDouglas

HunterDouglas 2" Horizontal Aluminum Blinds Parts list manual

HunterDouglas

HunterDouglas RB 500 Safety guide

HunterDouglas

HunterDouglas Reveal Parts list manual

HunterDouglas

HunterDouglas Luxaflex PowerView User manual

HunterDouglas

HunterDouglas Alustra Woven Textures User manual

HunterDouglas

HunterDouglas Pirouette Parts list manual

HunterDouglas

HunterDouglas Design Studio Installation manual

HunterDouglas

HunterDouglas 5-156 User manual

HunterDouglas

HunterDouglas Sonnette User manual

HunterDouglas

HunterDouglas RB 500 User manual

HunterDouglas

HunterDouglas PowerView Gen 3 User manual

HunterDouglas

HunterDouglas Provenance Woven Wood Shades Parts list manual

HunterDouglas

HunterDouglas Silhouette A Deux Parts list manual

HunterDouglas

HunterDouglas 5-216 User manual

HunterDouglas

HunterDouglas Reveal with MagnaView Operation manual

HunterDouglas

HunterDouglas Solera Soft Shades User manual

HunterDouglas

HunterDouglas Duolite Shades Parts list manual

HunterDouglas

HunterDouglas Country Woods Operation manual

HunterDouglas

HunterDouglas Pirouette PowerView+ Gen 3 Automation Parts list manual

HunterDouglas

HunterDouglas DecoFlex WireFree Telis Operating instructions

HunterDouglas

HunterDouglas Brilliance Operation manual

HunterDouglas

HunterDouglas Decor Standard Cordlock Owner's manual

Popular Window Blind manuals by other brands

Jysk

Jysk ROGEN manual

SOMFY

SOMFY 1241752 instructions

Rollos

Rollos S-Nanorollo V2 Assembly and operating instruction

Teptron

Teptron Move user manual

Renson

Renson Outdoor Loggia Manual Installation

Project Source

Project Source CDLF2342W quick start guide

Domondo

Domondo PureNight Mounting guide

rollease acmeda

rollease acmeda Easy Spring Air Assembly and installation manual

IKEA

IKEA KADRILJ manual

Hallis Hudson

Hallis Hudson Rolls Super glide instructions

Benthin

Benthin P1614 quick start guide

MV LINE

MV LINE CLARA 015 Installing instructions

Current

Current E-WAND Installation manual and user's guide

weinor

weinor VertiTex ZipR Maintenance Instructions and Directions for use for the end user

Roto

Roto ZAR M R4/R7 Mounting instructions

SOMFY

SOMFY Movelite WT Series instructions

Acmeda

Acmeda RF400 Series instructions

Motura

Motura Pli_353/3 manual
