Hunter 44360 Set & $ave User manual

Programmable ermostat

Set & $ave

Model 44360

installation and

operation manual

42710-01 8-17-06

2

3

Table of Contents

Important Information.................................................. 5

Tools ............................................................................ 6

Uninstalling the Existing Unit ...................................... 7

Installing the Thermostat ........................................... 12

installing the wall plate .................................... 12

connecting the wires ........................................ 16

attaching the thermostat .................................. 18

Settings ...................................................................... 22

Methods of Operation ................................................ 26

manual operation ............................................. 28

default programs .............................................. 32

creating custom programs ................................ 34

Icons and Features ..................................................... 38

Important Features .................................................... 52

Troubleshooting ......................................................... 53

4

Congratulations!

Thank you for choosing a Hunter programmable thermostat.

Your new Hunter thermostat will provide years of reliable service

and year-round energy savings.

Please read this manual before beginning installation and save

this booklet for complete operation instructions.

The Hunter Technical Support Group is available from 7 am to 7 pm CST. They may be

reached toll-free at 1-888-830-1326.

Set & Save

Programmable Thermostat

Model 44360

Set & Save

Programmable Thermostat

Model 44360

5

This thermostat is designed to work on the following

heating and cooling systems:

Gas – Standing Pilot

Gas – Electronic Ignition

Gas – Fired Boilers

Gas – Millivolt Systems

Oil – Fired Boilers

Oil – Fired Furnace

Electric Furnace

Electric Air Conditioning

Single-Stage Heat Pumps

This thermostat is not designed for multi-stage heat pump

systems or 110/220 V baseboard heating systems.

If you are unsure what kind of heating and cooling system you

have, please contact a qualiﬁed HVAC Technician for assistance.

IMPORTANT INFORMATION

6

This thermostat includes two #8 slotted screws and two wall

anchors for mounting.

To install your new thermostat, you will need the following

supplies:

Flat-head screwdriver

.............................................................................................

Small Phillips-head screwdriver

.............................................................................................

Hammer

.............................................................................................

Electric drill and 3/16” bit

.............................................................................................

Two 1.5 Volt (AA) size alkaline batteries

.............................................................................................

TOOLS

7

NOTICE! Do not disconnect the wires from

the existing thermostat before reading these

instructions. The wires must be labeled prior

to removal to ensure proper reconnection.

Y

RC

G

W

8

Y

RC

G

W

Y

RC

G

W

9

1. Turn the system power OFF from the existing thermostat. Turn

the power to the HVAC system OFF at the main power panel

or at the furnace.

(Failure to turn off the power to the existing thermostat before removal

could damage your system.)

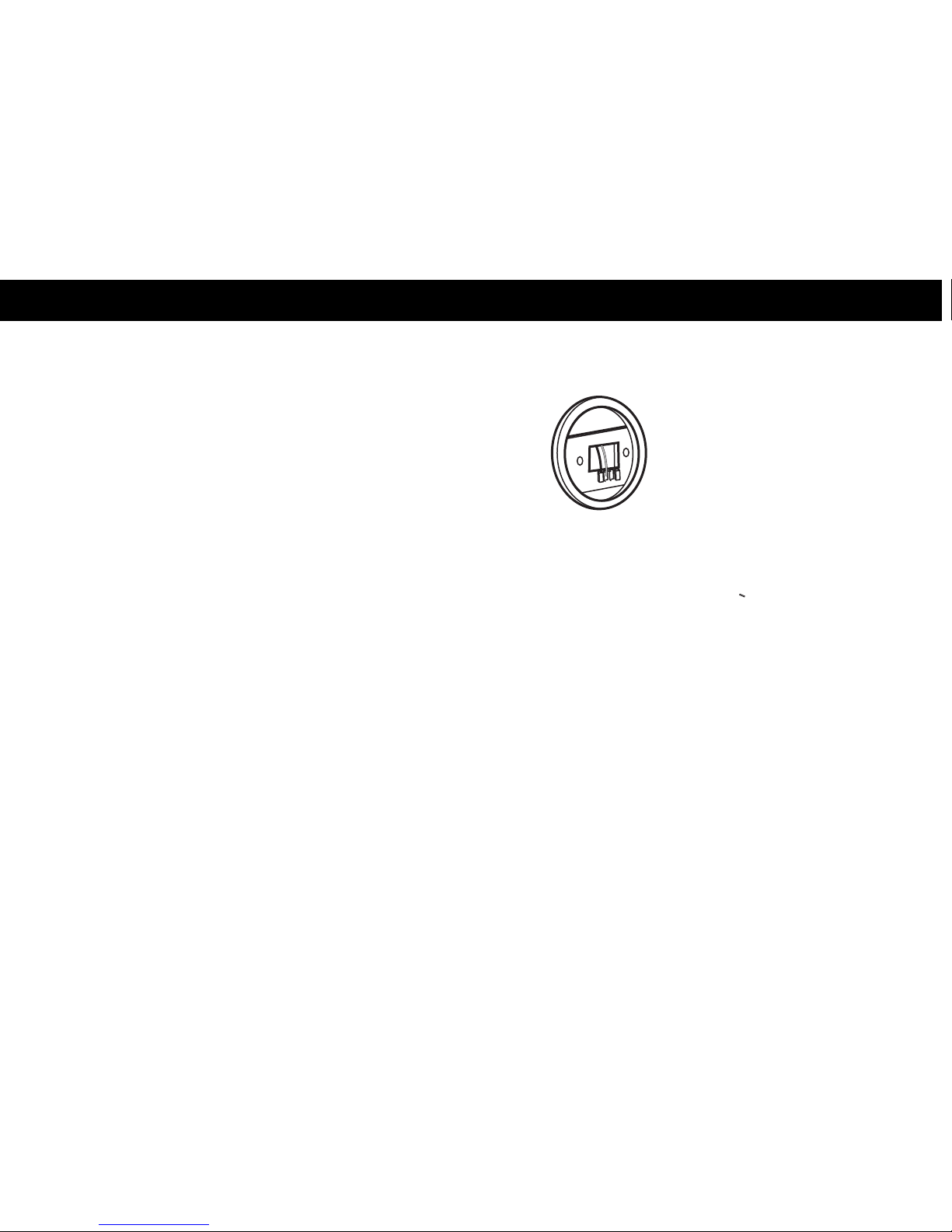

2. Remove the existing thermostat cover to access the wires

from the wall.

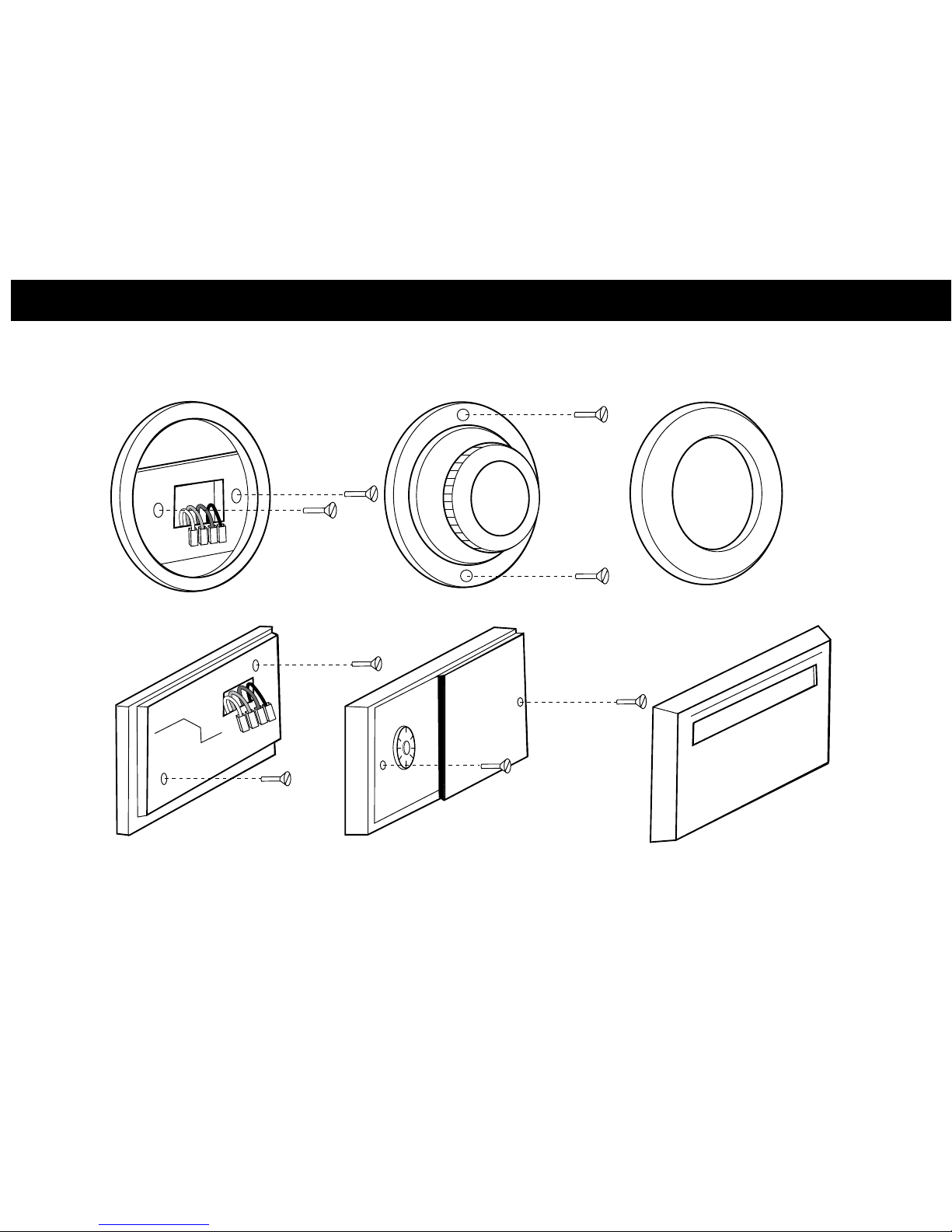

(Some thermostats may have multiple covers, screws or other locking

devices that must be removed or disengaged. See page 8 for common

examples.)

3. Locate, but do not disconnect the wires.

(If wires are not visible, they may be connected to the back of the wall

plate. Some models may have doors that open to expose the wires and

mounting screws.)

UNINSTALLING THE EXISTING UNIT

10

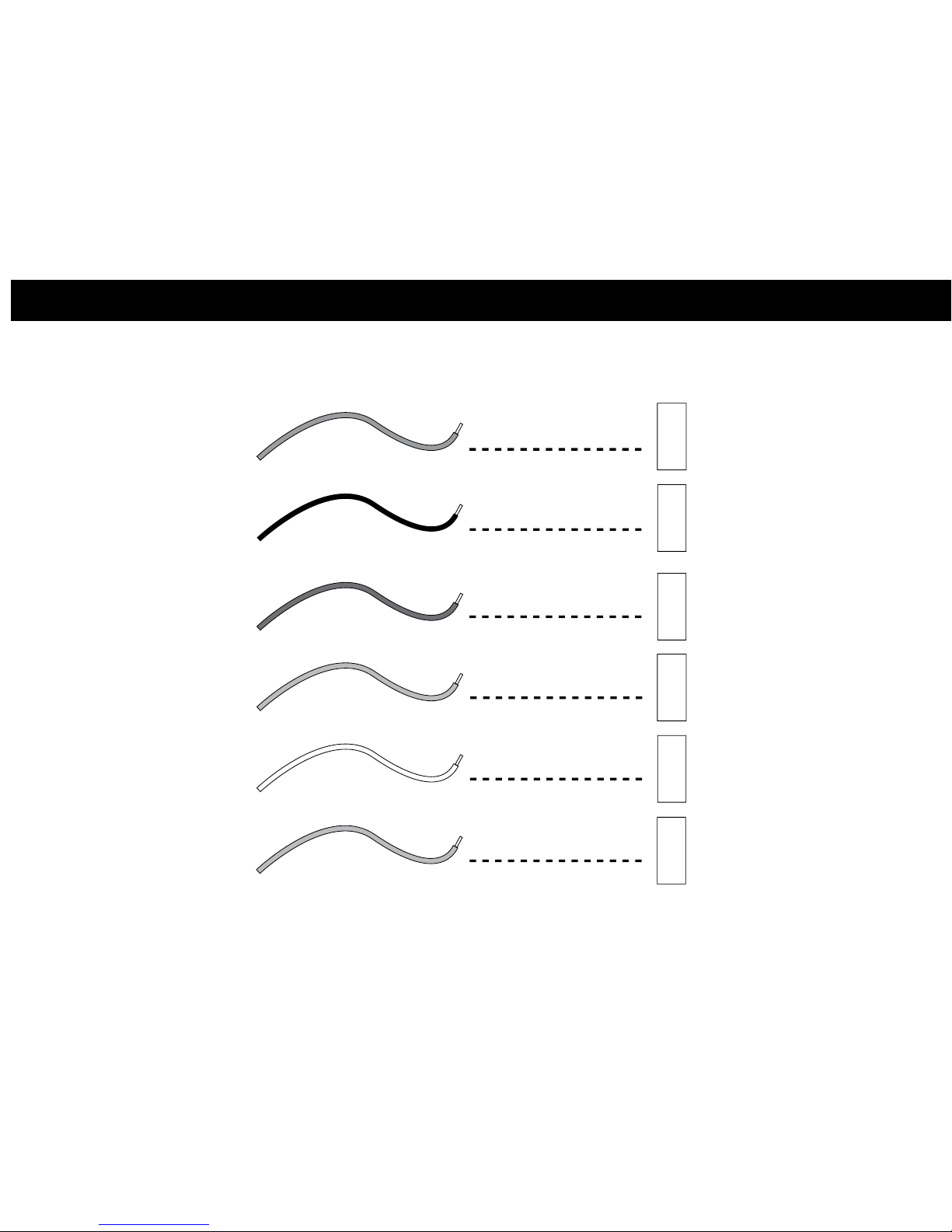

G RC RH Y W

if your existing

thermostat is marked...

label the wire

with this sticker:

G / F

G

G

W / H / B

W/B

W/B

Y / C* / M / O

Y/0

Y/0

RC / VC

RC

RC

RH / R / VR / 4

RH

RH

24 Volt

24 Volt cool

air conditioning

compressor

heating

fan

Y1

Y1

Y1

heat pump

compressor

WIRE LABELS

This manual suits for next models

1
