Hunter 44155C User manual

1

Form# 42708-01

20120210

©2012 Hunter Fan Co.

Set & $aveSet & $aveSet & $ave

installation and

operation manual

Models

44155

44157

Programmable Thermostat

English

c

2

3

Important Information....................................... 5

Tools ................................................................ 6

Uninstalling the Existing Unit ........................... 7

Installing the Thermostat ............................... 12

Installing the Wall Plate ................................. 13

Connecting the Wires .................................... 16

Attaching the Thermostat .............................. 18

Settings ......................................................... 22

Methods of Operation .................................... 27

Manual Operation .......................................... 28

Default Programs .......................................... 32

Creating Custom Programs ........................... 34

Icons and Features ....................................... 38

Troubleshooting ............................................. 49

TABLE OF CONTENTS

4

Congratulations!

Thank you for choosing a Hunter programmable

thermostat. Your new Hunter thermostat will

provide years of reliable service and year-round

energy savings.

Please read this manual before beginning

installation and save this booklet for complete

operation instructions.

Set & Save

Programmable Thermostat

Model 44155C

Set & Save

Programmable Thermostat

Model 44155C

5

This thermostat is designed to work on the following

heating and cooling systems:

Gas – Standing Pilot

Gas – Electronic Ignition

Gas – Fired Boilers

Gas – Milivolt Systems

Oil – Fired Boilers

Oil – Fired Furnace

Electric Furnace

Electric Air Conditioning

Single Stage Heat Pump - No auxilary

This thermostat is not designed for multi-stage heat

pump systems or 110/220 V baseboard heating

systems.

If you are unsure what kind of heating and cooling

system you have, please contact a qualied HVAC

Technician for assistance.

IMPORTANT INFORMATION

6

This thermostat includes two #8 slotted screws

and two wall anchors for mounting.

To install your new thermostat, you will need the

following supplies:

Flat-head screwdriver

....................................................................................

Small Phillips-head screwdriver

....................................................................................

Hammer

....................................................................................

Electric drill and 3/16” bit

....................................................................................

Two 1.5 Volt (AA) size alkaline batteries

....................................................................................

TOOLS

7

NOTICE! Do not disconnect the

wires from the existing thermostat

before reading these instructions.

The wires must be labeled prior

to removal to ensure proper

reconnection.

UNINSTALLING THE EXISTING UNIT

8

Y

RC

G

W

Y

RC

G

W

9

1. Turn the system power OFF from the existing

thermostat. Turn the power to the HVAC

system OFF at the main power panel or at

the furnace.

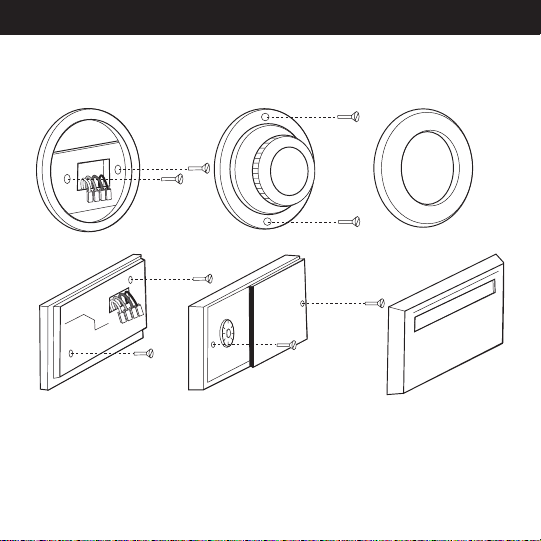

2. Remove the existing thermostat cover to

access the wires from the wall.

(Some thermostats may have multiple covers, screws

or other locking devices that must be removed or

disengaged.)

3. Locate, but do not disconnect the wires.

(If wires are not visible, they may be connected to the

back of the wall plate. Some models may have doors

that open to expose the wires and mounting screws.)

10

GRCRHY W

if your existing

thermostat is marked...

label the wire

with this sticker:

G / F

G

G

W / H / B

W/B

W/B

Y / C* / M / O

Y/0

Y/0

RC / VC

RC

RC

RH / R / VR / 4

RH

RH

24 Volt

24 Volt cool

air conditioning

compressor

heating

fan

Y1

Y1

Y1

heat pump

compressor
