Huaxin HS108 User manual
Usermanual
HS108
DigitalPressureGauge
2
The operating instructions are parts of the products and must be kept in
the immediate vicinity of the instrument and readily accessible to skilled
personnel at any time.
Skilled personnel must have carefully read and understood the operating
instructions prior to beginning any work.
The manufacturer's liability is void in the case of any damage caused
by using the product contrary to its intended use, non-compliance with
these operating instructions, assignment of insufficiently qualified
skilled personnel or unauthorized modications to the instrument.
HUAXIN reserve the rights to change the contents or form of these
operating instructions at any time without prior notice having been
given.
In order to protect your Huaxin products,your own and others safety,pls read
this manual carefully before your operation,Otherwise it may cause trouble.
Claim
Disassembling the inner components may take toll or completely
damage the equipment. Only the qualified technician could make a
repairment. Any abnormal happened to the equipment pls call our
service staff to make a repairment under their instruction.
To avoid over pressure damages,don't apply pressure that exceeds
the limits listed in the pressure specication table.
Safety information
Please don't disassemble & repair the equipment by yourself
Pay attention to the range
This action might injure the product and inuence the performance.
That will damage the items by using the wrong medium.
Don't beat and shock
Pay attention to the medium of the items
1
3
2
4
Warning
3
That will damage the items.and even may cause the re or an electric
shock.
Other power supply will damage to the product,and even may cause
the re or an electric shock.
The calibration should be carried out under a standard calibration
condition, such as the standard gauge must be accuracy 3 times of
HS108, ambient temperature (20±2)℃.
Don't immersed in water or exposed to water or getting wet
Only use the special charger or battery
The calibration should be carried out under a standard calibration condition

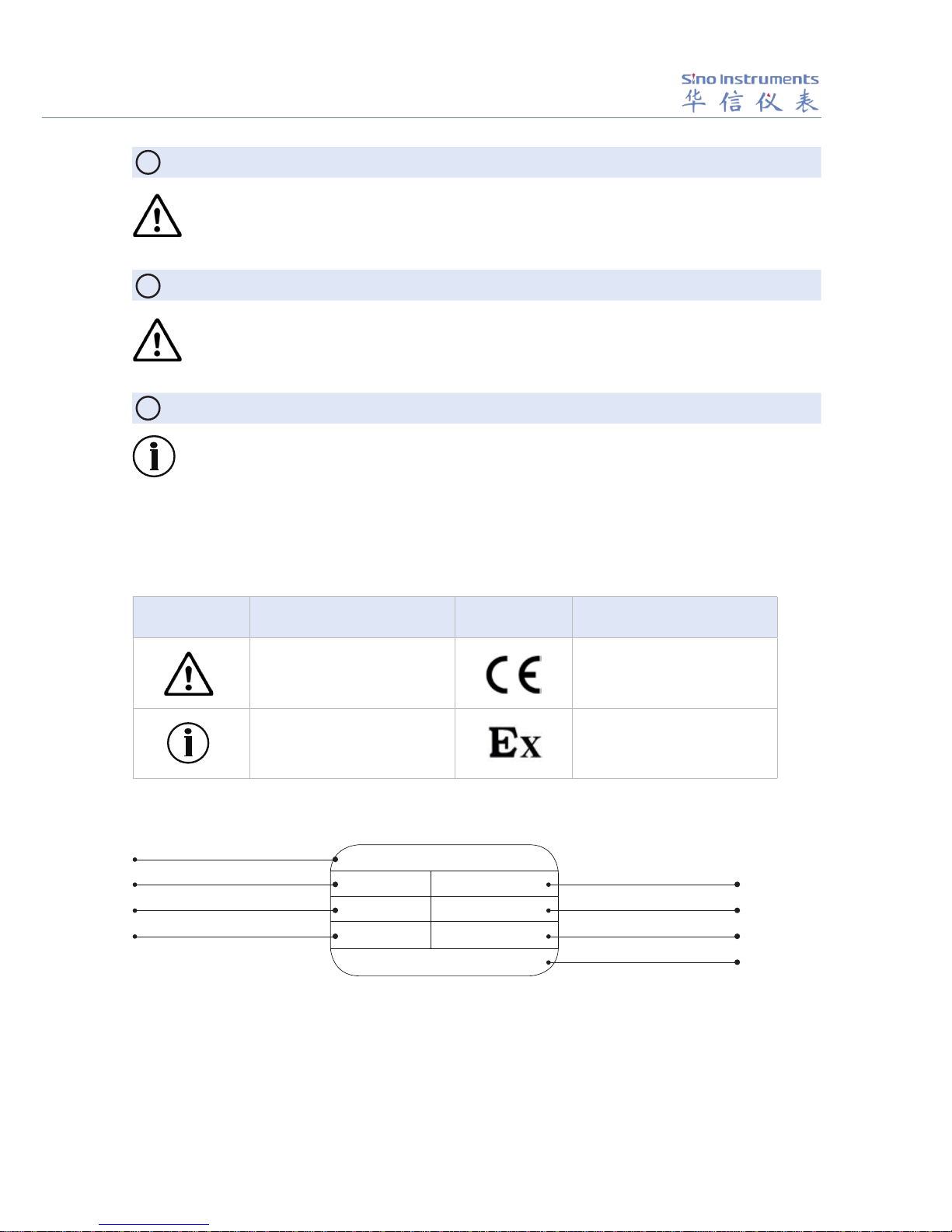

Symbols
Labelling,Safety Marks
Symbols used on the product and in the menu
Symbol Meaning Symbol Meaning
Indicates warning Conforms to European
Union directives
Indicates important
information Conforms to standard of
PCEC
Digital Pressure Gauge
Model:HS108 NO.1401011708DN
Voltage:8.4DCV Range:(0-1)bar
Date:2014.1 Accuracy:±0.5%F.S
Huaxin Instrument(Beijing)Co.,Ltd
Product name
Model
Voltage
Date of manufacture Accuracy
Manufacturer
Pressure range
Serial number
5
6
7
4
Claim
Safety information
1. Summary - 1 -
2. Technical Spec - 2 -
3. Working Principle - 4 -
4. Install Operation - 4 -
4.1. Basic structure - 4 -
4.2. Button&terminal Introduction - 5 -
4.3. Display - 6 -
4.4. Installation method - 6 -
4.5. The gauge type - 6 -
4.6. The Max/Min valve display - 7 -
4.7. Changing the original pressure unit - 7 -
4.8. Temperature modication display - 8 -
4.9. COM Communication setting - 9 -
4.10. Digital Display setting - 10 -
4.11. Backlight time adjustment - 11 -
4.12. The Auto off setting - 11 -
4.13.Displaying speed set - 12-
4.14. Factory reset - 13 -
5. Calibration - 13 -
5.1. Pressure Low point, High Point Calibration - 13 -
5.2. Clear two point modication value - 15 -
5.3. Clearing clear zero value - 16 -
5.4. Clearing secondary modication sign - 16 -
5.5. Clear temperature modication value - 17 -
6. Maintenance - 17 -
6.1 Maintenance of instruments - 17 -
6.2 Attention items - 18 -
7. Accessories List - 18 -
8. Standard - 18 -
1
1.Summary
Characteristics
Pressure range to 2500bar
High accuracy up to ±0.025%F.S
Large,easy to read dual display with 6-digit resolution
White backlight and RS232 communication port
Various Pressure Units selectable
Zero Point,Full Scale calibration function
Max/Min values function
%Pressure indication with bar graph
7.4Vdc rechargeable lithium battery or AC adapter
Data logging fuction,store measuring value
Auto Off can be set
The backlight time is adjustable
Temperature compensating
A compact cost effective pressure gauge in various application regions
Wetted parts:316 Stainless steel
Dimension:Φ95mmx49mm
Total height:166(mm)
Weight:0.75kg
HS108 is a high-precision single-range digital pressure gauge, which is
composed of high-precision measurement chips, temperature measuring
circuit&battery&voltage measuring circuit and intelligent digital pressure
module.
Every HS108 pass the high and lower temperature aging,so it could
assure the products more accurate and reliable.the product combines a
variety of accuracy levels to meet the customer requirments.it provides an
accurate,reliable and economic solution for pressure application.
This product can be used for real-time measurement of pressure value and as a
pressure reference or in applications where high accuracy measurement is required.
2
Model
HS108 Digital Pressure Gauge
Accuracy
±0.025% F.S
±0.05% F.S
±0.1%F.S
Gauge types
Gauge pressure
Compound pressure
Absolute pressure
Differential pressure
Work medium
Oil, water&noncorrosive gases
Over pressure alarm
120%Full Scale
Display
Description: 6 digits big LCD with
blacklight Display rate:Less than
0.025% of full scale is 150ms .More
than 0.025% of full scale is 1s
Numeral display height:16.5mm
(0.65")
%indication with bar graph scale
for visual reference
A battery icon indicates the power
Pressure unit
psi, bar, mbar, kgf/cm2,Pa, kPa,
MPa, mmH2O, mmHg
Temperature
Compensated temperature:
-10°C to 50°C
Operating temperature:-10°C to 50°C
Humidity: <95%
Storing temperature:-20°C to 70°C
Pressure connection
1/4NPT male
M20×1.5 male
Other connections customized
Power
Battery:One piece lithium battery &
charger
Battery life:80 hours
Housing
Case material:Plastic
Wetted parts:316 Stainless steel
Dimension:Φ95mmx49mm
Total height:166(mm)
Weight:0.75kg
Data storing
Storage capacity :
Calibration record of 30pcs gauge
under test
Communication
RS232
Certicate
CE .....................
EX .....................
2.Technical Specication
3
Compound pressure
Gauge pressure
No. Pressure Range Accuracy Media
(psi)
HS108-1 (0-10) (0-0.7) 0.025,0.05,0.1 G
HS108-2 (0-15) (0-1) 0.025,0.05,0.1 G
HS108-3 (0-30) (0-2) 0.025,0.05,0.1 G,L
HS108-4 (0-60) (0-4) 0.025,0.05,0.1 G,L
HS108-5 (0-100) (0-7) 0.025,0.05,0.1 G,L
HS108-6 (0-200) (0-14) 0.025,0.05,0.1 G,L
HS108-7 (0-300) (0-20) 0.025,0.05,0.1 G,L
HS108-8 (0-500) (0-35) 0.025,0.05,0.1 G,L
HS108-9 (0-600) (0-40) 0.025,0.05,0.1 G,L
HS108-10 (0-1000) (0-70) 0.025,0.05,0.1 G,L
HS108-11 (0-2000) (0-140) 0.025,0.05,0.1 G,L
HS108-12 (0-3000) (0-200) 0.025,0.05,0.1 G,L
HS108-13 (0-5000) (0-350) 0.025,0.05,0.1 G,L
HS108-14 (0-6000) (0-400) 0.025,0.05,0.1 G,L
HS108-15 (0-10000) (0-700) 0.025,0.05,0.1 G,L
HS108-16 (0-15000) (0-1000) 0.025,0.05,0.1 G,L
HS108-17 (0-24000) (0-1600) 0.05,0.1 G,L
HS108-18 (0-37000) (0-2500) 0.05,0.1 G,L
No. Pressure Range Accuracy Media
(psi)
HS108-19 (-0.4-0.4) (-0.025-0.025) 0.025,0.05,0.1 G,L
HS108-20 (-0.8-0.8) (-0.05-0.05) 0.025,0.05,0.1 G,L
HS108-21 (-1.5-1.5) (-0.1-0.1) 0.025,0.05,0.1 G,L
HS108-22 (-6-6) (-0.4-0.4) 0.025,0.05,0.1 G,L
HS108-23 (-15-15) (-1-1) 0.025,0.05,0.1 G,L
Remark:G=Gas,L=Liquid
4
3.Working Principle
4.Install Operation
Apply pressure to the pressure transducer,it outputs a electrical signal.
First the corresponding electrical signal will be amplied.and then it will
be converted to digital data by A/D converter.Then the microprocessor
sequentially collects data to modify and correct,the final result will be
displayed on the LCD Display.
4.1 Basic structure
Model
Screen
Buttons
Pressure range
Male thead
RS232
Adapter
socket
Label
1/4 NPT(or customized)
Temperature
measuring
circuit A/D Converter Battery&voltage
measuring circuit
Transducer
Keys
CPU
LCD
RS232 DC+5V,3.3V
(X-XX)bar
5
1.Back cover insert 13.Lock nut
2.Front cover 14.Press cover
3.Key-press panel 15.Hole press cover
4.Button switch 16.Support pad for sensor
5.Power strip 17.Reinforcing pad for sensor
6.Front view window 18.Sensor
7.LCD 19.O-ring 9×1.8
8.PCB 20.High pressure sealing
9.Plugging terminal panel 21.Check ring 19
10.Back cover 22.O-ring 16×1.8
11.Li-ion battery pack 23.Sensor connector
12.Cover battery plate
4.2 Button&terminal Introduction
Back light.
Starting unit is kPa, press this key to switch unit circularly among
mmHg、mmH2O、bar、mbar、psi、kgf/cm2、MPa and Pa.
Press this key to clear current value as zero drift value. Then this
gauge would be already in a clearing zero status when you start it up
again.
Conrm key,digital conrm key in menu.
Press this key for zero point and full scale calibration and linear
revision to insure the accuracy.( Do not use the key when there are
no necessary calibration equipments available.)
ENTER
CAL
ZERO
UNIT
LIGHT
Connection terminals:
RS232 for PC.
DC8.4V Charging input DC8.4V.
16
22
23
18
19
21
17
20
15
14
13
12
3
4
6
7
2
1
8
9
10
11
5
6

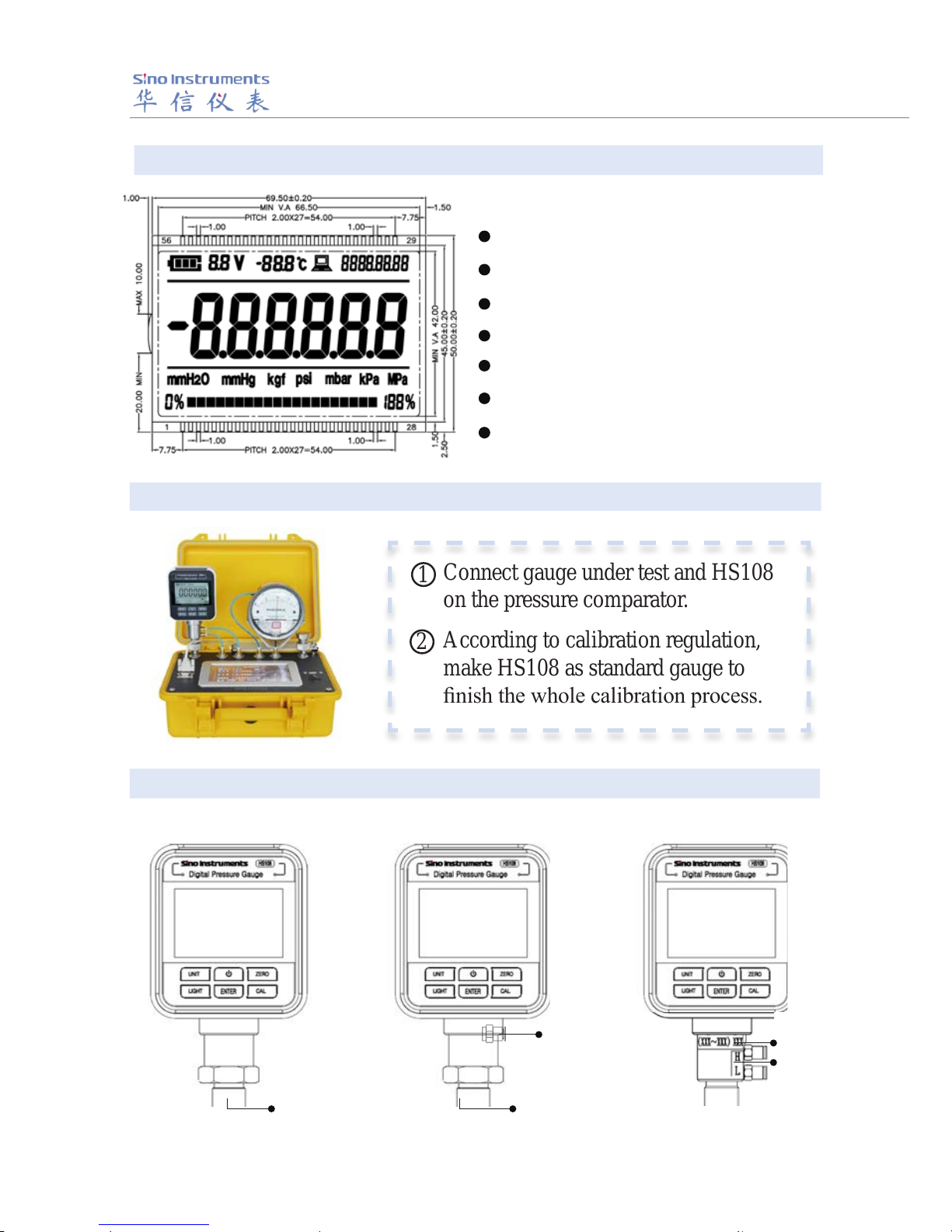

The HS108 screen denitions:
PC icon:the mark of PC connection
Battery icon:indicates state of charge
Voltage area:the current voltage
Temperature area:current temperature
Pressure display:displays data and menu.
Units:9 pressure units selectable
Bar graph:displays the pressure process
1
2
Connect gauge under test and HS108
on the pressure comparator.
According to calibration regulation,
make HS108 as standard gauge to
nish the whole calibration process.
4.5 The gauge type
No.1:Gauge pressure No.2:Gauge pressure
Rang: ≤±
100kPa No.3:Differential pressure
1
5
4
2
3
4.4 Installation method
4.3 Display
