HP xw8200 Workstation Storage Options

Mini White Paper

Introduction......................................................................................................................................... 2

Key Product Features............................................................................................................................ 2

RAID .................................................................................................................................................. 3

Cabling.............................................................................................................................................. 3

Summary ............................................................................................................................................ 3

Related Resources................................................................................................................................3

Introduction

The HP xw8200 Workstation offers flexible storage options and supports integrated SATA RAID and

integrated U320 SCSI RAID.

Key Product Features

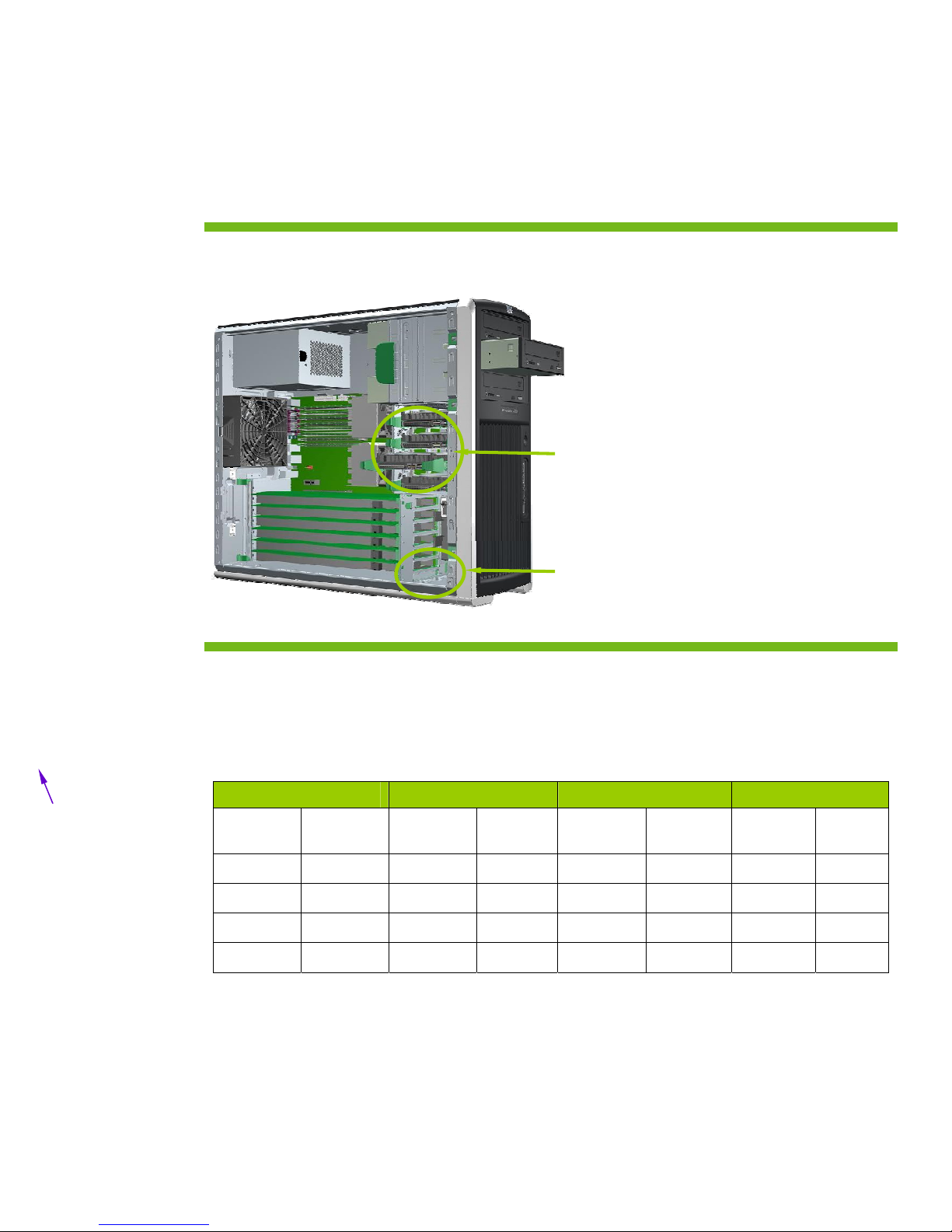

Figure 1. HP xw8200 Workstation Components

(4) Tool-less 1.0”

3.5” Drive Bays

(1) Tool-required 1.0”

3.5” bay

The xw8200 supports (4) tool-less and (1) tool-required internal 1” HDD slots. The xw8200 can

support up to 2.0TB of SATA storage. The SCSI controllers support up to 5 disks allowing up to 1.5TB

of SCSI storage.

The current HDD choices are shown below:

SATA 7200 SATA 10K SCSI 10K SCSI 15K

1st/2nd

Drive

3rd/4th

Drive

1st/2nd

Drive

3rd/4th

Drive

1st/2nd/3rd

Drive

4th/5th

Drive

1st/2nd/3rd

Drive

4th/5th

Drive

80 GB 80 GB 74 GB 74 GB 73 GB 73 GB 36 GB

160 GB 160 GB 146 GB 146 GB 73 GB 73 GB

250 GB 250 GB 300 GB 300 GB

500 GB 500 GB)

The xw8200 supports many combinations of SATA and SCSI drives for both factory integrated and

After Market Optional (AMO) storage. The supported choices are shown in the flowchart, starting

with the selection of SATA or SCSI for the first drive. The xw8200 has an integrated SATA RAID

controller and an integrated SCSI RAID controller. The DZ554A and AA850A (AA850A is AMO

only) channel SCSI U320 controllers are additional SCSI controller options. The AA850A offers RAID

support. The ED092AV (factory integrated only) SATA or ED090AA (AMO Only) SATA RAID

controller is required to integrate more than two SATA HDDs.

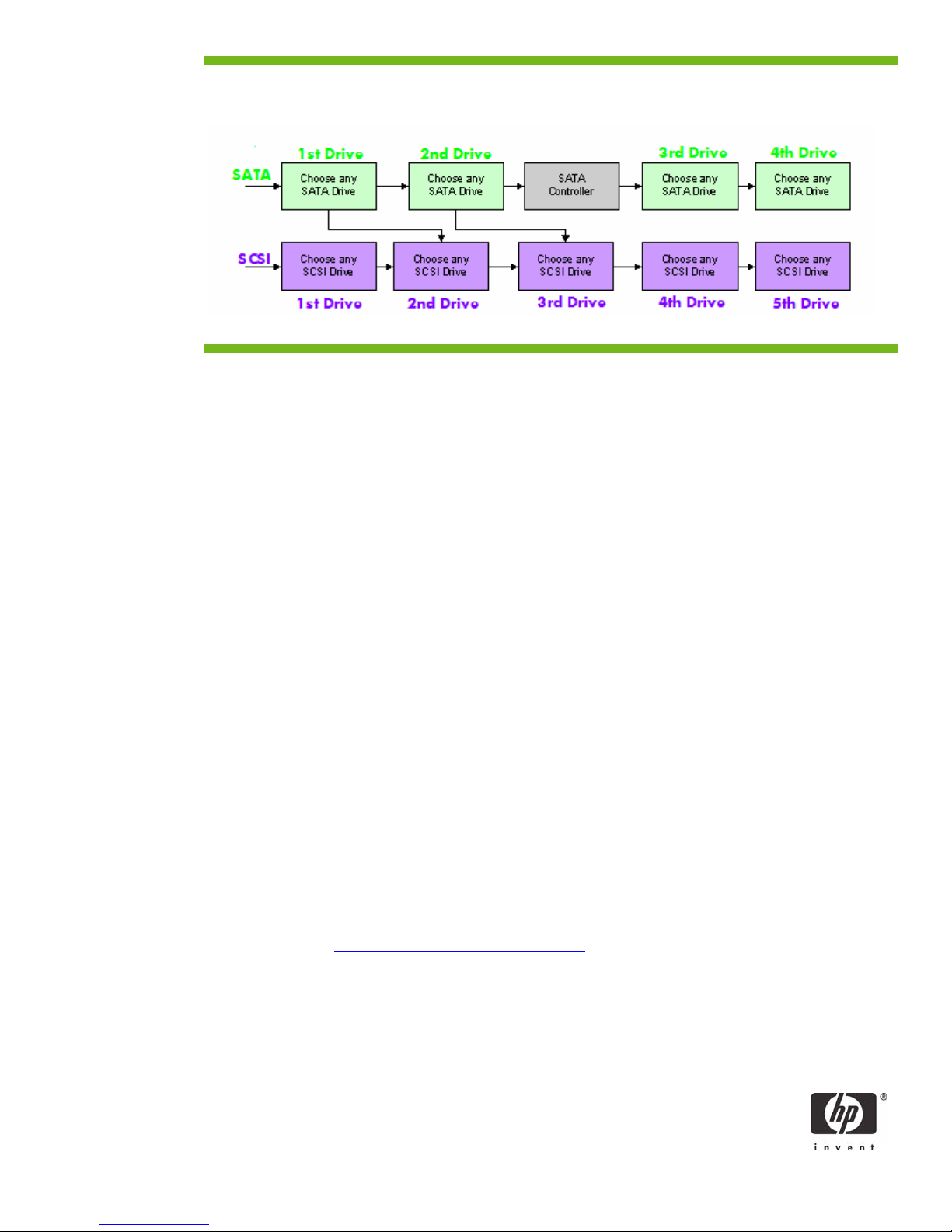

Figure 2. Supported Drive Combinations

RAID

The xw8200 has both an integrated Intel ICH5R SATA RAID controller and an integrated LSI 320

SCSI RAID controller that support RAID 0 (Striping, for performance) and RAID 1 (Mirroring for fault

tolerance). For SCSI AMO, the AA850A U320 single channel controller provides support for various

RAID levels including 0 and 1. For SATA, the ED090AA SATA RAID controller (factory RAID

enablement not supported) provide support for RAID 0, RAID 1, and RAID 0+1 (combination of RAID

0 and RAID 1). In all cases disks being RAIDed must be identical. Also note that using RAID 1 halves

the amount of available storage.

Cabling

For Factory-integrated storage, all required cabling is provided. For xw8200 AMO storage, the

AA818A 5-Port SCSI cable should be ordered with any SCSI controller if internal HDDs will be

connected to the SCSI controller. The AA658A U320 SCSI Back Panel cable kit allows external SCSI

devices to be connected to the integrated LSI 320 SCSI controller. For those customers who desire to

install their own EIDE drive(s) the DY660A EIDE Cable Kit is provided as an AMO item.

Summary

The xw8200 provides a large amount of highly-configurable storage.

Related Resources

The following documents also provide additional information about RAID configurations and can be

located by visiting www.hp.com/support/xw8200_manuals and selecting the White papers quick

jump link.

•Setting up SATA RAID on the xw8200/xw6200 Mini White Paper

•Workstation RAID Primer Mini White Paper

herein is subject to change without notice. The only warranties for HP products and

services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an

additional warranty. HP shall not be liable for technical or editorial errors or

omissions contained herein.

439269-001, October 2006
