1 Remote Web Console for Storage System Messages and

Error Codes

•“Remote Web Console for Storage System Messages” (page 4)

•“Message Window Format” (page 4)

•“Remote Web Console Error Codes” (page 5)

Unless otherwise specified, the term storage system in this guide refers to the following disk arrays:

•HP StorageWorks XP24000 Disk Array

•HP StorageWorks XP20000 Disk Array

The GUI illustrations in this guide were created using a Windows computer with the Internet Explorer

browser. Actual windows may differ depending on the operating system and browser used. GUI

contents also vary with licensed program products, storage system models, and firmware versions.

Remote Web Console for Storage System Messages

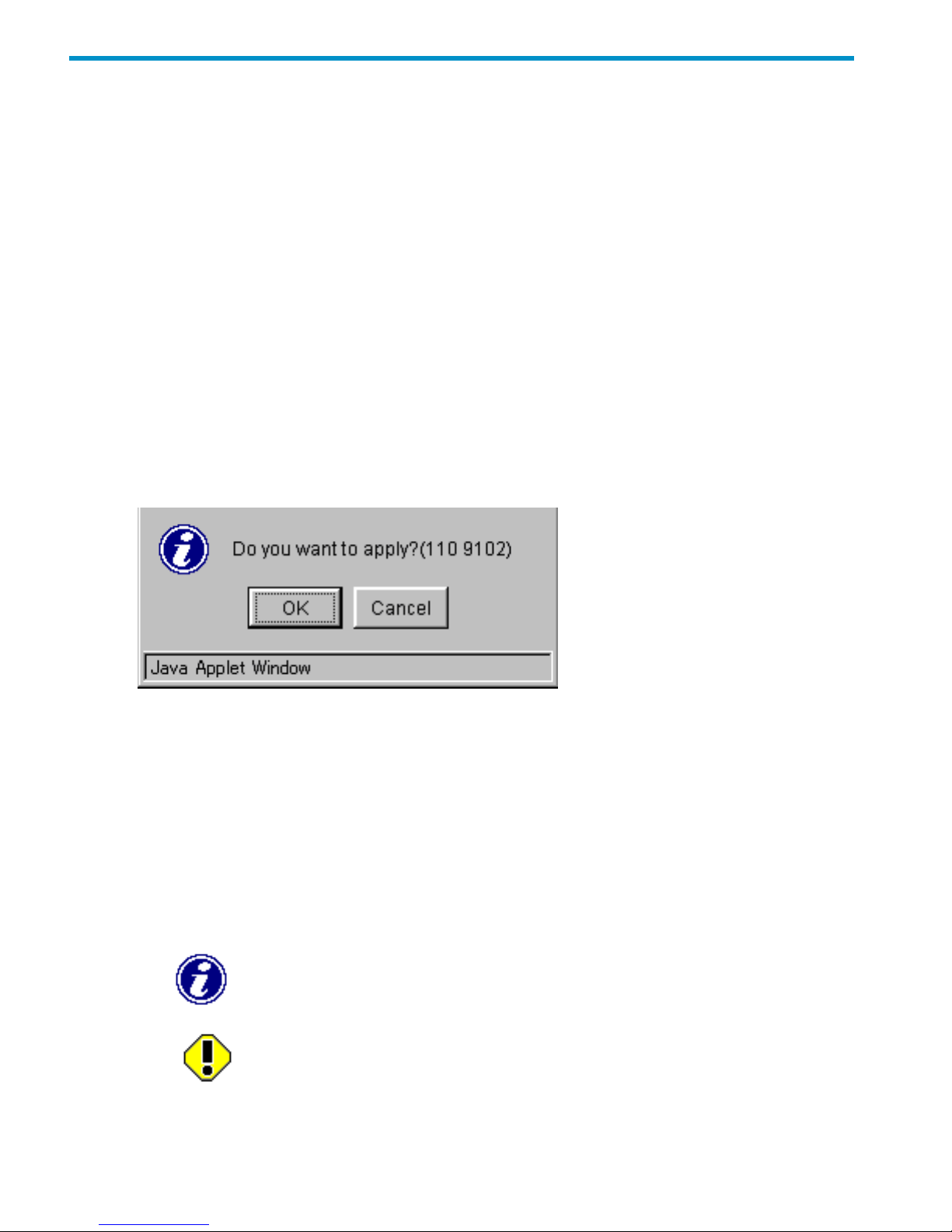

Figure 1 (page 4) shows a typical message window displayed by Remote Web Console.

Figure 1 Sample Message Window (Information - Level Message)

Message Window Format

Figure 2 (page 4) illustrates the format of the message window:

Figure 2 Message Window Format

[X] message-text (YYYY ZZZZZ)

Xindicates the message level. There are four message levels, as shown below. All storage system

message panels display the following information:

•Message level:

Information

Warning

4 Remote Web Console for Storage System Messages and Error Codes

Fatal error

The server is unable to accept the request from Remote Web Console. One possible

cause is that some process is in progress at the server. This message does not indicate an

error.

•Message text: Descriptive text that appears in the message window. It may include variables

%s (character string) and %d (numeral). The values of these variables are determined when

processing is performed.

Messages with a part code 60xx (where xx is a two-digit number) are Hitachi TrueCopy™

for Mainframe or XP Continuous Access Software messages. This manual contains Hitachi

TrueCopy for Mainframe messages only. If you are an XP Continuous Access user, note that:

◦The word M-VOL in Hitachi TrueCopy for Mainframe messages is equivalent to P-VOL in

XP Continuous Access messages.

◦The word R-VOL in Hitachi TrueCopy for Mainframe messages is equivalent to S-VOL in

XP Continuous Access messages.

•Part code: The ID of the application that issued the message. In Figure 1 (page 4) the part

code is 110.

•Message number: Decimal number within the range of 0000 to 99999. In Figure 1 (page

4) the message number is 9102.

If Remote Web Console starts and displays the following message, see the code and number the

(YYYY ZZZZZ) represents. A check box may be indicated in the message window. If you check

the check box, the message will not be displayed until you log in again.

A network error occurred, the server is not ready, or an error occurred

in the server. (YYYY ZZZZZ)

Remote Web Console Error Codes

To find solutions to the Remote Web Console for storage system errors, see Table 1 (page 6)

through Table 90 (page 442) or the Troubleshooting chapter in the user guides for the program

products causing the errors.

The tables list the error codes and error messages for Remote Web Console and provide

recommended action for the error conditions.

In some cases, the Recommended Action column may be blank. In these circumstances, you should

take actions based on instructions provided in the error message and based on what the you are

trying to accomplish. The tables also provide the severity level and failure level of the error

conditions.

Severity Levels. The severity levels for the error codes are:

•i: Information

•E: Error

•W: Warning

•N: The server is unable to accept the request from Remote Web Console. One possible cause

is that some process is in progress at the server. This message does not indicate an error.

Remote Web Console Error Codes 5

Failure Levels. The failure levels for the error codes are:

•0: No Error

•1: Select MSG OK to end forcibly

•2: All Refresh or Exit is valid only

•3: All Refresh, Refresh, or Exit is valid and the buttons, other than the buttons of the functions

in which the error occurred, are valid.

•4: To make refresh possible

•5: No status change

•6: No change with refreshing automatically

•7: Remote Web Console is automatically switched to view mode. If necessary, change the

mode to Modify.

Table 1 Error Codes — Part Code 0001

Failure

Level

Severity

Level

Recommended ActionError MessageError

Number

Part

Code

2EIf this problem persists, call

HP technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

10000001

2EThe SVP reboots

automatically. If the error

occurs after retrying, call HP

technical support.

A time-out error occurred.

Wait for the SVP to reboot,

and then retry the operation.

10010001

2EIf this problem persists call HP

technical support.

The specified volume cannot

be set as a command device

or a component of a LUSE

volume, because it is being

used as a XP Continuous

Access, Business Copy, or

Flex Copy XP. Select another

volume.

10020001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

10030001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

10040001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

20000001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

20010001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

20020001

6 Remote Web Console for Storage System Messages and Error Codes

Table 1 Error Codes — Part Code 0001 (continued)

Failure

Level

Severity

Level

Recommended ActionError MessageError

Number

Part

Code

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

20050001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

30000001

6EReduce the number of set

operations and perform

again.

The number of set operations

exceeds the maximum

(20000).

30010001

2EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

30020001

3EIf this problem persists call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

40010001

2EInput the correct user name

and log in again.

An error occurred. If this

problem persists, call HP

technical support.

40030001

2EInput the correct password

and log in again.

An error occurred. If this

problem persists, call HP

technical support.

40040001

5WBecause the same user name

is being used, log in with

another user name.

The user ID is already logged

in. Do you want to force a

40050001

2ECall HP technical support.An error occurred. If this

problem persists, call HP

technical support.

40060001

2ECall HP technical support.An error occurred. If this

problem persists, call HP

technical support.

40070001

2ECall HP technical support.An error occurred. If this

problem persists, call HP

technical support.

40080001

2ECall HP technical support.An error occurred. If this

problem persists, call HP

technical support.

40090001

2EThe error occurs only in the

internal process.

An error occurred. If this

problem persists, call HP

technical support.

40100001

Remote Web Console Error Codes 7

Table 1 Error Codes — Part Code 0001 (continued)

Failure

Level

Severity

Level

Recommended ActionError MessageError

Number

Part

Code

1ELog on again.

A network error may occur

when the load of another

application program working

on the same computer with

Remote Web Console is high.

Increase the value of the RMI

timeout period when network

error occurs.

A network error occurred.

The probable cause is:

•A timeout error occurred

during communication

with the SVP.

40110001

2ELog on again after a while.The number of clients logged

on to the RMI server has

exceeded 32.

40120001

2EFailed to access the Config

file. Call HP technical

support.

The server configuration is

invalid. Call HP technical

support.

40130001

2ELock is removed. Lock again.Network error detected;

exclusive lock is released.

40200001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

50130001

0WEnter correct user ID or

password.

The user ID or password is

invalid.

50140001

2WIf this problem persists, call

HP technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

50750001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

50990001

1ELog on with a different user

ID. There is a possibility that

the termination process in the

previous logon was invalid.

(Terminated by clicking the

end button of the browser.)

After RMI Time-out (default 1

min.), log on again.

The specified user ID is

already logged on, or the

previous logon was not

properly terminated.

Try again later. (By default,

the session/RMI time-out is

one minute.)

51320001

2EIf this problem persists, call

HP technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

53000001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

53010001

8 Remote Web Console for Storage System Messages and Error Codes

Table 1 Error Codes — Part Code 0001 (continued)

Failure

Level

Severity

Level

Recommended ActionError MessageError

Number

Part

Code

3WWait a few seconds, and

then retry.

Do either of the following if

two users are displaying the

Performance Monitor window

or running the Export Tool:

•Ask one of the users to

display another window.

•Ask one of the users to log

off.

•Wait for one of the users

to quit the Export Tool.

Since the SVP is busy, the

monitoring data cannot be

obtained.

54000001

1ELog on again after waiting a

while.

An administrator is changing

a system environment file.

Log on again after waiting

for a while.

55080001

9WTo get back to the Modify

mode, click [OK]. Otherwise,

click [Cancel].

Modify mode released due

to inactivity. Do you want to

get back to the Modify

mode?

55090001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55140001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55150001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55160001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55170001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55180001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55190001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55200001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55210001

Remote Web Console Error Codes 9

Table 1 Error Codes — Part Code 0001 (continued)

Failure

Level

Severity

Level

Recommended ActionError MessageError

Number

Part

Code

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55220001

2EIf the same problem persists

despite retrying, call HP

technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

55230001

6ESpecify another user ID.The same user ID is already

registered. Check the setting,

and then retry the operation.

55500001

6EEnter a correct user ID.NULL or blank space(s) are

used in the user ID. Check the

setting, and then retry the

operation.

55510001

6EEnter a correct user ID.The characters used for the

user ID or the number of the

characters of the user ID is

invalid. Check the setting,

and then retry the operation.

55520001

2EThe user name is not set.

Check the setting, and then

retry the operation.

The user name is not set.

Check the setting, and then

retry the operation.

55530001

6ECheck the setting, and then

retry the operation.

An administrator cannot be

added or deleted. Check the

setting, and then retry the

operation.

55540001

2EThe password flag is invalid.

Check the setting, and then

retry the operation.

The password flag is invalid.

Check the setting, and then

retry the operation.

55550001

2EThe password is invalid.

Check the setting, and then

retry the operation.

The password is invalid.

Check the setting, and then

retry the operation.

55560001

2EThe specified permission flag

is invalid. Check the setting,

and then retry the operation.

The specified permission flag

is invalid. Check the setting,

and then retry the operation.

55570001

2EThe specified authority flag is

invalid. Check the setting,

and then retry the operation.

The specified authority flag is

invalid. Check the setting,

and then retry the operation.

55590001

2EA file format error occurred.

Check the setting, and then

retry the operation.

A file format error occurred.

Check the setting, and then

retry the operation.

55600001

2EIf this problem persists, call

HP technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

56350001

2EIf this problem persists, call

HP technical support.

An error occurred during SVP

processing. If this problem

persists, call HP technical

support.

56360001

10 Remote Web Console for Storage System Messages and Error Codes

Other manuals for XP20000/XP24000

This manual suits for next models

Table of contents

Other HP Storage manuals

HP P6080-63001 - Maxtor DiamondMax Plus 40 GB Hard... User manual

HP R/T2200 G4 ERM Installation instructions

HP A5585A - SureStore DLT E Tape Library 4/40 Installation guide

HP HPE StoreEasy 1000 User manual

HP 705 Quick start guide

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Instruction Manual

HP 6400/8400 User manual

HP Surestore 1200ex - Optical Jukebox User manual

HP StorageWorks XP1024 User manual

HP StorageWorks DLT VS 40/80 GB User manual

HP XP20000/XP24000 User manual

HP StorageWorks ESL E-Series User manual

HP StorageWorks P4000 Series User manual

HP Surestore XP256 - Disk Array User manual

HP AA988A - Modular Smart Array Storage Controller... User manual

HP P5389A - Intel Pentium III-S 1.4 GHz Processor... User manual

HP StorageWorks 4000/6000/8000 - Enterprise Virtual... Instruction Manual

HP StorageWorks XP10000 - Disk Array User manual

HP StorageWorks ESL9322S2 User manual

HP AJ765A - StorageWorks RDX Removable Disk Backup... User manual

HP 3PAR StoreServ 7200 2-node Use and care manual

HP PD5000Z User manual

HP AutoRAID 12H Quick reference guide

HP StorageWorks 2405 - Disk System User manual

Popular Storage manuals by other brands

QNAP

QNAP TS 32PXU Series user guide

LaCie

LaCie RUGGED RAID user manual

Freecom

Freecom CLS DOCK Quick install guide

PNY

PNY Attache P-FD64MBATT3 install guide

OLT

OLT 6x6 Maximizer Assembly manual

Transcend

Transcend JetFlash 160 Specifications

LaCie

LaCie RUGGED MINI user manual

Thunderbolt

Thunderbolt 600 user manual

Panasonic

Panasonic LB-DH8 series Operator's guide

Intel

Intel RAID High Availability user guide

LaCie

LaCie 12big Thunderbolt 3 Quick install guide

Spectra Logic

Spectra Logic T-Series Spectra T50e quick start guide

Panasonic

Panasonic LKM-F931-1 instruction manual

Tabernus

Tabernus Enterprise Erase E2400 user guide

Rocstor

Rocstor COMMANDER 3F series user manual

Western Digital

Western Digital Ultrastar Data60 installation guide

Dell

Dell PowerVault MD3600f Series Getting started

CFI

CFI TERA STOR SATA RAID IV user manual
