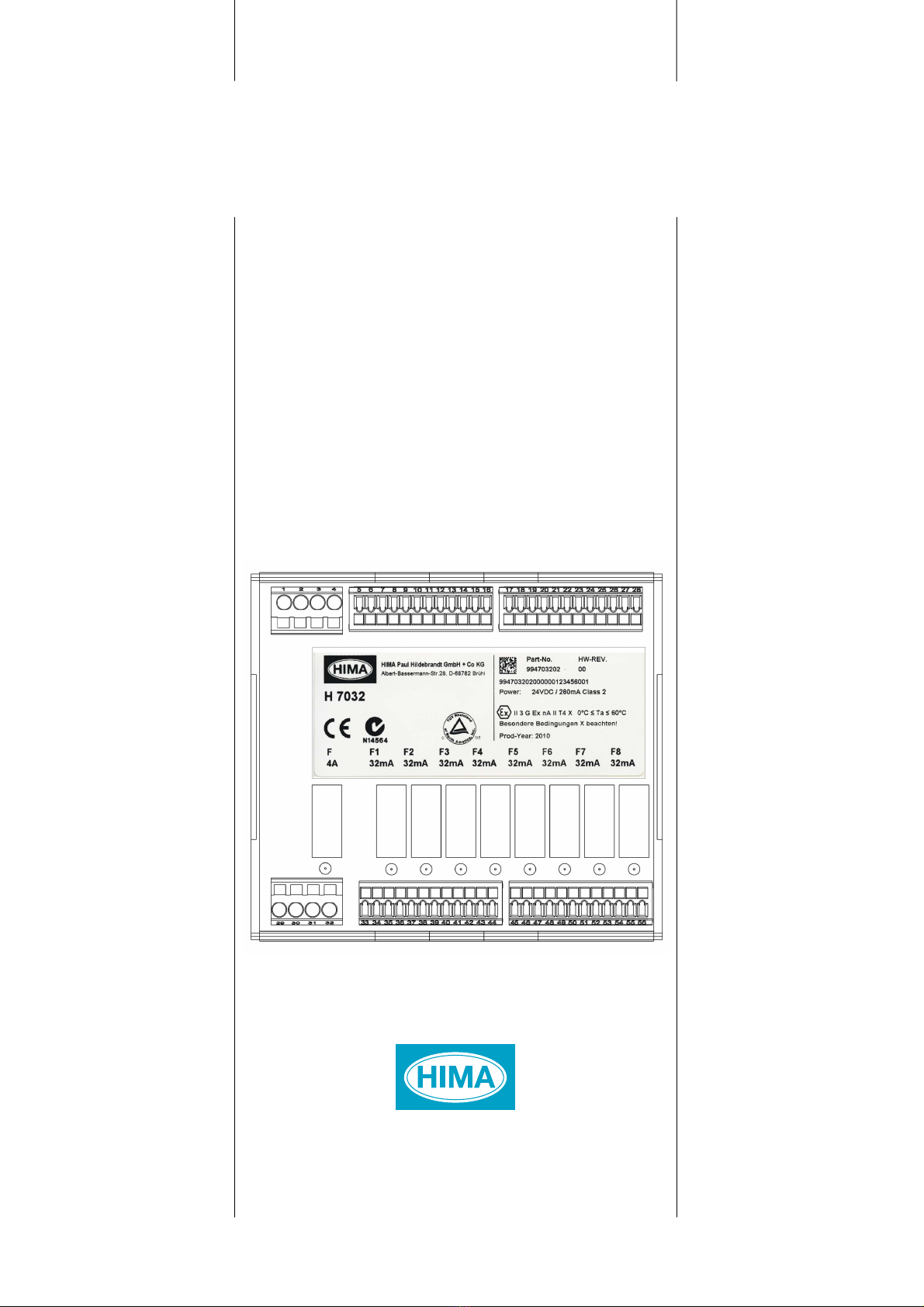

HIMA H 7032 User manual

Industrial Automation

HIMatrix System

Manual

H 7032

Two-Wire Transmitter Supply

HIMA Paul Hildebrandt GmbH + Co KG

Industrial Automation

HI 800 415 BEA

Important Notes

All HIMA products mentioned in this manual are protected by the HIMA trademark. Unless noted otherwise,

this also applies to other manufacturers and their respective products referred to herein.

All of the instructions and technical specifications in this manual have been written with great care and

effective quality assurance measures have been implemented to ensure their validity. However, we cannot

fully preclude flaws or typesetting errors in this manual.

For this reason, HIMA offers no warranties and assumes no legal responsibilities or liabilities for the potential

consequences of any errors in this manual. HIMA appreciates any information concerning possible errors.

Equipment subject to change without notice.

For further information, refer to the CD-ROM and our website at: www.hima.com.

To request more information, please contact:

HIMA Paul Hildebrandt GmbH + Co KG

P.O. Box 1261

68777 Brühl, Germany

Tel.: +49 6202 709-0

Fax: +49 6202 709-107

E-mail: [email protected]

3 von 10

H 7032

Table of Contents

1HIMatrix Two-Wire Transmitter Supply H 7032 with

HART Filter.............................................................................4

1.1 Introduction .......................................................................................4

1.1.1 Terminal Description for H 7032 .................................................5

1.1.2 PIN Assignment for Two-Wire Transmitter Supply .....................6

1.2 Operation ..........................................................................................7

1.2.1 Monitoring of the transmitter supply voltage UTM ........................7

1.3 Specifications H 7032 .......................................................................8

1.4 Mounting the H7032 in Zone 2 .........................................................9

HI 800 415 BEA HIMatrix H 7032

4 of 10

1 HIMatrix Two-Wire Transmitter Supply H 7032

with HART Filter

HIMA Part no.: 99 4703202

1.1 Introduction

H 7032 is a series connection unit for the modular MI 24 01 module of the HIMatrix F60 and

supplies the connected two-wire transmitters with external supply voltage.

H 7032 has the following characteristics:

•It protects the MI 24 01 inputs.

•8 external transmitter supplies for two-wire transmitters S1...S8.

•Low pass filter for HART signals.

•It can be used with transmitter supply voltage monitoring.

•It can be used up to SIL 3.

•DIN rail mounting.

200 Ω

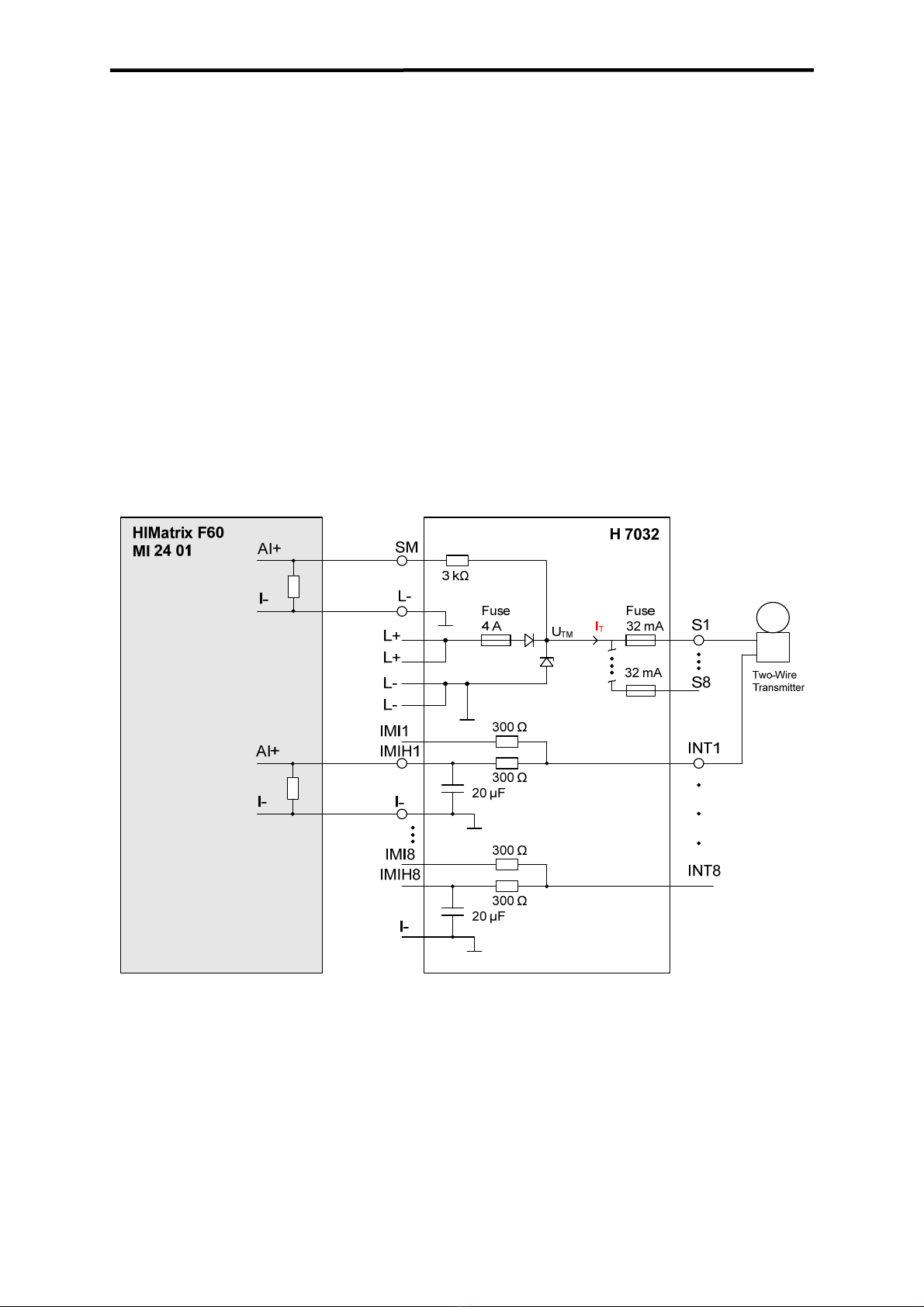

Figure 1: Block Diagram H 7032

HI 800 415 BEA HIMatrix H 7032

5 of 10

1.1.1 Terminal Description for H 7032

Designation Function Cross-section

L+, L- Power supply H 7032 2.5 mm²

S1...S8 Transmitter supply two-wire transmitter 1.5 mm²

INT1...INT8 Analog transmitter input 1.5 mm²

SM Monitoring of transmitter supply voltage (UTM),

connection on the MI 24 01 analog input

2.5 mm²

L- Ground

Connection on the MI 24 01 ground

2.5 mm²

IMI1...IMI8 Series connection unit analog output

Connection on the analog MI 24 01 input

1.5 mm²

IMIH1...IMIH8 Series connection unit analog output, filtered signal

Connection on the analog MI 24 01 input

1.5 mm²

I- Ground

Connection on the MI 24 01 ground

1.5 mm²

Table 1: Terminal Description for Two-Wire Transmitter Supply

HI 800 415 BEA HIMatrix H 7032

6 of 10

1.1.2 PIN Assignment for Two-Wire Transmitter Supply

PIN Signal PIN Signal

1 SM 29 L+

2 SM 30 L+

3 L- 31 L-

4 L- 32 L-

5 IMI1 33 S1

6 IMIH1 34 INT1

7 I- 35 not used

8 IMI2 36 S2

9 IMIH2 37 INT2

10 I- 38 not used

11 IMI3 39 S3

12 IMIH3 40 INT3

13 I- 41 not used

14 IMI4 42 S4

15 IMIH4 43 INT4

16 I- 44 not used

17 IMI5 45 S5

18 IMIH5 46 INT5

19 I- 47 not used

20 IMI6 48 S6

21 IMIH6 49 INT6

22 I- 50 not used

23 IMI7 51 S7

24 IMIH7 52 INT7

25 I- 53 not used

26 IMI8 54 S8

27 IMIH8 55 INT8

28 I- 56 not used

Table 2: PIN Assignment for Two-Wire Transmitter Supply

HI 800 415 BEA HIMatrix H 7032

7 of 10

1.2 Operation

To operate the H 7032, set the following parameters:

•In ELOP II Factory/SILworX, set transmitter supply of the module MI 24 01

MI[xx].Transmitter Used to "FALSE".

•Set the power supply (L+) of H 7032 to the following value:

L+ = UTmin + 16 V at 23 mA, UTmin = minimum transmitter supply voltage

•Use the IMIH terminal if the filtered input signal of the two-wire transmitter should

be used.

1.2.1 Monitoring of the transmitter supply voltage UTM

To monitor the transmitter supply voltage UTM, connect the analog input of the MI 24 01

module to the SM and L- terminals. The transmitter supply voltage UTM is monitored via the

current IMI24, see the following formulas:

IMI24 = UTM / 3200 Ω

UTM = UTmin + ITx 500 Ω+ ITx Rwire+ UFuse 32 mA + Tolerance

Example:

UTmin = 12 V, IT= 22 mA, Rwire= 40 Ω, UFuse 32 mA = 0.6 V, Tolerance = 0.9 V

IMI24 = (12 V + 11 V + 0.88 V + 0.6 V + 0.9 V) / 3200 Ω

IMI24 = 7.93 mA

The input current of MI 24 01 must not fall below 7.93 mA.

The module MI 24 01 checks the transmitter supply voltage UTM. If UTM is less than the

minimum transmitter operating voltage UTmin, the signals from the connected transmitter may

no longer be classified as safe.

HI 800 415 BEA HIMatrix H 7032

8 of 10

1.3 Specifications H 7032

Two-Wire Transmitter Supply

Supply voltage (L+)

regulated

20...30 VDC, PELV, SELV,

Class 2

Current consumption max. 280 mA

Transmitter supply (two-wire transmitter)

Transmitter supply UTVoltage between S and INT

Supply voltage USVoltage between S and L-

Current (transmitter supply) ITC max. 32 mA

Transmitter supply voltage monitoring. Observe the minimum transmitter supply voltage

UTmin of the connected transmitter!

Monitoring of the transmitter supply voltage (SM)

Monitored transmitter supply voltage

UTM

UTM = UTmin + ITx 500 Ω+ ITx Rwire+ UFuse 32 mA +

Tolerance

Fuse

G-fuse cartridge 32 mA Part no. 57 0174327

Filter

Time constant ττ= 6 ms

Filter impedance 300 Ω

Signal oscillation caused by HART

signal

±0,3 % at 20 mA; 1200...2200 Hz

Mounting H 7032

Mounting On DIN rail 35 mm

Mounting position Horizontally or vertically, no mounting distance

required

Special mounting conditions for

USA/Canada

Mount in Type 3 control cabinet or in

Type 3 assembly housing

General

Type of protection IP20

Weight approx. 220 g

Operating temperature 0...+60 °C

Storage temperature -40...+85 °C

Dimensions (H x W x D) approx. 112 x 125 x 40 mm

Table 3: Specifications

HI 800 415 BEA HIMatrix H 7032

9 of 10

1.4 Mounting the H7032 in Zone 2

(EC Directive 94/9/EC, ATEX)

If the special conditions X are observed, the H 7032 device may be installed in Zone 2.

The corresponding EC declaration of conformity is available on the HIMA website.

Special Conditions X

Mount the device in an enclousure (cabinet) that meets the EN / IEC 60079-15 requirements

and achieves a type of protection of at least IP54 (category 1) in accordance to

EN / IEC 60529.

This enclosure (control cabinet) must be labelled as follows:

WARNUNG – NICHT UNTER SPANNUNG ÖFFNEN

WARNING – DO NOT OPEN WHEN ENERGIZED

Note: If a potentially explosive atmosphere has been precluded, work can be also

performed when the device is under voltage.

The enclosure (control cabinet) in use must be able to safely dissipate the generated heat.

The H 7032 device has a power dissipation of 4 W.

Since the device is equipped with exchangeable fuses, an additional warning must be placed

on the front plate of the enclosure (control cabinet). The warning should have following text:

WARNUNG – SICHERUNGEN NICHT UNTER SPANNUNG

HERAUSNEHMEN ODER WECHSELN

WARNING – DO NOT REMOVE OR REPLACE FUSES

WHEN ENERGIZED

The EC Directives and the following standards must be observed when installing and

operating the device:

DIN EN 60079-15 (VDE 0170/0171 Part 16)

DIN EN 60079-0 (VDE0170-1)

DIN EN 60079-11 (VDE0170-7)

DIN EN 60079-14 (VDE 0165 Part 1)

The H 7032 device is labelled with the following special product marking:

µII 3 G Ex nA II T4 X 0°C ≤Ta ≤60°C

Special conditions X must be regarded!

HIMA

...the safe decision.

HIMA Paul Hildebrandt GmbH + Co KG

Industrial Automation

P.O. Box 1261 •68777 Brühl

Phone: (+49) 6202 709-0 •Fax: (+49) 6202 709-107

(1043) E-mail: [email protected] •Internet: www.hima.com
